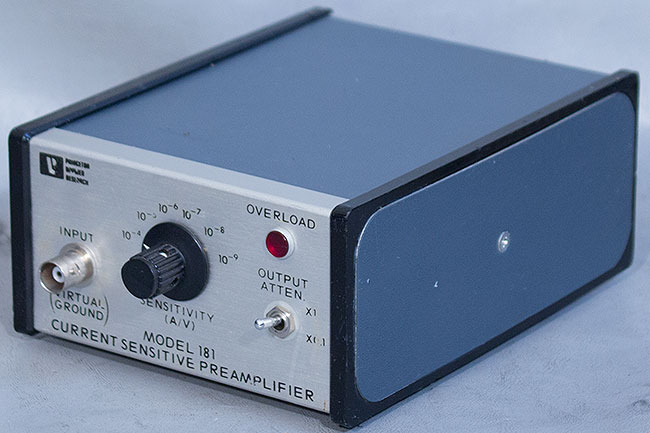

EG&G/Princeton Applied Research (PAR)/Signal Recovery 181 Current Sensitive Preamplifier/Pre-amplifier
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Ametek/Signal Recovery and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit is tested and guaranteed to work for 30-days, parts and labor, excluding freight. It is ready to ship!
Description:
The Model 181 Current Sensitive Preamplifer is a high-sensitivity low-noise device ideally suited to processing the exstremely small current signals provided by photodetectors and similar sources. The preamplifier features a virtual-ground input and sensitivity selectable by means of a front-panel switch from 10-4 A/V to 10-9 A/V. A built-in output attenuator allows the output signal to be reduced by a factor of ten. A front-panel OVERLOAD lamp provides warning when output voltage excurisions exceed normal operating levels. There is even provision for biasing an external detector by applying an internally derviced DC voltage to the INPUT connector.
The model 181 takes avantage of the accessory power outputs provided on SIGNAL RECOVERY lock-in amplifiers by taking its power from the lock-in amplifier via a rear-panel connector, but it can also be used with a separate line power source, available as an optional extra, or with any suitable regulated power source.
With its small size, high performance, and ease of operation, the instrument should prove of significant value in any application involving low-noise processing of small current signals.
Input Specifications:
Sensitvity: 10-4 A/V to 10-9 A/V in six ranges
Overload Indicator: Indicates that instantaneous (DC plus peak AC) current has exceeded amplifier capability
Frequency Response:
| Sensitivity (A/V): |
Max. DC Input Current
at 1 kHz: |
Frequency Response, DC to: |
| 10-4 |
1 mA |
200 kHz |
| 10-5 |
100 µA |
200 kHz |
| 10-6 |
10 µA |
100 kHz |
| 10-7 |
1 µA |
50 kHz |
| 10-8 |
100 nA |
10 kHz |
| 10-9 |
10 nA |
1 kHz |
Outputs Specifications:
Monitor Output: 600 Ω rear-panel BNC connector permits monitoring of the output signal
Main Output:
Level: 6.5 V rms maximum
Impedance: 1 kΩ nominal
Output Attenuator: Provides optional 1:10 attenuation of output voltage
Power Specifications:
Power: ±15 V or ±24 V at 30 mA
General Specifications:
Dimensions (Excluding Connectors): 4.5" W x 6.6" L x 2.7" H (114 mm x 168 mm x 69 mm)
Weight: 2.2 lbs (1 kg)
