Gecko G540 4-Axis CNC Stepper Motor Driver Controller Board Plasma Cutter Kit

Please review the entire listing, and video to understand exactly what your purchasing

This listing is for the most complete Gecko G540 Plasma system relay kit currently available.

(Please Review The Video Below) This system eliminates as much wiring as possible for the neatest professional installation.

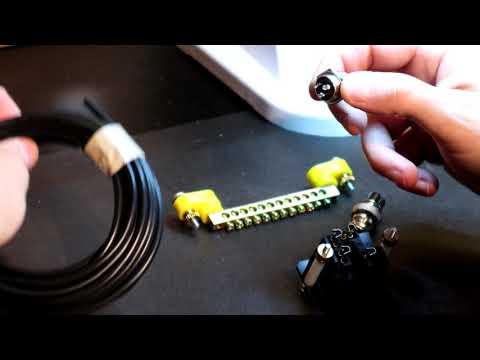

I made a detailed video overview below covering the kit.

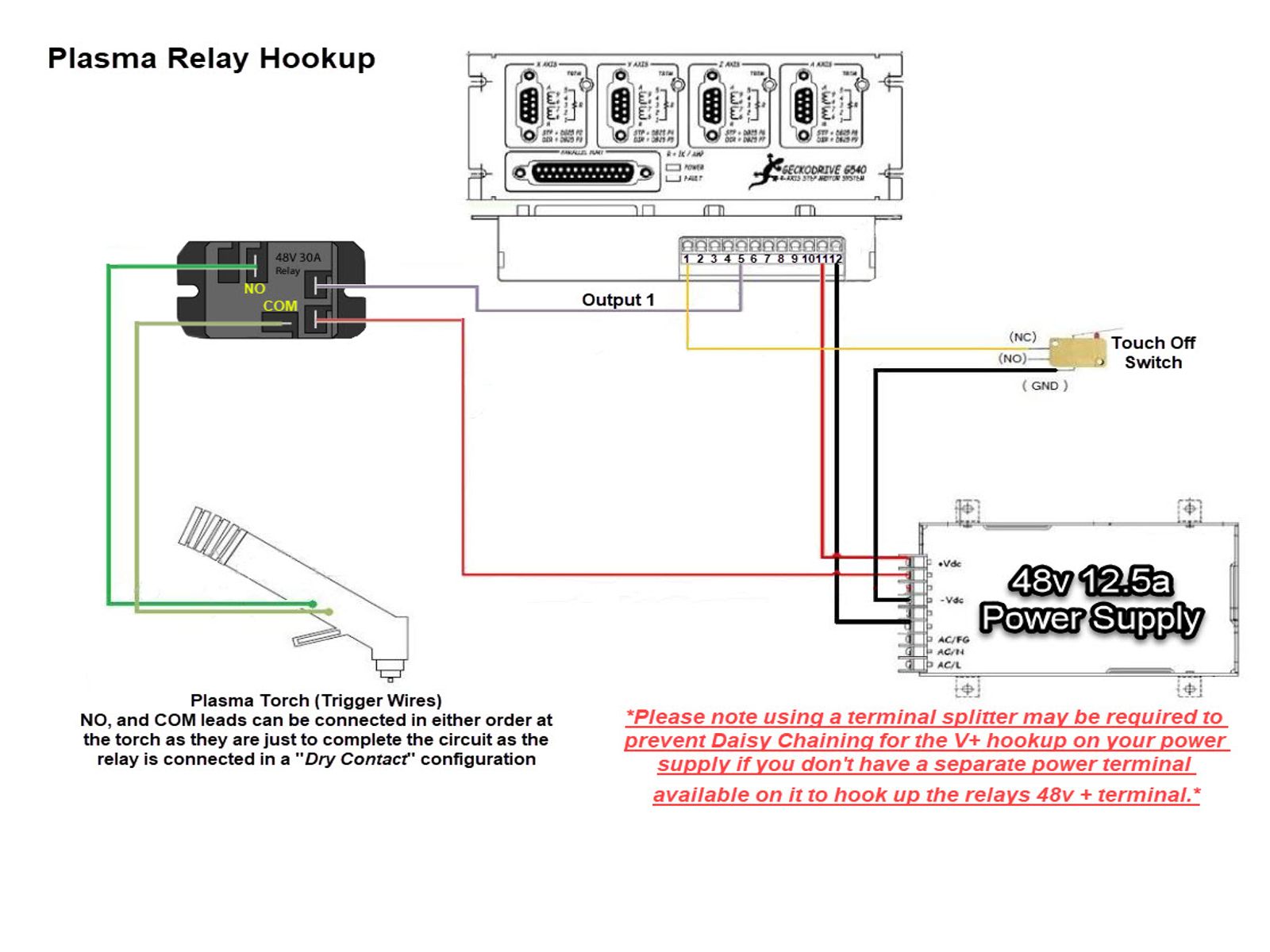

The wiring diagram is above to keep things nice, and simple.

This kit comes complete with the following to install a relay in your Gecko Drive G540 motion controller to support cycling your Plasma system's torch on, and off through Mach3.

1- GX-16 3 Pin Male Panel Mount To Install In Your Enclosure (3rd pin on this connector is for the 22/2 cable's shield drain. You will run a lead from the 3rd pin on this connector to your ground buss mounted in your electronics enclosure)

1- GX-16 3 Pin Female Plug To Be Installed On The Included 22/2 Double Shielded Cable (3rd pin on this connector is for the 22/2 cable's shield drain)

4 -Solder Type Faston Connectors With Silicone Insulators For Termination Of The Relay To Your G540

1 -48v 30a SPST Relay (Tool Less Mounted) (These Work Right Off Your System's 48v Power Supply To Eliminate Having To Install Another To Run Them)

1 -12 Point Relay Splitter (Tool Less Mounted) To Allow Proper V+ Power Supply Terminal Splitting Eliminating Daisy Chaining If Required

20ft.- 22/2 Double Shielded Cable To Provide Bullet Proof Signal Protection To Your Torch

The only missing components is the wire to install the relay into your system.

Shipping is free in the US, and is done using USPS priority mail 2-3 day mail service.

All my international orders are handled through eBay's Global Shipping Program as they offer us both the best protection against loss, and damages. Please review their policy for a shipping quote based on your specific location as they don't disclose it to me.
