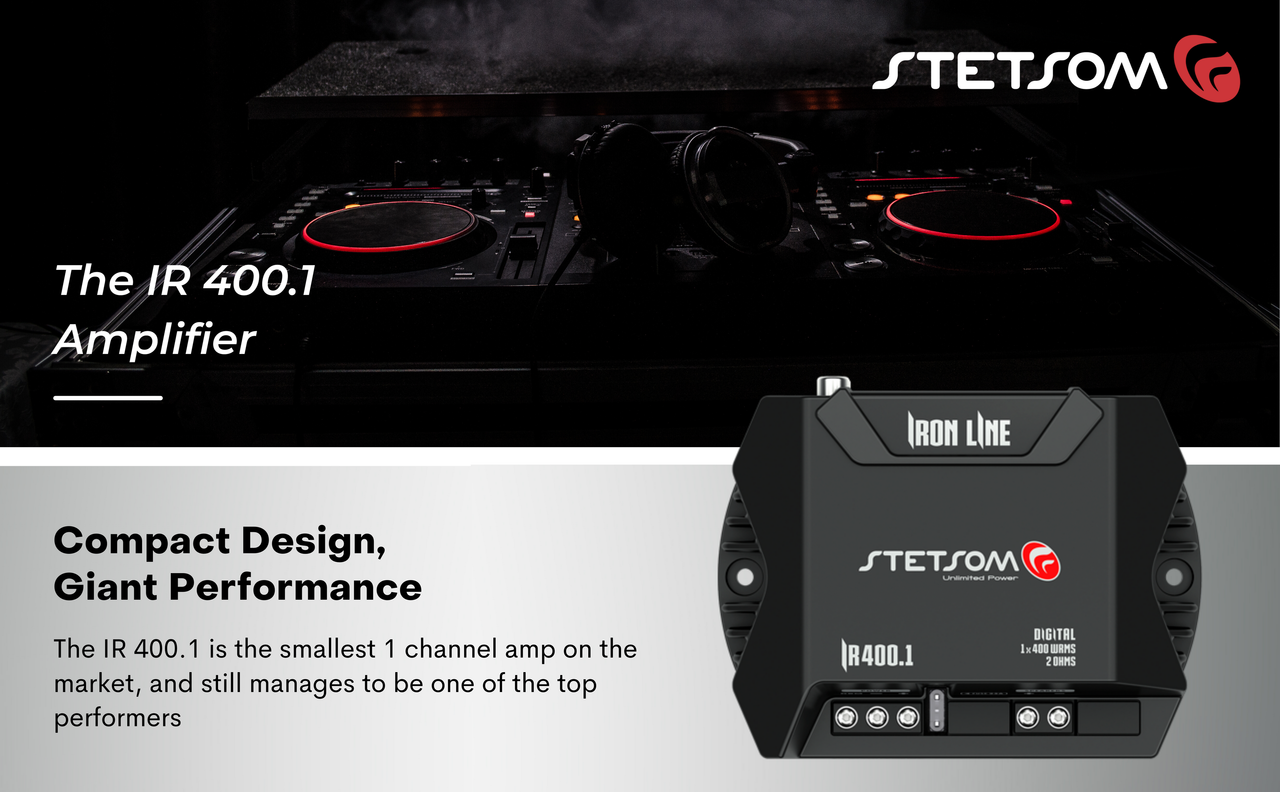

IR400-1-1


The Iron Line Series amps feature the most compact and enhanced design in the market, while offering high fidelity sound in bass, mid and highs.


Main Features
  • Usage Versatility (Subwoofers, Woofers, 6", 6x9", 2way, Drivers & Tweeters)
  • 4k Audio Quality - Ultra HD
  • Crossovers (Low Pass & High Pass)
  • Tough Connectors
  • New wire input with auto turnon (NO RCA NEEDED)


Technical Specs

  • Number of Channels: 1
  • RMS Power at 2 Ohm 13.8V: 400W RMS
  • RMS Power at 4 Ohm 13.8V: 160 W RMS
  • RMS Power at 2 Ohm 14.4V: 430W RMS
  • RMS Power at 4 Ohm 14.4V: 250 W RMS
  • Supply Voltage: 9 ~ 15V
  • Frequency Response: 10Hz ~ 22 KHz
  • Crossover Low Pass: 60Hz ~ 22 KHz
  • Crossover High Pass: 10Hz ~ 700Hz
  • Signal to Noise: > 90 dB
  • Harmonic Distortion: > 0,01%
  • Input Sensitivity: RCA 200 mV / Wire 1.5V
  • Input Impedance: RCA 38K Ohms / Wire 10k Ohms
  • Impedance Output: 2 Ohms
  • Consumption with Musical Signal: 18A (13.8V)
  • Consumption with Bass Signal: 36A (13.8V)
  • Dimensions (H x W x D): 52.5 x 127,5 x 99.8
  • Weight: 0,508 Kg
