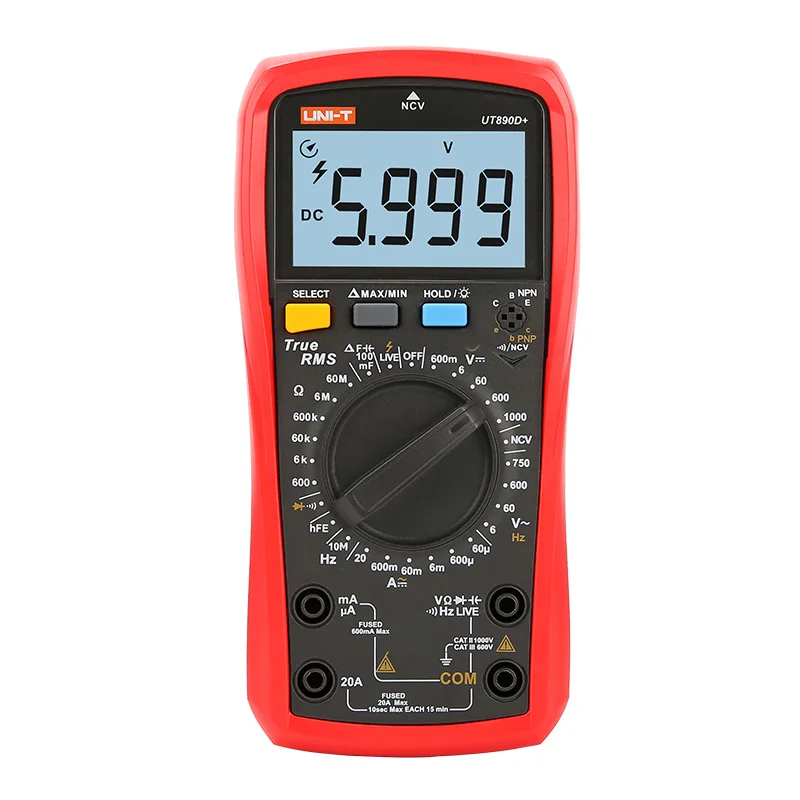

UNI T Digital Multimeter UT890D+ 6000 Counts Manual Frequency Voltage Ammeter AC DC DMM Capacitor Tester NCV


The UT890D+ 6000-count true RMS digital multimeters are designed with large LCD display.
 The maximum measurable capacitance is 100mF, with fast response time of less than 12s.
The NCV and continuity measurement have acousto-optic indications.
UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.


Features:


1. Fuse blow alarm prompt


2. True RMS voltage and current detection (voltage up to 1000V, current up to 10A)

3.NCV on and off beep sound and light alarm

4.100mF large capacitor fast charging measurement

5. With AC / DC current mode memory function

6. single test lead test fire line (UT890D+)


Specification Range UT890D+
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2)
AC Voltage 6V/60V/600V/750V ±(0.8%+3)
ACV Frequency 10Hz～10kHz ±（0.1%+5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF ±(3%+10)
Frequency 9.999Hz～9.999MHz ±(1.0%+5)

Display Count 6000
Manual Range √
NCV √
hFE √
Diode Test √
Continuity Test √
Live √
True RMS √
Fuse blowing alarm  √
Acousto-optic indication(NCV/continuity) √
High voltage false detection 1000Vrms √
Current (AC/DC) mode memory  √
Over-current alarm ≥20A √
Low Battery Indication ≤2.5V √
Data Hold √
REL √
Max/Min V 、A   √
Auto  Power Off 15Min √
Back light 30s √
Operation Temperature 0℃～40℃
Safety CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power 1.5V x 2 (Battery was not included for air shipping )
Product color Red and Gray
Product Net Weight 346g
Product Size 183mm x 88mm x 56mm
Standard Packing included Gift Box, UT890D+ Multimeter, 20A Multimeter probe
Standard Quantity Per Carton 40pcs
Standard carton measurement 690mm x 450mm x 340mm
Standard carton gross weight 23Kg

20190331043514524
20190331043532367

Tips:
This product does not include batteries. We are UNI-T Authorized seller,The UNI-T products sold by our company are all genuine, ,Our packaging is based on the original factory standard packaging. Please rest assured to buy. If you have any question, please feel free to contact us. Large quantities of wholesale are welcome, and the price will be better.

Shipping:
 We will ship all items within 1-3 working days upon receipt of payment,our goal is: hope you will receive it in short time.
Import duties and taxes are not included in the item price or shipping charges. These charges are the buyer responsibility.

Warranty&Return Policy:
We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you
A 1 year warranty is offered for this product. If the product malfunctioned under proper usage per instructions
manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.30 days evaluation and investigation takes placed after receiving your return item. A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty
