HD 5MP IMX335 AHD Coaxial high-definition 4in1 CCTV Camera


5MP AHD Camera MUST be used with 5MP AHD DVR

It Cannot work with standard 2MP AHD DVR

Please make sure your AHD DVR supports 5MP AHD camera before purchasing.


Default signal is HD AHD, How to shift AHD/CVI/TVI/CVBS Signal by OSD?
 UP: AHD   Down: CVI    Left: TVI    Right: CVBS
 (Press button in different direction for 5 seconds to be related signal)
 PAL/NTSC in one: Set on OSD menu


 * This camera have 4 MODE for video output:  AHD,  CVI,  TVI and CVBS
 * Default MODE is AHD MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR.


Feature:

 * 1/2.9" 5MP FH8538M + IMX335 progressive scan CMOS Sensor,

 * Excellent performance, clear and bright picture.

 * Resolution: 2560(H)*1920(V) 5mp 4:3 ; 2560(H)*1440(V) 4mp 16:9

 * TV system: NTSC / PAL in one

 * Video Output: Multi-resolution (5mp/4mp)AHD.

 * Capture moving images, AHD Excellent performance, with clear and bright image

 * Illumination: 0.001Lux/(F1.2, AGC ON)

 * D/N Switch: support IR-CUT switch, CDS external control

 * Support OSD menu control, Suitable for user-defined Settings.

 * Support DWDR. Support UTC function

 * Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR

   Lens: 3.6mm 5mp Lens,

   Optional: 2.8mm/3.6mm/6mm/8mm/12mm/16mm
  (If you need to choose the lens, please leave message when you buy it)

Specifications:

Sensor1/2.9" FH8538M+IMX335
 Format

PAL/NTSC

 Effective Pixel

2560(H)*1920(V) 5mp 4:3
2560(H)*1440(V) 4mp 16:9

FPS: 5MP/20fps, 4MP/25fps, 4MP/30fps

Illumination0.001Lux/(F1.2, AGC ON)
ShutterAUTO
D/N ModeEXT (Default) /AUTO/COLOR/B/W
SynchronouslyInternal
 Video OutputAHD/TVI/CVI/CVBS switch
 ExposureShutter/AGC/Brightness/DWDR
White BalanceATW/MWB
D/N ModeInfrared/Internal AUTO/Color/B&W
AdjustSharpness/Display Screen/Edge DPC/Output mode
LanguageCHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG
Operation Temperature-20?  to  60?
Working HumidityRelative humidity less than 90 %
PowerDC 12V/1A
Weight0.2 KG


Packaging included:

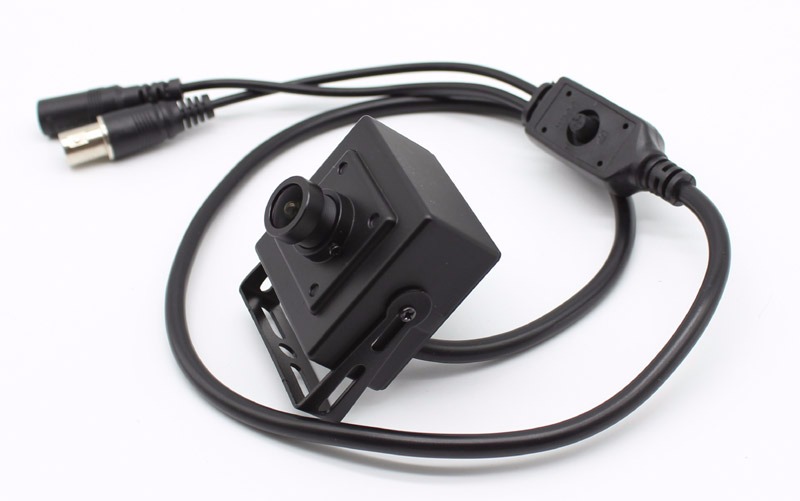

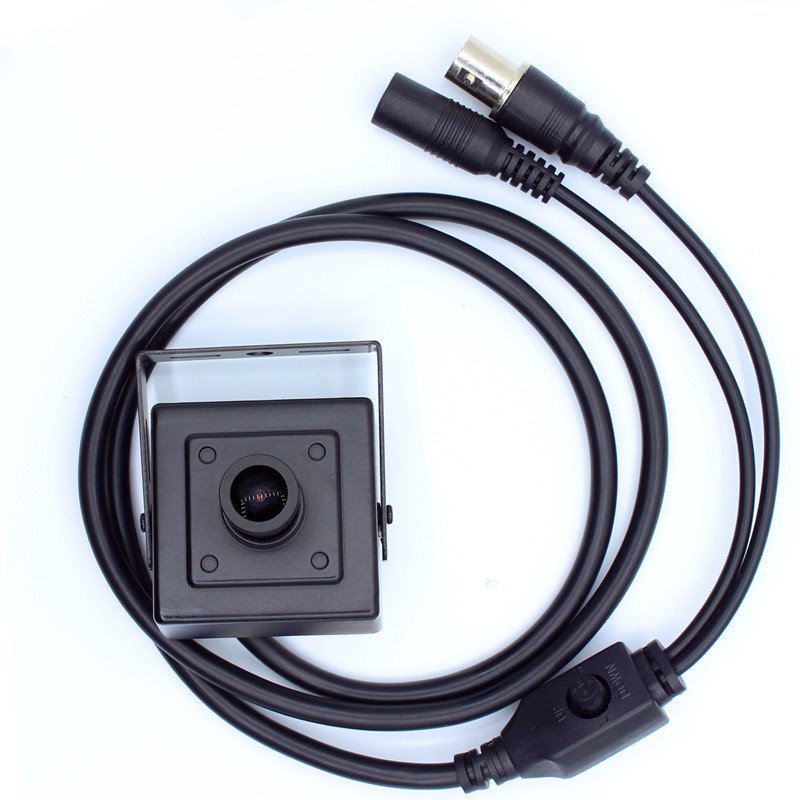

1x Mini box IMX335 5mp AHD TVI CVI CVBS CCTV Camera

Warranty Term:  One Year Warranty
