Brand New! PAIR!

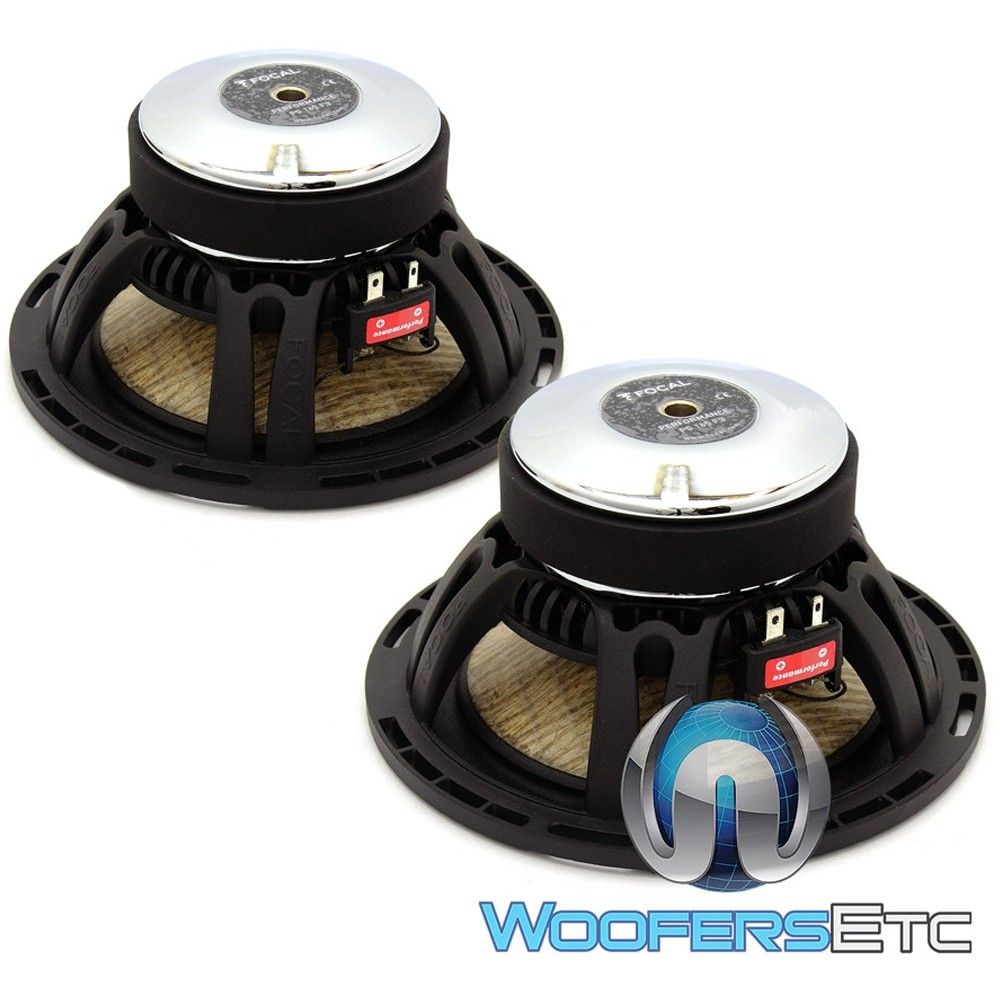

W/PS165F3 - Focal 6.5" 80W RMS PS Line Midbass Drivers from PS-165F3 Component Set

 Features & Specifications:

                The flax cone are made in France exclusively by Focal since 2013. With their original design, the cone are entirely oriented towards acoustic performance. They are made of high quality flax fiber enclosed by two thin layers of glass fiber. F cone are characterized by their natural sound, with low coloration, their richness of reproduction in the midrange register and their tighter bass. The lightness of the fiber satisfies the criteria of high internal damping, high velocity and high flexural rigidity. Flax is twice as light as fiberglass, because the fiber is hollow. It also has very low elasticity which makes it ideal to increase the flexural rigidity of a sandwich structure.
                  Features:

                  • Flax Cone - Neutral Sound without Coloration, More Dynamic, Natural Reproduction
                  • Butyl Surround - Excellent Reliability
                  • Aluminum Basket - Rigid and Non Magnetic Design / Excursion
                  • Serial Number Engraved on the Surround
                  • Integrated Terminal
                  • High Power Handling
                  Specifications:

                  • Power Handling:
                    • 80W RMS
                    • 160W Peak
                  • Sensitivity (2.83V/1m): 90.7 dB
                  • Flax Cone
                  • Butyl Surround
                  • Nominal Impedance: 4-Ohms
                  • DC Resistance: 3-Ohms
                  • VC Diameter: 32mm
                  • VC Height: 15mm
                  • Kapton Former
                  • Layers: 2
                  • Aluminum Wire
                  • Xmax: ±5mm
                  • Magnet: 89mm x 42mm x 17mm
                  • Magnet Weight: 1050g
                  • Flux Density: 0.9T
                  • Gap Height: 5mm
                  • Mounting Depth: 3.03"
                  • Net Weight: 1150g
                  • Crossover Cut-Off: 300Hz
                  Parameters:

                  • Fs: 66Hz
                  • Vas: 10.6l
                  • Qts: 0.86
                  • Qes: 0.92
                  • Qms: 12.8
                  • Re: 3.3 Ohms
                  • Sd: 132.7 cm2
                  • Cas: 7.55E-08 m5/N
                  • Mas: 76 Kg/m4
                  • Ras: 2480 ohms.ac
                  • Cms: 430 um/N
                  • Mms: 13.4g
                  • Rms: 0.44 Kg/s
                  • Ces: 668.23 mF
                  • Les: 8.6 mH
                  • Res: 45.9-Ohms
                  • Bl: 4.5 N/A
                  • SPL: 87.1 dB/W/m
                  • f-30dans 30L: 60Hz
