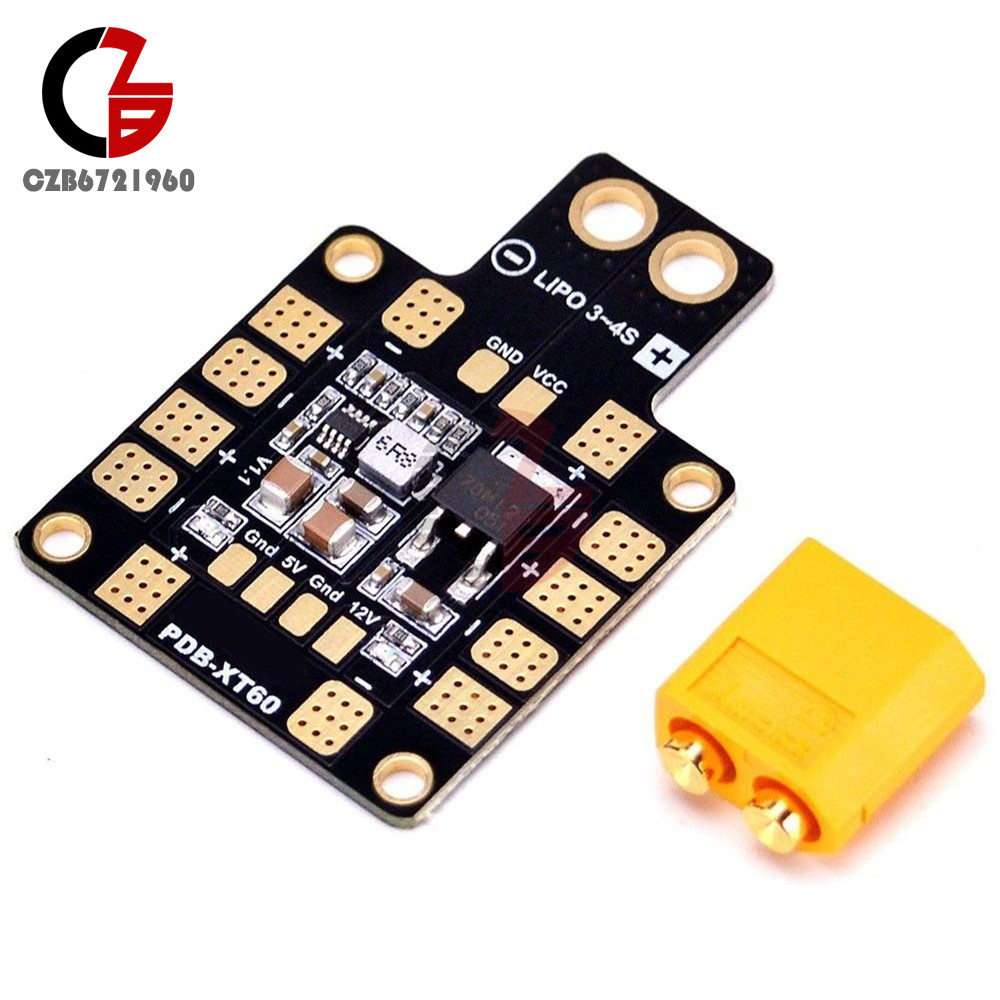

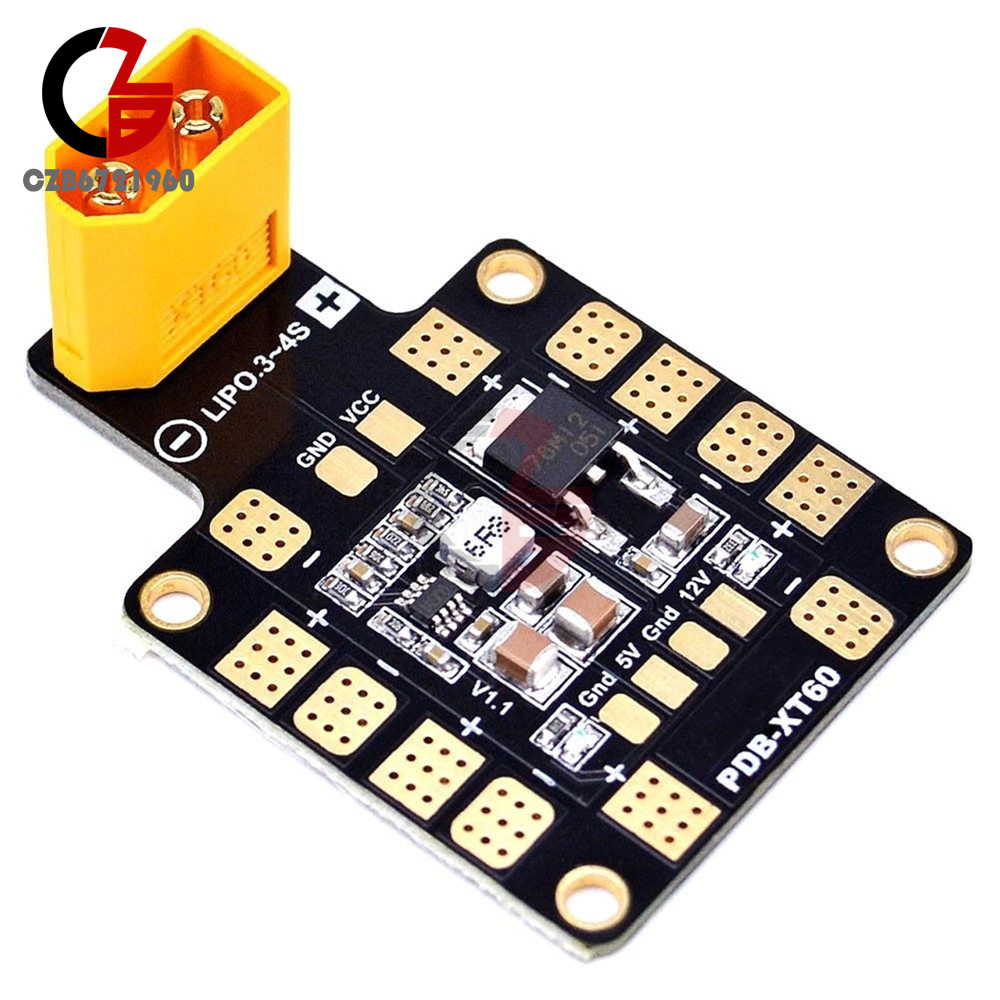

PDB-XT60 Copper Power Distribution Board with BEC 5&12V 3S 4S for RC Multirotors
Popular
Product Introduction
Features:
1. 2oz copper, 4-layers &1.6mm PCB.
2. Built-in XT60 Socket.

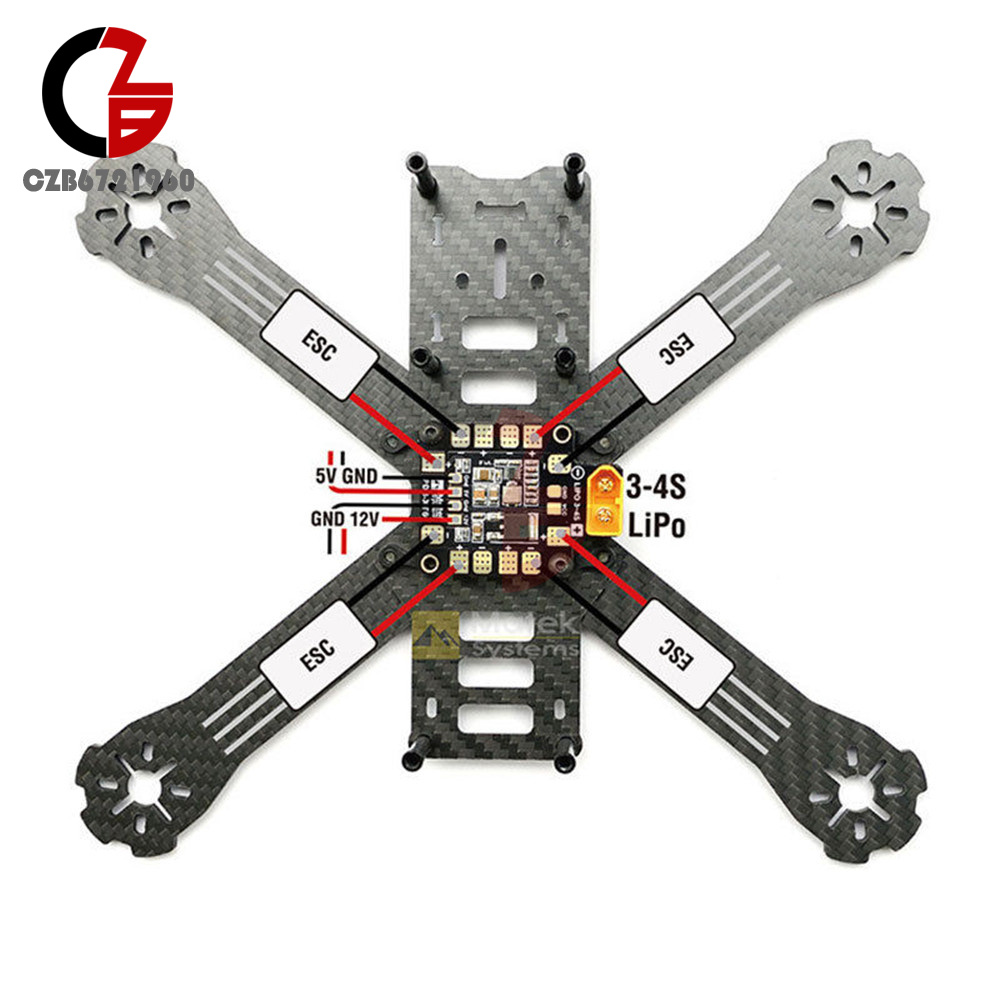

3. Total 6 pairs ESC solder tabs are fit for H or X type frame.
4. 5V & 12V Output LED indicators & Short circuit tolerant .
Specifications:
1. Input voltage range (3S-4S LiPo operation): 9 - 18V DC
2. Regulated 5V and 12V outputs
3. LED power indicators ( 5V & 12V outputs )
4. 6 ESC outputs & 1 pair VCC/GND pads
5. Size: 50 x 35 x 3mm/2 x 1.4 x 0.1 in
6. Package size: 145 x 88mm/5.7 x 3.5 in
7. Net Weight: 10g
8. Package weight: 15g

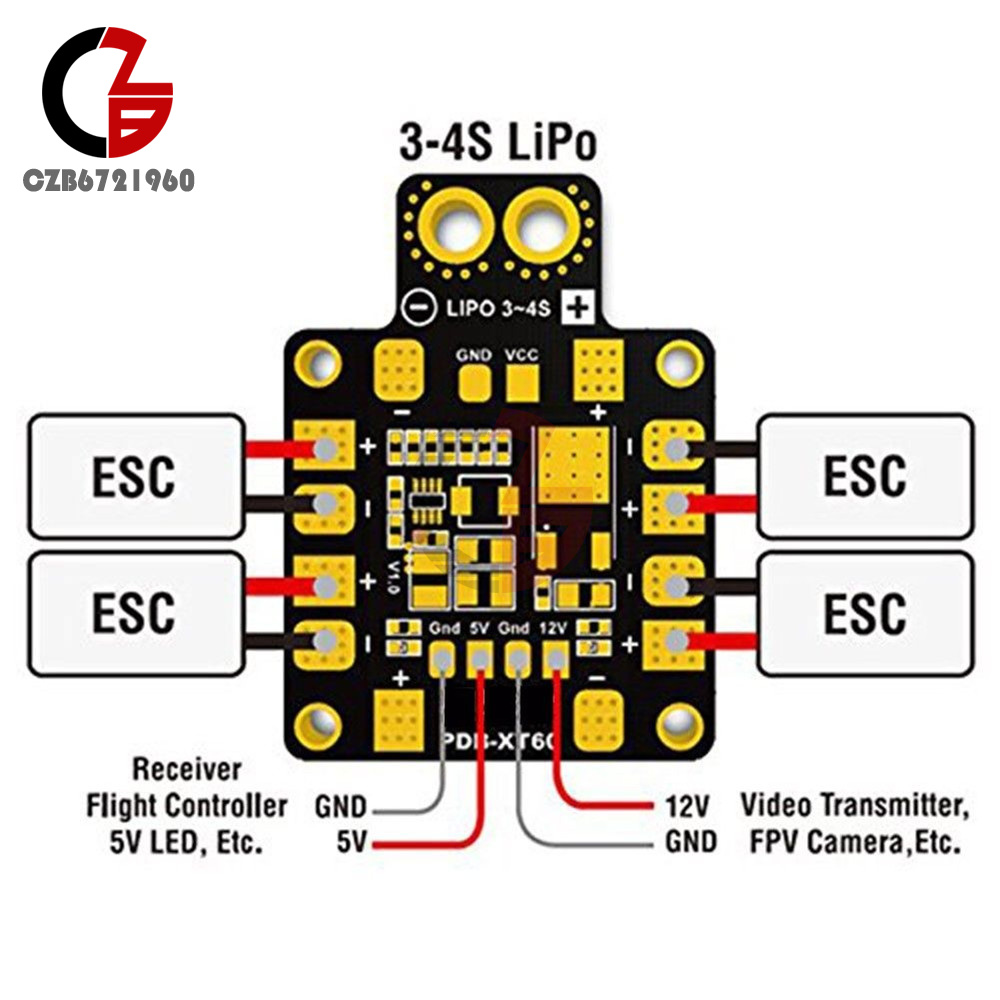

ESC outputs:
1. Continuous current: 25A*4 or 15A*6
2. Peak current (10 seconds/minute): 30A*4 or 20A*6
BEC 5V output:
1. Designed for RC Receivers, Flight controllers, OSD, and Servos.
2. DC/DC synchronous buck regulator.
3. Voltage: 5.0 +/- 0.1VDC
4. Continuous current: 2 Amps (Max.2.5A 10s/minute)
5. Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
6. Short-circuit tolerant (5 seconds/minute)
BEC 12V output:
1. Designed for Video TX or FPV camera with linear regulator.
2. The battery should be 4S LiPo (13~18V DC)
3. Voltage: 12.0 +/- 0.3VDC
4. Continuous current: 500mA (Max.0.8A 5s/minute)
5. Short-circuit tolerant (2 seconds/minute)
BEC 12V @ 3S LiPo
Output voltage= 3S LiPo voltage -1V
Package include:
1 x PDB-XT60
1. 2oz copper, 4-layers &1.6mm PCB.
2. Built-in XT60 Socket.
3. Total 6 pairs ESC solder tabs are fit for H or X type frame.
4. 5V & 12V Output LED indicators & Short circuit tolerant .
Specifications:
1. Input voltage range (3S-4S LiPo operation): 9 - 18V DC
2. Regulated 5V and 12V outputs
3. LED power indicators ( 5V & 12V outputs )
4. 6 ESC outputs & 1 pair VCC/GND pads
5. Size: 50 x 35 x 3mm/2 x 1.4 x 0.1 in
6. Package size: 145 x 88mm/5.7 x 3.5 in
7. Net Weight: 10g
8. Package weight: 15g
ESC outputs:
1. Continuous current: 25A*4 or 15A*6
2. Peak current (10 seconds/minute): 30A*4 or 20A*6
BEC 5V output:
1. Designed for RC Receivers, Flight controllers, OSD, and Servos.
2. DC/DC synchronous buck regulator.
3. Voltage: 5.0 +/- 0.1VDC
4. Continuous current: 2 Amps (Max.2.5A 10s/minute)
5. Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
6. Short-circuit tolerant (5 seconds/minute)
BEC 12V output:
1. Designed for Video TX or FPV camera with linear regulator.
2. The battery should be 4S LiPo (13~18V DC)
3. Voltage: 12.0 +/- 0.3VDC
4. Continuous current: 500mA (Max.0.8A 5s/minute)
5. Short-circuit tolerant (2 seconds/minute)
BEC 12V @ 3S LiPo
Output voltage= 3S LiPo voltage -1V
Package include:
1 x PDB-XT60
