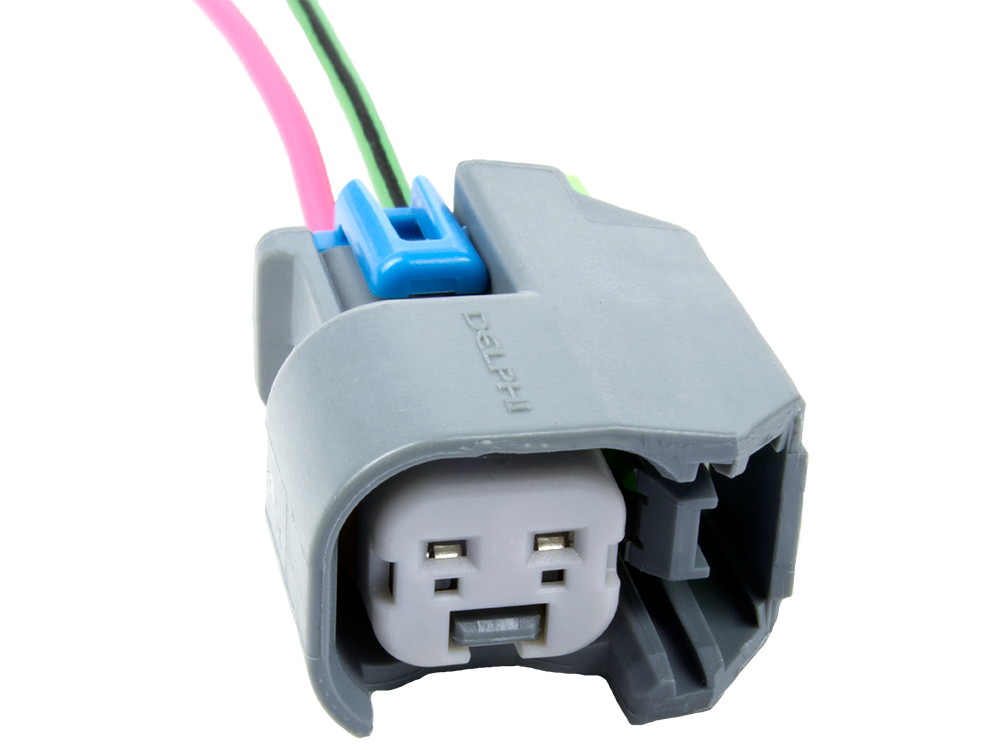

Fuel Injector 2 EV6 Pigtail GM 6.0L LS2 (06-09 Trailblazer SS)

Genuine Aptiv / Delphi (GM Original Equipment) Components

CONNECTOR PINOUT DETAILS
PIN	WIRE	FUNCTION
A	18ga PNK	IGNITION POWER (12V)
B	18ga LT GRN/BLK	INJECTOR CONTROL (GROUND)

MATERIALS LIST ITEMS BELOW WERE USED TO MAKE THIS ASSEMBLY
	DESCRIPTION / PART NUMBER	KIT QTY
	Delphi 2 Way Gray GT 150 Sealed Female Connector EFI P/N: 100-00581	1 piece
	Delphi 2 Way Blue TPA GT 150 Secondary Lock Terminal Position Assurance for proper terminal retention EFI P/N: 100-00580	1 piece
	Delphi Light Green CPA GT 150 Secondary Lock Connector Position Assurance for proper terminal retention EFI P/N: 100-00579	1 piece
	Delphi GT 150 Female Sealed Tin (Sn) 18-16 AWG Terminal BUY 25 TERMINALS \| BUY 50 TERMINALS EFI P/N: 100-00125	2 pieces
	Delphi Blue 1 Way GT 150 Seal for Cable OD 1.86 - 2.40 mm Seal Outer Diameter = 4.50 mm EFI P/N: 100-00189	2 pieces
	18 AWG Automotive TXL Wire Pink by the foot BUY 25FT WIRE \| BUY 50FT WIRE EFI P/N: 101-00097	1 foot
	18 AWG Automotive TXL Wire Light Green w/ Black Stripe by the foot BUY 25FT WIRE \| BUY 50FT WIRE EFI P/N: 101-00092	1 foot

OTHER PIGTAILS RELATED TO 6.0L LS2 (05-09)
	DESCRIPTION / PART NUMBER
	E40 Engine Control Module ECM Pigtail J1 X1 GM 6.0L LS2 (05-06 GTO) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00270
	Accelerator Pedal Position APP Sensor Pigtail GM 6.0L LS2 (05-06 GTO) Genuine Yazaki (GM Original Equipment) Components EFI P/N: 100-00282
	Set of 8 Fuel Injector EV6 Pigtails 6.0L LS2 (05-06 GTO) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01392
	Set of 8 Fuel Injector EV6 Pigtails 6.0L LS2 (05-09) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01393
	Crankshaft Position CKP Sensor Pigtail 58x GM 6.0L LS2 (05-09) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00321
	Camshaft Position CMP Sensor Pigtail GM 6.0L LS2 (06-09 Trailblazer SS) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00721
	Accelerator Pedal Position APP Sensor Pigtail GM 6.0L LS2 (05-09 Corvette) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00320
	Knock KS Detonation Sensor Pigtail Bank 1 GM 6.0L LS2 (05-09) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00322
	Alternator (Generator) Pigtail GM 6.0L LS2 (05-07 Corvette) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01343
	Heated Oxygen Sensor HO2S Pigtail Bank 1 GM 6.0L LS2 (05-06 GTO) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00324
