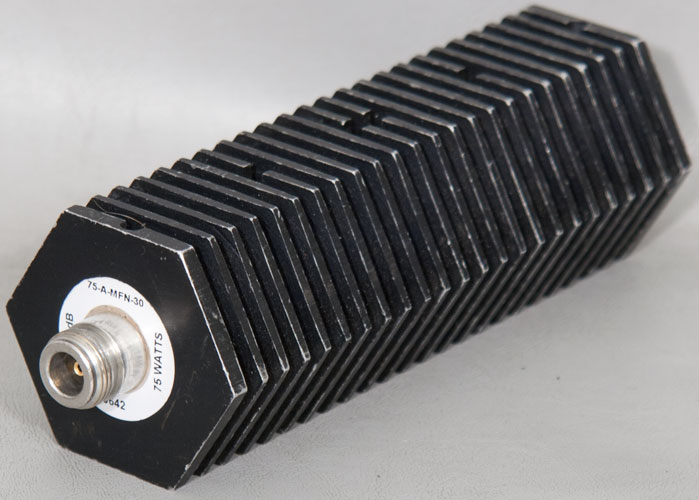

Bird 75-A-MFN-30 75 W 30 dB Bi-Directional Convection Cooled Attenuator w/Type-N
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Bird and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit is guaranteed to work for 30-days, parts and labor, excluding freight.

The Unit's Model Number Tag Reads:
Model Number: 75-A-MFN-30

Breakdown by Part Number:
Power Rating: 75 W
Product Type: Attenuator
Connector Gender: Male/Female
Connector Type: N
Attenuation Value: 30 dB

Key Features:

  • Self cooling design, needs no cooling plate.
  • Frequency Range to 2.4 GHz.
  • Fully shielded against production of extraneous radiation.
  • Attenuator requires no AC power.
  • Rugged construction.
  • Broadband operation.

    • Description:
    75 Series, 75 Watt Bi-Directional RF Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quailty, robust construction and conservative power ratings.

    Specifications:
    Power Rating: 50 W
    Connector: Type-N
    VSWR & Frequency Range: 1.10:1 from DC to 1 GHz, 1.25:1 from 1 to 2.4 GHz
    Dimensions: 7.3" L x 2.3" Dia. (186 mm L x 59 mm Dia.)
    Weight: 1.6 lbs (726 g)
    Finish: Black Anodized Aluminum
    Coolant Method: Dry, Convection Cooled
    Impedance: 50 Ohm
    Operating Position: Any
    Ambient Temperature: -40°C to +40°C
    PIM: -110 dBc Min.
    AC Power: None
    Humidity: 95% non-condensing
    Attenuation Value: 30 dB
