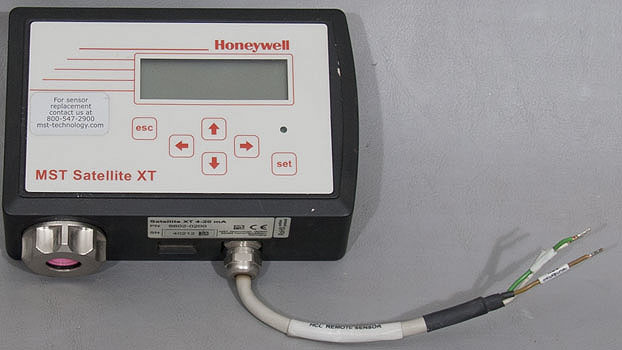

Honeywell/MST Satellite XT HCl Gas Detector Transmitter, ASM PN: 02-332423-01/A
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from ASM and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This item might be new but we don't have the original packaging. It came from ASM excess inventory. It is guaranteed to work but the sensor may need to be replaced if it was used.

ASM Information:
Part Number: 02-332423-01
Description: ASSY-HCL REMOTE SENSOR

Main Unit Information:
Part Number: 9602-0200
Serial Number: 40212
Description: Satellite XT 4-20 mA
CE Marked: Yes

Gas Sensor Information:
Part Number: 9602-5800
Serial Number: 15403-819
Description: HCl-Sensor

Provides Gas Detection For:

  • Gas cabinets
  • Valve manifold box
  • Equipment enclosure
  • Ambient breathing zone
  • Gas storage rooms
  • OEM equipment

    • Advantages:

  • Fast, reliable, specific gas detection
  • Continuous real-time monitoring
  • Interchangeable intelligent sensor cell
  • No dynamic gas calibration required
  • Generic sensor head electronics
  • Low cost of ownership
  • No moving parts to wear down or replace

    • Description:
    The Satellite XT is the simple solution for all "Point-of-Use" gas detection needs. Based upon the market's smallest and most reliable electrochemical cell technology, the Satellite XT offers flexibility, simplicity and ease of application.

    Sensor Information:
    Type: Gas Detection with Electrochemical Cells
    Part Number: 9602-5800
    Substance: HCl - Hydrogen Choloride
    Nominal Range: 0 to 30.0 ppm

    Specifications:
    Power Requirements:
      Voltage: 12 to 24 VDC
      Consumption: max. 1 W
    Analog Signal Output:
      Monitoring Mode: 4-20 mA
      Warning Condition: 2.8 - 4 mA 0.1 Hz
      Maintenance Mode: 2.4 - 4 mA 1 Hz
      Fault Range: 0 - 2 mA
    Wiring:
      Analog Interface: 3-wire shielded cable 3 x 1.0mm2/17 AWG
    Graphic Display: 122 x 32 dots with backlight
    Status LED: Green
    Keypad: 6 touch-sensitive membrane function keys
    Physical Dimensions:
      Size: 145 mm L x 95 mm W x 50 mm D (5.7" x 3.7" x 2.0")
      Weight: 480 g (17 oz)
    House Protection Class: IP 52
    RFI/EMC: EN 55011, EN 50082-2
    Operating Conditions:
      Temperature: -20°C up to +40°C (-4°F to +104°F)
      Pressure: 700 up to 1300 hPa
      Humidity: 20 up to 90% R.H.
