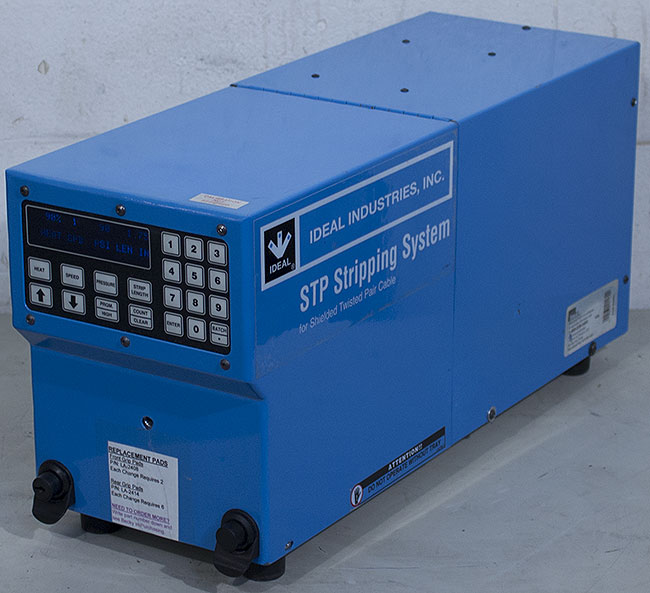

Ideal STP Cat: 45-930 Shielded Twisted-Pair Wire/Cable Thermal Cutter Stripping System
Comes with a manual and what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Ideal and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit came from an aerospace wire assembly company. It has been tested and is in working condition.

The Unit's Serial Number Tag Reads:
Catalog Number: 45-930
Serial Number: 459301170
Power Requirements: 110/220 V, 50/60 Hz, 3.0 A

Software Version: 13.0

Key Features:

  • The STP automatically adjusts to the size of cable being stripped and readily accepts cable diameters up to a maximum of 0.3175 in. (7.9 mm).
  • Strip lengths are adjustable in inches or millimeters from a minimum of 1.25 in. to a maximum of 6.00 in. (31.7 mm to 152.4 mm).
  • Cycle times may be completed in as little as six seconds.
  • User-friendly keypad emits audible tone and provides tacticle feedback.
  • Large, easy-to-read display shows program mode, operating functions, input promits and service message.
  • Stores up to 500 batch programs for frequently run jobs in non-volatile memroy, optimizing setup and production.
  • Password Security System protects against program modification.
  • Safety interlock disconnects electrical power if machine is opened during operation.
  • Keyed (key not included and should be re-keyed if desired) locking mechanism inhibits unauthorized entry into the machine.
  • Developed for bench-top use, the STP Stripping SYstem fits on a 24 in. deep work space.

    • Description:
    The STP (Shielded Twisted Pair) Stripping System is programmable and meets strict tolerances. The hot-blade thermal cable stripping system adjusts to protect shielded cable for accurate stripping every time. The system automatically adjusts for cable up to .3125 in. (7.9 mm) diameter and cycles in as little as six seconds. This system fits in a 24 in. work space and stores up to 500 batch programs.

    Specifications:
    Strip Lengths:
      Minimum: 1.125 in. (31.7 mm)
      Maximum: 6.00 in. (152.4 mm)
    Strip Diameter Range:
      Minimum: 0.06 in. (1.5 mm)
      Maximum: 0.3125 in. (7.9 mm)
    Voltage: Selectable power supply is equipped with an EIC power line receptacle and can easily switch between 110-120 V 60 Hz to 220-240 V 50 Hz.
    Air Requirements: Air must be clean, dry and pressure regulated to 100 PSI.
    Blade Type: Thermal/mechanical
    Dimensions: 10.5 in. W x 23.5 in D x 12.25 in H (261 mm x 597 mm x 318 mm)
    Weight: 65 lbs. (29.5 kgs)
    Compliance: CE Conformity
