3x Gecko G203v VAMPIRE Stepper Motor Drives + 72V 16.5A 1200W Power Supply
Why Buy From eDealers Direct Automation?
Industry-Leading Expertise • Trusted by Professionals
Description
Please read the entire listing.

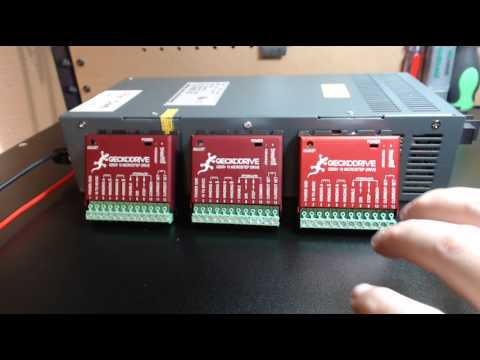

This package features 3 of Gecko's G203v VAMPIRE Pro Grade Digital Stepper drivers (These are the latest REV 7 2017 editions), and our 72v 16.5a (1200w) tool less power supply (This power supply is 110v/220v selectable
This power supply will provide about a 50% speed increase over the typical 48v power supply. These drives make retrofitting large machines, and support for larger motors all to easy. If you feel you want maximum speed for production these will satisfy your requirement.
If you need motors as well message me for combo pricing for your retrofit, or system build.
Its massive 1200w 16.5a will handle three of these monster digital drives, and allow for drive expansion later if required. Best of all you can use a single power supply to power all your drivers making a retrofit, or system build a very quick process. The power supply also features the only tool less configuration for setup allowing you to mount the power output terminal, and remove the power supply for the fastest servicing currently available. Please review the video here covering this unit
Gecko's G203V drivers are named VAMPIRE do to their ability to virtually impossible to kill. It has short circuit protection on the motor outputs, reversed power supply polarity protection, over-voltage and under-voltage protection and is internally fused. Where most other drives would be damaged or potentially destroyed the G203V will survive. These are some of the easiest drives to setup, and feature Gecko's 1 year direct support warranty.
G203v Driver Manual is located on Gecko Drives website.
G203v Specs Are Below
Minimum | Maximum | Units | |
Supply Voltage | 18 | 80 | VDC |
Motor Current | 0 | 7 | A |
Power Dissipation | 1 | 13 | W |
Temperature | 0 | 70 | °C |
Humidity | 0 | 95 | % |
Motor Inductance | 1 | 50 | mH |
Input Frequency | 0 | 250 | kHz |
Step Pulse “0” Time | 2 | uS | |
Step Pulse “1” Time | 1 | uS | |
Direction Setup (Before step rising edge) | 200 | nS | |
Direction Setup (Hold after pulse rising edge) | 200 | nS | |
Signal Voltage | 3.3 | 5 | VDC |
Weight | 3.6 | oz |
*Due to such high turnover on these. If they are on order they wil ship within 4 days. There's a reason these don't last long with this package*.
USPS shipping is FREE in the US. Intenational shipping welcome with adjusted shipping price. Please message me prior to bidding.
