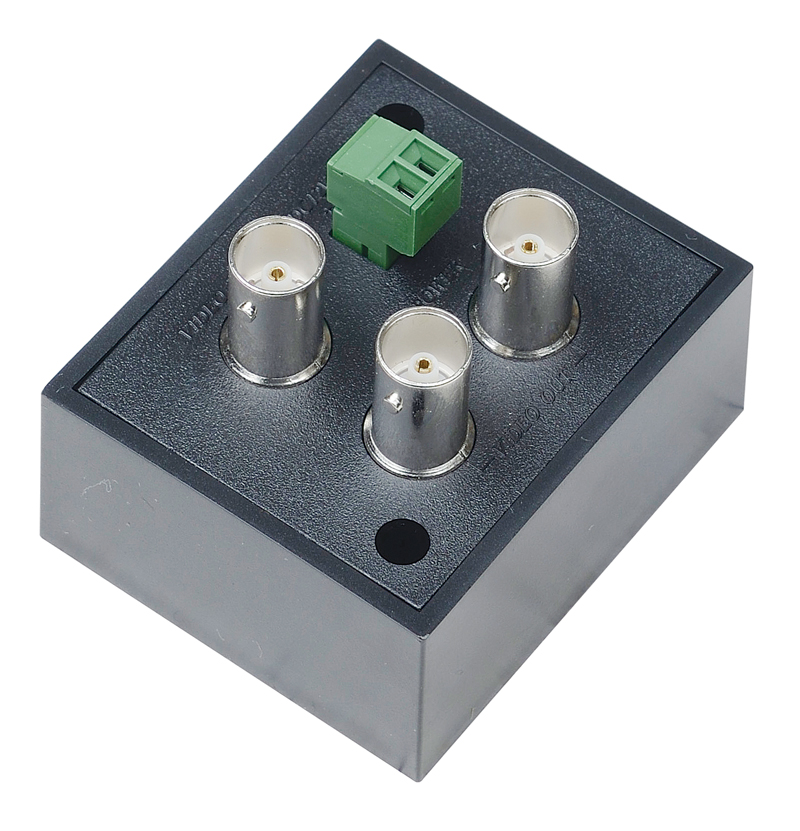

1 in 2 out Video Distributor for CCTV High Definition Analog HD-TVI, HD-CVI, AHD and 960H

1 input 2 output Analog High Definition Video HD-TVI/AHD/ HD-CVI distributor.
Suitable for far distances, different floors in a building or different electrical fields.

Features:

  • 1 input 2 output HD video distributor.
  • Support HD-TVI, AHD, HD-CVI, 960H, NTSC, PAL video signal

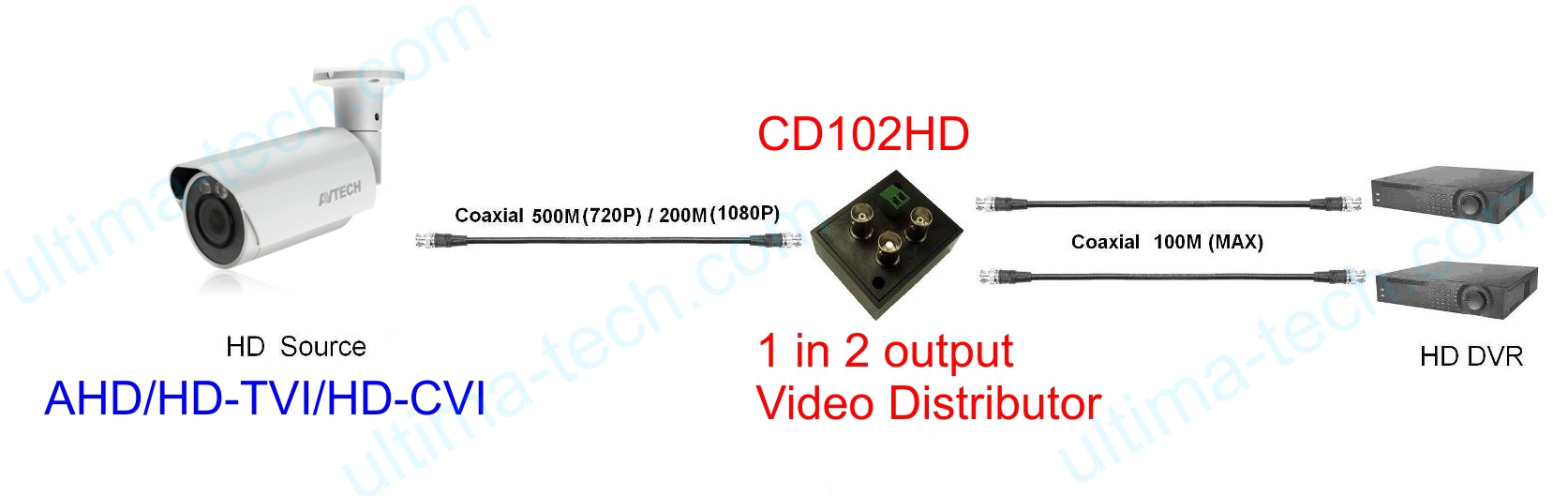

Example of Installation View:



Specifications:

ITEM NO.

CD102HD

Video Input Channel

BNC x 1

Video Output Channel

BNC x 2

Video Input Level

0.8~1.2Vp-p, 75 Ohms

Video Output Level

1Vp-p (Standard), 75 Ohms

Video Bandwidth

350 MHz -3dB

Power Supply

DC12V 500mA

Power Consumption

160mA

Temperature

Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimensions (mm)

57.8 x 49.2 x 41.7

Weight (g)

70
