Camshaft Position CMP Sensor Pigtail GM 6.0L LS2 (06-09 Trailblazer SS)

Genuine Aptiv / Delphi (GM Original Equipment) Components

CONNECTOR PINOUT DETAILS
PIN	WIRE	FUNCTION
A	20ga RED	SENSOR POWER (5V OR 12V)
B	20ga PNK/BLK	SENSOR GROUND
C	20ga BRN/WHT	CMP SIGNAL

MATERIALS LIST     ITEMS BELOW WERE USED TO MAKE THIS ASSEMBLY
	DESCRIPTION / PART NUMBER	KIT QTY
	Delphi 3 Way Black Metri-Pack 150 Sealed Female Connector EFI P/N: 100-00041	1 piece
	Delphi 3 Way Cream TPA Metri-Pack 150 Secondary Lock Terminal Position Assurance for proper terminal retention EFI P/N: 100-00257	1 piece
	Delphi Metri-Pack 150 Female Sealed Tin (Sn) 22-20 AWG Terminal BUY 25 TERMINALS | BUY 50 TERMINALS EFI P/N: 100-00130	3 pieces
	Delphi White 1 Way Metri-Pack 150 Seal for Cable OD 1.60 - 2.15 mm Seal Outer Diameter = 5.75 mm EFI P/N: 100-00194	3 pieces
	20 AWG Automotive TXL Wire Red by the foot BUY 25FT WIRE | BUY 50FT WIRE EFI P/N: 101-00064	1 foot
	20 AWG Automotive TXL Wire Pink w/ Black Stripe by the foot BUY 25FT WIRE | BUY 50FT WIRE EFI P/N: 101-00059	1 foot
	20 AWG Automotive TXL Wire Brown w/ White Stripe by the foot BUY 25FT WIRE | BUY 50FT WIRE EFI P/N: 101-00021	1 foot

OTHER PIGTAILS RELATED TO 6.0L LS2 (05-09)
	DESCRIPTION / PART NUMBER
	E40 Engine Control Module ECM Pigtail J1 X1 GM 6.0L LS2 (05-06 GTO) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00270
	Accelerator Pedal Position APP Sensor Pigtail GM 6.0L LS2 (05-06 GTO) Genuine Yazaki (GM Original Equipment) Components EFI P/N: 100-00282
	Set of 8 Fuel Injector EV6 Pigtails 6.0L LS2 (05-06 GTO) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01392

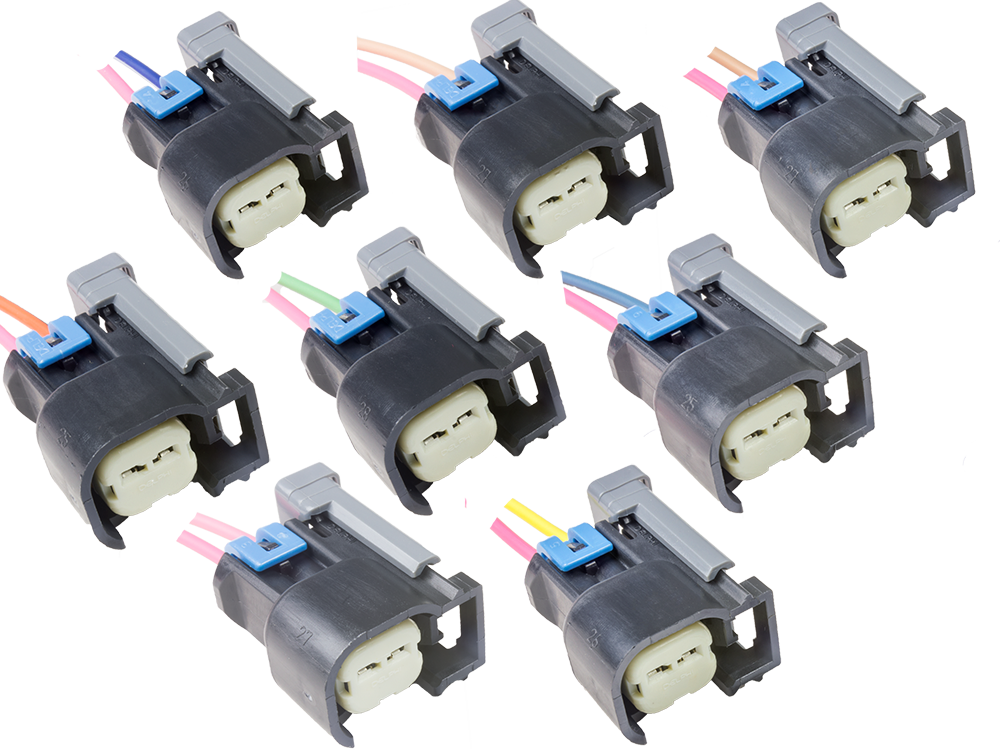

	Set of 8 Fuel Injector EV6 Pigtails 6.0L LS2 (05-09) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01393
	Crankshaft Position CKP Sensor Pigtail 58x GM 6.0L LS2 (05-09) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00321
	Camshaft Position CMP Sensor Pigtail GM 6.0L LS2 (06-09 Trailblazer SS) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00721
	Accelerator Pedal Position APP Sensor Pigtail GM 6.0L LS2 (05-09 Corvette) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00320
	Knock KS Detonation Sensor Pigtail Bank 1 GM 6.0L LS2 (05-09) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00322

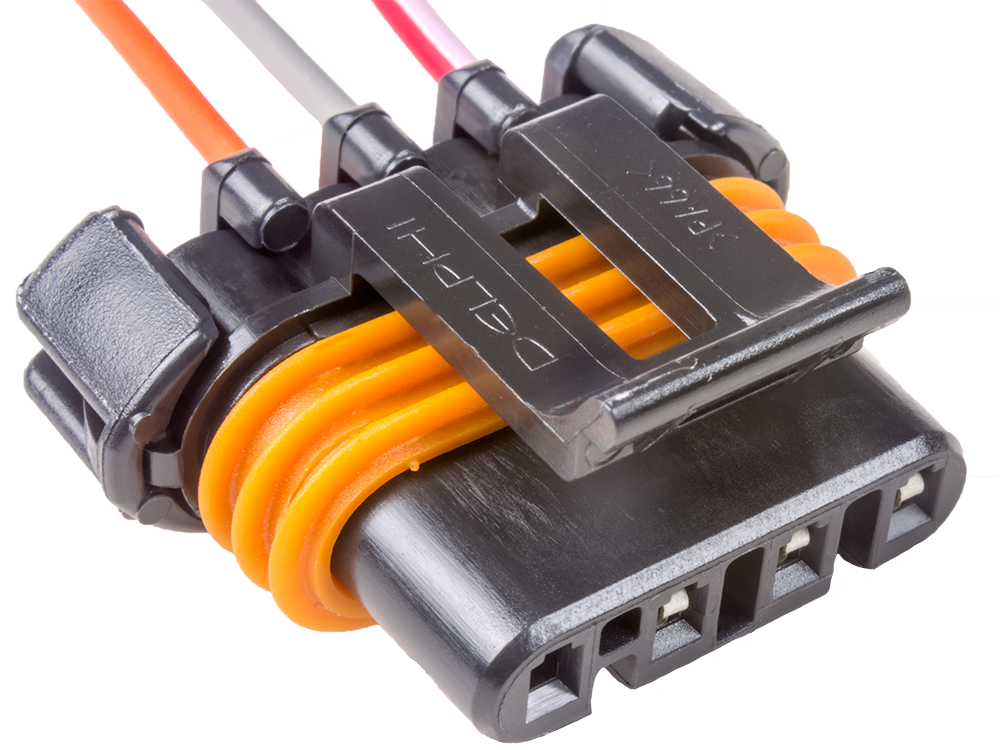

	Alternator (Generator) Pigtail GM 6.0L LS2 (05-07 Corvette) Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-01343
