4L60E 4-Speed Automatic Transmission Pigtail GM 5.7L LS1 (97-05)
Genuine Aptiv / Delphi (GM Original Equipment) Components
| MATERIALS LIST ITEMS BELOW WERE USED TO MAKE THIS ASSEMBLY | ||
|---|---|---|
| DESCRIPTION / PART NUMBER | KIT QTY | |
 | Delphi 20 Way 14 Usable Gray Micro-Pack 100W Sealed Female Connector EFI P/N: 100-00096 | 1 piece |

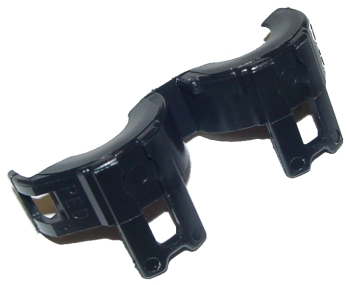

 | Delphi Black Straight 1/2 Inch Conduit Clip for Transmission Connector EFI P/N: 100-00646 | 1 piece |
 | Delphi 20 Way Light Gray TPA Micro-Pack 100W Secondary Lock Terminal Position Assurance for proper terminal retention EFI P/N: 100-00254 | 1 piece |
 | EFI P/N: 100-00176 | 12 pieces |
 | EFI P/N: 100-00177 | 1 piece |
 | EFI P/N: 100-00215 | 1 piece |
 | 20 AWG Automotive TXL Wire Light Green by the foot EFI P/N: 101-00051 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Yellow w/ Black Stripe by the foot EFI P/N: 101-00073 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Red w/ Black Stripe by the foot EFI P/N: 101-00065 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Light Blue w/ White Stripe by the foot EFI P/N: 101-00050 | 1.5 feet |
 | 18 AWG Automotive TXL Wire Pink by the foot EFI P/N: 101-00097 | 1.5 feet |
| 20 AWG Automotive TXL Wire Yellow w/ Black Stripe by the foot EFI P/N: 101-00073 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Black by the foot EFI P/N: 101-00019 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Pink by the foot EFI P/N: 101-00058 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Red by the foot EFI P/N: 101-00064 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Dark Blue by the foot EFI P/N: 101-00036 | 1.5 feet |
 | 20 AWG Automotive TXL Wire White by the foot EFI P/N: 101-00070 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Tan w/ Black Stripe by the foot EFI P/N: 101-00068 | 1.5 feet |
 | 20 AWG Automotive TXL Wire Brown by the foot EFI P/N: 101-00020 | 1.5 feet |
| OTHER PIGTAILS RELATED TO 5.7L LS1 (97-05) | |
|---|---|
| DESCRIPTION / PART NUMBER | |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00268 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00314 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00315 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00316 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00317 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00318 |
| Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00327 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00330 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00336 |
 | Genuine Delphi (GM Original Equipment) Components EFI P/N: 100-00337 |
