These are the 6mm Dzus diameter size, the shaft is 5mm and increases to 6mm at the locking spiral.

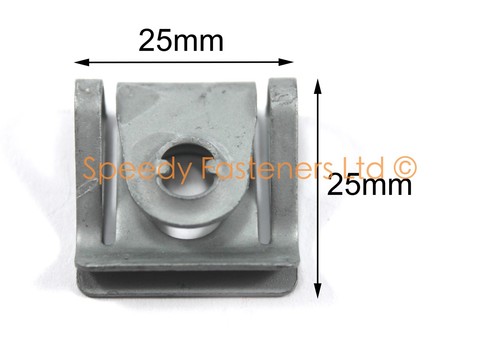

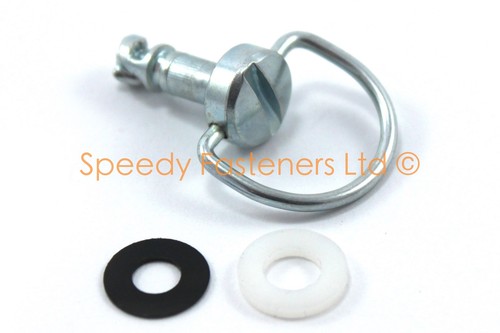

Simply select your desired Dzus Head Style & Colour and Dzus Stud Length from the menu. Each Dzus Stud comes with a Slide on Clip a Retaining Washer and a Nylon Washer.

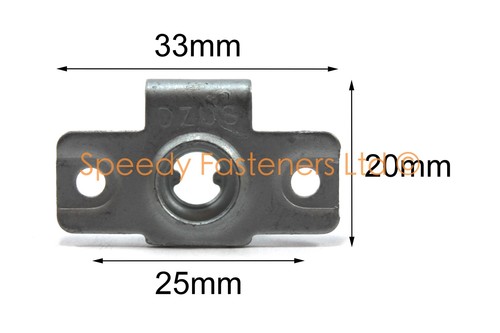

Rivet on receptacle also available (inc. rivets), contact us if you require these rivet clips.
If you don’t require clips/receptacles, please see this listing:-
"Select Head Style & Length mm Dzus Zeus Fairing Fasteners Studs Pins Bolt Stud"

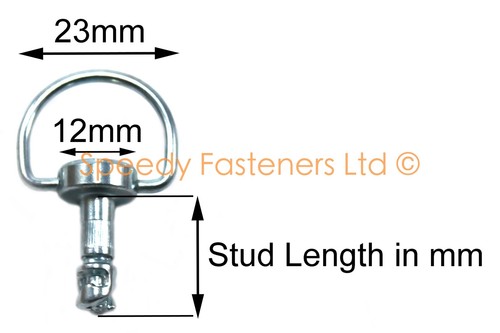

Please measure your existing Dzus from under the head to the tip of the stud in mm. If you are unsure of what length you need, please call us, we are happy to help.
15mm Dzus - Holds Material: 4.5mm to 5.4mm
16mm Dzus - Holds Material: 5.5mm to 6.4mm
17mm Dzus - Holds Material: 6.5mm to 7.4mm
19mm Dzus - Holds Material: 8.5mm to 9.4mm
21mm Dzus - Holds Material: 10.5mm to 11.4mm
25mm Dzus - Holds Material: 14.5mm to 15.4mm
28mm Dzus - Holds Material: 17.5mm to 18.4mm
35mm Dzus - Holds Material:24.5mm to 25.4mm
If you are not sure what length Dzus you need? Why not purchase our Dzus Sizing Kit and once you try out the different size studs, return the Sizing Kit to us and purchase one of our Dzus kits, you will be refunded £10.00.
These studs are all 6mm in Diameter.
If the Stud you require is not available please call, as we can normally get them to you within a week of ordering.
These are 100% genuine Dzus, made to the high standards required by aviation, GP & F1. If you see any cheaper kits they are most likely replicas made cheaply in China, don't take the risk!
We have good links with the suppliers of Dzus products in the UK and can source any style, colour or length you need, just send us a message for prices and lead times.
Message us with your requirements as we have most sizes and types of bolt and many fastener related products.
Thanks for looking, any feedback or suggestions would be welcomed.
