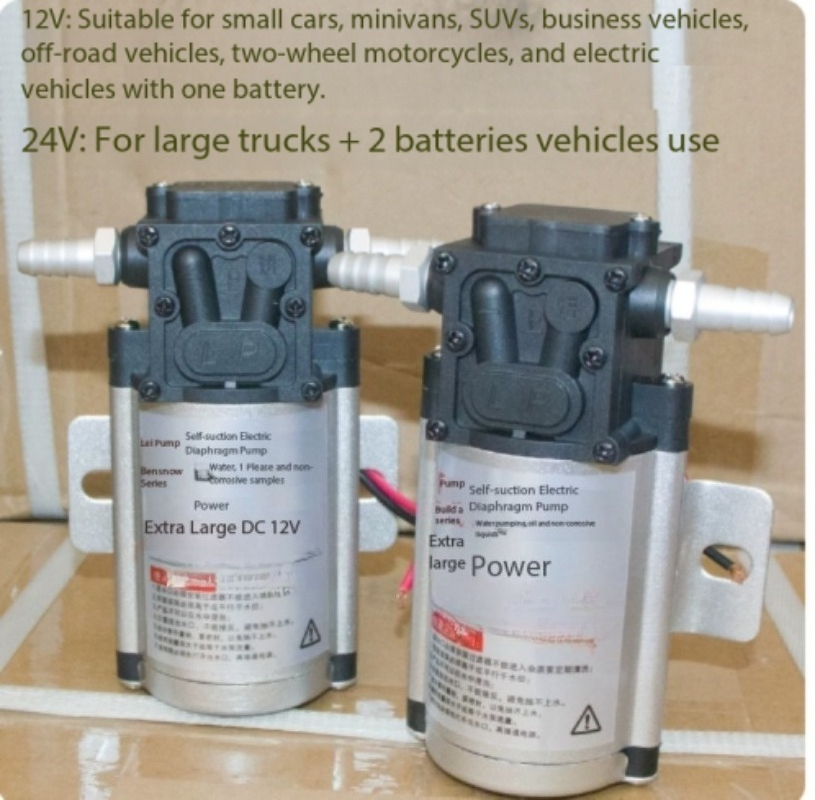

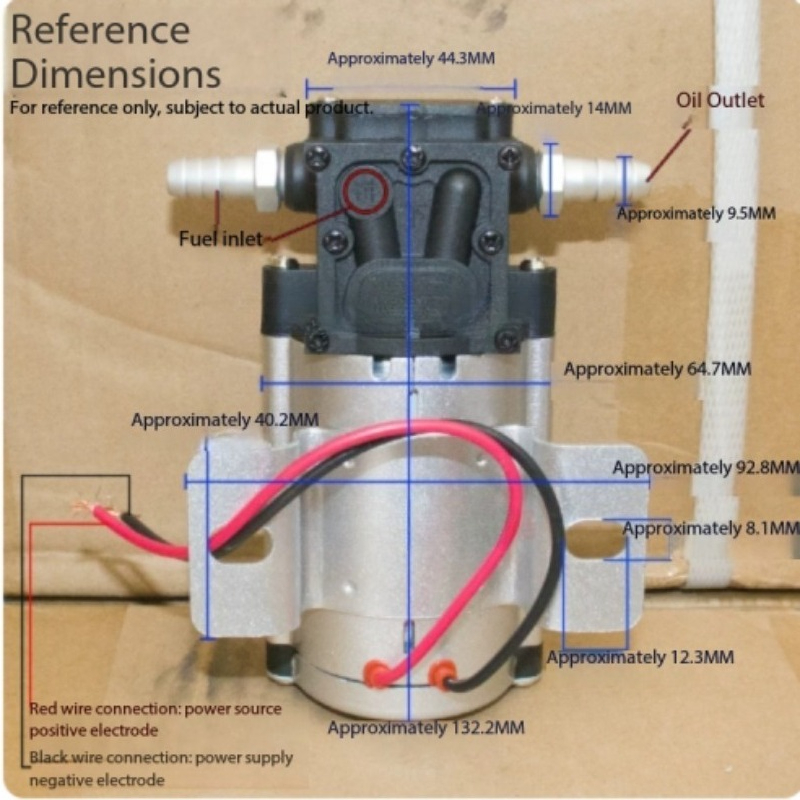

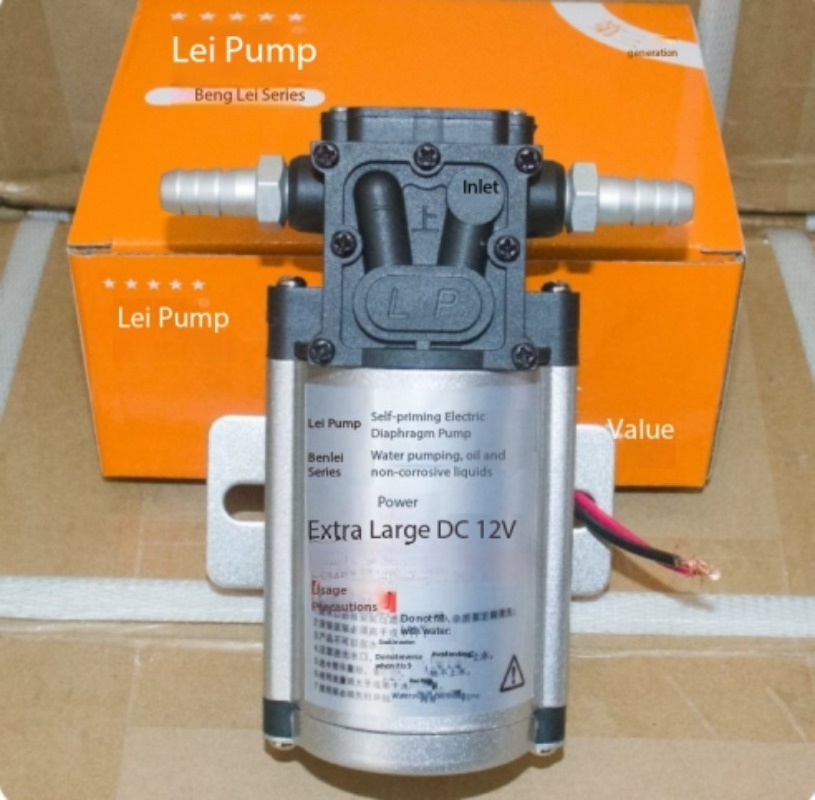

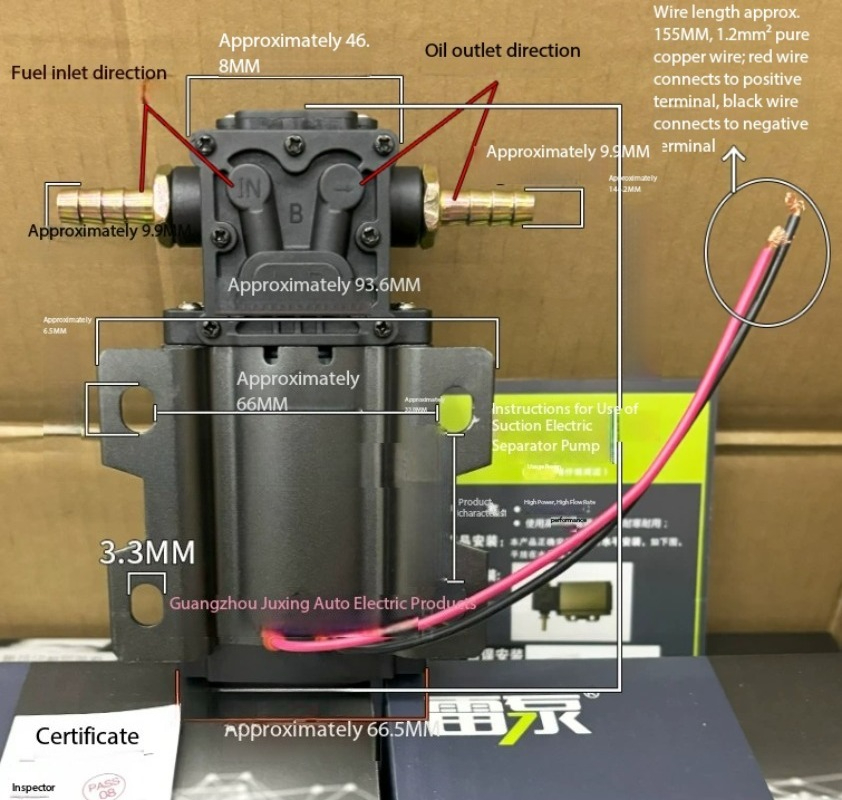

Product Name: Single-Head Pump
Rated Voltage: 12V/24V
Power: 30–45W
Head: Approximately 3 meters
Pressure: 3–5 kg
Motor Coil: Pure copper coil
Compatible Hose: Inner diameter 8/10 mm
Compatible Liquids: Water / Gasoline / Diesel
Flow Rate Reference: Approximately 6 liters per minute when pumping clean water through a 2-meter hose
Friendly Reminder / Special Note: This fuel pump must be installed flat on its front side and securely fastened (as shown in the illustration)
Installation Precautions: Do not install at an angle, upside down, suspended, or vertically. Please remember this.

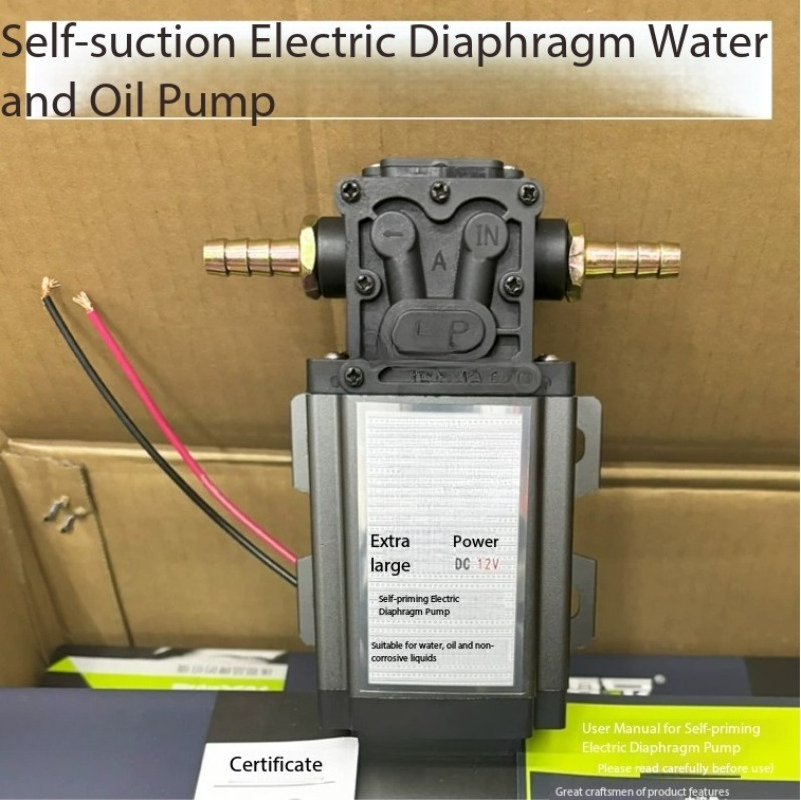

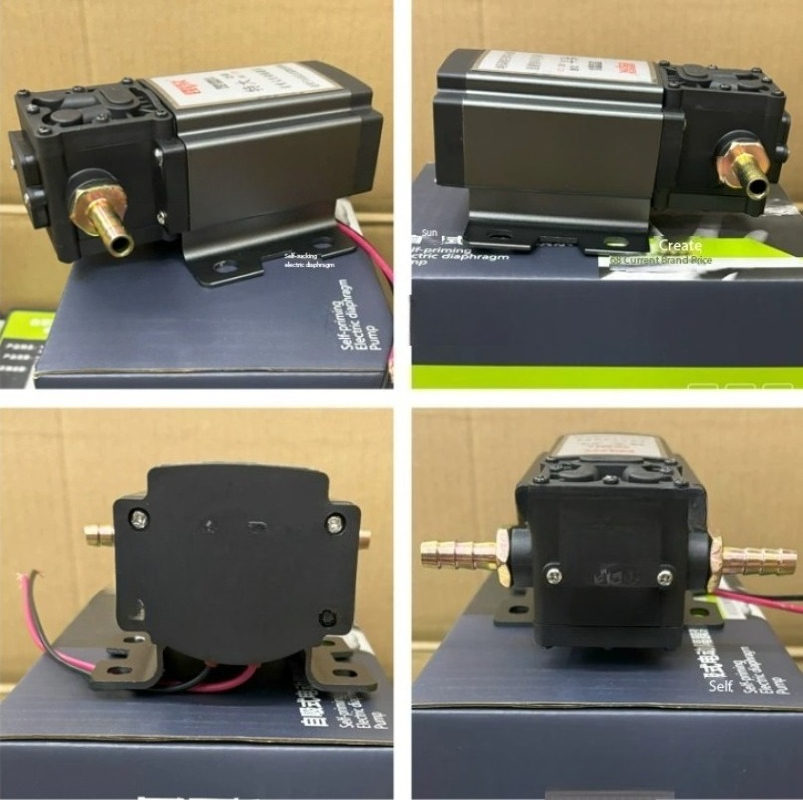

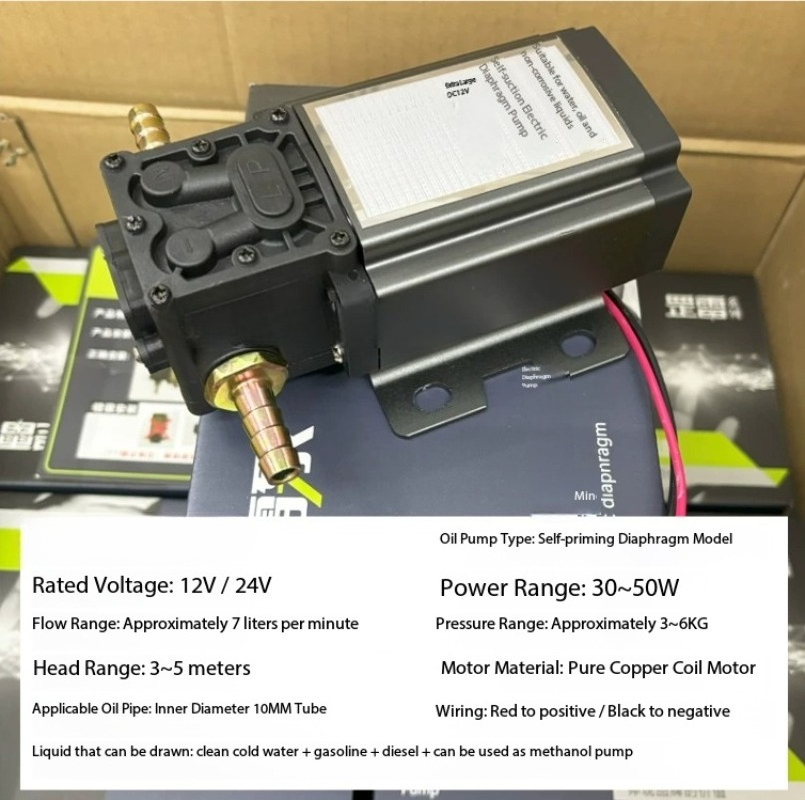

Product Name: Gang Pump
Fuel Pump Type: Self-priming Diaphragm Type
Rated Voltage: 12V/24V
Power Range: 30–50 W
Flow Rate Range: Approximately 7 liters per minute
Pressure Range: Approximately 3–6 kg
Head Range: 3–5 meters
Motor Material: Pure copper coil motor
Compatible Hose: 10 mm inner diameter
Wiring: Red to positive / Black to negative
Compatible Liquids: Clean cold water, gasoline, diesel, and can be used as a methanol pump
