Description:

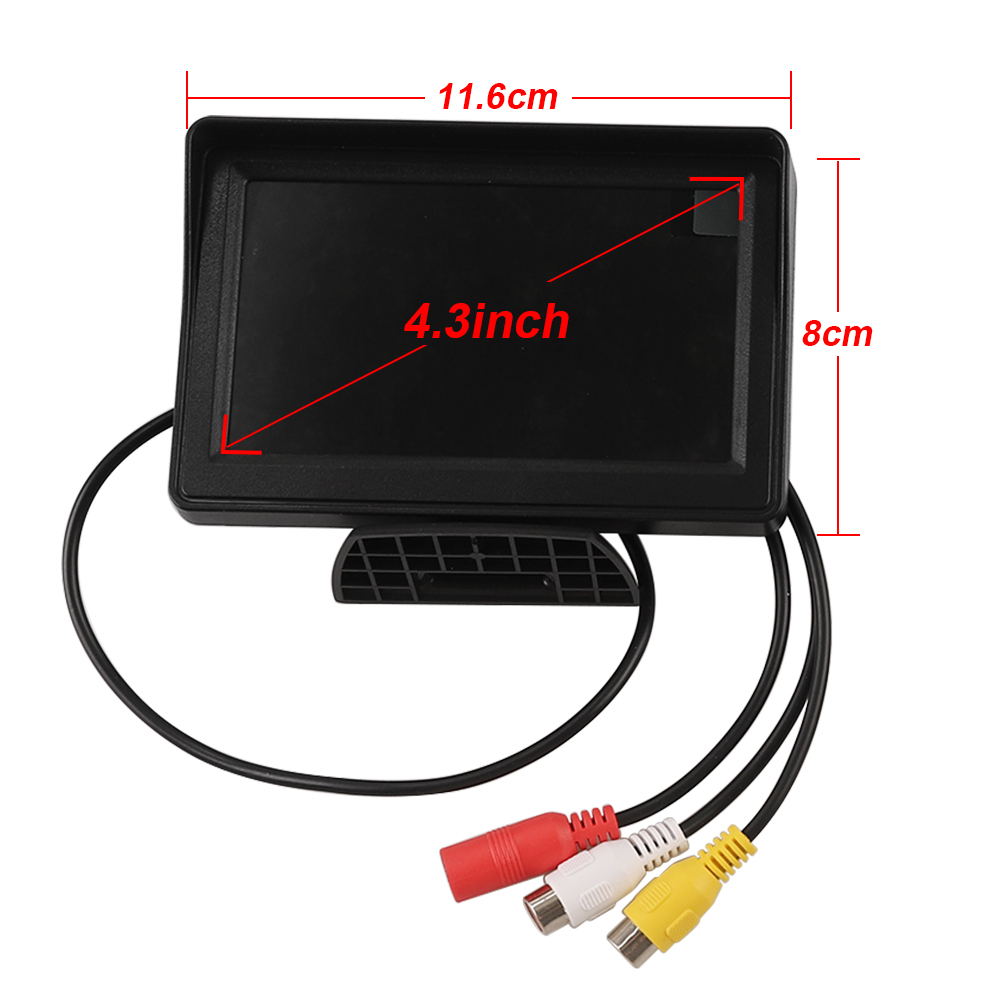

4.3″ TFT LCD MONITOR
100% brand new, High quality
Screen Size: 4.3 inch(16:9)
Resolution: 320(H) x RGB x 240(V)
Model: PAL/NTSC (Automatic throw-over)
Power Supply: DC 12V
Visible Area: 96mm x 54mm
Power Consumption: 2W
2-channel video input: V1/V2 auto switching(V1 display first)

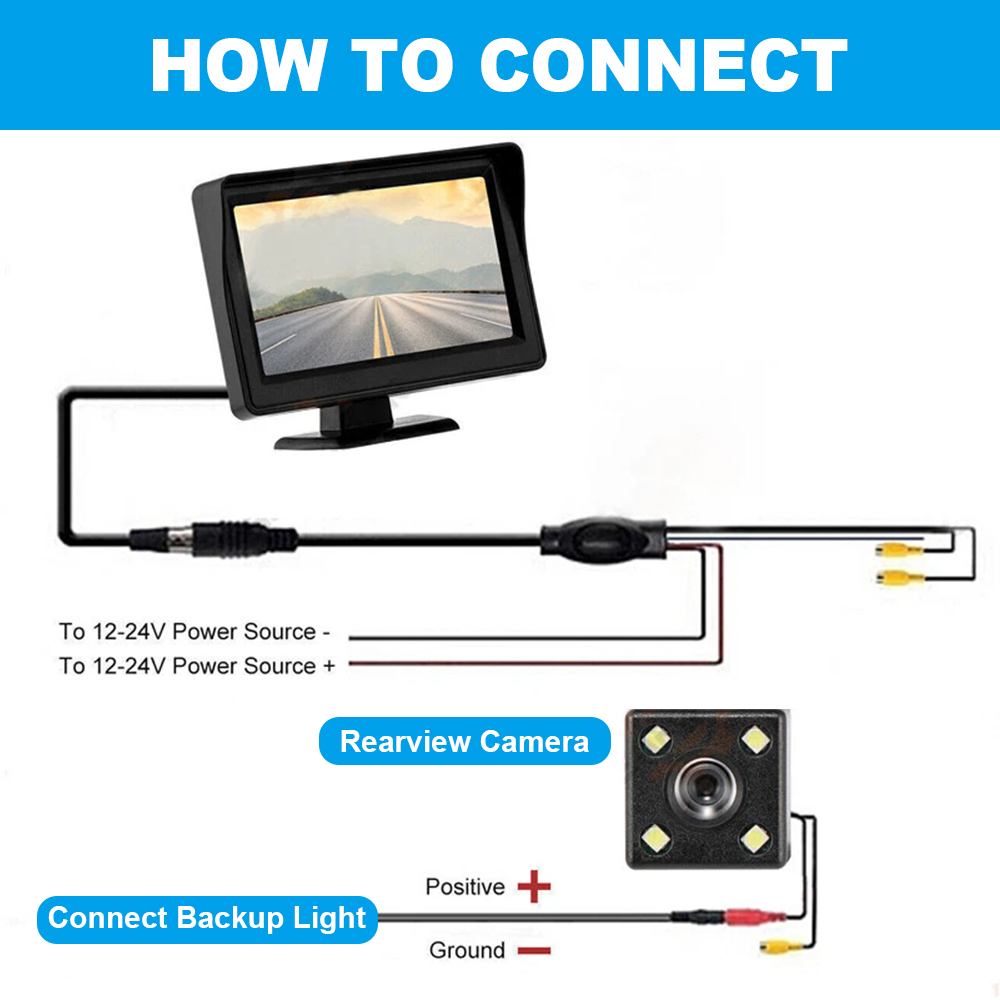

Note: please Connect the Rear Viewcamera power cable with Reversing lamp,and connect camera’s video cable with LCD’s yellow cable(Video V1),then the LCD will show Camera’s video when you are Reversing,and stop playing movie(auto switching)
Display black screen on no signal.
Dimensions: 120mm(L) x 75mm(W) x 15mm(H)
4.3″ Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space.
Fit all CCTV camera,car Reversing camera,car DVD player
Features:

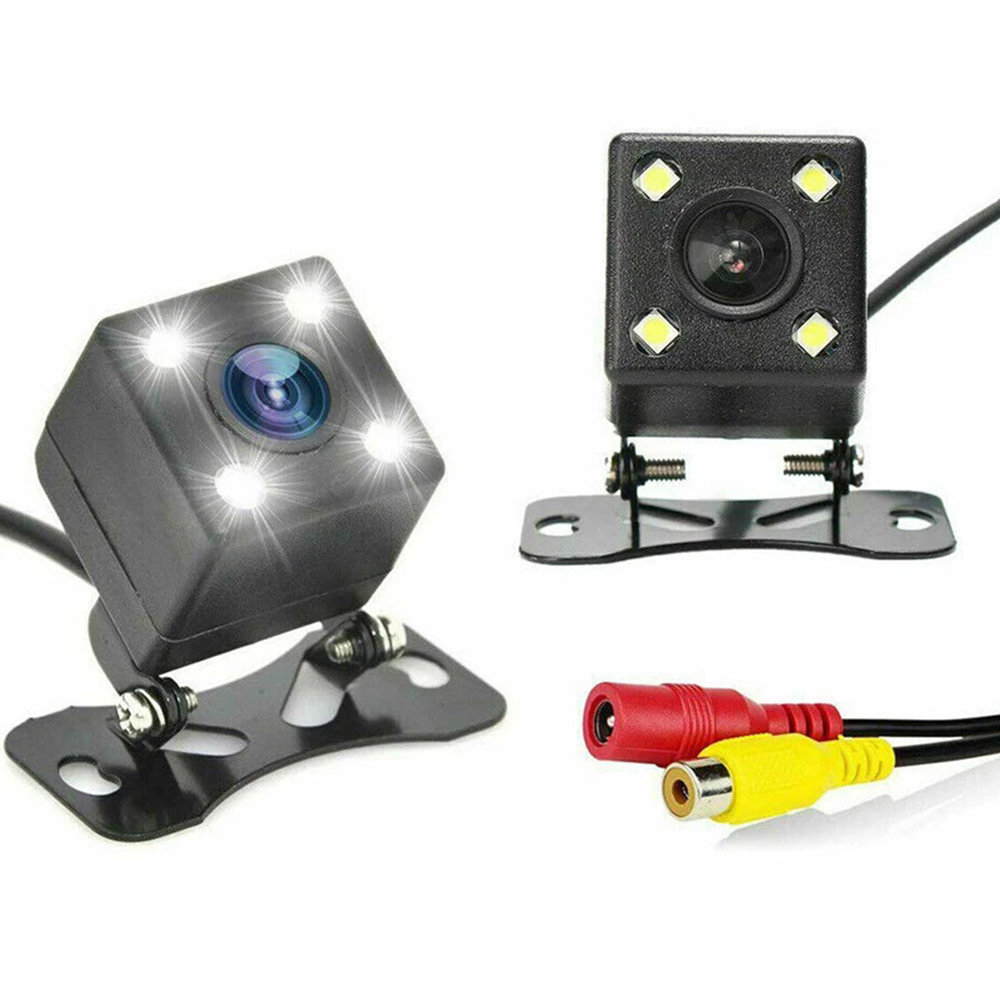

Waterproof day/night Reversing camera
Easy installation for DIY usage
Real-time rear view while back up

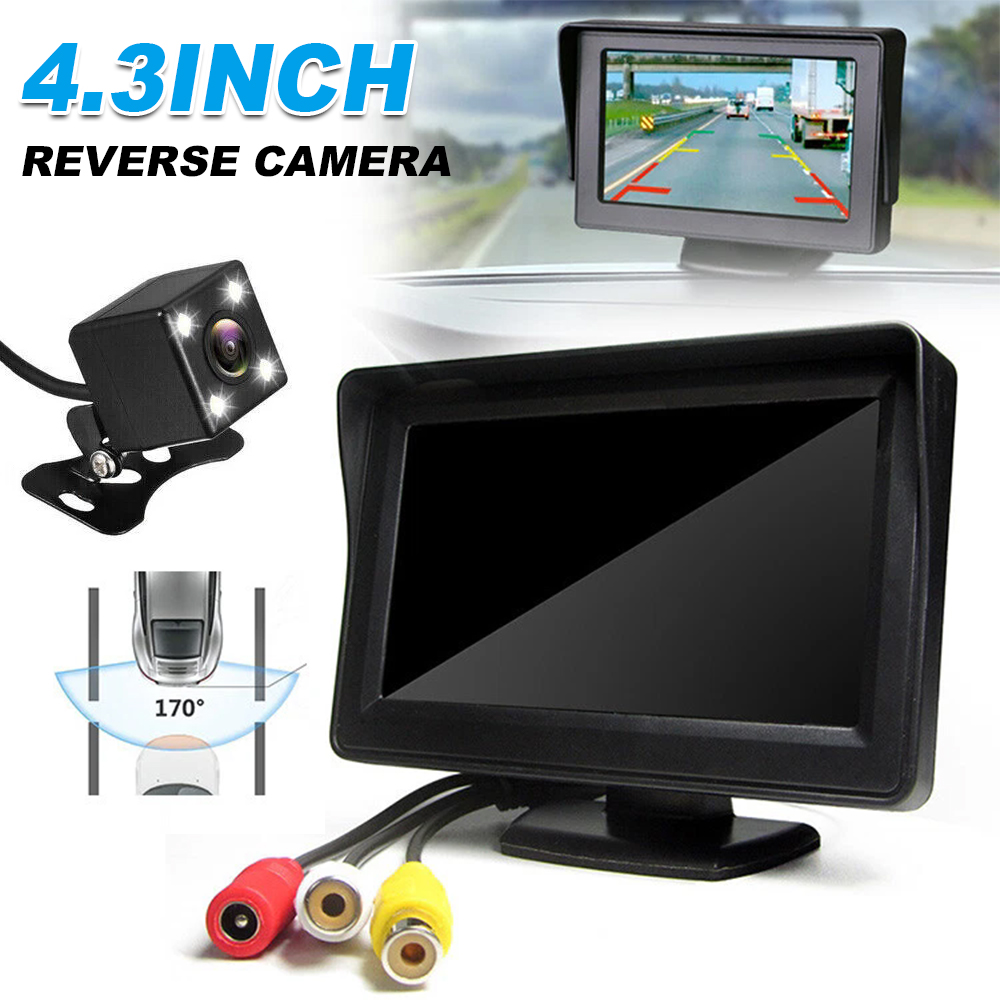

IR Reverse camera with wide view angle 170°
170o Visual Angle
Greatly ensures driving safety with broad and clear visual angle when backing your car.
Simple to Install
Car rear view camera license plate for European vehicles, convenient and simple to install, no damage to your car.

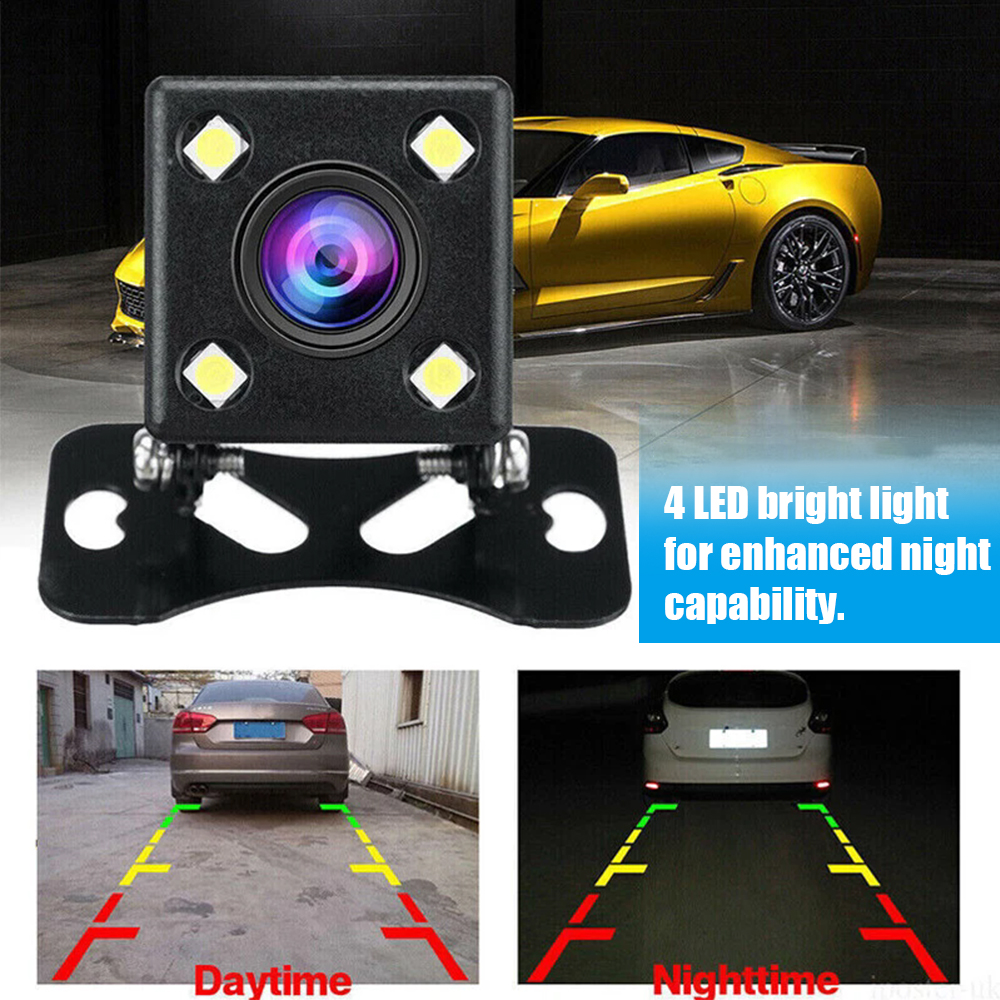

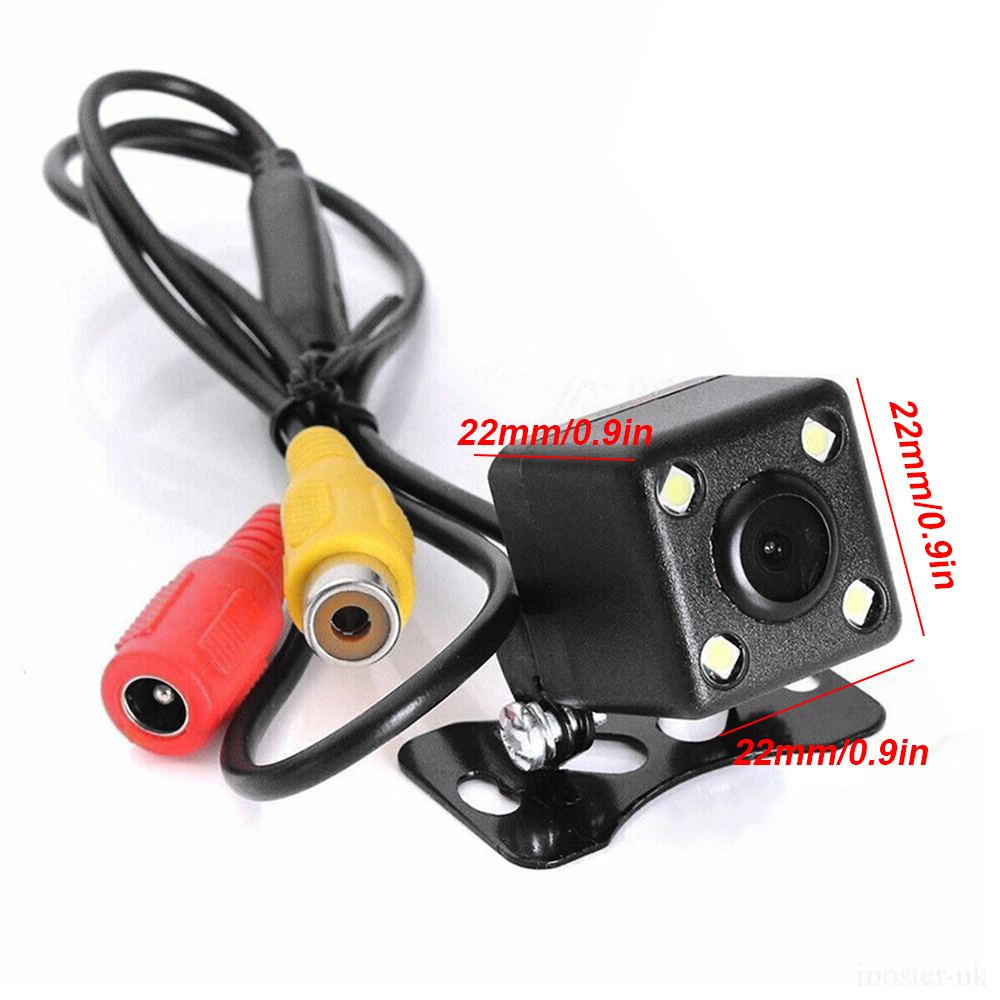

HD Lens, 4 LED IR
HD color CCD lens, with resolution of 720×576, captures wonderful pictures even under low light conditions.

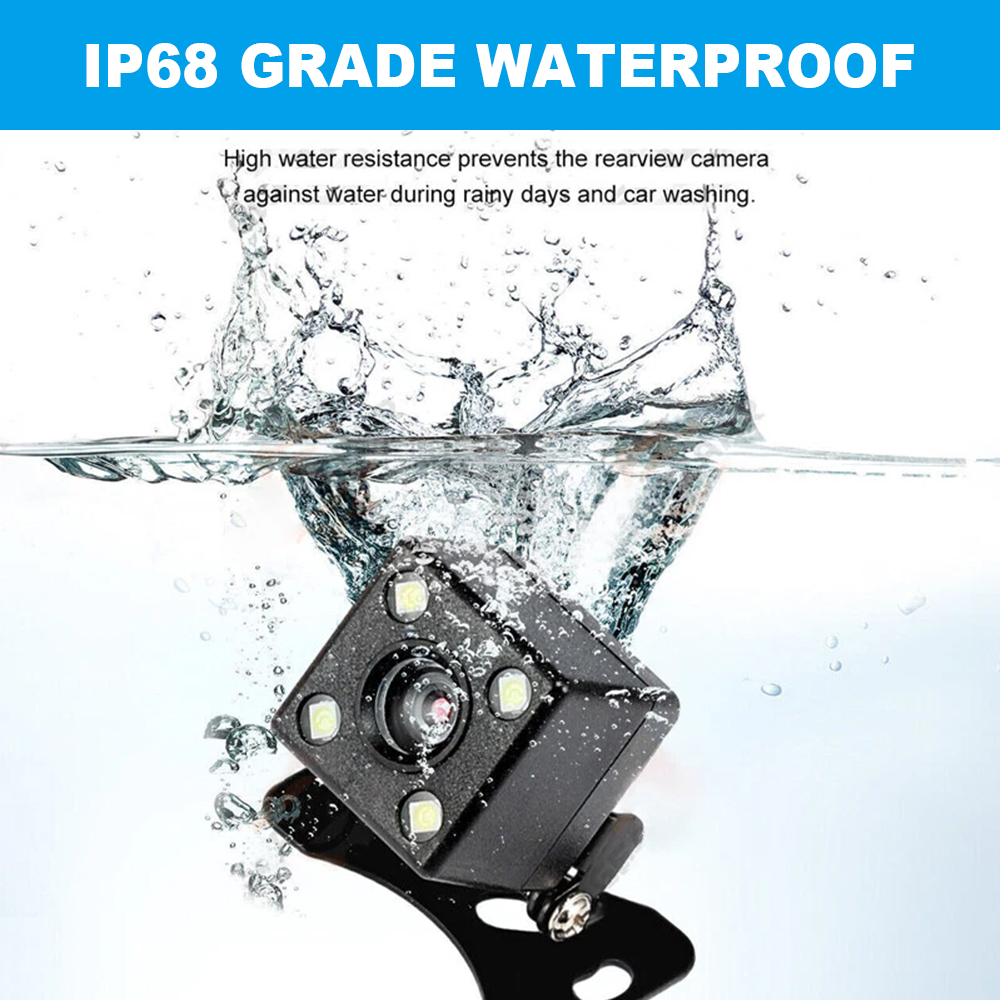

Waterproof and Dustproof
IP rating: IP68
Work properly against various bad weathers and assure driving safety.

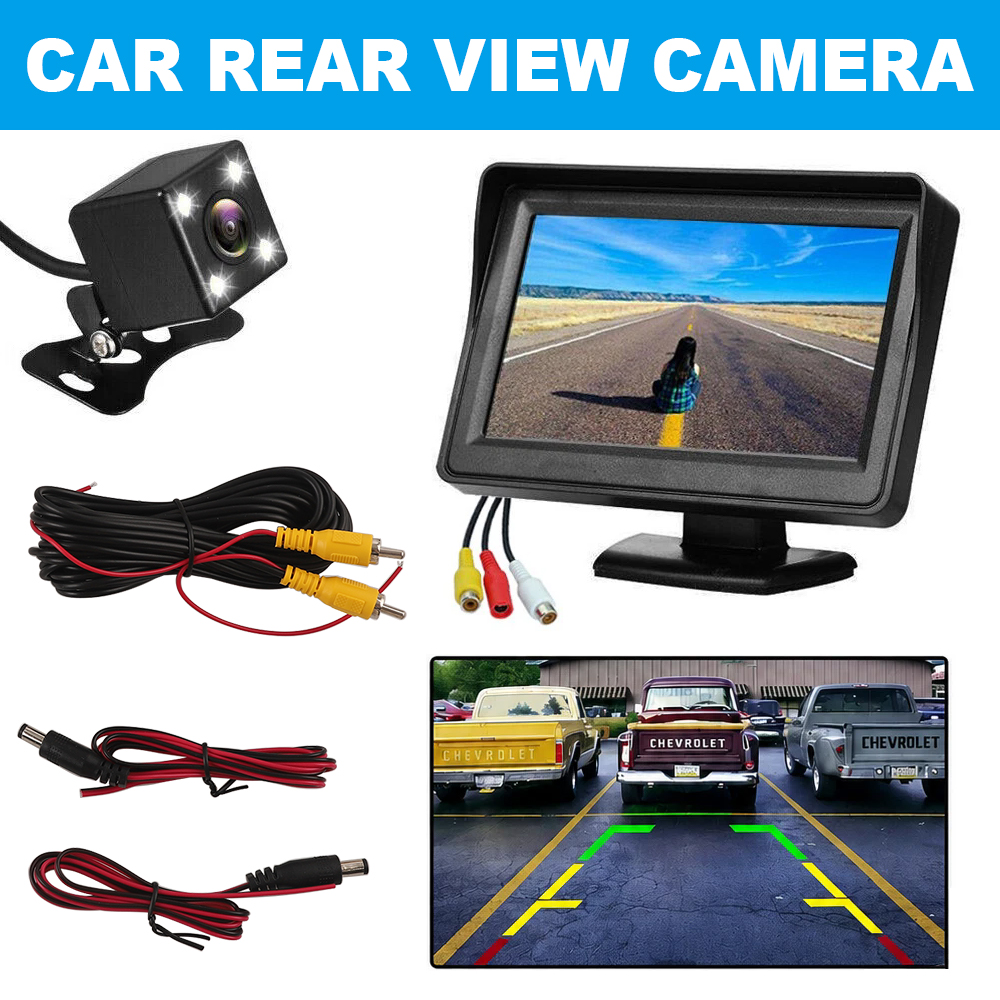

Parking Assist
There is Parking Assist to help park safely.
The distance lines displayed will show a car’s intended path, so drivers can better gauge how far they are from an object.
Specifications:
Image device 1/4-inch colour
Infrared IR night vision
TV system PAL or NTSC
Resolution 420 TV lines
Electric Shutter PAL: 625 Lines.25 Field /sec NTSC :720 Lines.25 Field/sec
Effective pixels PAL: 720X576 NTSC: 720X480
Minimum illumination 0.3Lux
Viewing angle 170°
S/N ratio >48dB (AGC-OFF)
Video output RCA connector, 1.0vp-p, 75 ohm
Current consumption 120mA
Power supply DC8V-12V
Operating temperature -30 to 65 degrees centigrade, RH95% Max.
Storage temperature -35 to 70 degrees centigrade, RH95% Max.
Other items automatic white balance, AGC and BLC
Water-proof Yes, to IP68 standard
Transmitter/Receiver
Take one minute get your camera to become a camera
2.4GHz transmitter/receiver set (12-Volt for vehicle installation)
Work Range: Up to about 50m(Hollowness)
Connects to rear-view camera and front video screen
Fit all RCA composite video connections
Power: DC 12V
Transmitter/Receiver Cable Length: 1.5m
Easy Installation

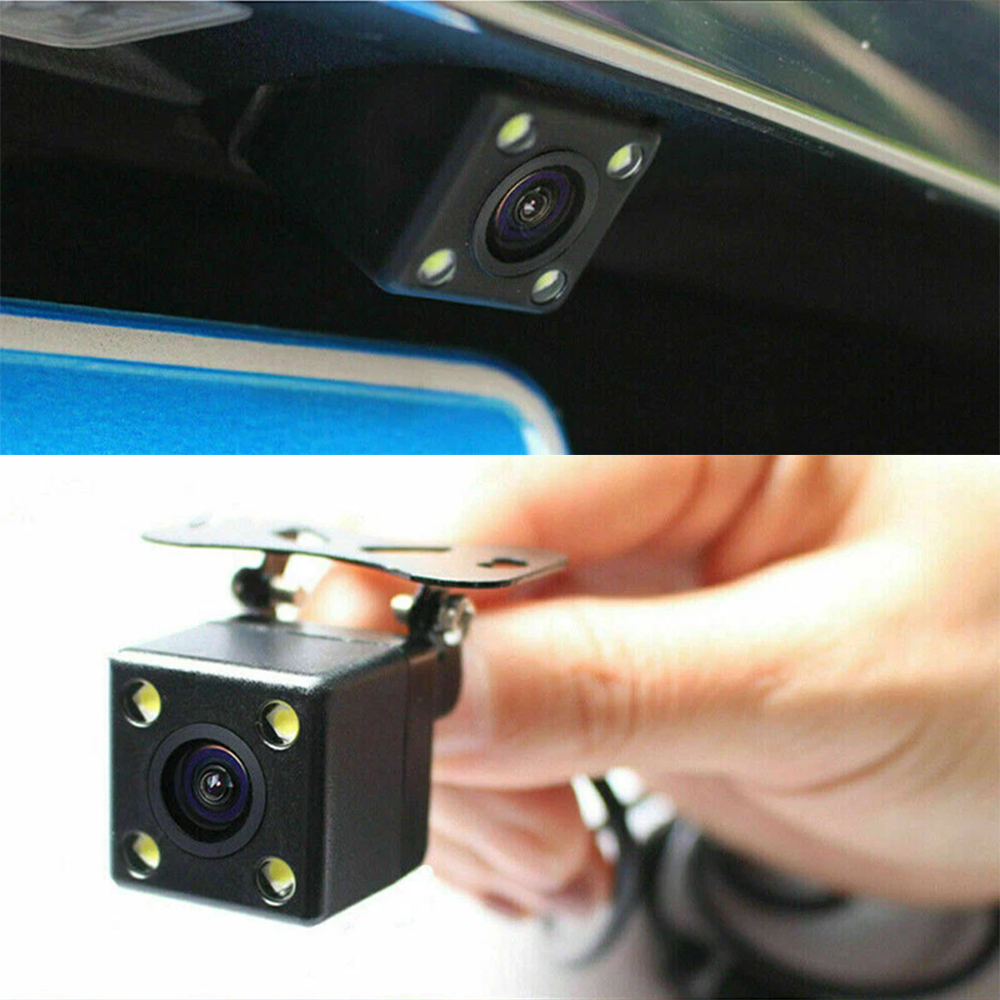

Mount the camera to your car’s license plate area, back window, or any other suitable place
Adjust the lens of the camera to its best position.
Connect power wire (red and black) to your vehicle DC 12V power system.
Connect the video output (yellow wire) of the camera to the display in your vehicle.

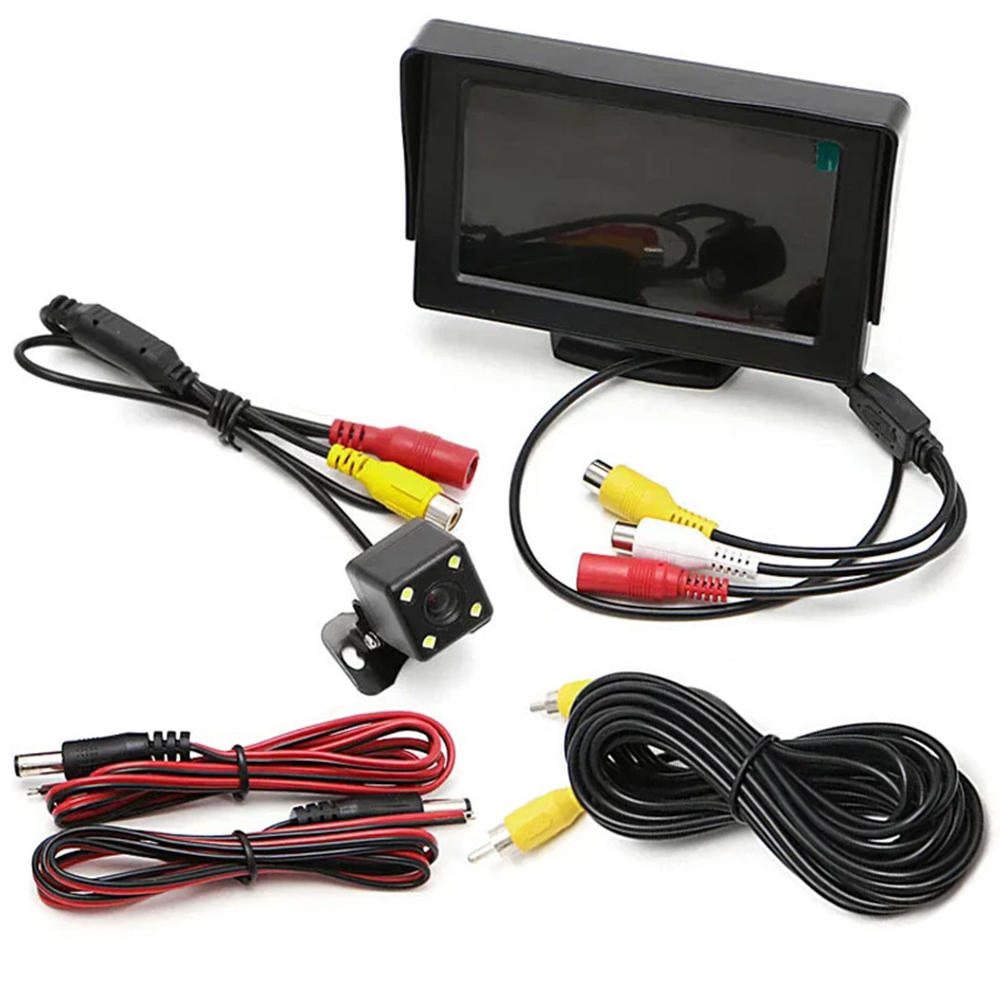

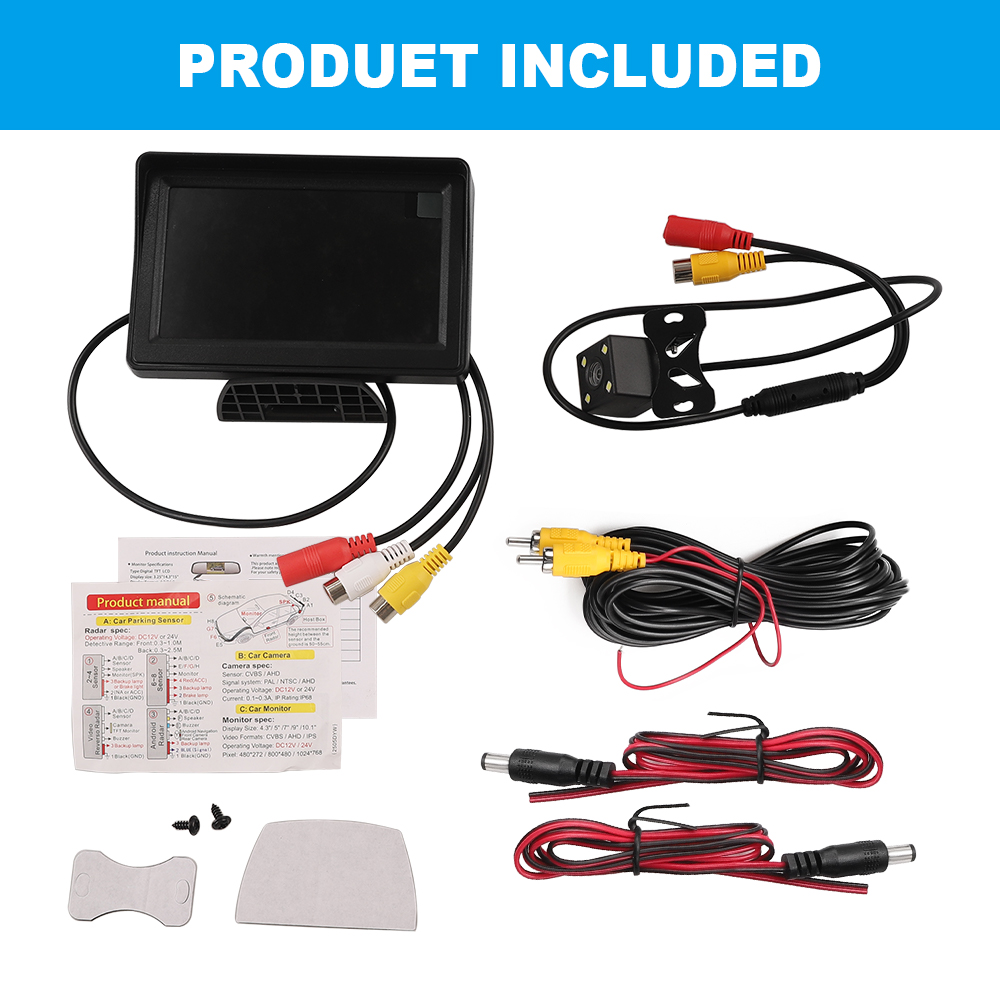

Package Includes:

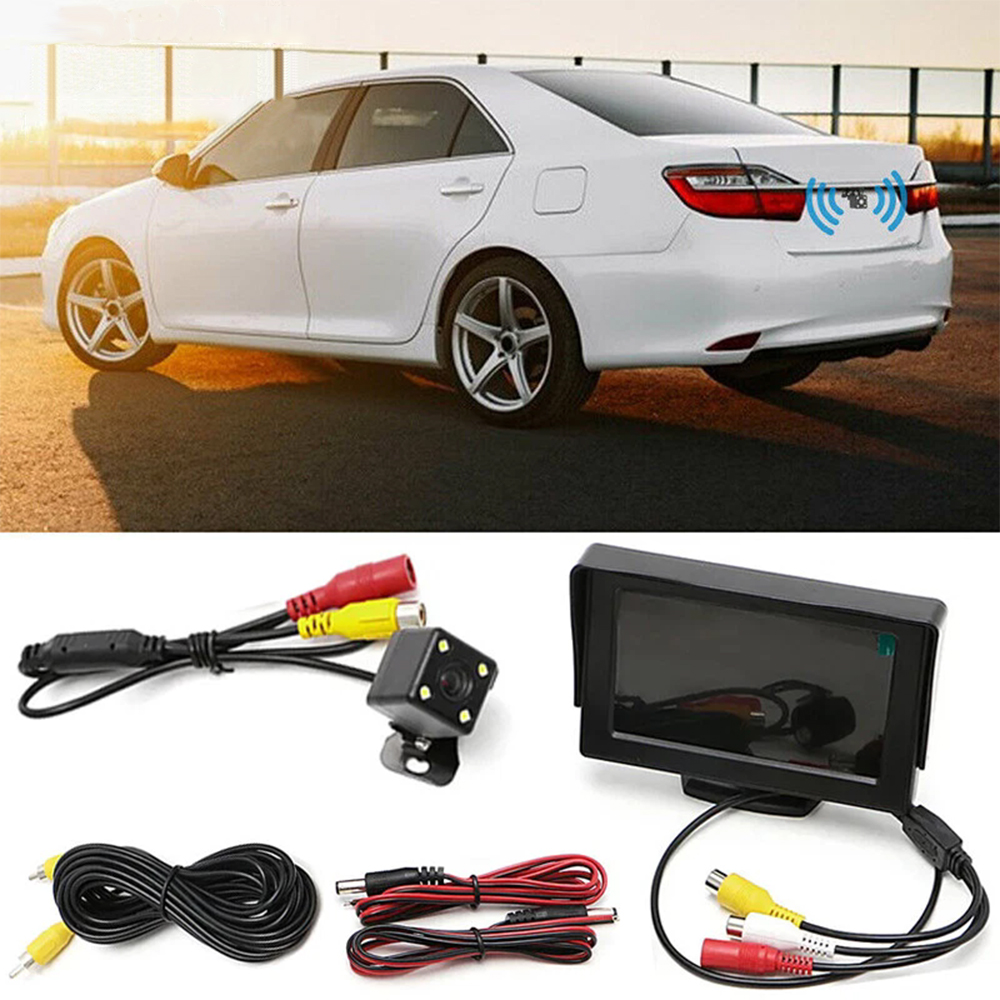

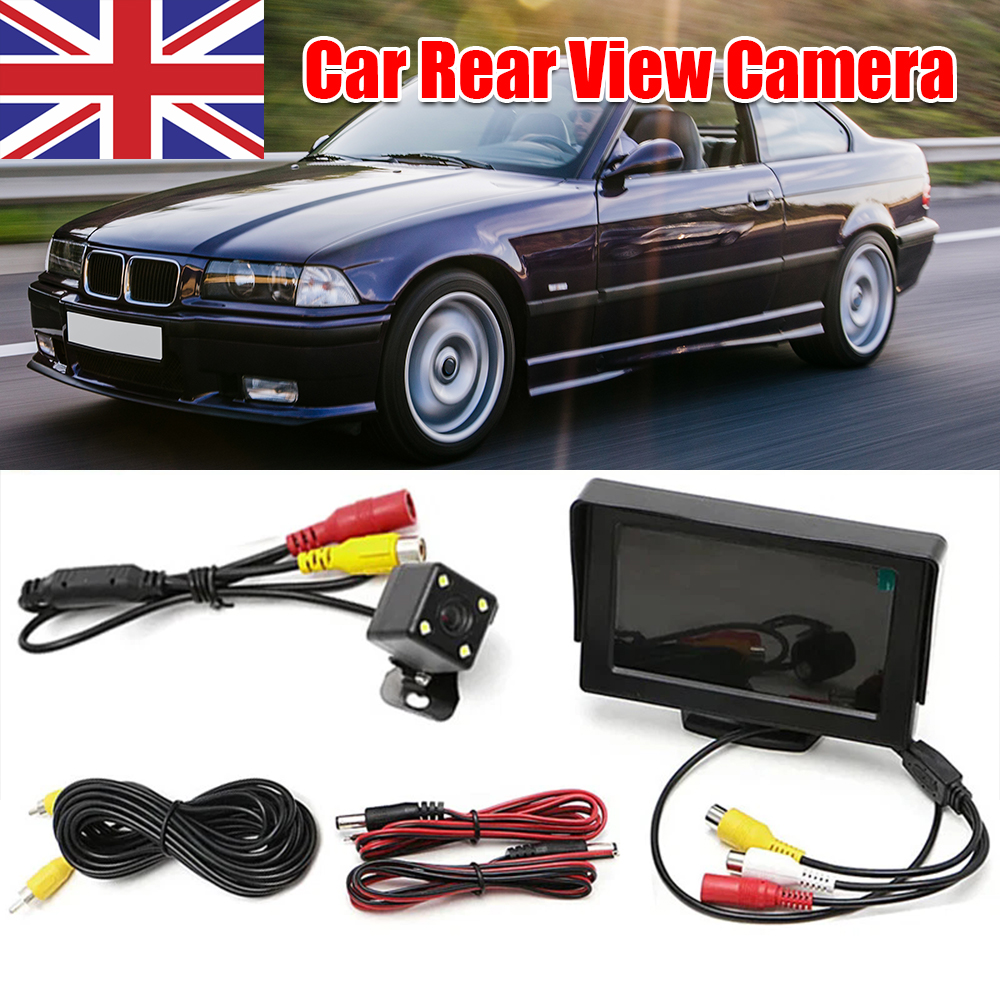

1 x Car reversing camera set
