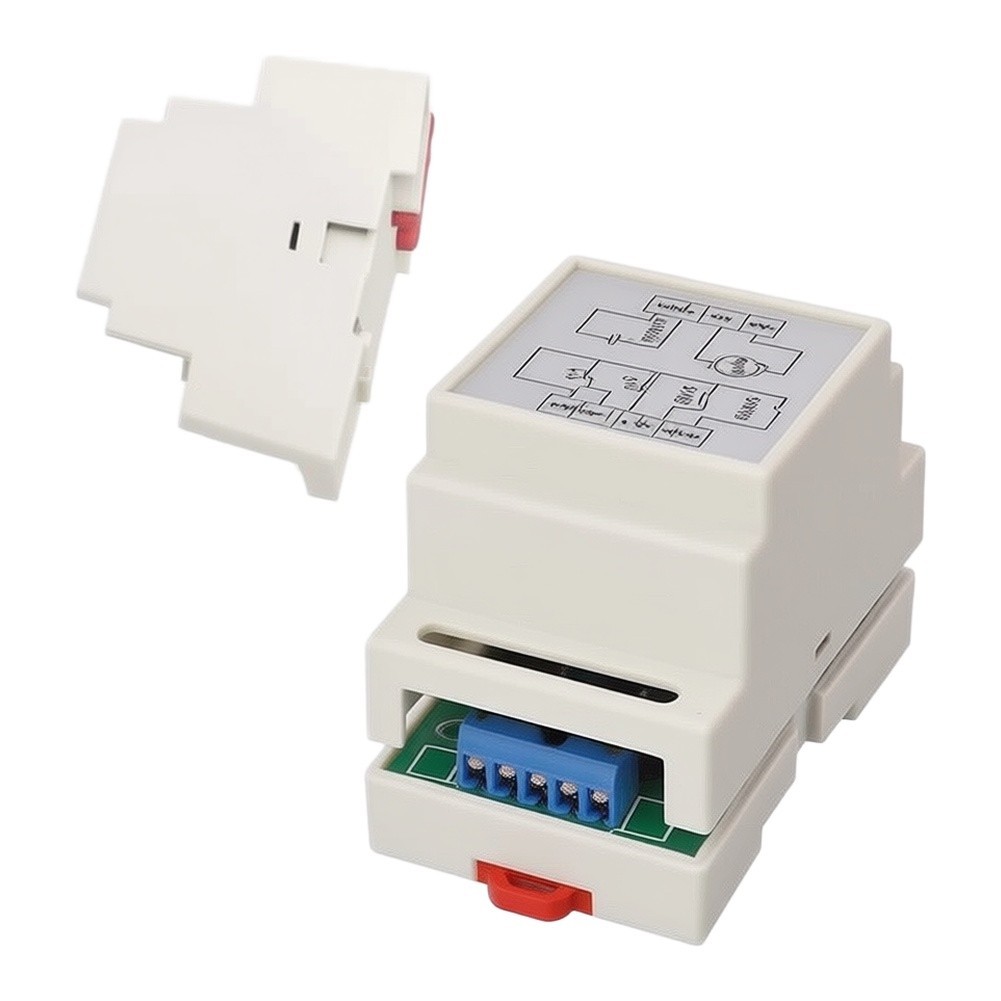

Features:
* 6-36V Wide Voltage : Suitable for most low-voltage DC motors, such as the most commonly used 12V and 24V DC motors.
* Wide Application: This relay has forward and reverse functions and can be used in any application requiring reverse motion, such as linear actuators, linear guides, electric curtains, roller shutters, etc.
* Adjustable Jogging and Self-Locking Modes: The has a built-in for jumper cap, allowing adjustment of the mode according to different application requirements.

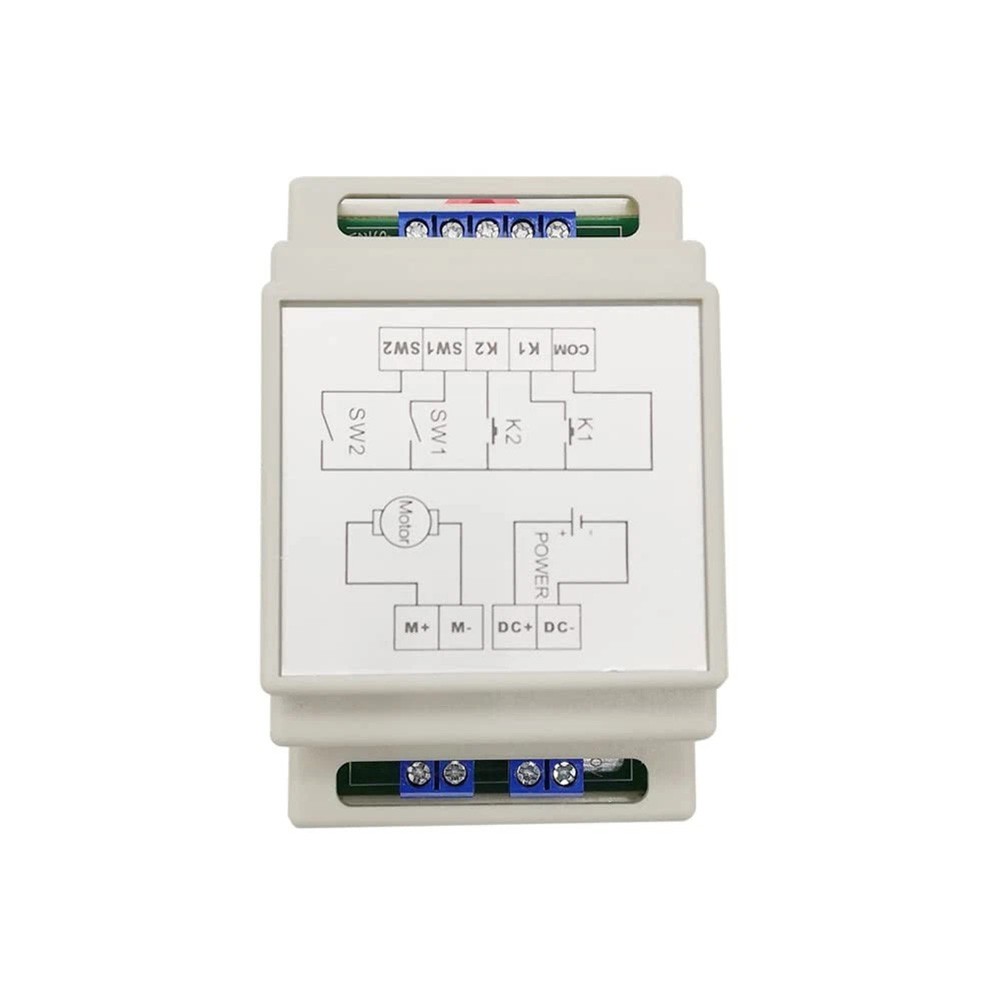

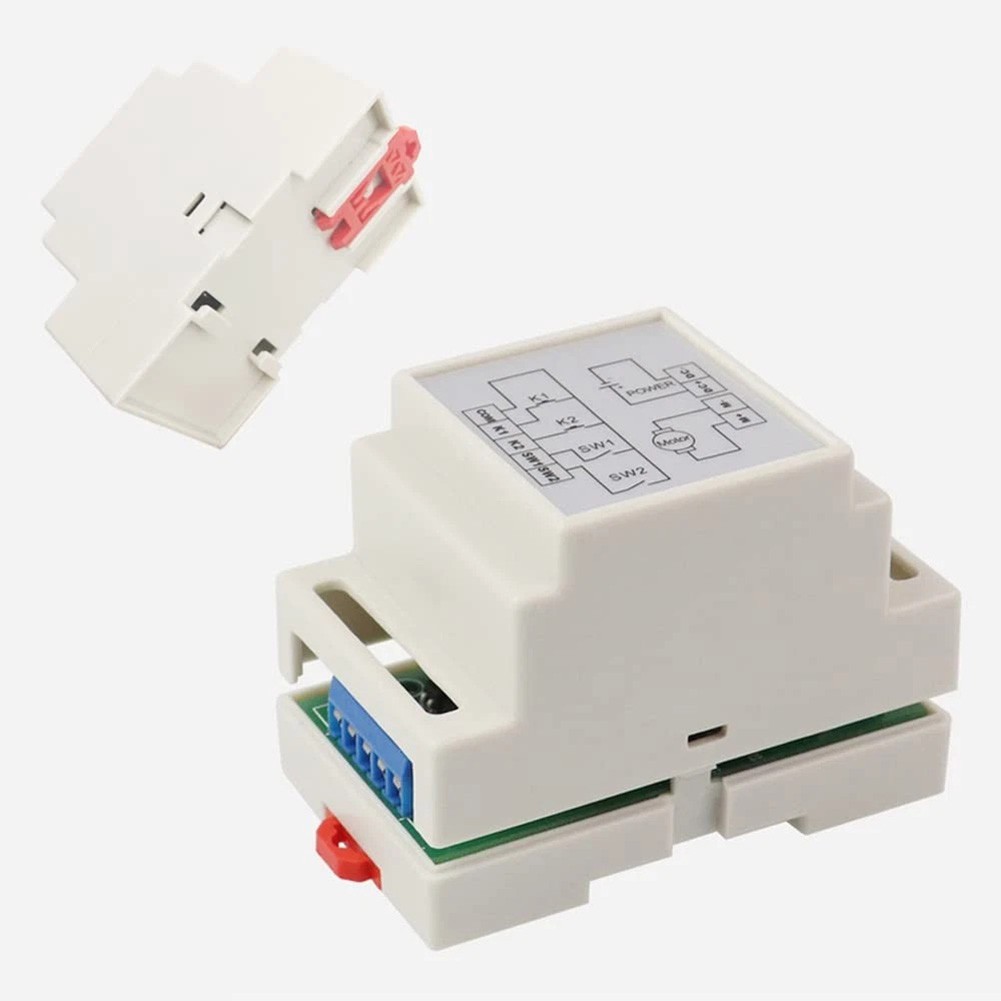

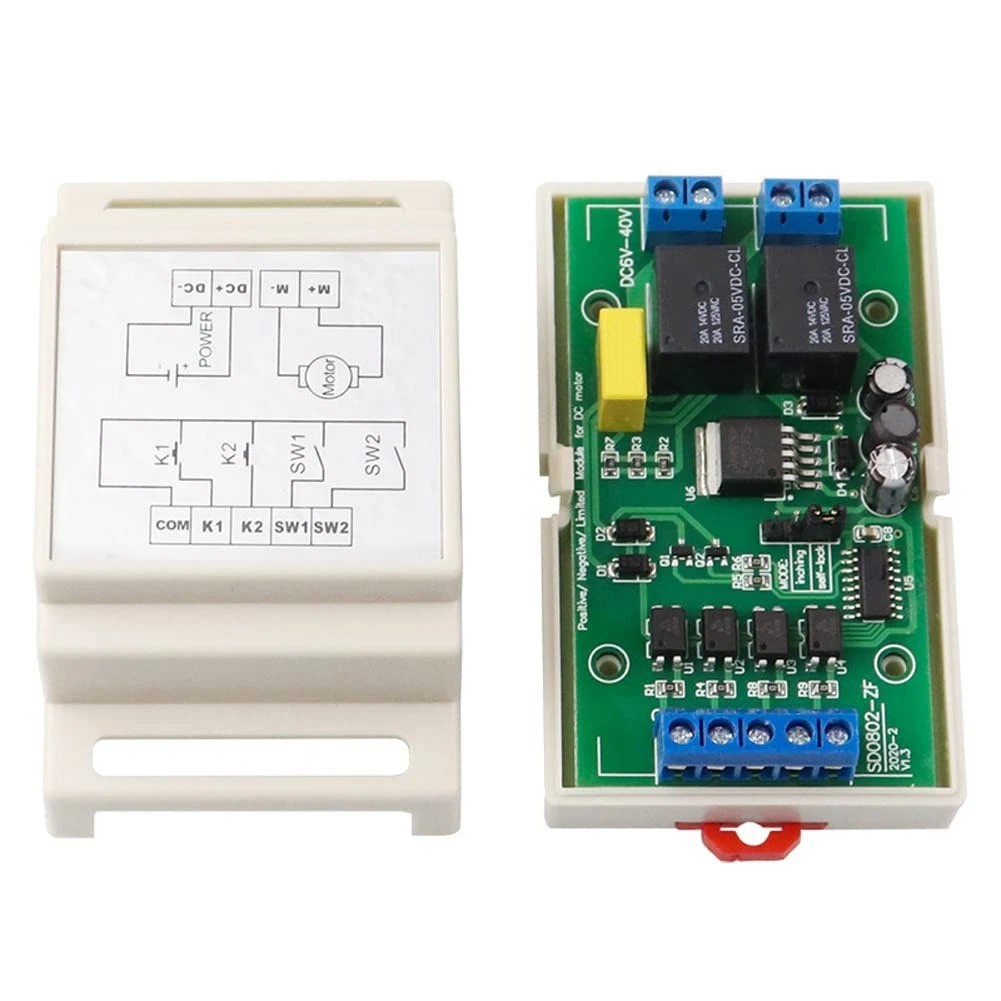

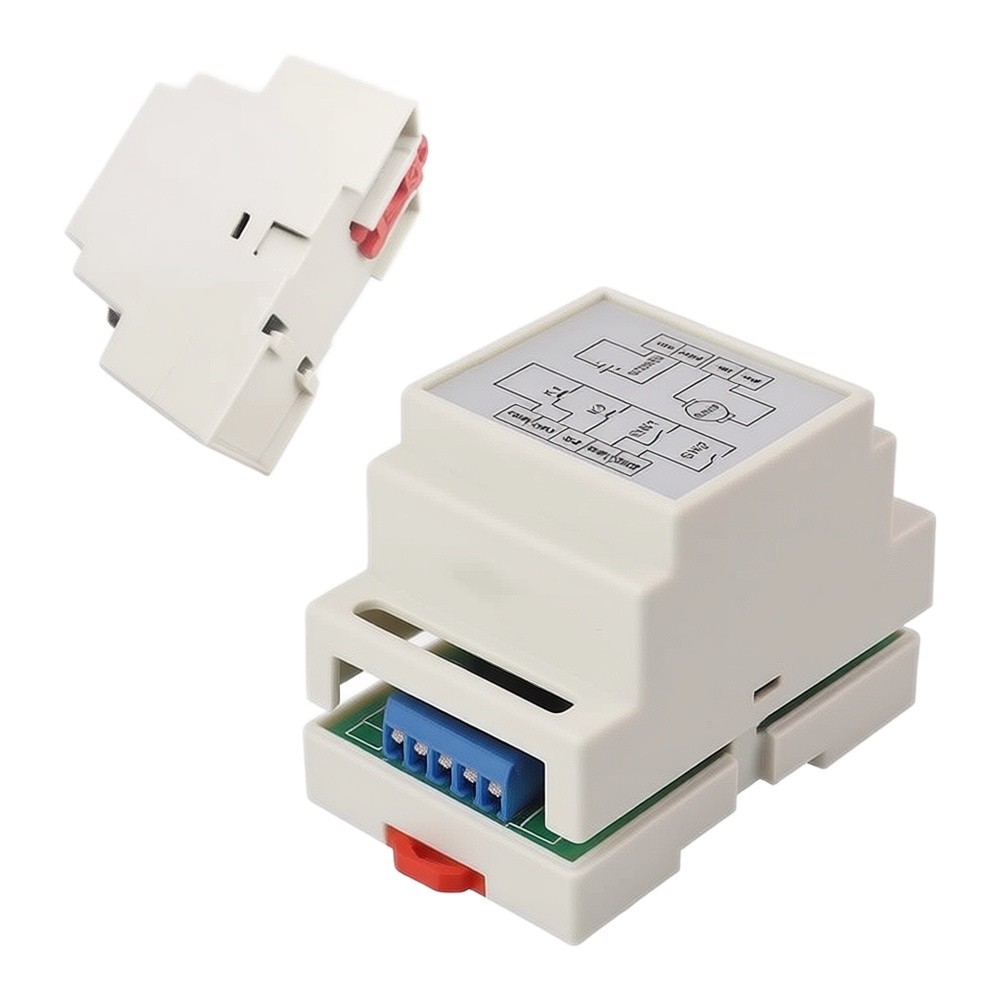

* Easy Wiring: The clear wiring diagram on the housing facilitates for easy connection of a three-position switch to achieve basic motor forward and reverse functions; it can also enable more complex applications that may require professional electrician , such as adding limit switches, cyclic reciprocating motion, etc.
Specifications:
Part Name: DC Motor Controller
Material: PCB
Color: As shown

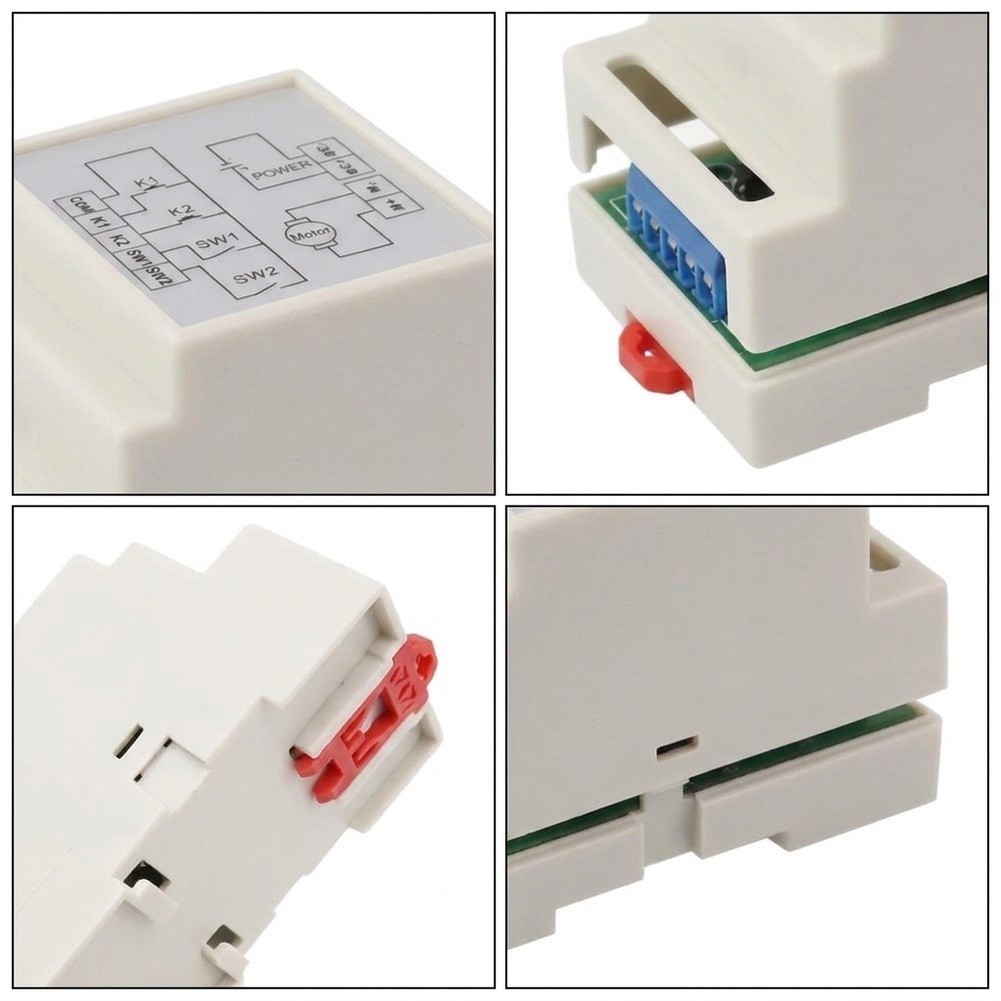

Overall Size: 90 x 58 x 53 mm, PCB Board Size: 83 x 46 x 20 mm
1: What is the difference between jogging and self-locking ?
1: for Jog (-motion) : Pressing the button continuously keeps the motor rotating; releasing the button stops the motor.
Self-locking : Pressing the button keeps the motor rotating; releasing the button resumes the motor's rotation.
2: Can this connect to a sensor?
2: Yes, please note that the PCB board uses NPN-NO wiring, therefore an NPN-NO sensor is required.
3: What is the for maximum for power of the motor it can for drive?
3: It can for drive a for maximum of 80W motors.
4: Can it achieve automatic forward and reverse rotation?
4: It cannot achieve automatic forward and reverse rotation independently; it needs to be used with limit switches or sensors. for Recommended wiring: Connect the start switch and limit switch (A - start point) to for K1, connect the limit switch (B - stop point) to for K2, and leave for SW1 and SW2 pins unused.
5: How to connect the sensor?
5: For a 2-pin sensor/switch, connect pin (normally open) to for K1 and pin to COM; for a 3-pin sensor, connect the VCC pin to a 6-36V DC for power supply, connect the for signal pin (NPN-normally open) to for K1/ for K2/ for SW1/SW2, and connect the GND pin to COM.
Package Contents:
1 for x DC Motor Controller
Note：
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your and light brightness.
2.Please allow slight manual measurement deviation for the data.
