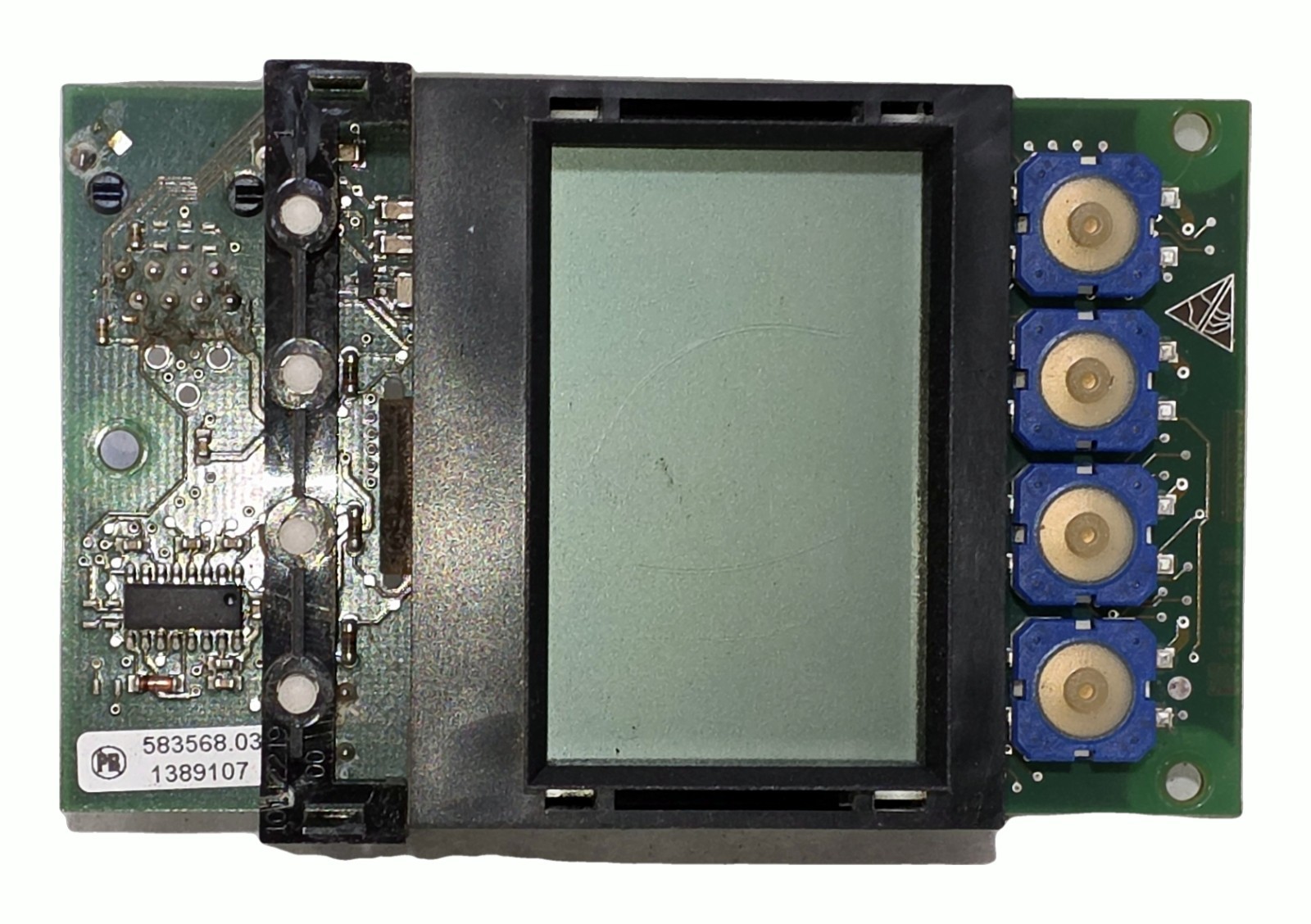

Display and operation printed circuit assembly removed from a Benning inverter system. Single
green PCB carrying a monochrome graphic LCD module in a black bezel, four tactile push buttons in
a vertical column, a metal shield can under the display area, a modular (RJ style) jack and
several gold pin header groups for the system harness. Mixed surface mount and through hole
construction, four mounting holes. Boards are cosmetically clean with both factory labels intact.
Two identical pieces are in stock and are sold individually.
60 Day Money Back Guarantee.
| Parameter | Value |
| MPN | 607389.3 |
| Board designation on label | ESWB |
| Secondary board number | 03, with 1389107 beneath it |
| Unit marking on the photographed piece | 170 AE 1888 |
| Display | monochrome graphic LCD module, portrait orientation, black plastic bezel |
| Controls | four tactile push buttons, single column on the right edge |
| Interconnect | flat flex (FFC) jumper from the LCD module to a ZIF connector, one modular (RJ style) jack, multiple gold pin headers in 5 and 6 position groups |
| Construction | single green FR4 board, surface mount and through hole, metal shield can, two radial electrolytic capacitors, SOIC microcontroller |
| Mounting | four holes, two per long edge |
| Application | Benning literature describes the display and operation unit on INVERTRONIC inverter systems as a liquid crystal display, 17 LEDs and 4 push buttons |
| Quantity available | 2, sold individually |
One display and operation printed circuit assembly with LCD module, bezel, four push buttons and mounting bracket, exactly as pictured.
Not included:
Front panel, escutcheon, membrane overlay or keypad legend. Mating cables, ribbon harness or RJ
patch cable. Companion LED indicator board. Inverter, cabinet or any other system hardware.
Documentation, software or pinout.
Intended as a system sub-assembly, not a standalone device. It requires the host inverter
system's harness, supply and front panel hardware. No manufacturer model number is marked on the
board, so the buyer should match against the numbers printed on the labels, 607389.3 and
03, and against the photographs before ordering. Photographs of both sides are part of the
listing and show every marking present on the item.
