Product Description
Application Model:
Parameters:
Tapered output shaft 35mm with 1/2 BSP port

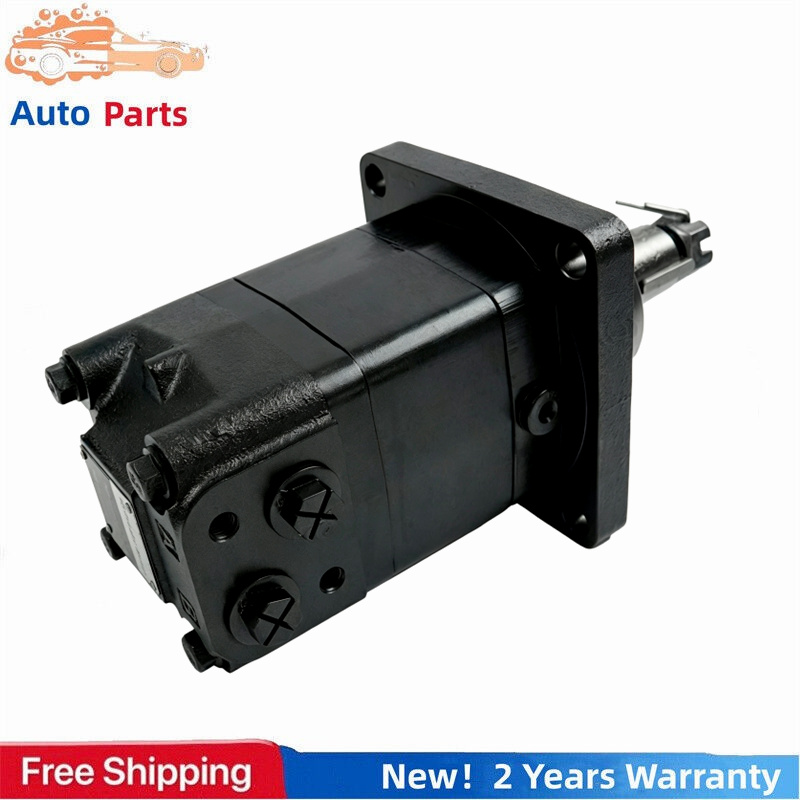

OMSW 315 Low Speed High Torque Wheel motor, Geometric Displacement 314.9 cm3
Main Specification:
Motor size: 315
Geometric displacement( cm^3[in]): 314,9[19.22]
Max speed cont: 240 rpm
Max speed int: 285 rpm
Max torque cont(Nm[lbf in]): 825[7300]
Max torque int(Nm[lbf in]): 1000[8850]
Max output power cont(kW[hp]): 15,0[20.1]
Max output power int(kW[hp]): 17,0[22.8]
Max pressure drop cont(bar[psi]): 200[2900]
Max pressure drop int(bar[psi]): 240[3480]
Max pressure drop peak(bar[psi]):260[3770]
Max oil flow cont(l/min[gpm]): 75[19.8]
Max oil flow int(l/min[gpm]): 90[23.8]
Max starting pressure with unloaded shaft(bar[psi]): 8[115]
Min starting torque at max press drop cont(Nm[lbf in]): 710[6280]
Min starting torque at max press drop int(Nm[lbf in]): 850[7520]
Max inlet pressure cont(bar[psi]): 230[3340]
Max inlet pressure int(bar[psi]): 295[4280]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 210[3050]
Part number：OMSW315 - 151F0534 OMSW315151F0534 151F0534 BMSY-315-W-T1-D
