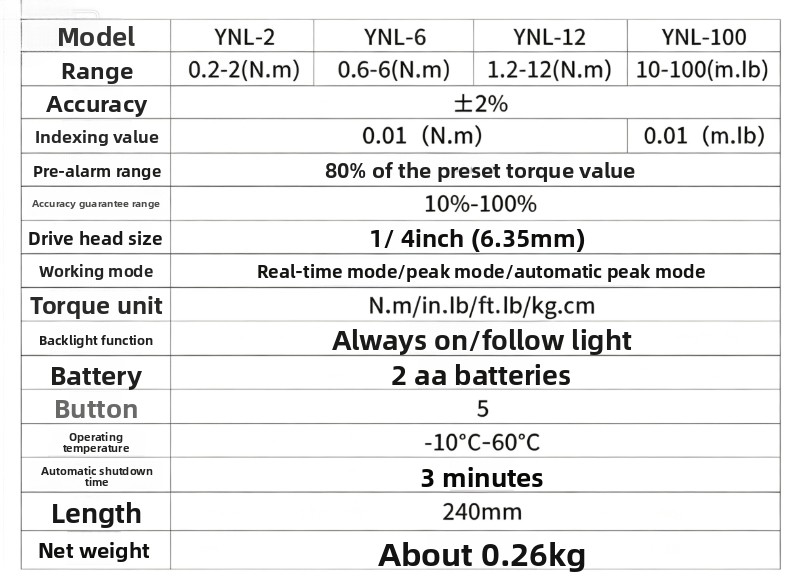

# Digital Torque Wrench Specifications

## YNL‑2

- Measurement Range: 0.2–2 (N·m)

- Accuracy: ±2%

- Resolution: 0.01 (N·m)

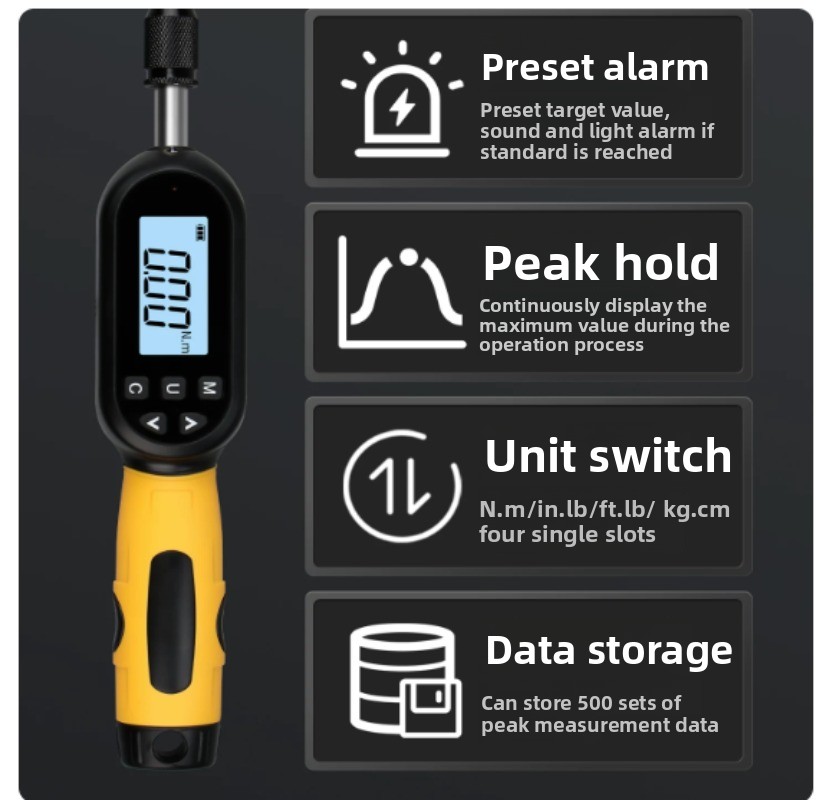

- Pre-alarm Range: 80% of preset torque value

- Accuracy Guaranteed Range: 10%–100%

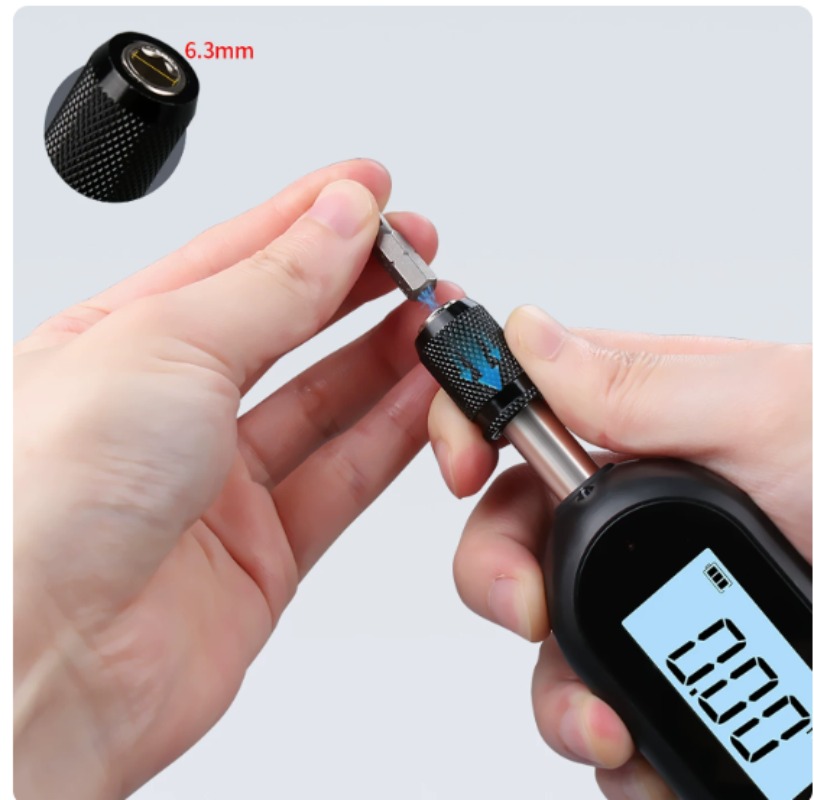

- Drive Size: 1/4 inch (6.35 mm)

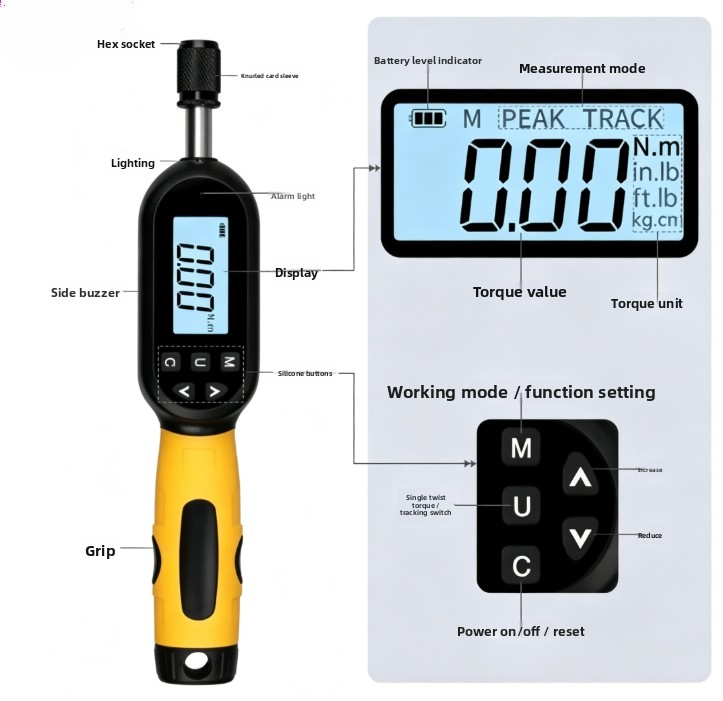

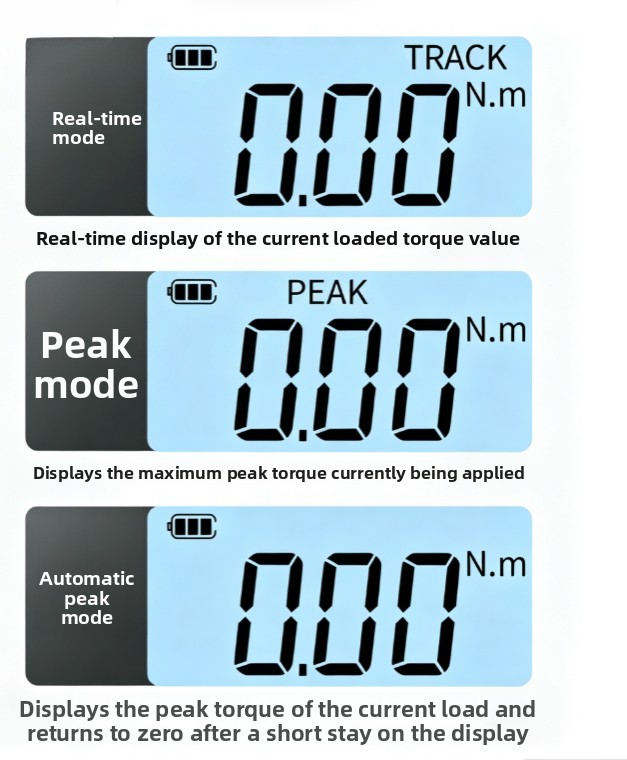

- Operating Modes: Real-time Mode / Peak Mode / Auto-Peak Mode

- Torque Units: N·m / in·lb / ft·lb / kg·cm

- Backlight: Always-on / Follow-the-cursor

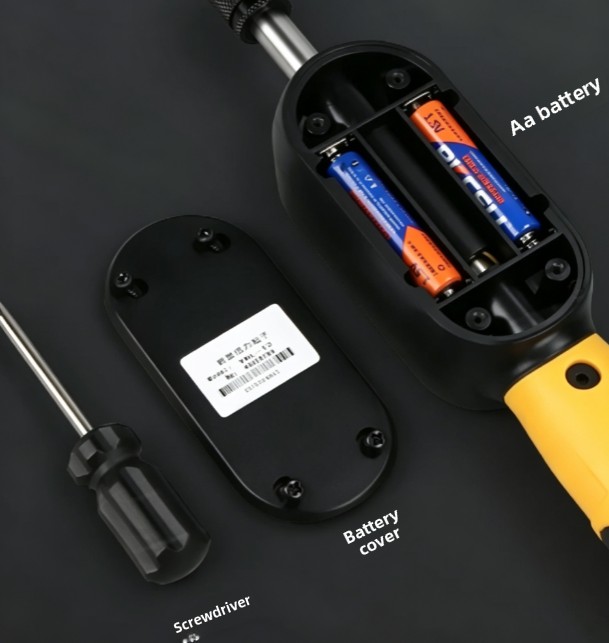

- Batteries: 2 AA batteries

- Buttons: 5

- Operating Temperature: –10°C to 60°C

- Auto-Shutdown Time: 3 minutes

- Length: 240 mm

- Net Weight: Approx. 0.26 kg

## YNL‑6

- Measurement Range: 0.6–6 (N·m)

- Accuracy: ±2%

- Resolution: 0.01 (N·m)

- Pre-alarm Range: 80% of preset torque value

- Accuracy Guaranteed Range: 10%–100%

- Drive Head Size: 1/4 inch (6.35 mm)

- Operating Modes: Real-time Mode / Peak Mode / Auto-Peak Mode

- Torque Units: N·m / in·lb / ft·lb / kg·cm

- Backlight: Always On / Follow-Up

- Batteries: 2 AA batteries

- Buttons: 5

- Operating Temperature: –10°C to 60°C

- Auto-Shutdown Time: 3 minutes

- Length: 240 mm

- Net Weight: Approx. 0.26 kg

## YNL‑12

- Measurement Range: 1.2–12 (N·m)

- Accuracy: ±2%

- Resolution: 0.01 (N·m)

- Pre-alarm Range: 80% of preset torque value

- Accuracy guarantee range: 10%–100%

- Drive head size: 1/4 inch (6.35 mm)

- Operating modes: Real-time mode / Peak mode / Auto-peak mode

- Torque units: N·m / in·lb / ft·lb / kg·cm

- Backlight function: Always-on / Follow-light

- Batteries: 2 AA batteries

- Buttons: 5

- Operating Temperature: –10°C to 60°C

- Auto-Shutdown Time: 3 minutes

- Length: 240 mm

- Net Weight: Approx. 0.26 kg

## YNL‑100

- Measurement Range: 10–100 (in.lb)

- Accuracy: ±2%

- Resolution: 0.01 (in.lb)

- Pre-alarm range: 80% of preset torque value

- Accuracy guarantee range: 10%–100%

- Drive head size: 1/4 inch (6.35 mm)

- Operating modes: Real-time mode / Peak mode / Auto-peak mode

- Torque Units: N·m / in·lb / ft·lb / kg·cm

- Backlight: Always On / Follow-Up

- Batteries: 2 AA batteries

- Buttons: 5

- Operating Temperature: –10°C to 60°C

- Auto Shut-Off Time: 3 minutes

- Length: 240 mm

- Net Weight: Approx. 0.26 kg

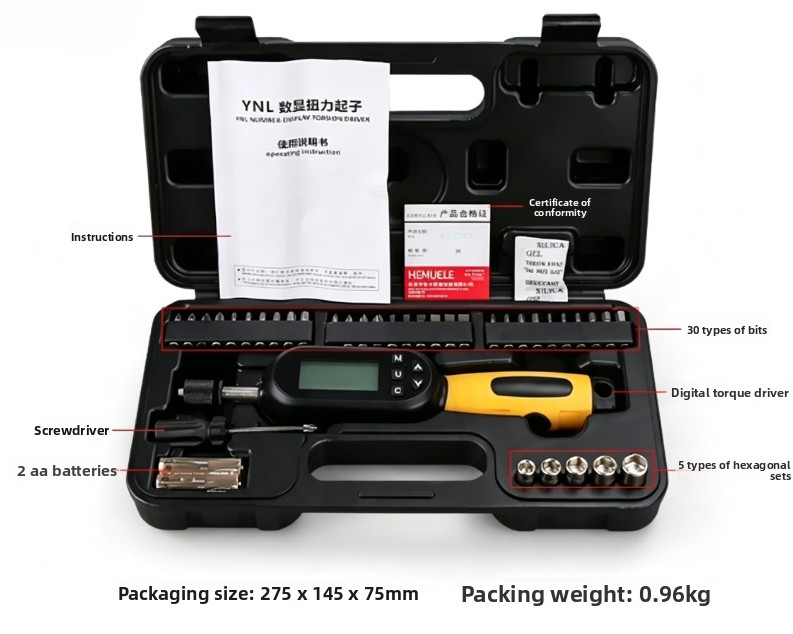

Package Dimensions: 275 × 145 × 75 mm

Package Weight: 0.96 kg
