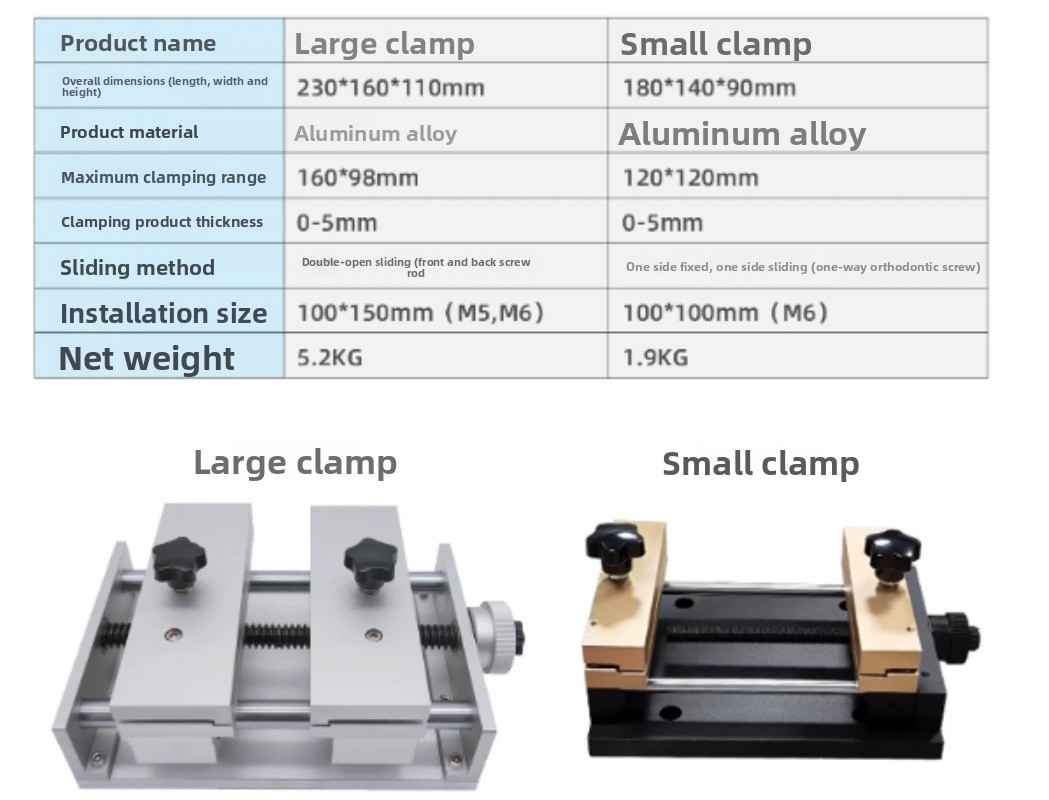

# Fixture Specifications

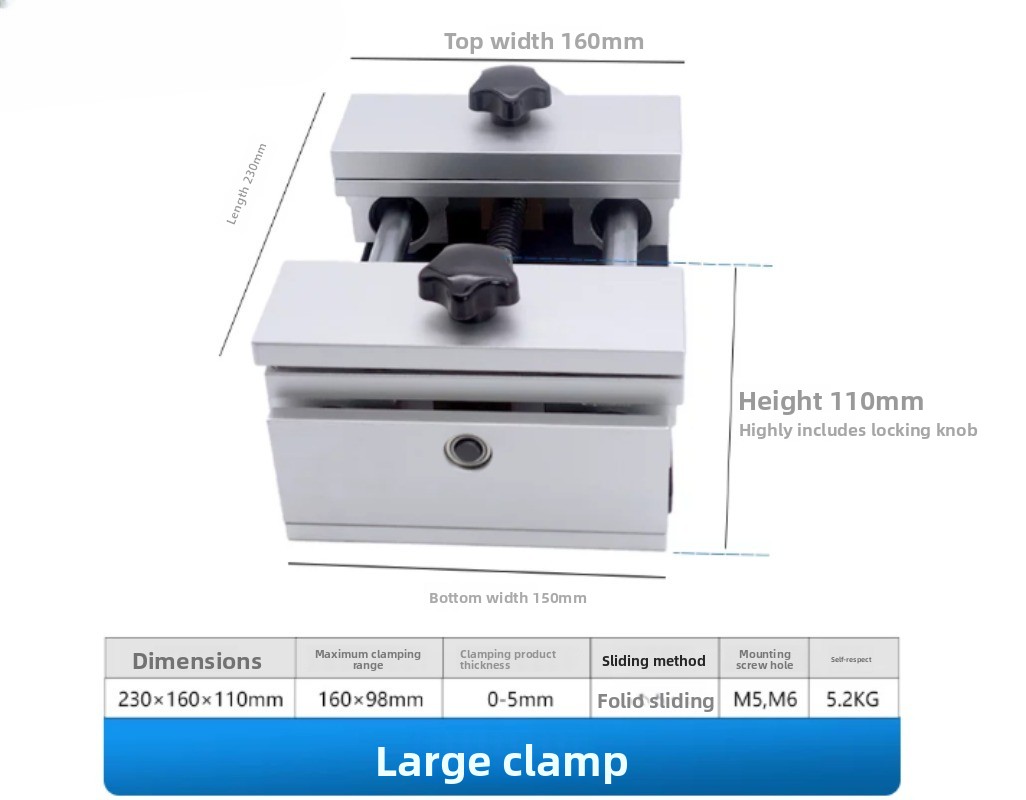

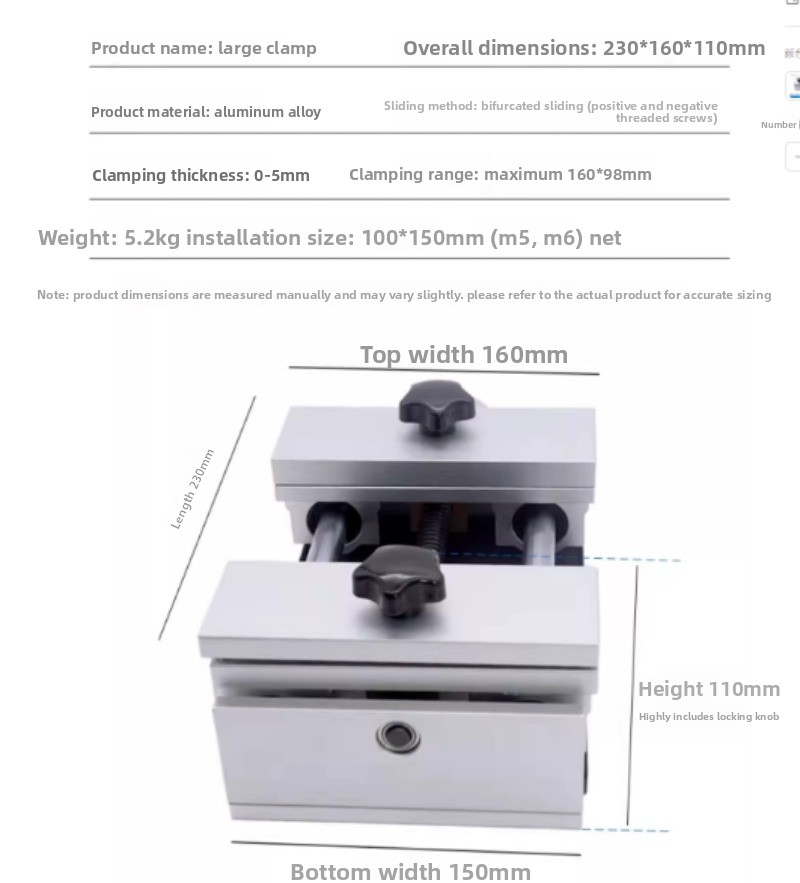

## Large Fixture

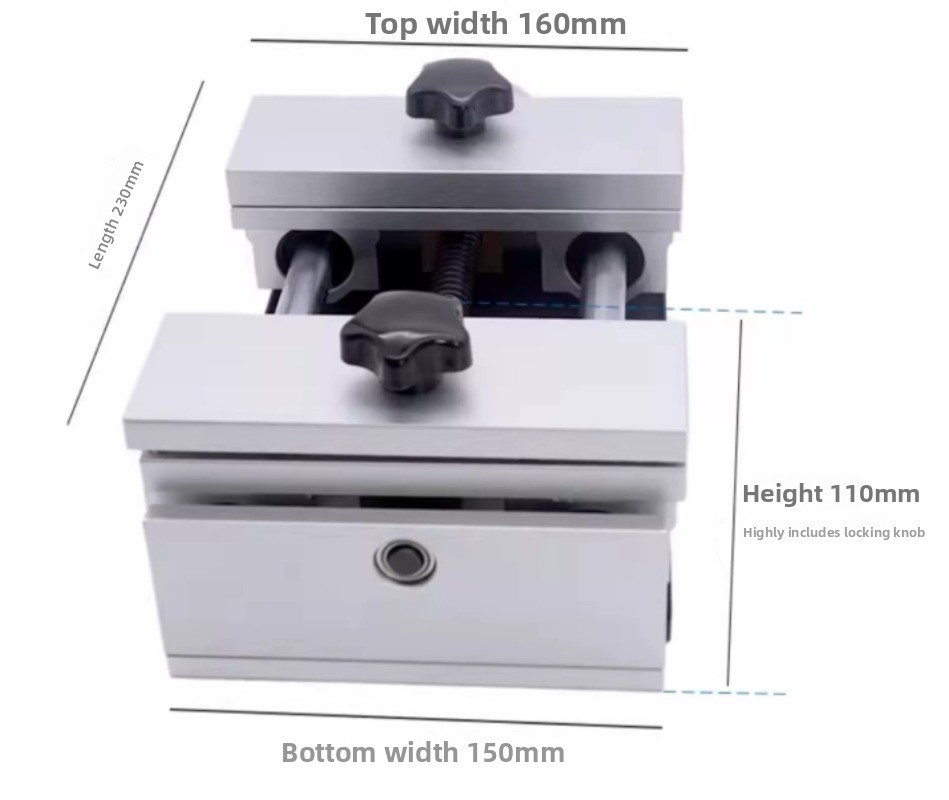

- Dimensions (L x W x H): 230 x 160 x 110 mm
- Material: Aluminum alloy
- Maximum clamping range: 160 x 98 mm

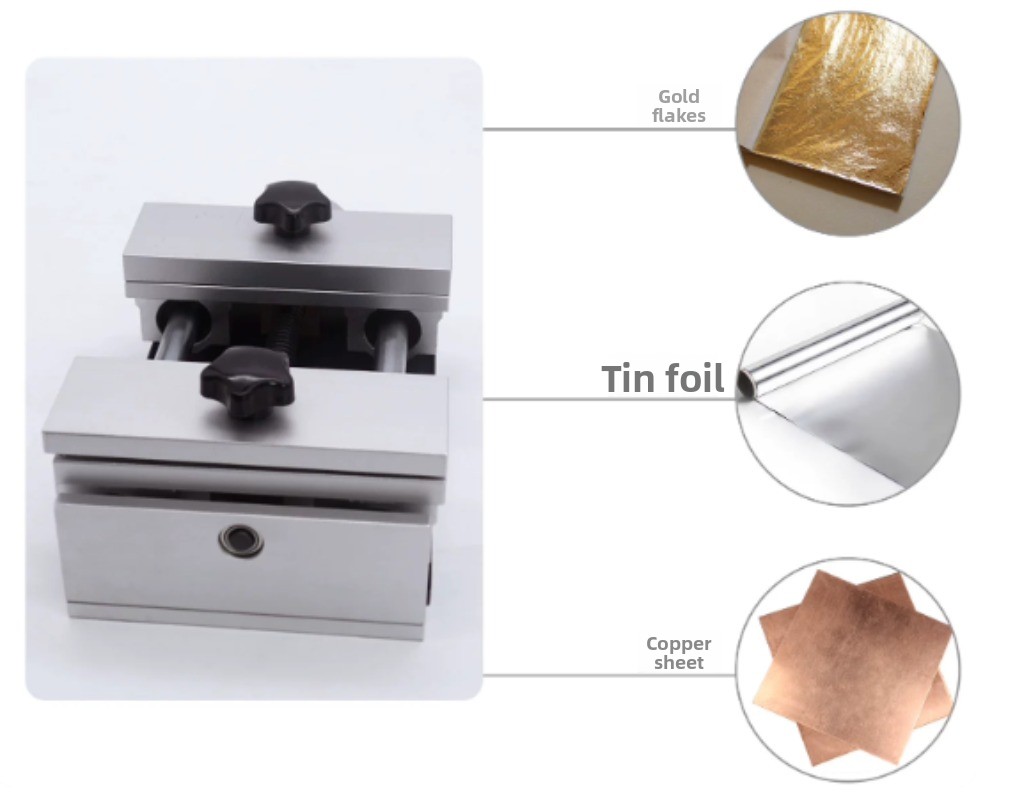

- Clampable product thickness: 0–5 mm

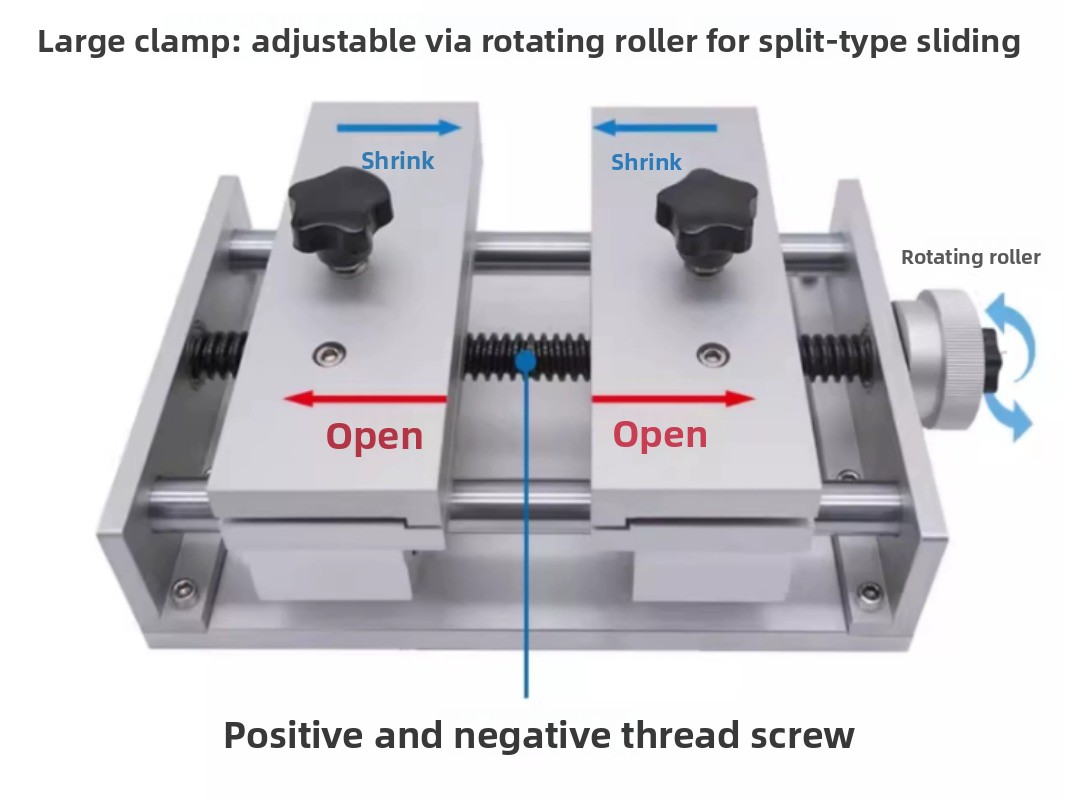

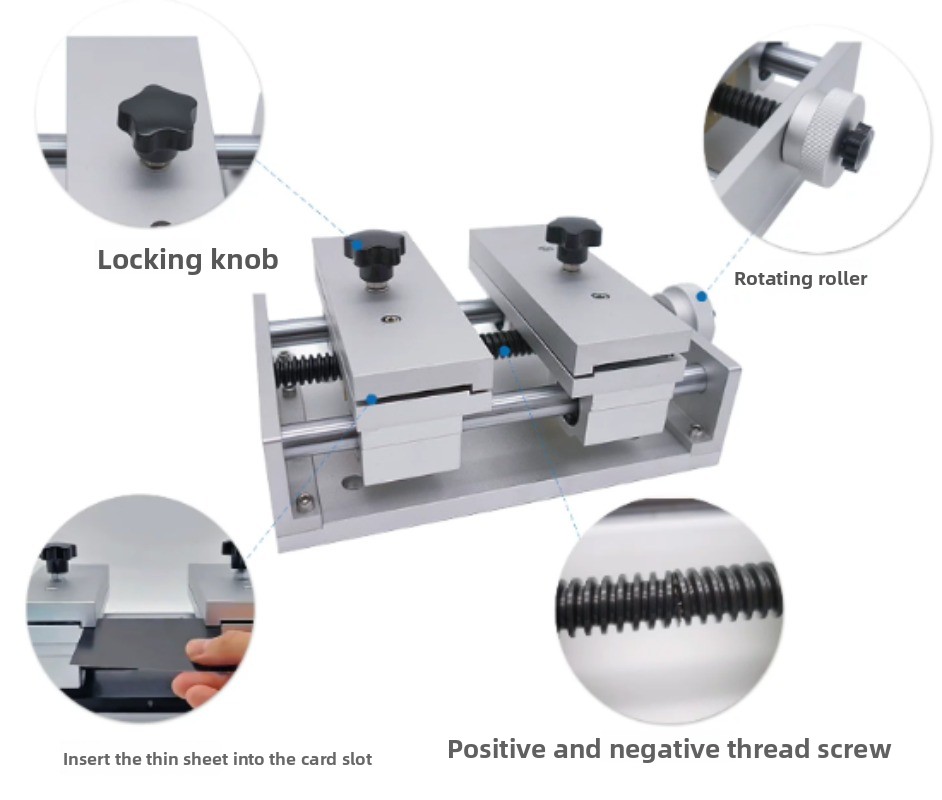

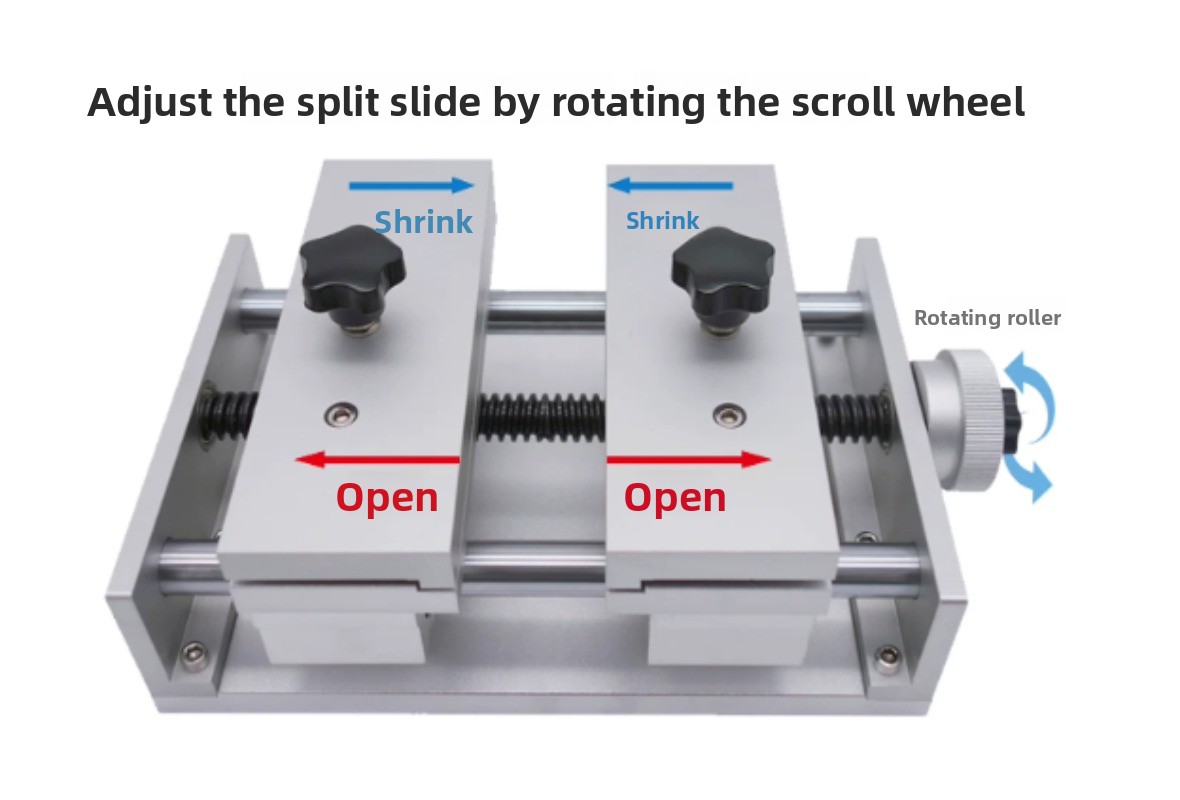

- Sliding Mechanism: Split-type sliding (opposite-threaded lead screw)
- Mounting Dimensions: 100 × 150 mm (M5, M6)
- Net Weight: 5.2 kg

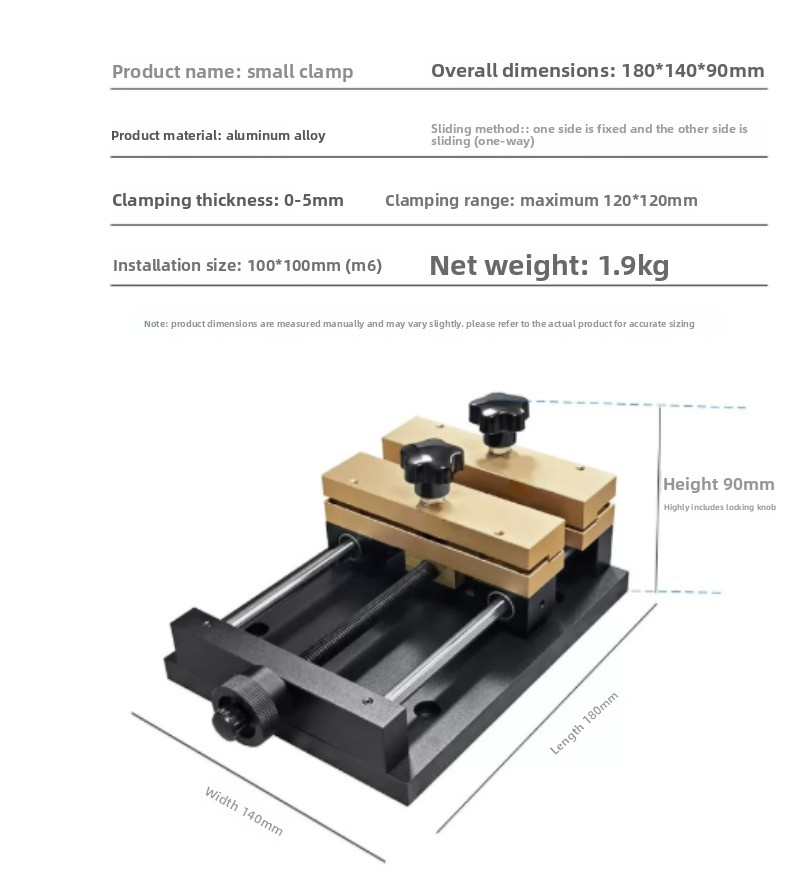

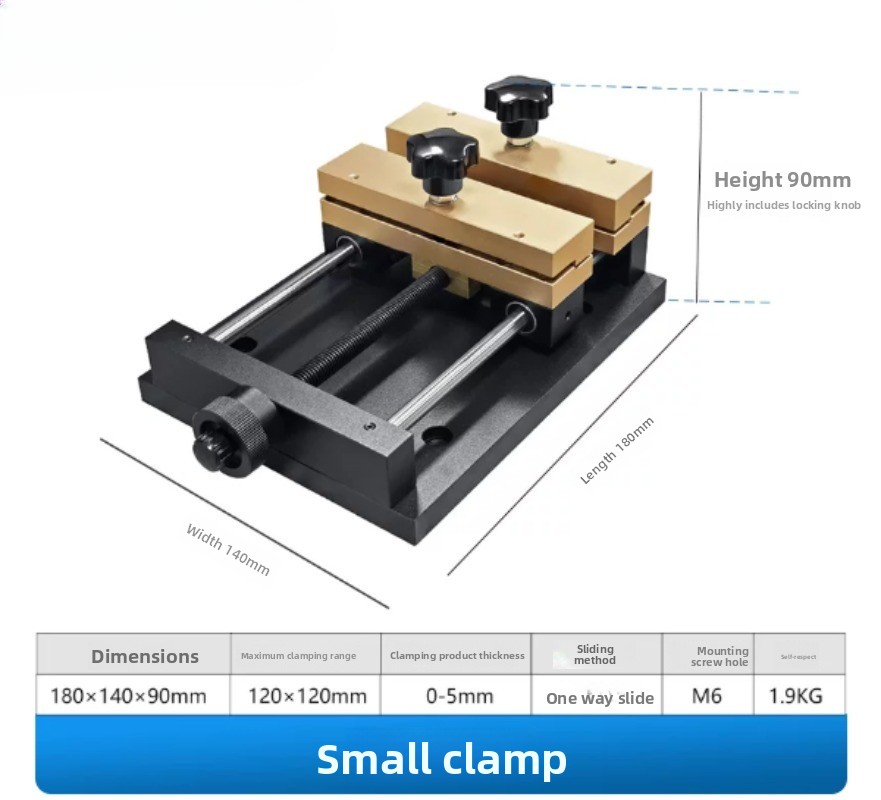

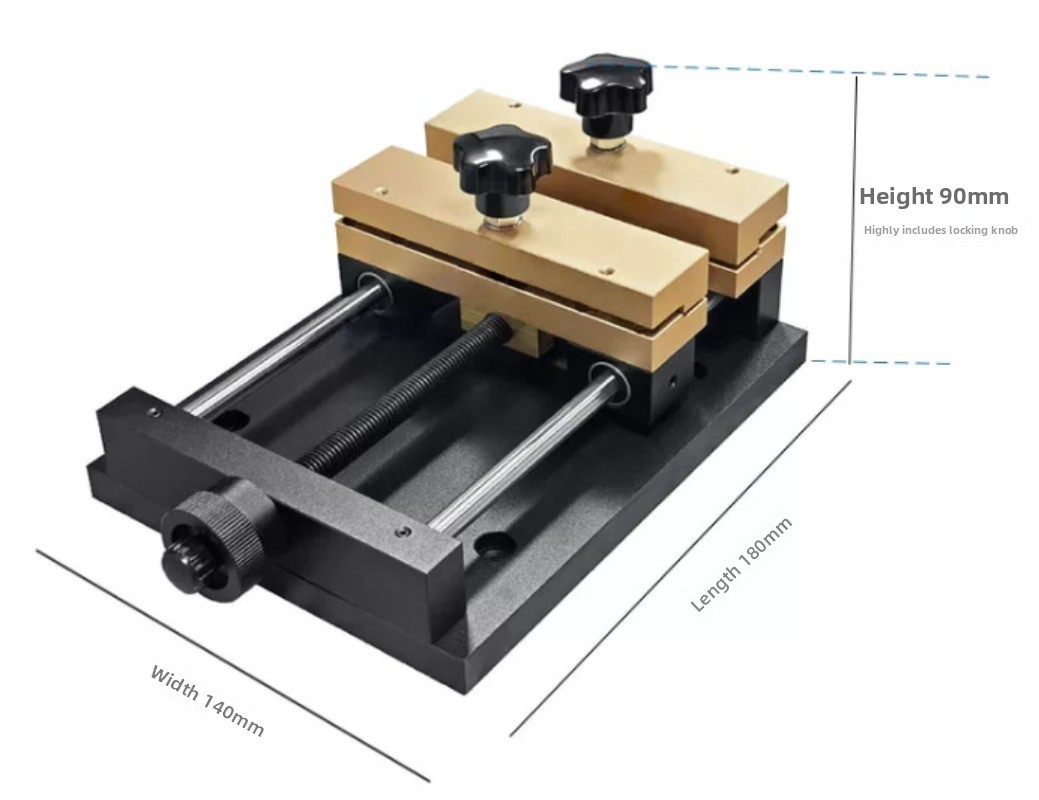

## Small Clamp
- Dimensions (L × W × H): 180 × 140 × 90 mm
- Material: Aluminum alloy
- Maximum clamping range: 120 × 120 mm
- Product thickness: 0–5 mm

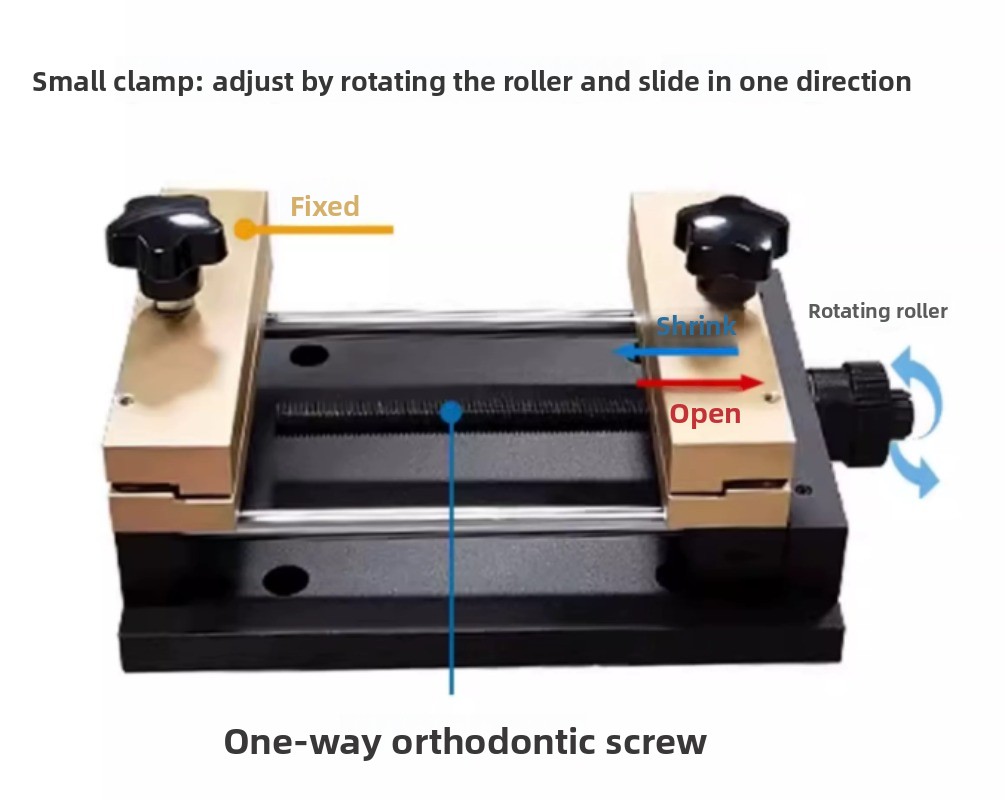

- Sliding mechanism: Fixed on one side, sliding on the other (unidirectional right-hand lead screw)
- Mounting dimensions: 100 × 100 mm (M6)
- Net weight: 1.9 kg
