Product Description

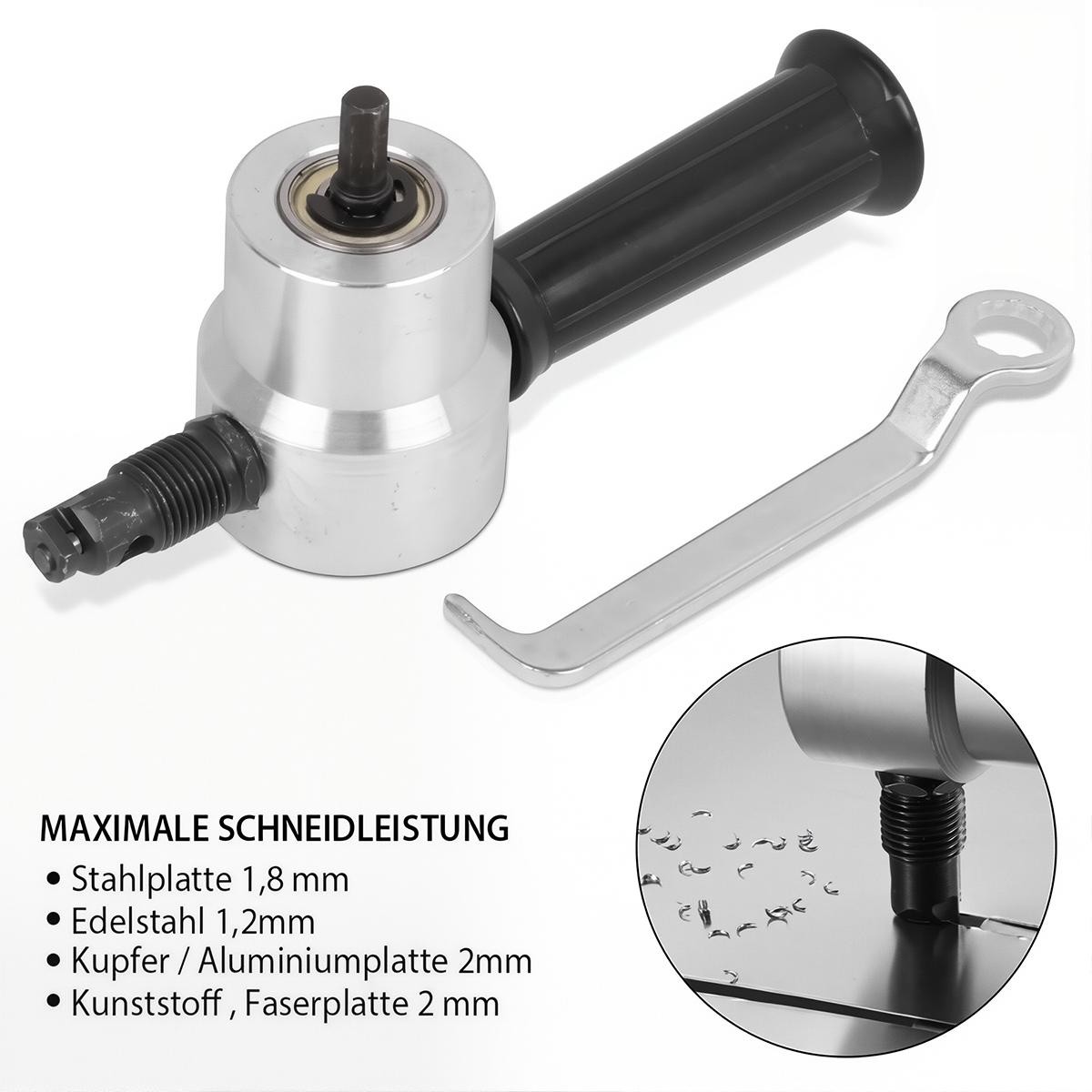

Double Head Sheet Metal Cutter Nibbler Cutting Tool Saw Power Drill Attachment Product Dimensions: 18*5.5*5cm
Product Color: Silver
Product Material: Metal
Description:
Thin Plate Hole Saw Instructions:
1. When using the thin plate hole saw, first insert the drill tip and cutter into the hole saw's round hole, connecting and locking the cutter to the drill. Then tighten the three post screws on the frame to prevent the hole saw frame from slipping. Insert the ruler rod with the positioning pin facing upwards into the small square hole on the frame from left to right. Finally, adjust and tighten the top screw according to the size of the arc to be cut, fixing the ruler rod firmly to ensure the accuracy of the round hole cutting.
2. When cutting standard arcs, a thin plate hole saw should be used to ensure a smooth and beautiful arc cut surface. First, drill a 3mm positioning hole on the workpiece, then drill a 12mm hole. Insert the cutter head into the hole to cut the inner and outer circles.
Technical Parameters:
1. Two reversible cutting heads
2. Cutting head can be positioned 360 degrees in any direction
3. Optional 8mm electric or pneumatic drill, speed 1500-3000 rpm
4. Minimum cutting radius 12mm
5. Allowable cutting thickness: Ordinary iron plate: 1.8mm
Stainless steel plate: 1.2mm
Copper and aluminum plate: 2mm
Plastic plywood: 2mm
Packaging: 1 cutter per unit
