Feature：
Micro-Computer Control
Man/Auto Start/Stop
5 Units LED Tube Display
LED And Fault Alarm Code Indication
Two Group Of Programmed Relay Output
Application For Various Kinds Of Engine By Self-Setting
With RS485 Communication Port
Control：
Manual Start/Stop
Auto Start/Stop
Preheat Control
Auto Idle Control
Choke Control
E.S.T Control
Description：
DC Supply: DC 8～36 V
Power Consumption: DC 8～36 V
Measuring Frequency: 10～70 Hz
AC Input: AC 50～380 V
Current Measurement Range: 0-2000A
Speed Sensor Frequency: 30-9999Hz
Relay Output:
Fuel Output: MAX 5A
Start Output: MAX 5A
Configurable Output1: MAX 2.5A
Configurable Output2: MAX 2.5A
Excitation Output: MAX 1A
Size: 78mm * 78mm * 55mm
Panel Cut-Out: 67mm * 67mm
Protection Level: IP54 When Waterproof Rubber Gasket Is Added Between Controller And Its Panel
Operation Temperature: -30℃～70℃
Storage Condition: -40℃～85℃
Weight: 250g
Panel: Chinese/English Optional
Package List:

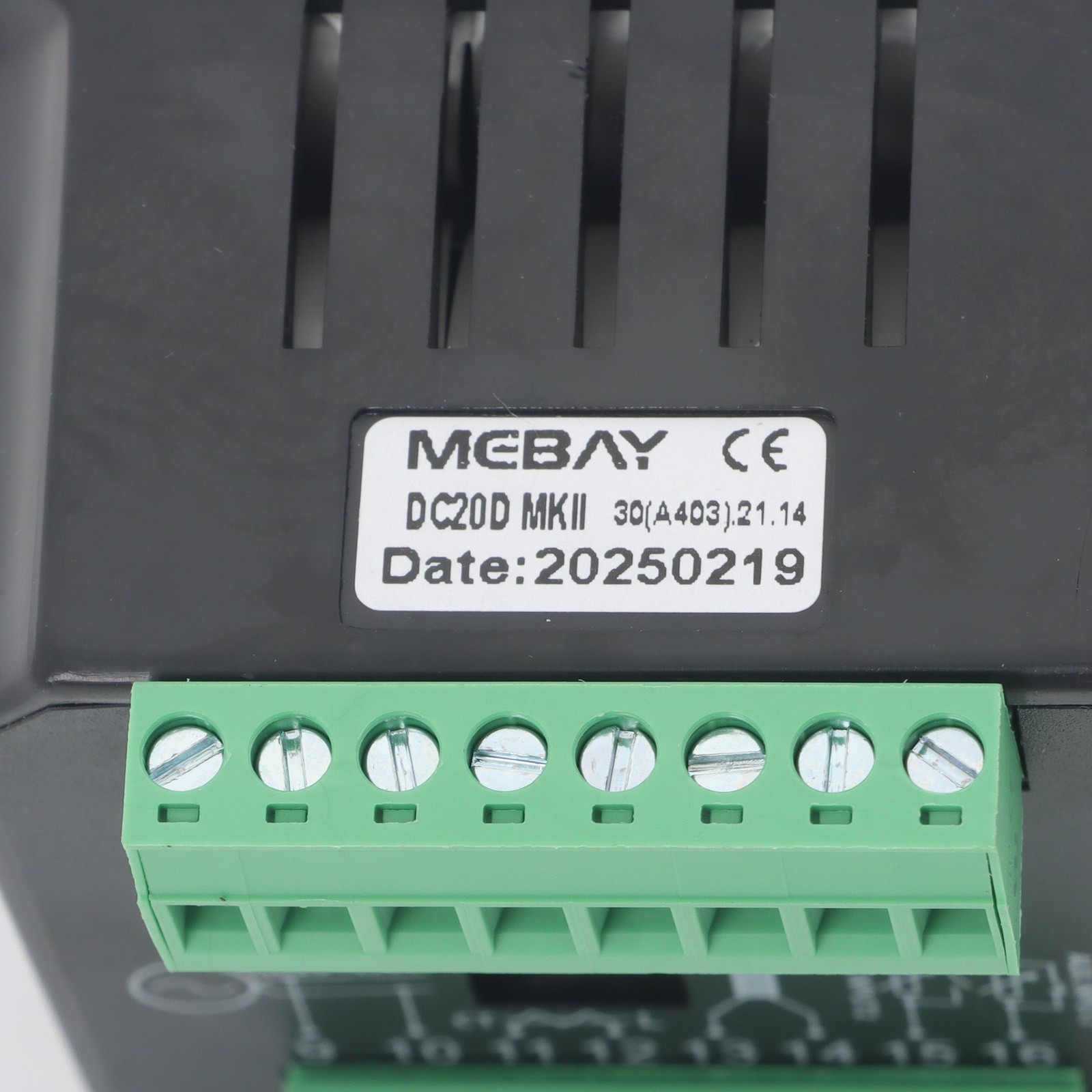

1 × DC20D MKII Genset Controller
2 × Mounting Screws
1 × Cable
Notes:
If You Are Uncertain About The Item,Please Feel Free To Contact Us For Confirm.
Sorry For Any Inconvenience Caused,Full Refund Guarantee If Does Not Fit.
| Item Specifics | |
|---|---|
| Country of Origin | United States |
| MPN | DC20D MKII |
| Model | DC20D MKII |
| Manufacturer Warranty | 1 Year |
| Type | Generator Controller |
| Brand | findmall |
| DC Supply | DC 8～36 V |
| Power Consumption | DC 8～36 V |
| Measuring Frequency | 10～70 Hz |
| AC Input | AC 50～380 V |
| Current Measurement Range | 0-2000A |
| Speed Sensor Frequency | 30-9999Hz |
