10A PWM DC Motor Adjustable Speed Control Switch Controller Voltage Regulator
Product Description

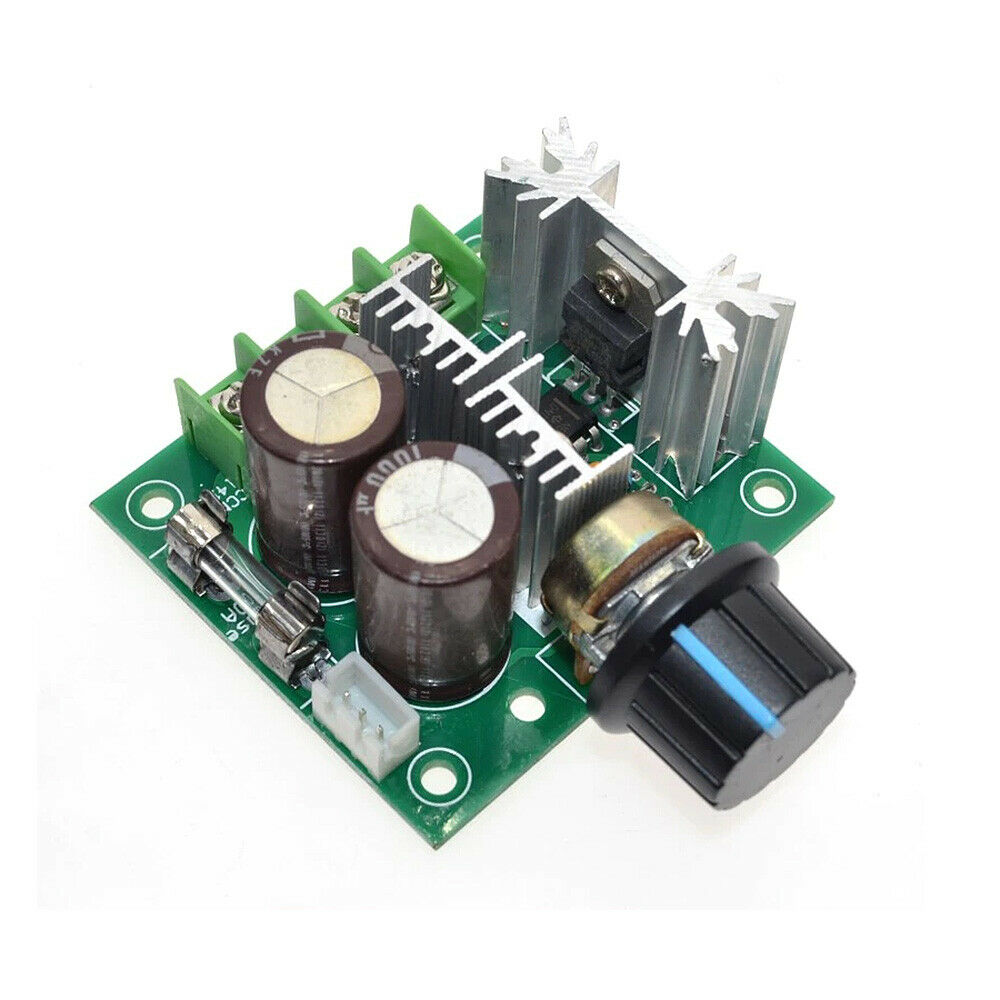

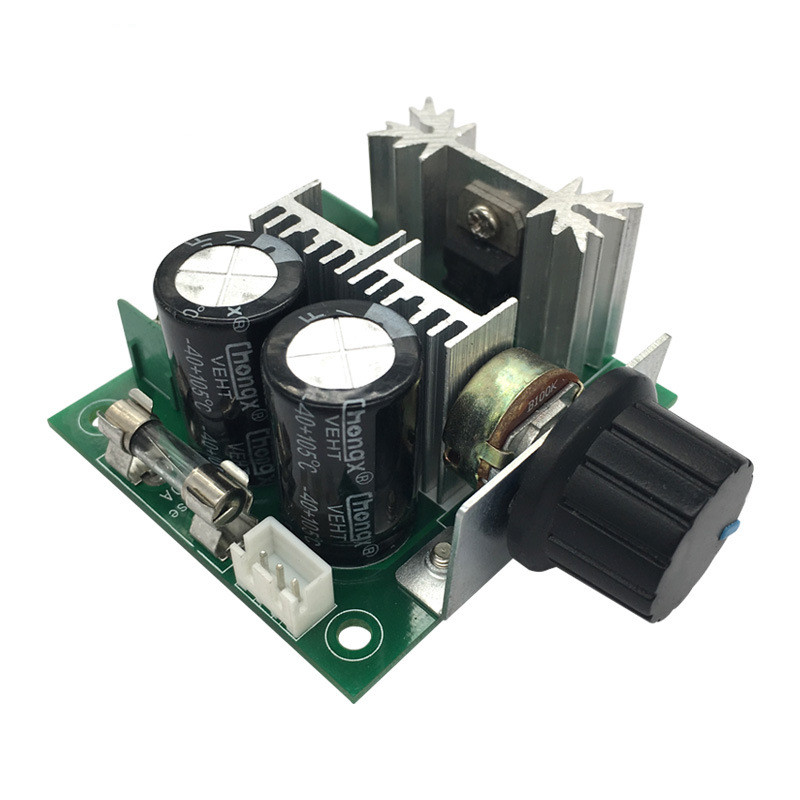

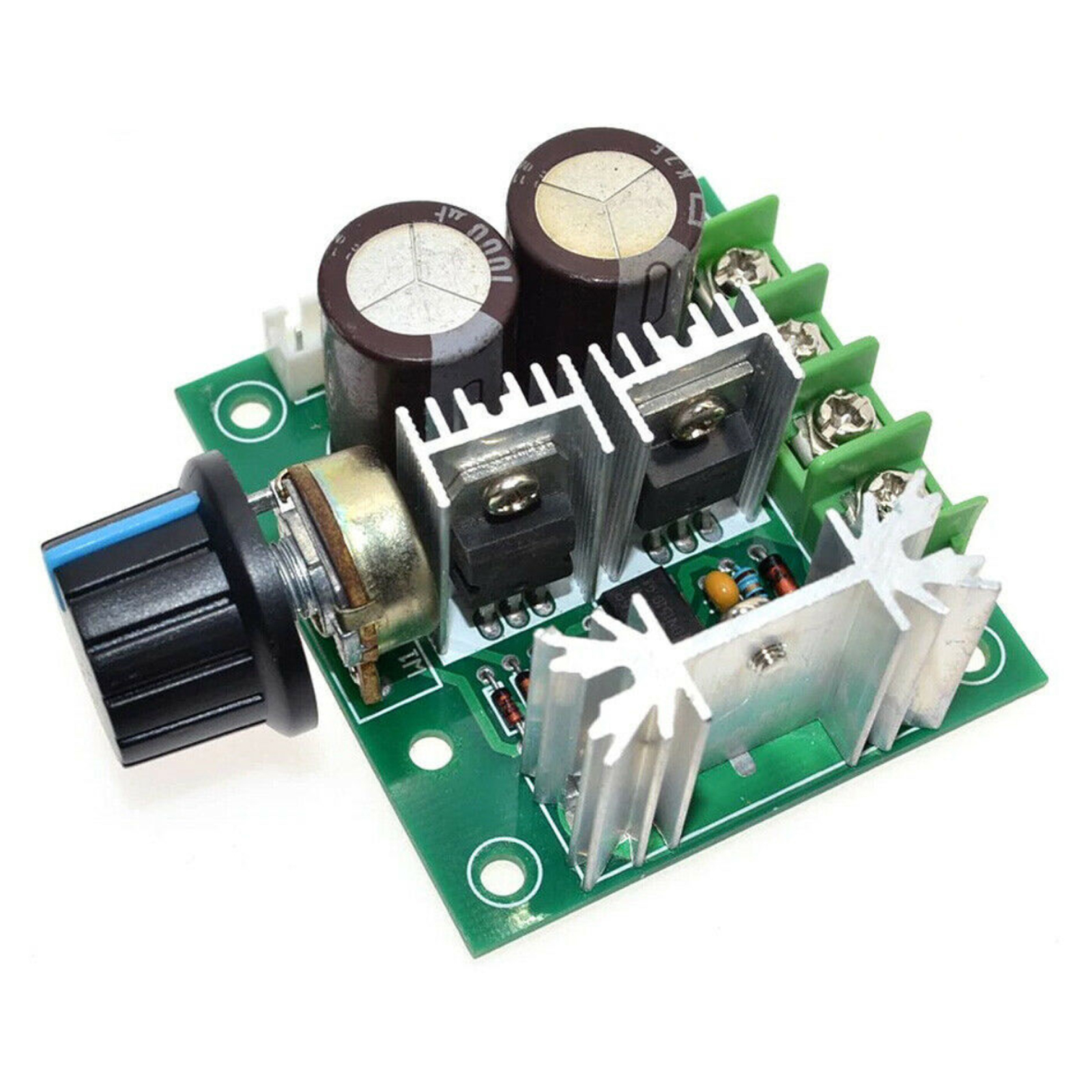

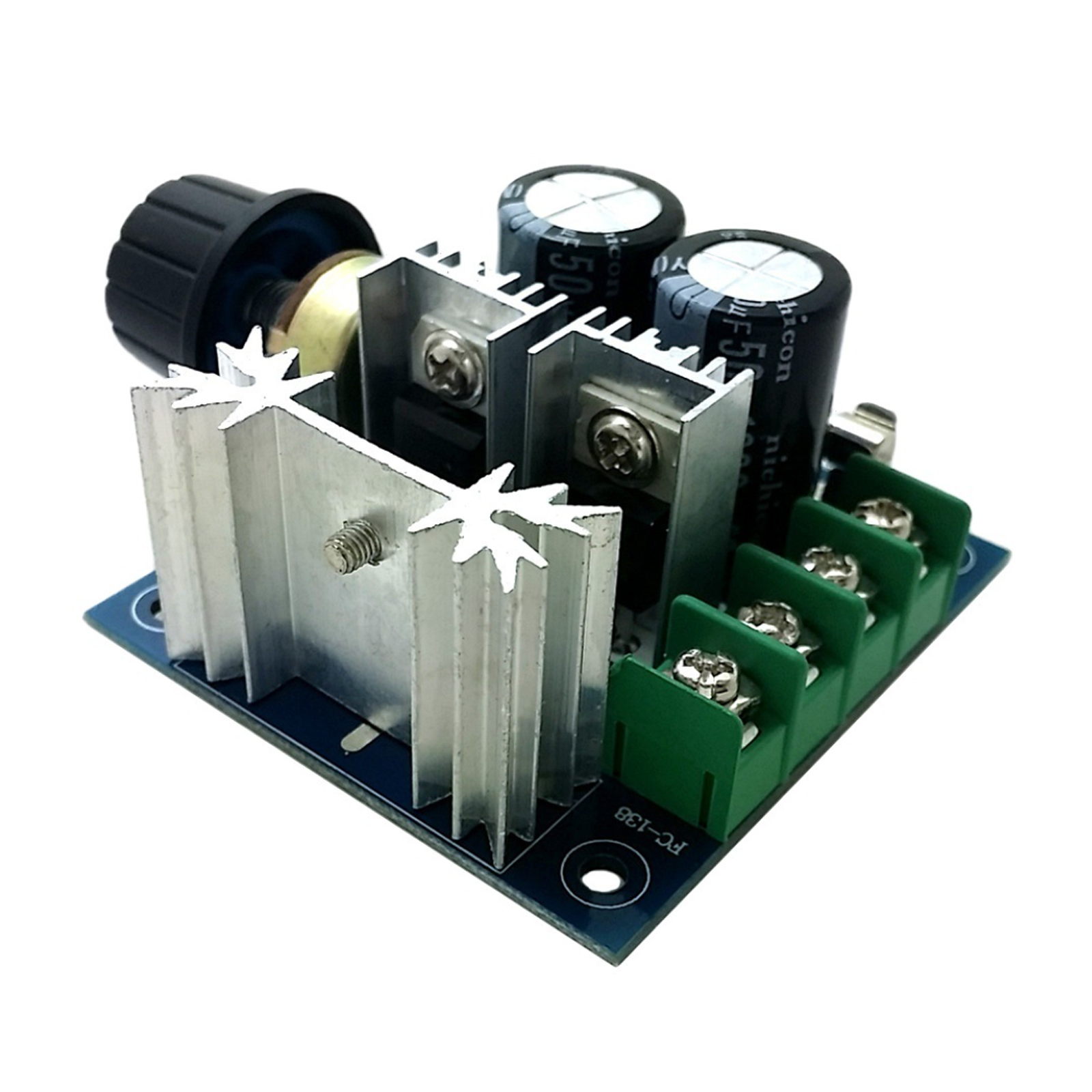

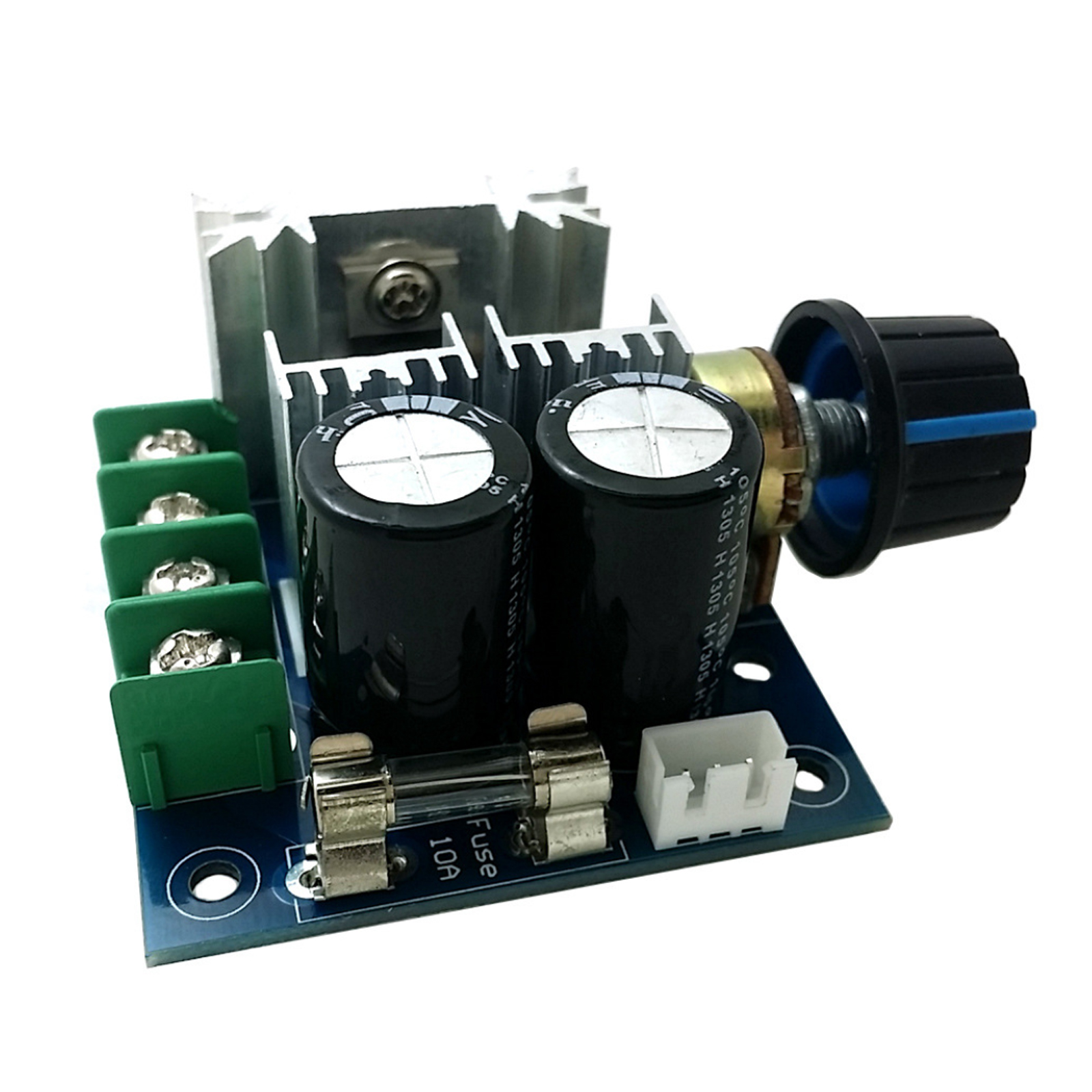

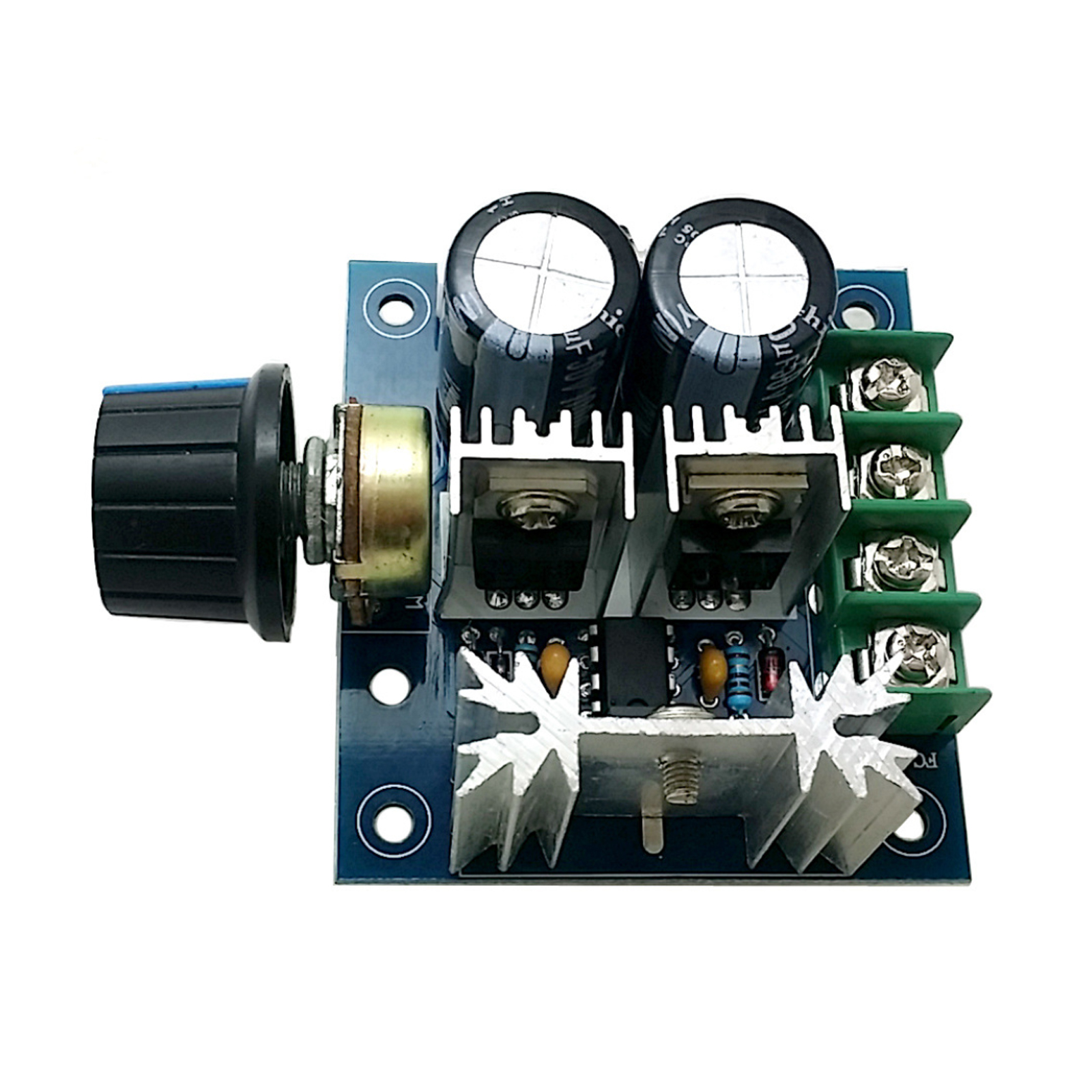

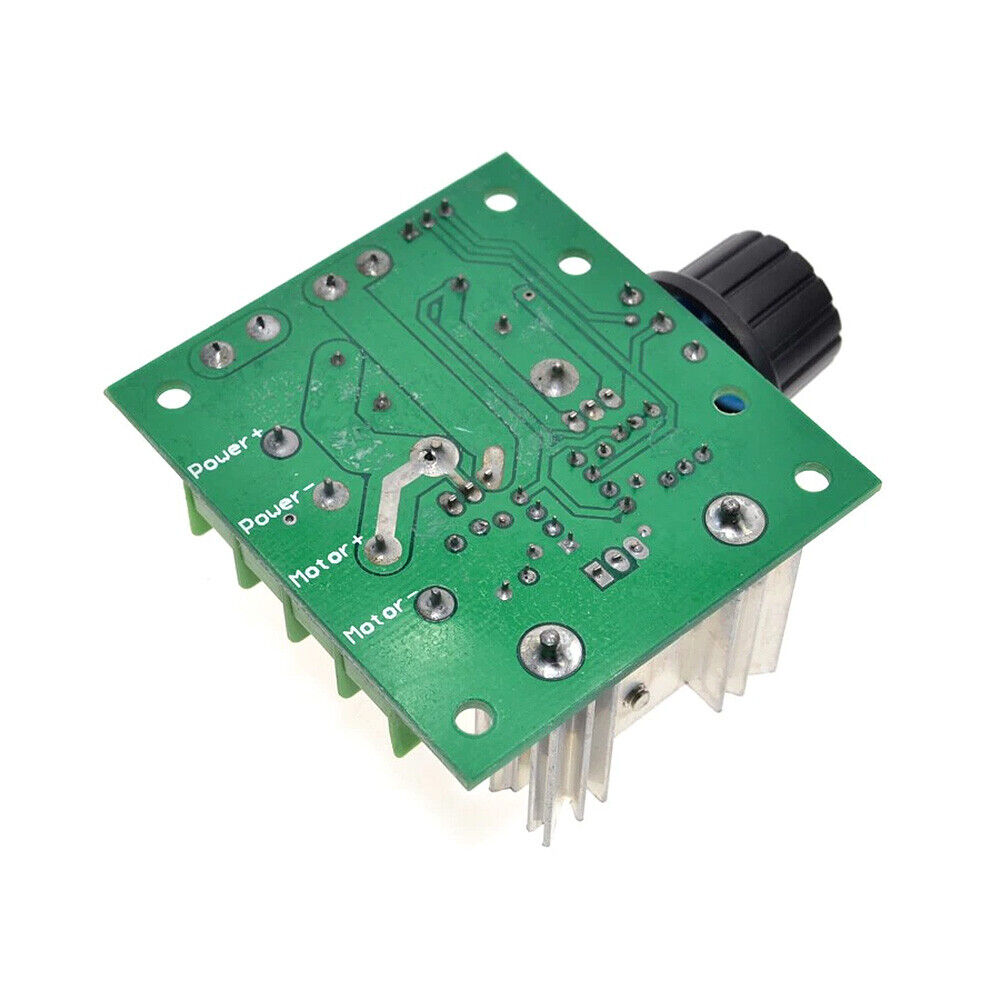

Features: CCMHC DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). Input supply voltage range is 12V-40VDC. The maximum output power : 400W(the power is 12V * 10A =120W ... 24V maximum power of 200W) PWM frequency is 21KHz ; Adjustable speed range is 5%-100%. Incorporate a 10A fuse, and with the protection function of reverse connect power supply. Suitable for the DC motor (or DC load) within 8A, Peak current 10A. Item size: 2.36*2.17*1.1 inches ; Net Weight:2.4 ounces.
Operating instruction: Before you attempting to wire the controller, make sure power is off.

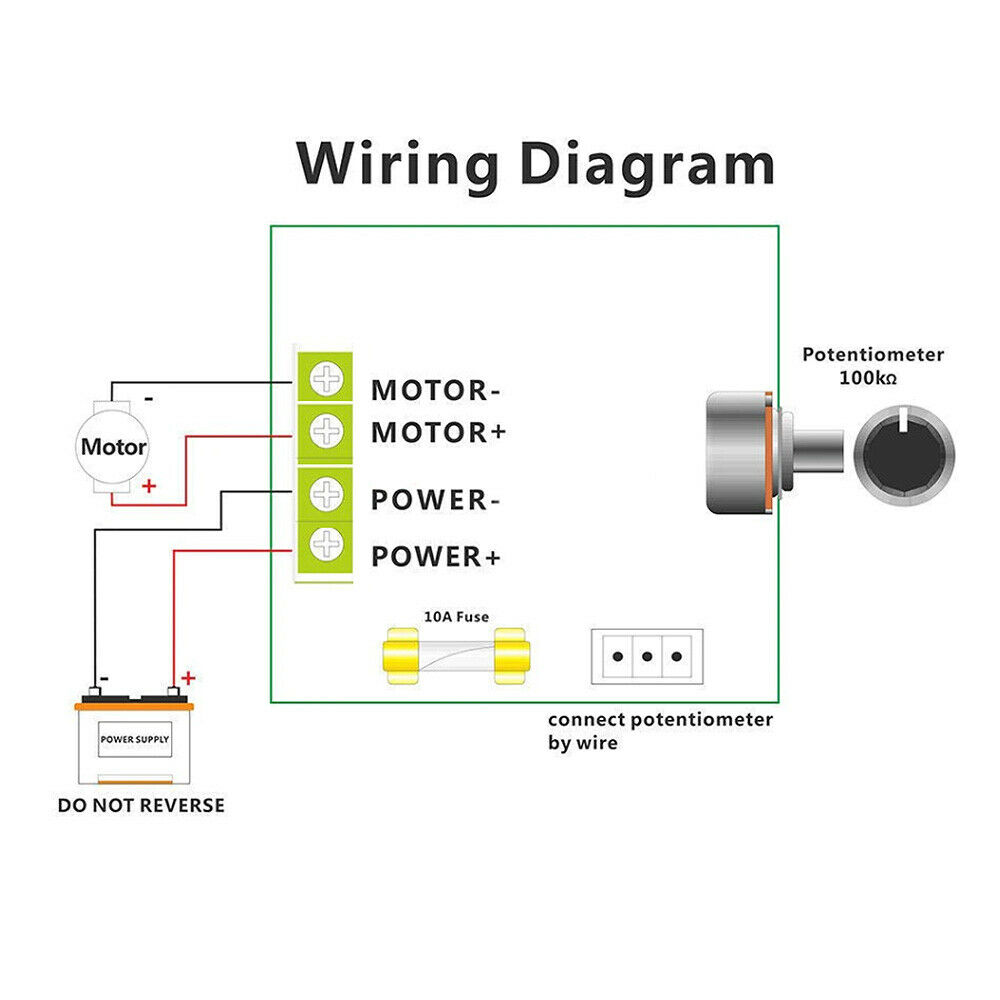

WARNING: TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR. 1. Connect wires refer to the “wiring diagram” 2. Turn on the power, and adjust the potentiometer. 3. If you need to connect the potentiometer by wire, remove the potentiometer on the board, and connect it to the white 3-pin header. 4. Do not connect AC directly, otherwise it will burn out.
Package: 1 DC Motor Speed Controller
