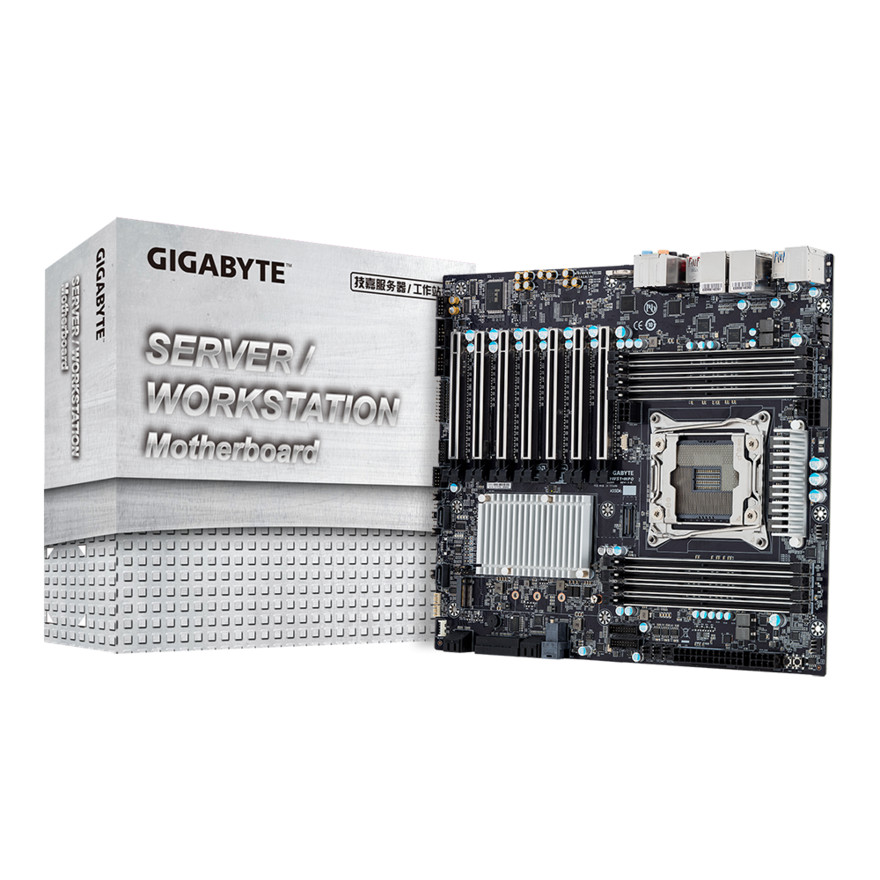

Gigabyte MW51-HP0 LGA 2066 Motherboard Support Intel Xeon W-2200/2100 CPU

Board Size

CEB。304.8W x 266.7D mm

Processor Supported

Intel® Xeon® W-2200 and W-2100 Processors
Single processor, TDP up to 165W

Socket

1 x LGA 2066，Socket R4
Mounting pitch: square ILM (80x80mm)

Chipset Description

Intel® C422 Chipset

Memory Type

8 x DIMM slotsDDR4 memory module supported only
Quad channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
1.2V modules: 2666/2400 MHz

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors for CPU and DDR 12V input
1 x 6-pin power connector for PCIe slots 12V input
1 x CPU fan header
5 x System fan headers
2 x USB 3.0 headers for 4 ports
1 x USB 2.0 header for 2 ports
1 x Front audio header
1 x PMBus connector
1 x Clear CMOS jumper
10 x SATA III 6Gb/s ports
2 x SATA DOM jumpers
2 x SATA DOM SGPIO connectors
1 x ME update jumper
1 x M.2 slot
1 x U.2 connector
1 x Front panel header
1 x Backplane board header
2 x COM headers
1 x TPM header
1 x VROC connector
1 x BIOS recovery jumper
1 x Buzzer

Rear I/O Connectors

1 x PS/2
8 x USB 3.0
2 x USB 3.1 (red) in Type-A and Type-C (5V/3A)
2 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out

TPM

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

OS Driver Supported

Windows 10 (x64)

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
