Technical details:

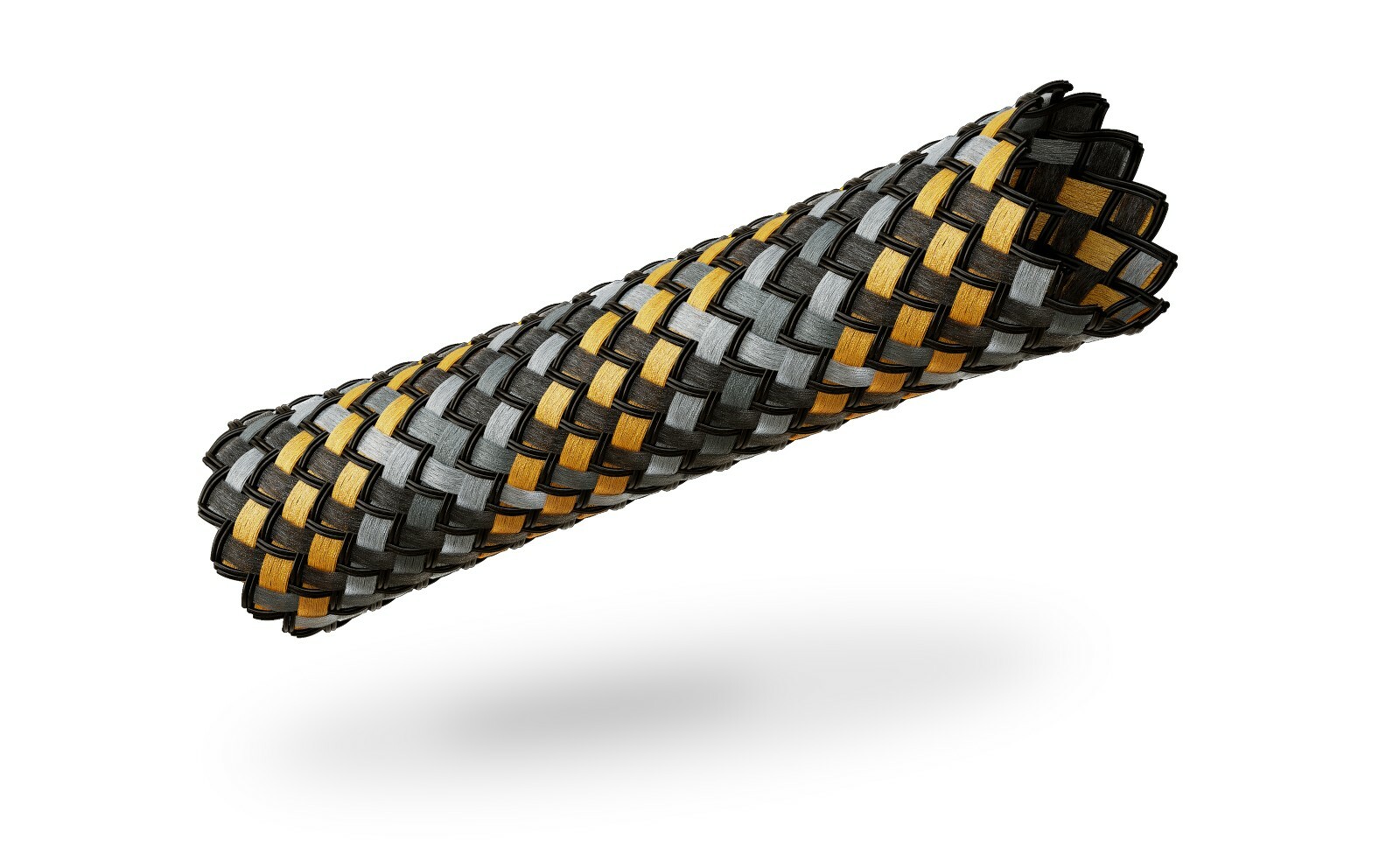

 ViaBlue™ braided sleeving protects cables from abrasion, kinking and exposure to light. In the long term, cables become more resistant to external environmental influences and therefore more durable. Visually, they significantly enhance the external appearance of cables. ViaBlue™ braided sleeving is available in various designs and sizes. All braided sleeving is available in three sizes: SMALL, MEDIUM and BIG.

 -The size SMALL is suitable for cables with a diameter of 2 to 6mm.

 -The size MEDIUM is suitable for cables with a diameter of 5 up to 13 mm.

 -The size BIG is suitable for cables with a diameter of 13 to 26mm.

The flexible braided sleeving is pulled onto the cable before the plug connections are installed. The length/diameter ratio of the respective braided sleeving changes due to the different diameters of the respective cables. The larger the diameter of a cable, the more length is required. It is possible to put on several layers of braided sleeving to protect cables even more intensively. Above all, this provides significantly greater protection against kinking.

	Available sizes: small | medium | big
	Color coding
	Melting point: 255°C


Danger !!! Depending on the diameter of the cable, the relationship to the diameter/length of the braided sleeving changes

Required amount of braided sleeving SMALL for cable Ø 2 - 6 mm
Cable Ø	2mm	3mm	3.7mm	4mm	6mm
Example cable			EPC-2	SC-1
Length (factor)	1.00	1.05	1.08	1.10	1.40

Required amount of MEDIUM braided sleeving for cable Ø 5 - 13 mm
Cable Ø	5mm	8mm	10mm	12mm	13mm
Example cable		NF-S1	SC-2	SC-4	X-25
Length (factor)	1.00	1.10	1.18	1.35	1.60

Required amount of BIG braided sleeving for cable Ø 13 - 26 mm
Cable Ø	13mm	14mm	16mm	20mm	26mm
Example cable	X-25	X-40	NF-S6		SC-6
Length (factor)	1.05	1.08	1.10	1.30	1.80
