Feature:

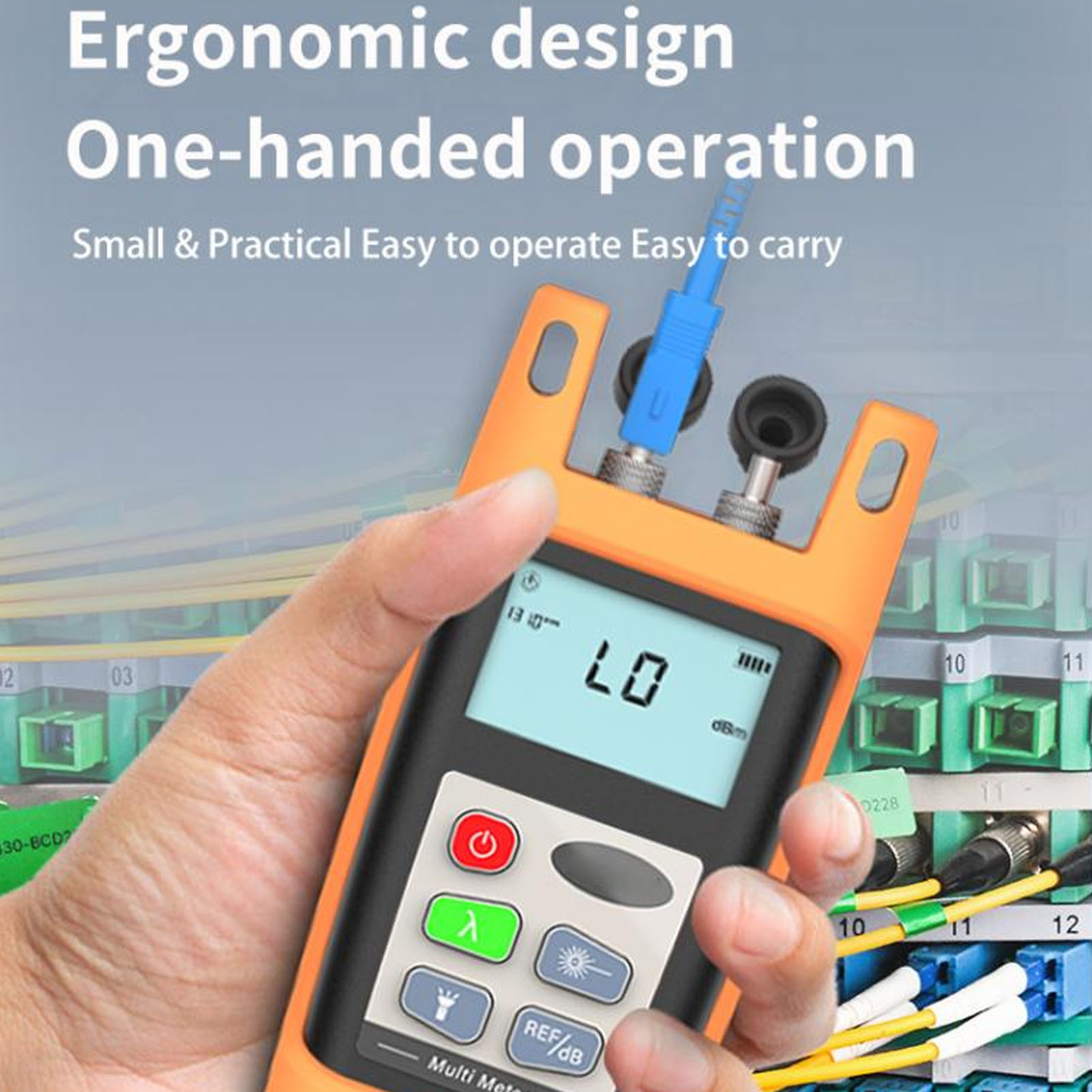

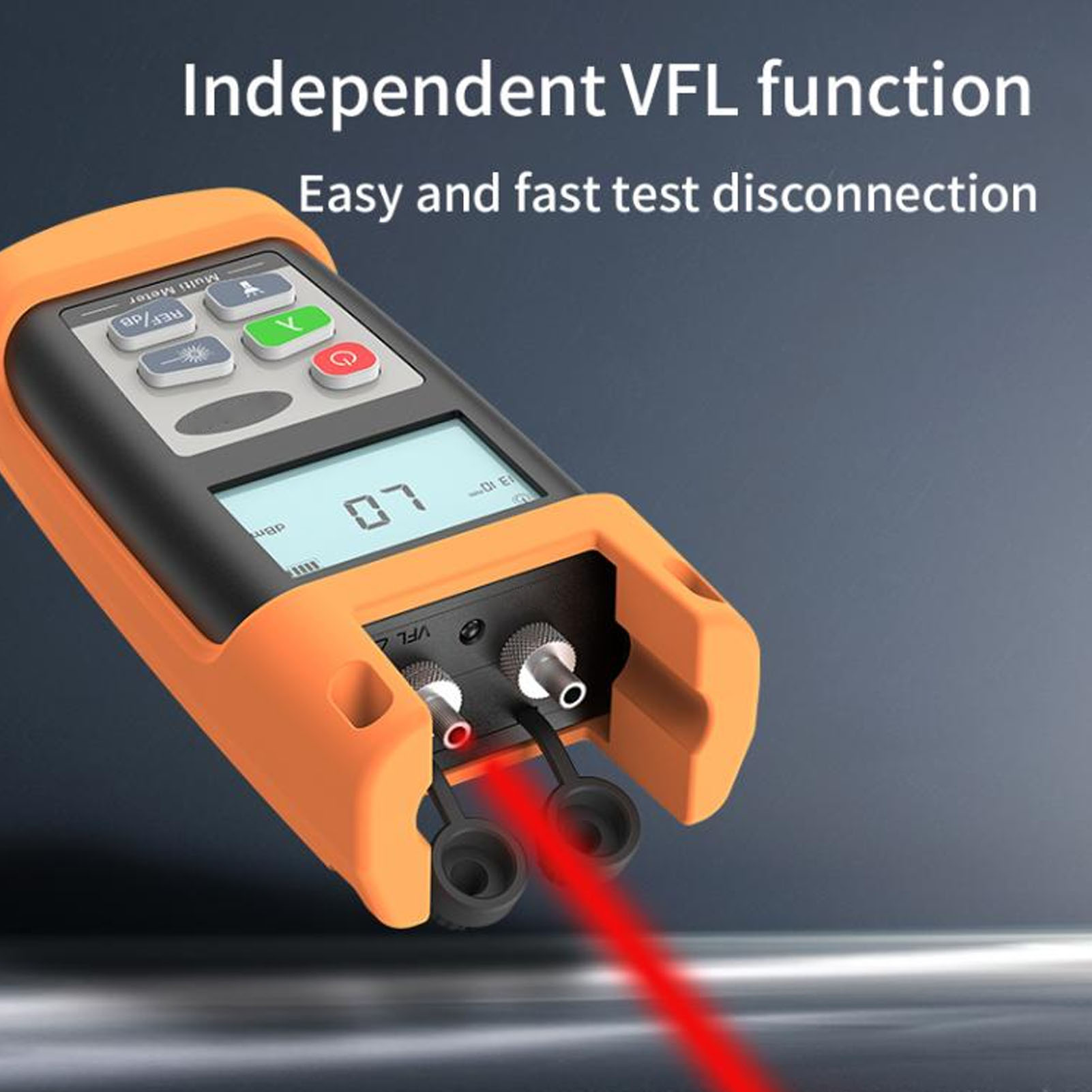

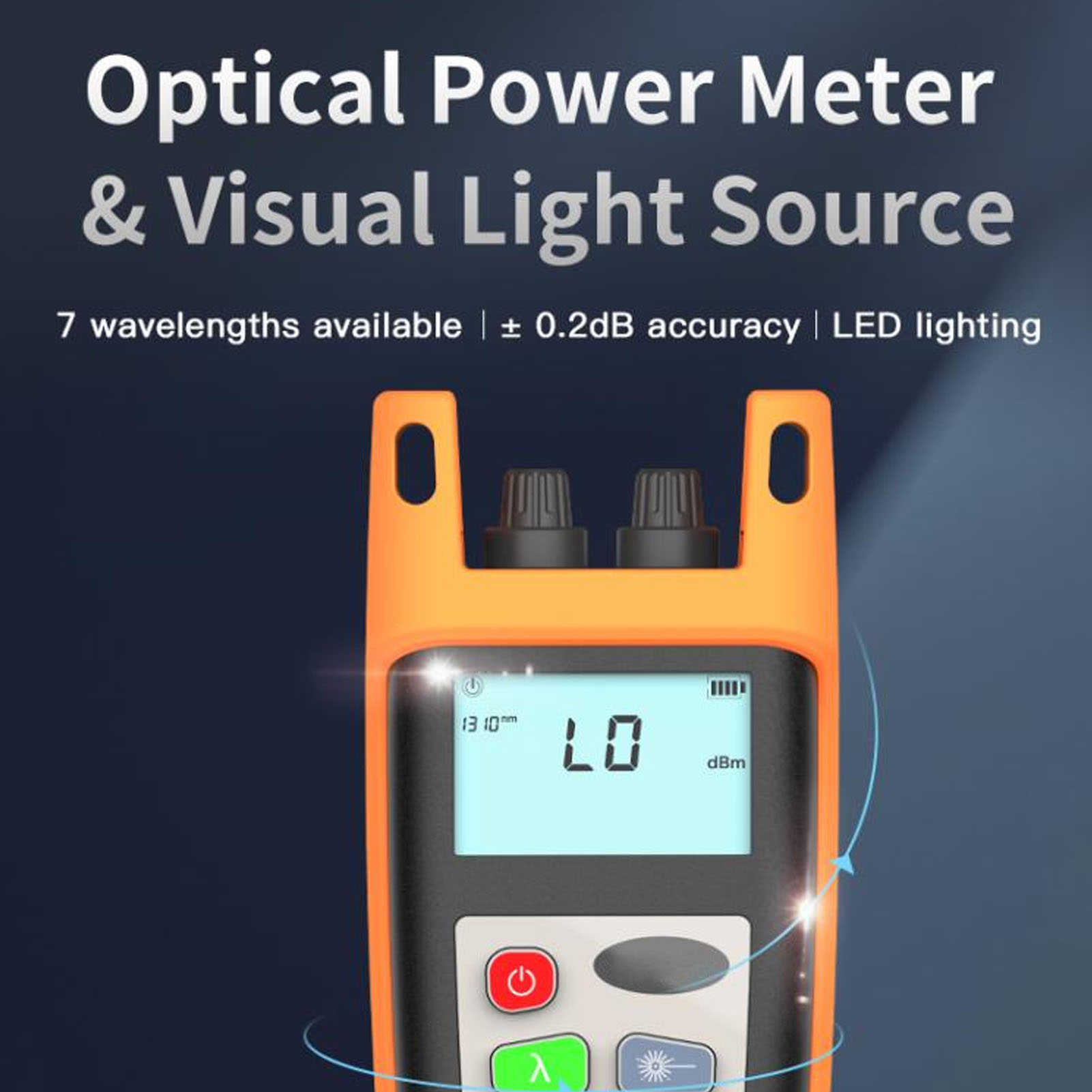

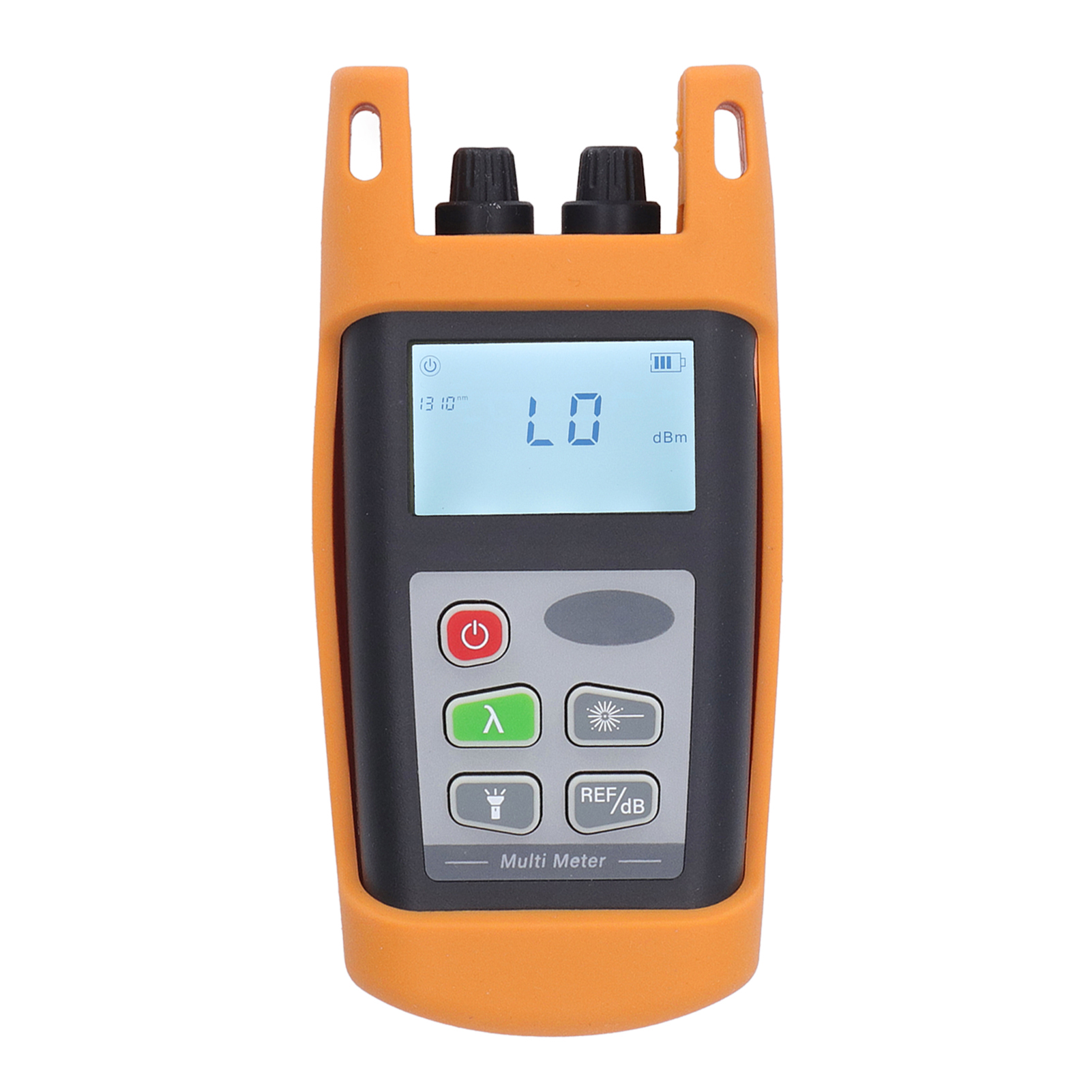

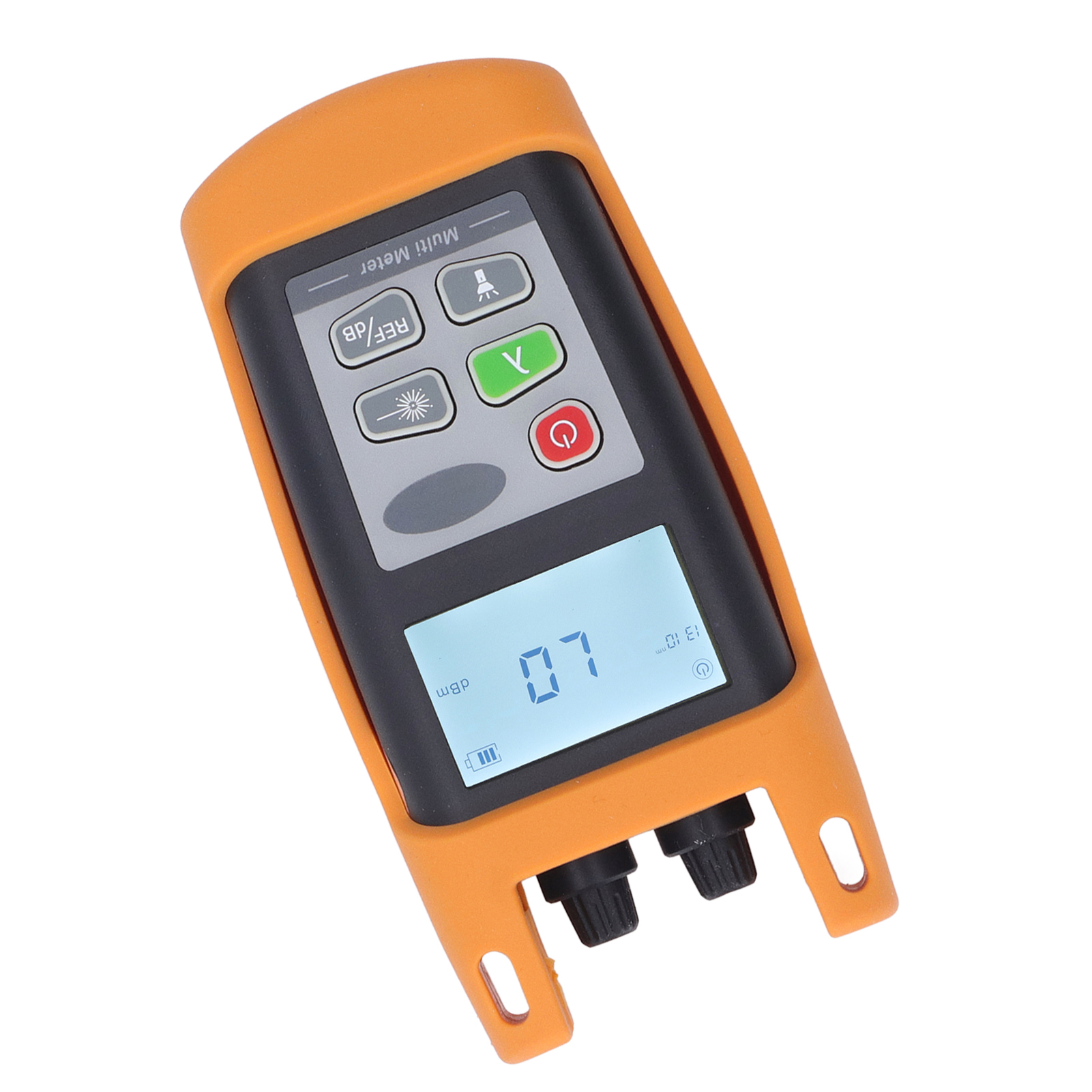

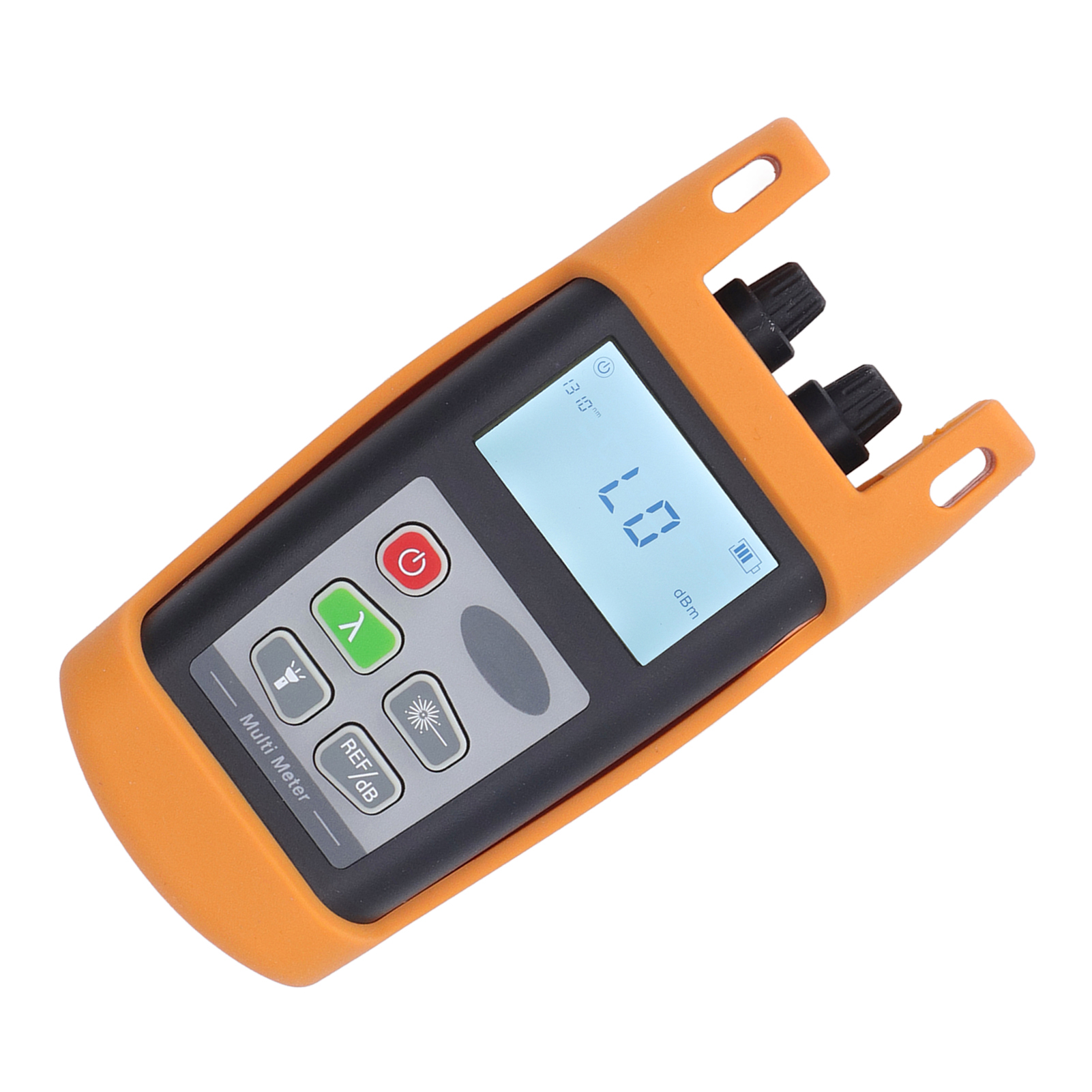

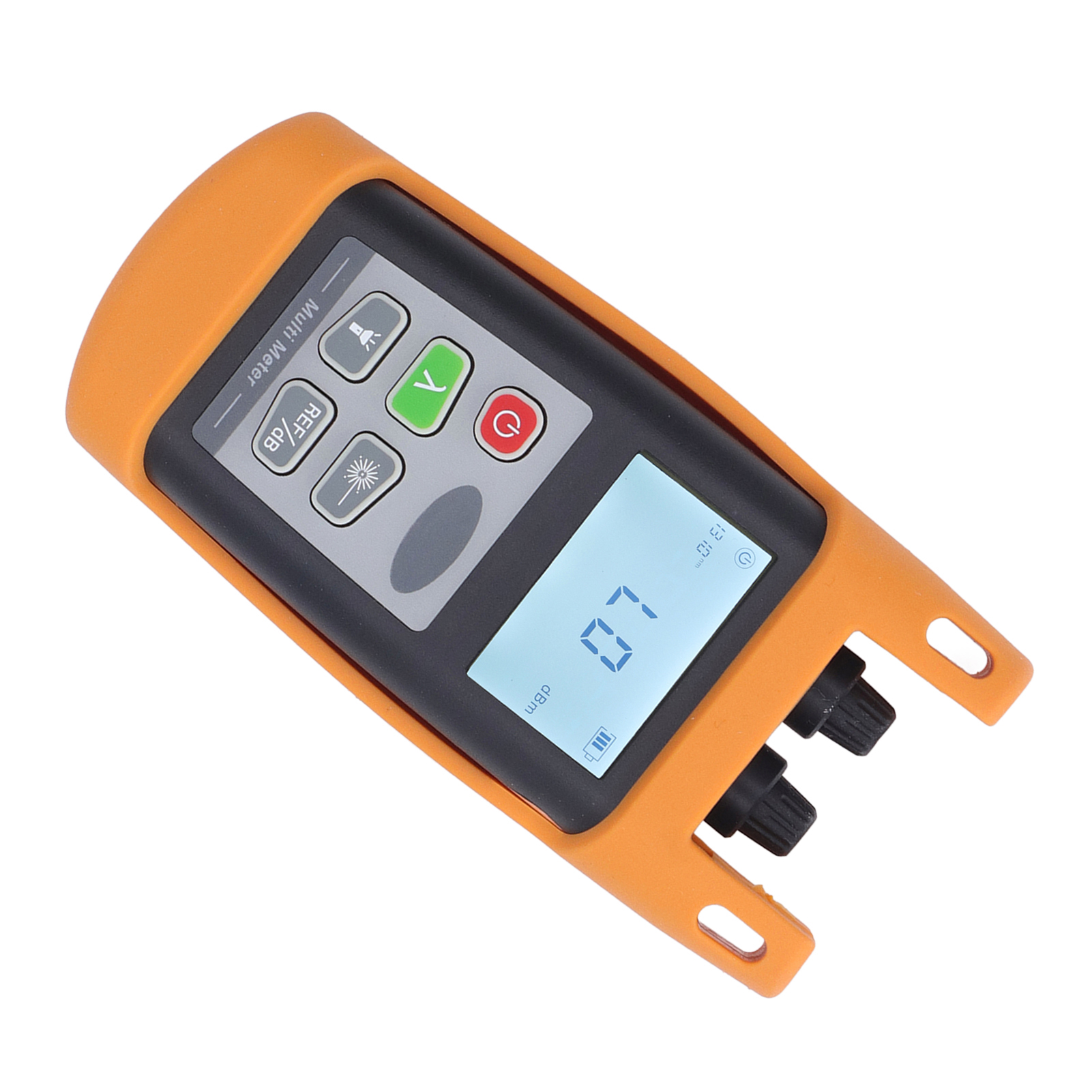

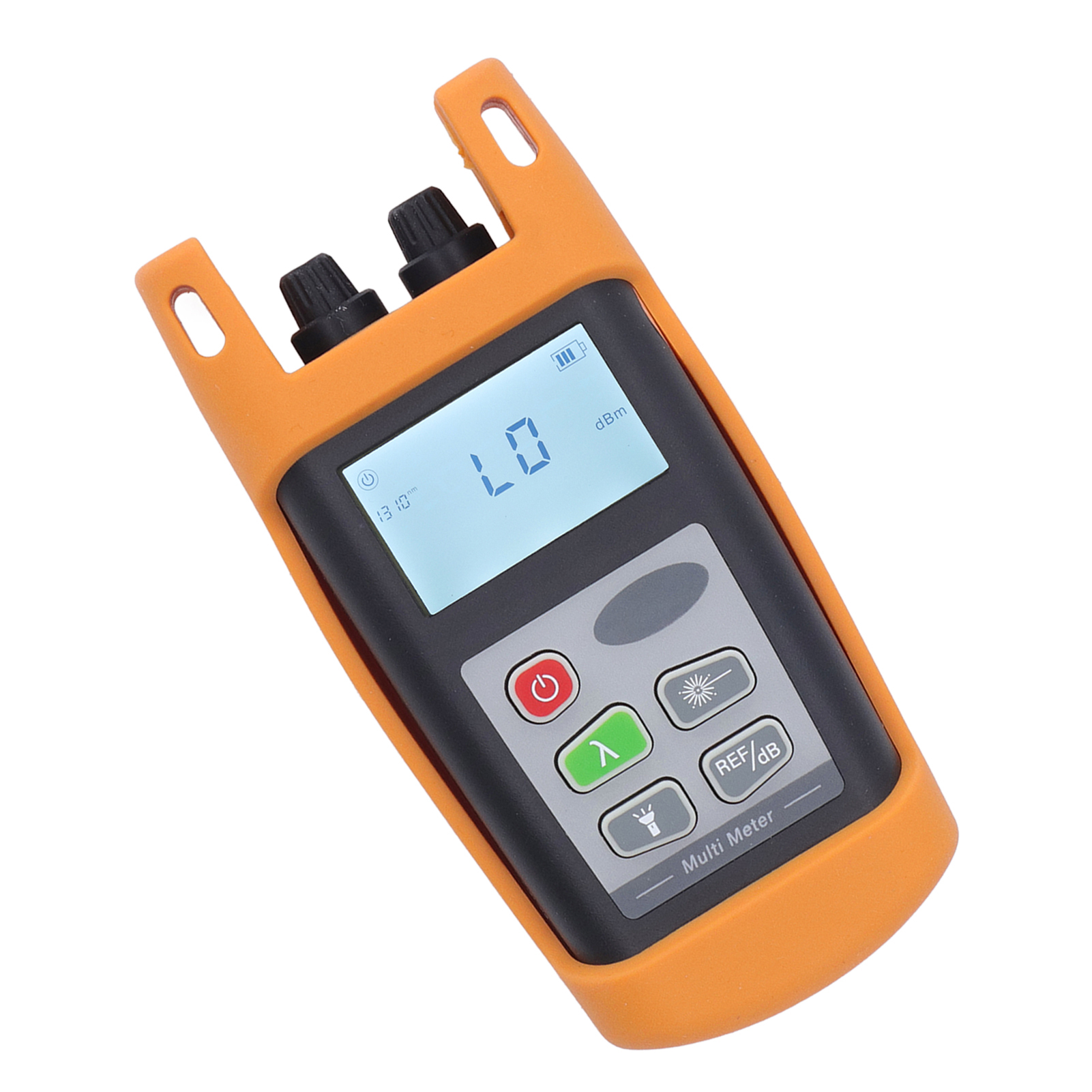

1. 2 in 1 Fiber Optic Tester: A 2 in 1 fiber optic tester with OPM and VFL functions, eliminating the need for separate equipment and making it more convenient and powerful.

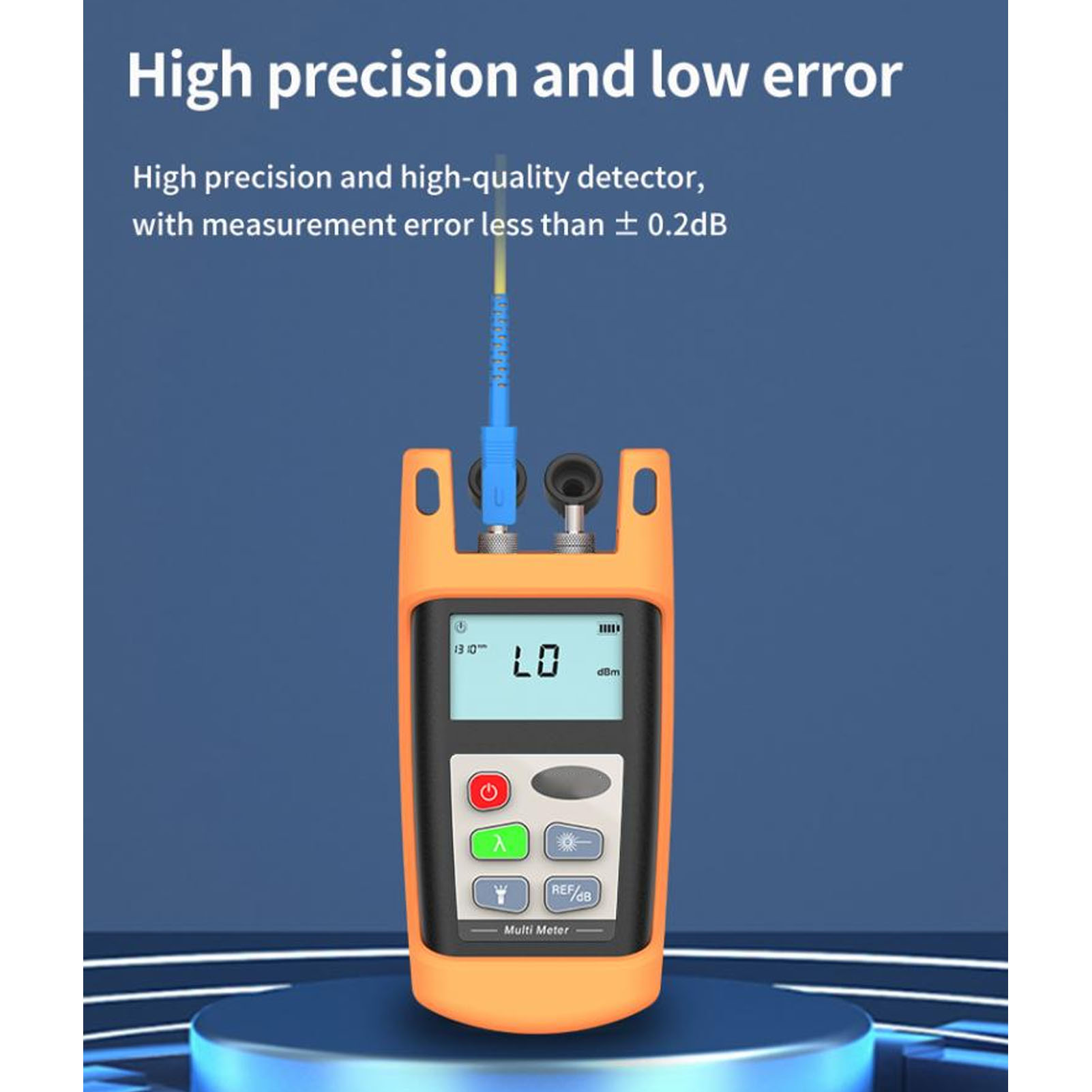

2. High Accuracy: With an accuracy of ±0.2dB, the optical power meter provides precise measurements, offers 7 selectable wavelengths, including 850/980/1300/1310/1490/1550/1625nm, and has a measurement range of (‑50) to (+26) dBm.
3. 2.5mm Universal Interface: The meter features a widely compatible 2.5mm interface, which comes with a silicone dust cover to keep it from damage, ensuring a longer lifespan.

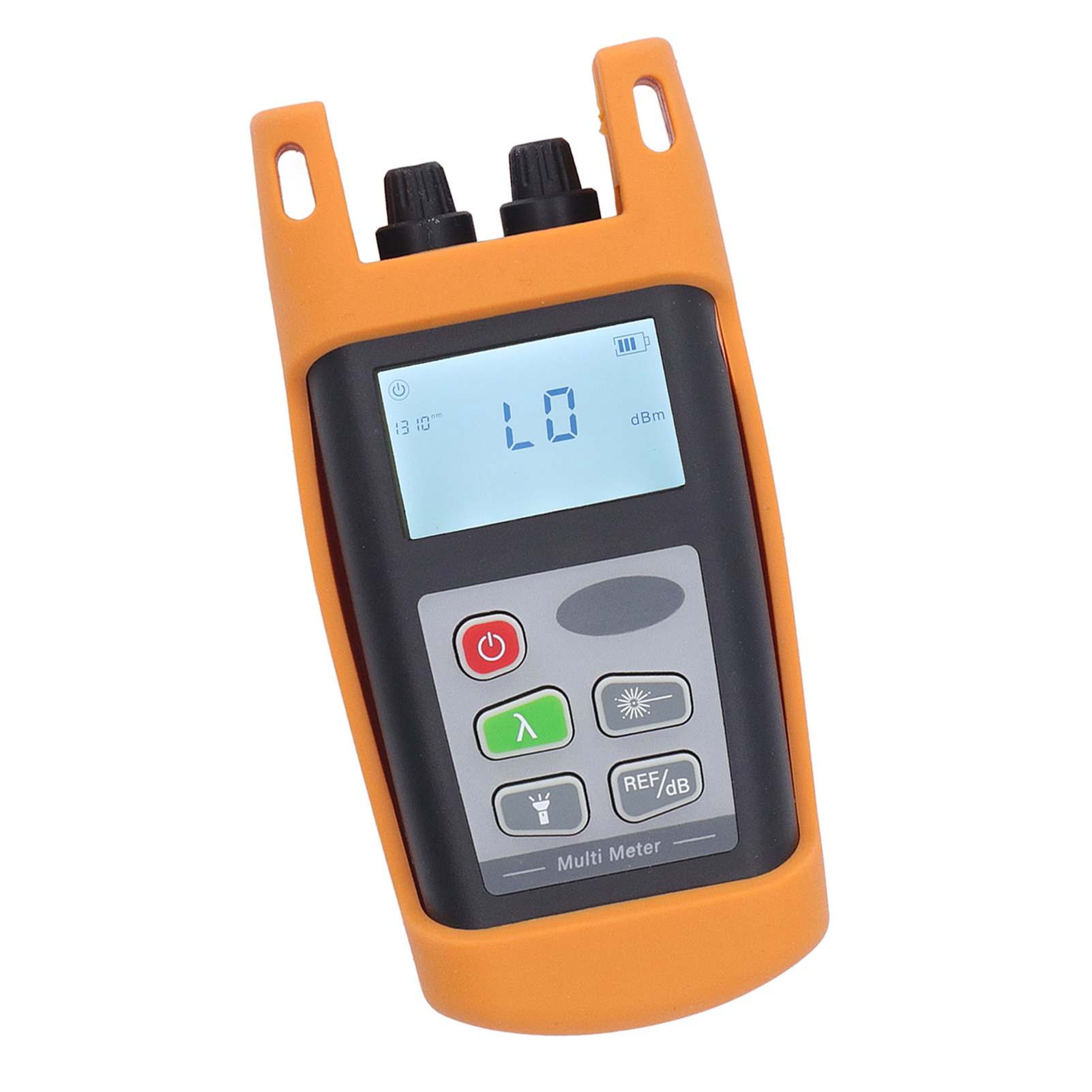

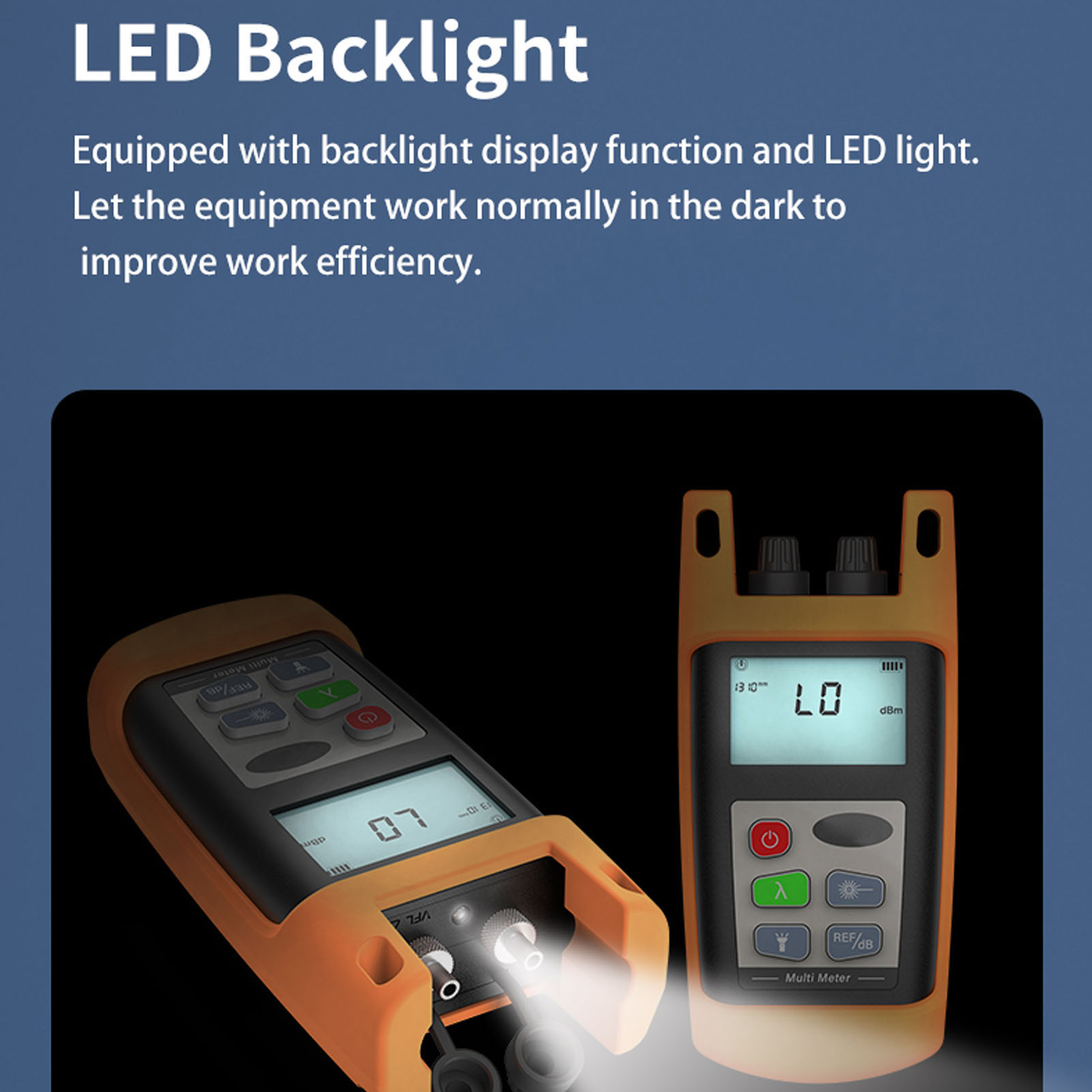

4. Backlit LCD Screen: The meter is equipped with a backlit LCD screen, allowing clear visibility even in dark or low light environments, with an LED light for illumination, enhancing efficiency during operations.

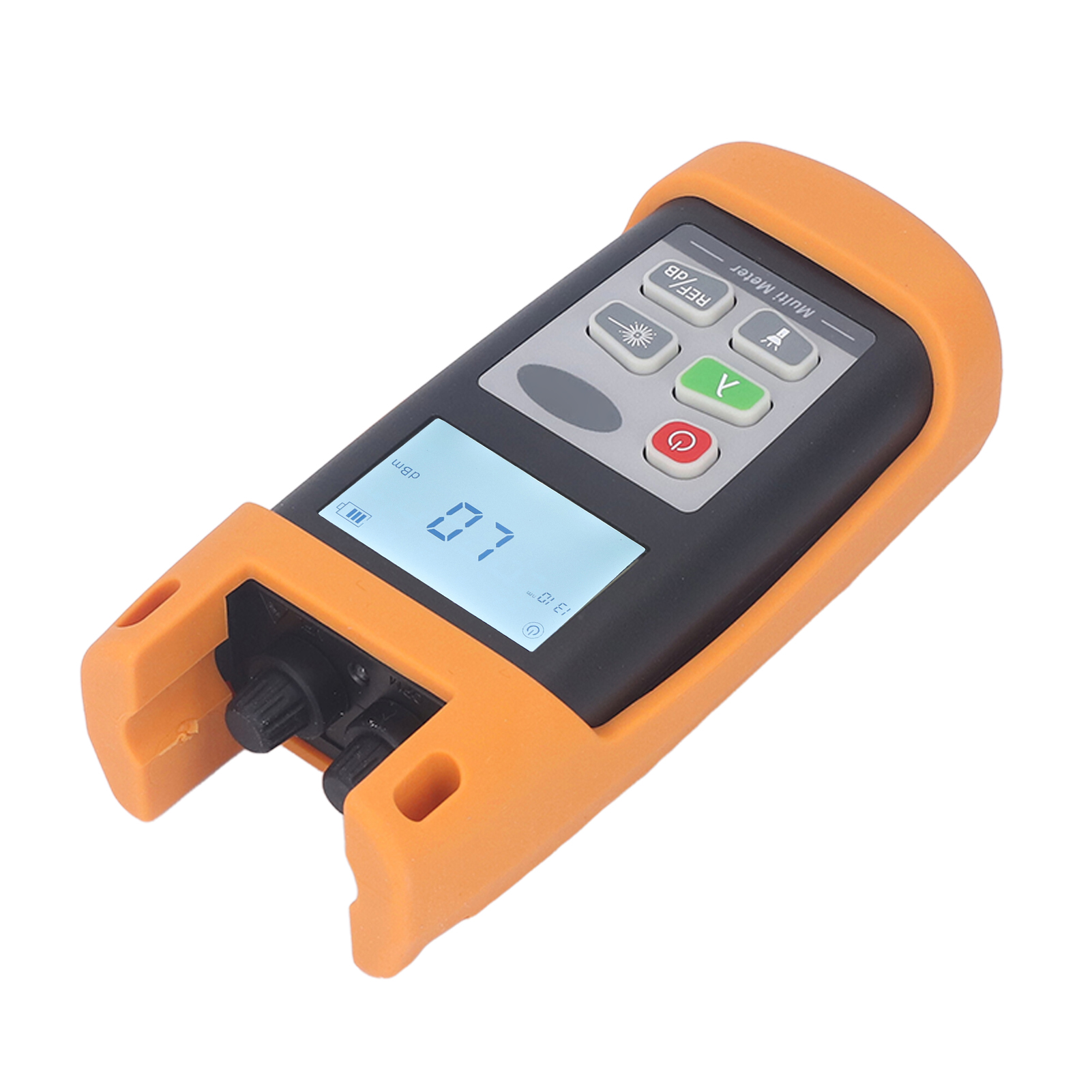

5. Shockproof and Drop Resistant: The meter is designed with a silicone protective cover to reduce collision damage, offering enhanced durability and prolonging its lifespan.
6. Auto Shutdown: The meter automatically shuts down to conserve power, ensuring longer working and standby times, saving you time and hassle.

Specification:

Item Type: Optical Power Meter
Material: ABS
Wavelength: 850 to 1625nm (850/980/1300/1310/1490/1550/1625nm)
Measurement Range: (-50) to (+26) dBm
Optical Connector: 2.5mm Universal Connector
Power Supply: 2 x AAA Batteries (not included)
Resolution: 0.01dB
Accuracy: ±0.2dB
Operating Temperature: -10 to +60 (℃)
Storage Temperature: -25 to +70 (℃)
Size: Approx. 137 x 60 x 37mm / 5.4 x 2.4 x 1.5in
Battery Operating Time: 20 Hours

Package List:

1 x Optical Power Meter

1 x User Manual Download Guide
