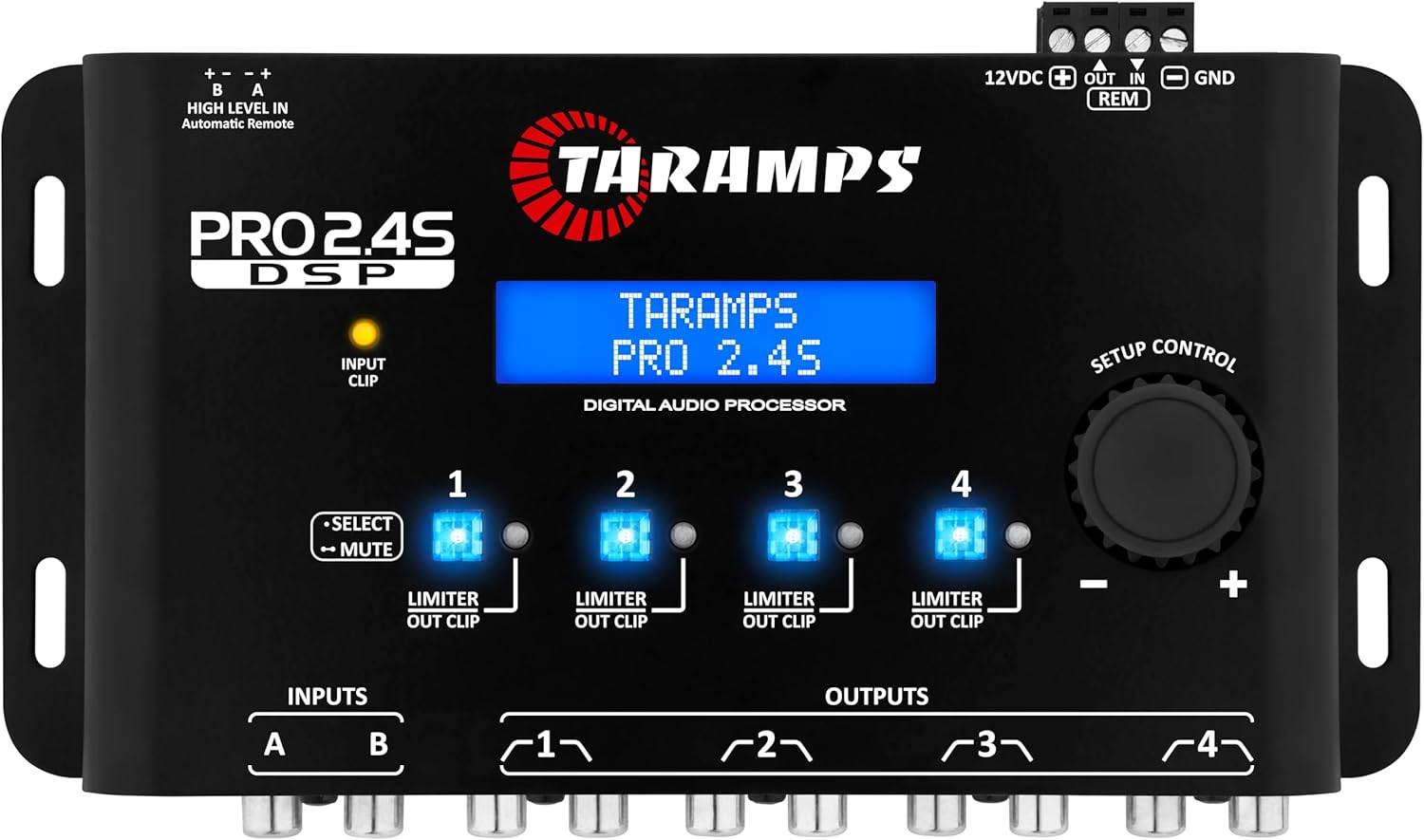

Pro 2.4S DSP Crossover full Digital Signal Processor and Equalizer with sequencer 15-band Graphic Equalization 12 preset EQ 2-Channel in and 4-Channel Out
Description
| Color | Black |
- Band Equalizer: It has 15 bands of equalizaon, with aenuaon /boost of up to 12dB, at the center frequencies defined in the ISO standard (25 to 16KHz, 2/3 octave). Acts simultaneously on inputs A and B.
- Input Parametric Equalizer: EQ with 1 band and adjustable parameters, acts simultaneously on inputs A and B
- Crossover: Set the high pass (HPF) and low pass (LPF) filters of selected output way. The cutoff frequencies could be set from 10Hz to 22KHz, and are available some kinds of filters (Buerworth, Bessel, Linkwitz Rilley) in different slopes (-6, -12, -18, -24, -36 e -48dB/Octave).
- Output: Set the level for each output way. Allow apply up to +15dB gain or -45dB attenuation.
- Presets EQ: The Pro 2.4S has 12 preset equalizers. Select the music style and press the encoder center to apply the equalizaon curve: FLAT, LOUDNESS, BASS BOOST, MID BASS BOOST, TREBLE BOOST, POWERFUL, ELECTRONIC, ROCK STYLE, HIP HOP STYLE, POP MUSIC, VOCAL, COMPETITION.
Product description
PRO 2.4-S MAIN SPECS
| Resolution | 24bits |
| Sampling Rate | 48KHz |
| Input Channel | 2 |
| Output Channel | 4 |
| IN / OUT Routing | A, B, A+B |
| General GAIN Adjustment | -80 to 0dB |
| Output GAIN Adjustment | 45 to +15dB |
| Input Impedance (RCA) | 10K Ohm |
| Input Impedance (High Level) | 50 Ohm |
| Output Impedance | 47 Ohm |
| MAX Input Level (RCA) | 5,9Vpp (2,1V RMS) |
| MAX Input Level (High Level) | 28Vpp (10V RMS) |
| MAX Output Level | 5,9Vpp (2,1V RMS) |
| Frequency Response (-1dB) | 10Hz to 22KHz |
| Total Harmonic Distor. | 0,01% |
| Signal / Noise Radio | >90dB |
Learn More About the DSPs and Crossover
| Customer Reviews | 4.6 out of 5 stars 836 | 4.2 out of 5 stars 28 | 4.6 out of 5 stars 337 | 4.5 out of 5 stars 323 |
| Price | $49.00$49.00 | $79.95$79.95 | $69.00$69.00 | $54.00$54.00 |
| Input Channel | 2 | 2 | 2 | - |
| Output Channel | 4 | 4 | 6 | - |
| Bands | 15 | 5 | 3 | - |
| Dimensions | 7.80" x 1.46" x 4.45" | 7.80" x 1.46" x 4.45" | 8.27” x 1.69” x 4.80” | 7.13” x 1.57” x 5.71” |
| Weight | 0.99lb | 0.99lb | 1.21lb | 1.21lb |
