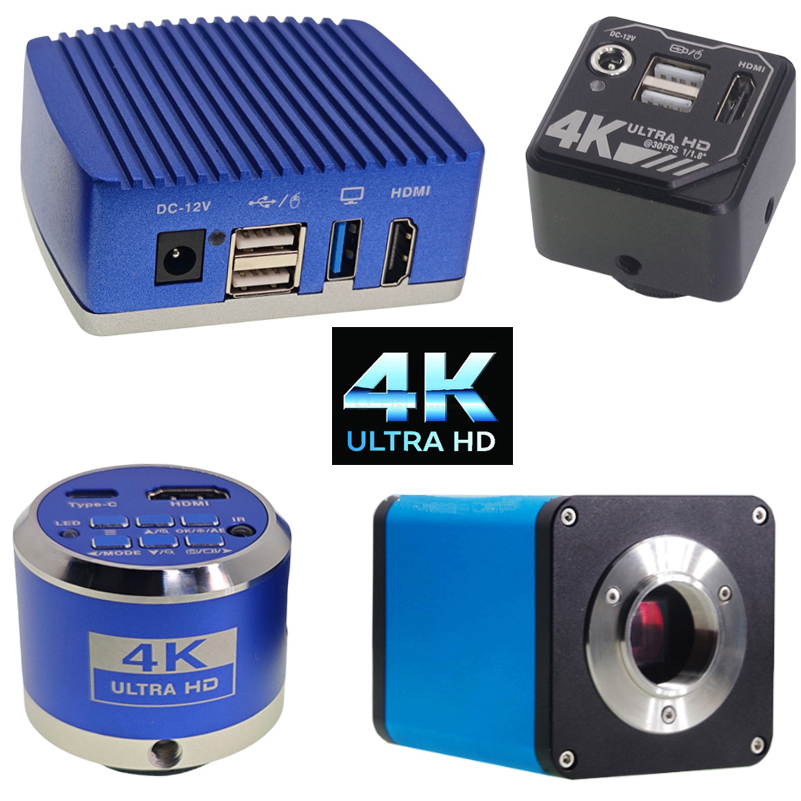

The Digital Camera is the next-generation live-view imaging-system with 4K / 1080P resolution Digital Camera comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters. The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.
Camera Application: - Scientific research, digital teaching (teaching, demonstration and academic discussing);
- Digital laboratory, medical research;

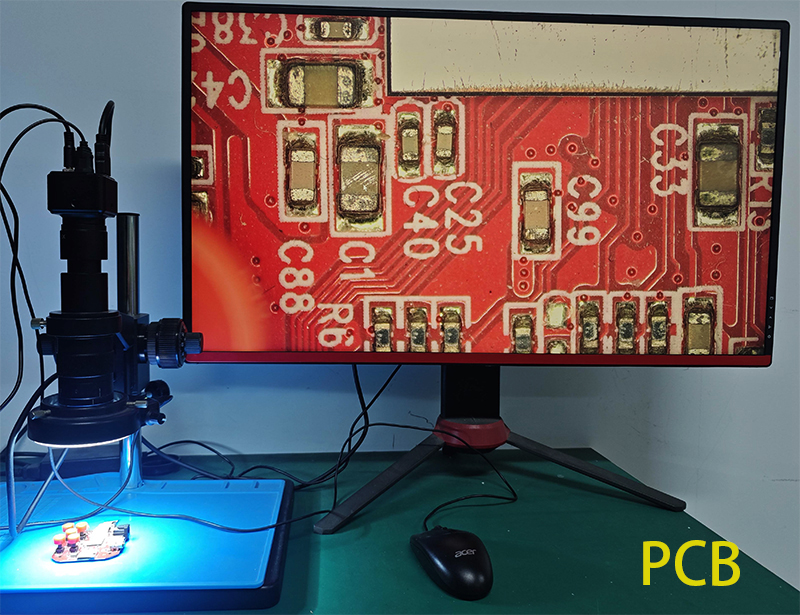

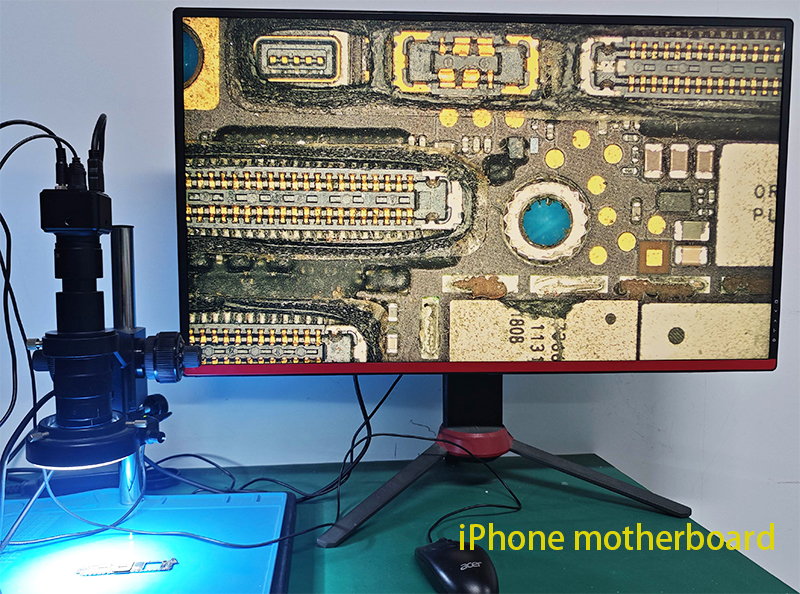

- Machine vision (PCB detection, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aviation and military;

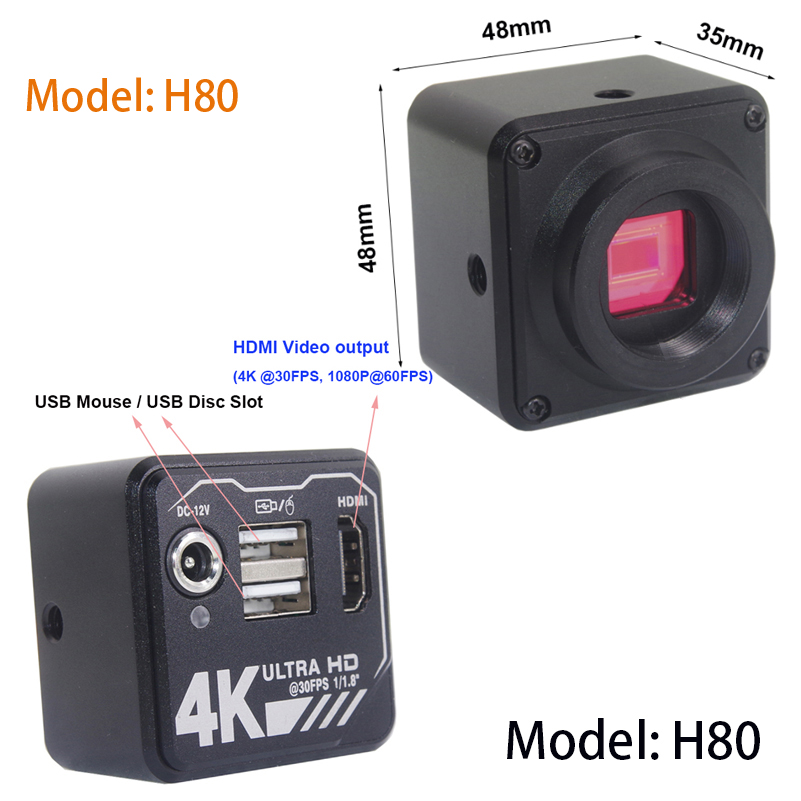

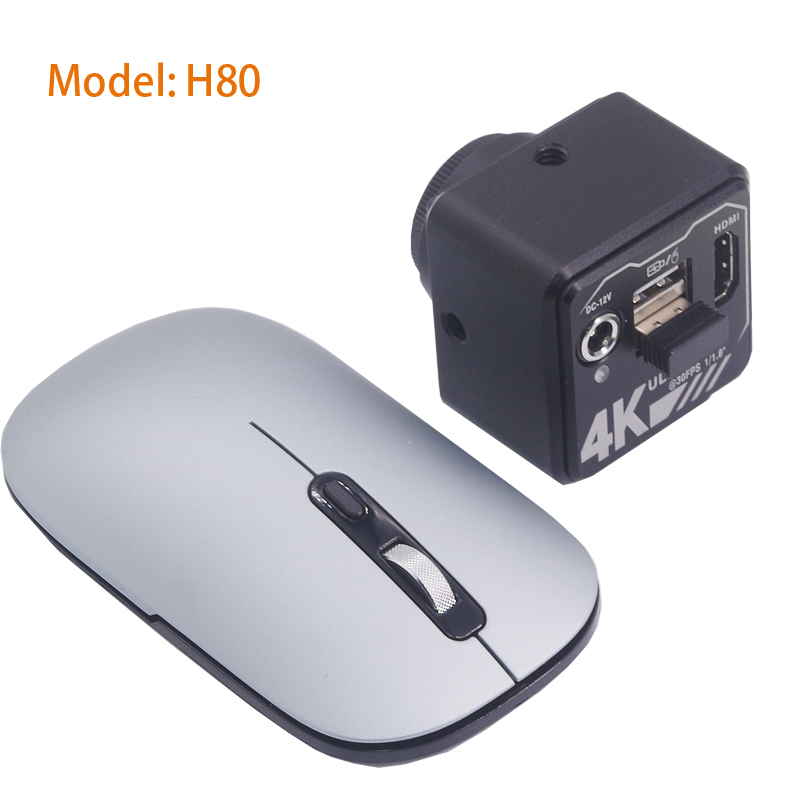

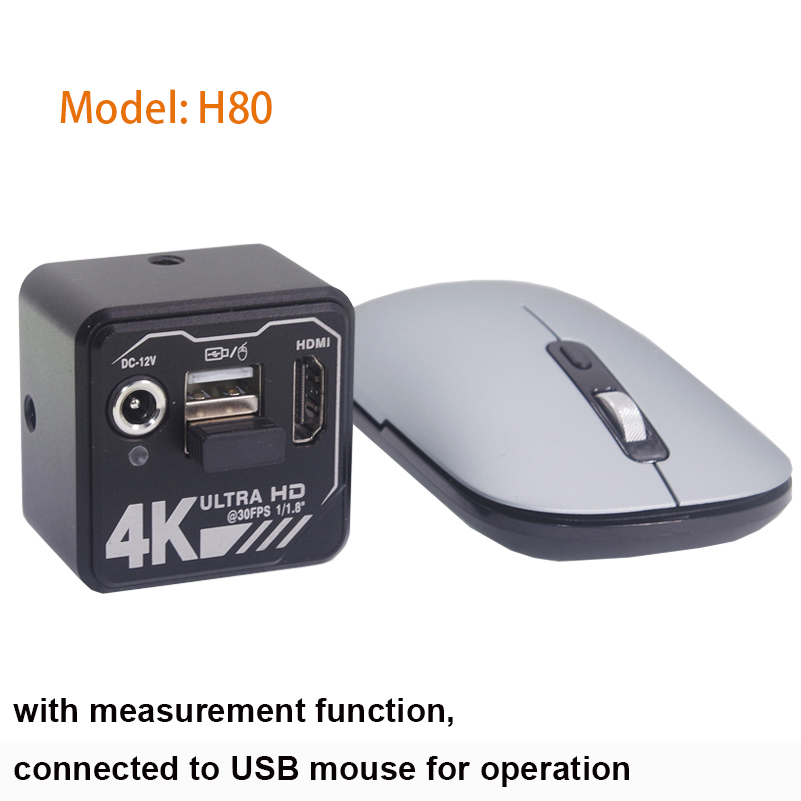

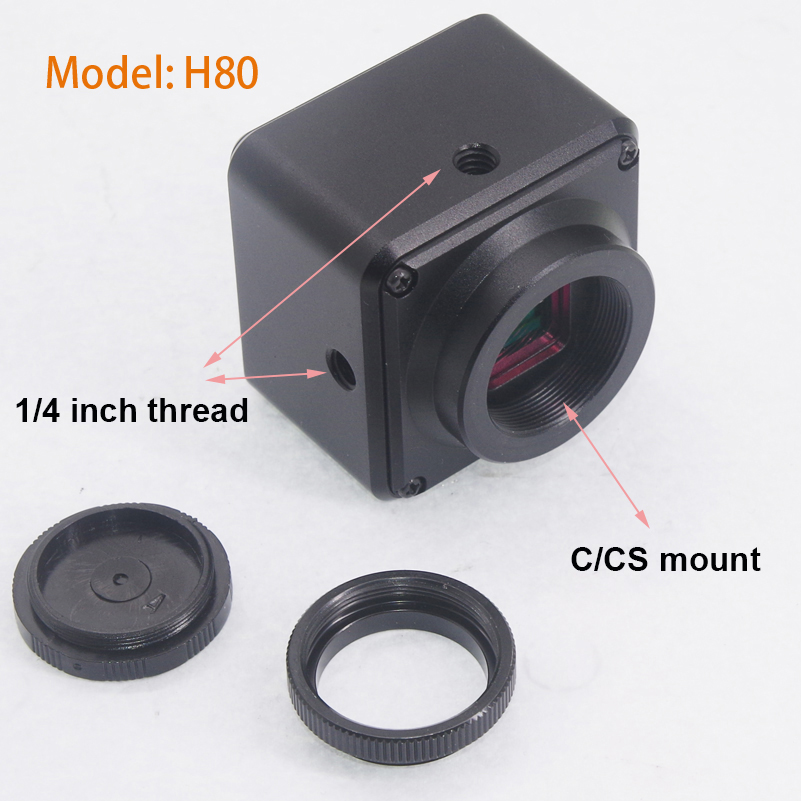

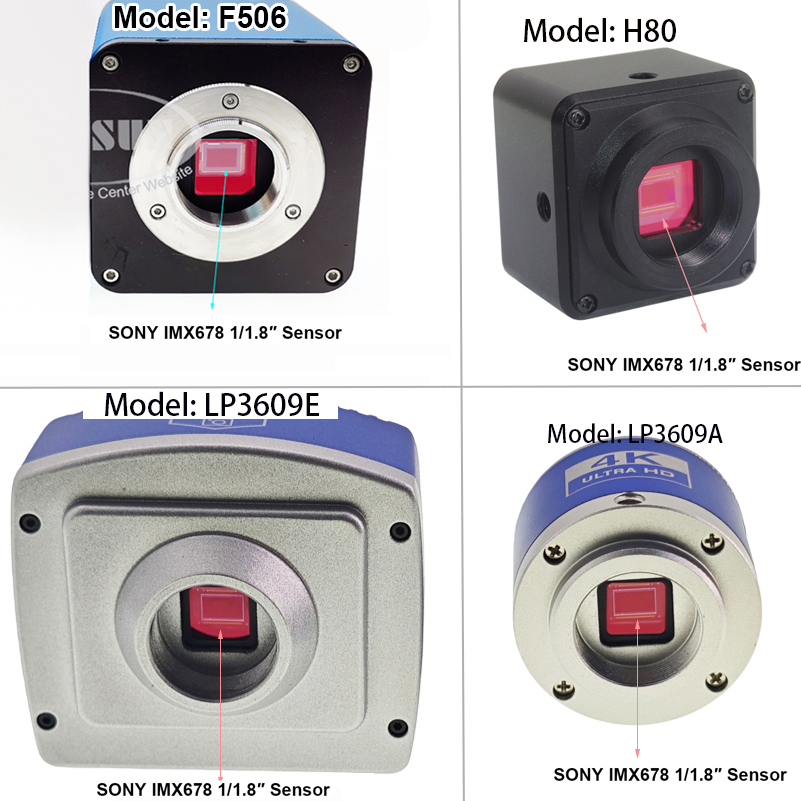

Model: H80 Feature: - Sony IMX678 Exmor/STARVIS back-illuminated CMOS sensor

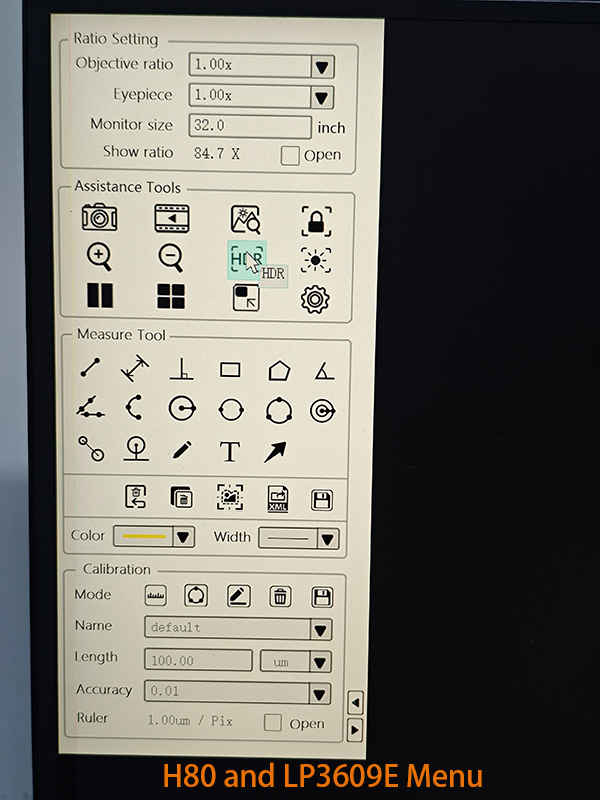

- with measurement function
- 4K or 1080P HDMI multiple video outputs
- Excellent ISP with local tone mapping and 3D denoising
- Sensor(option): SONY IMX678 1/1.8" Sensor
- Resolution: 3840*2160 (4K)
- Pixel size: 2.0*2.0μm
- Preview frame rate： 30fps @ 3840*2160 (HDMI),
60fps @ 1920*1080 (HDMI),
- With USB Disc slot, Support USB Disc storage
- Video recording : 3840*2160@30fps 1080P@30fps
- The pixel of the photo taken: 3840px*2160px
- Size: 48mm*48mm*35mm
- NOTE: H80 Camera do not Support USB Video Ouput

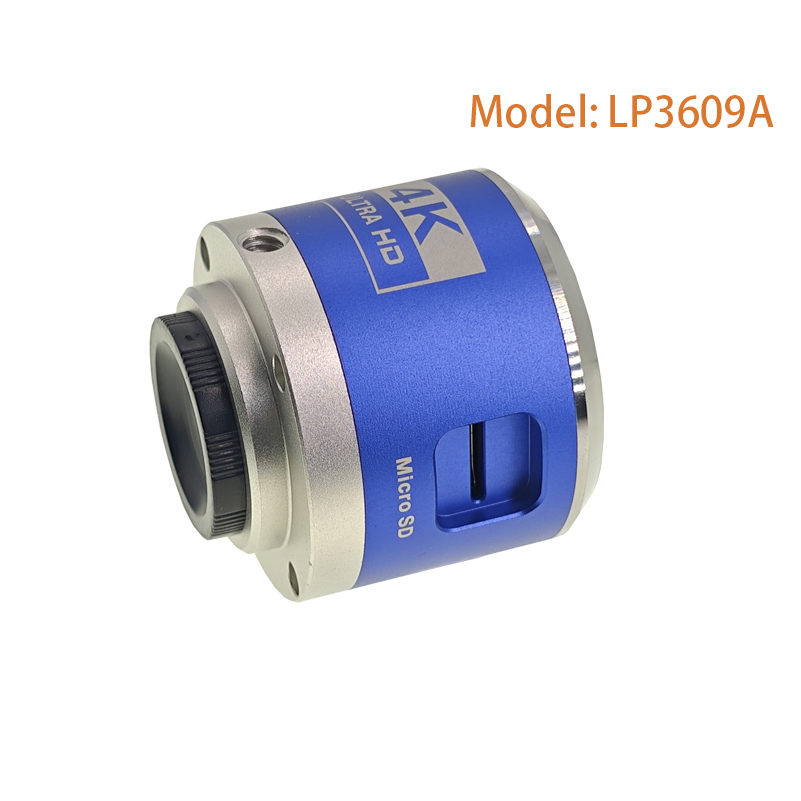

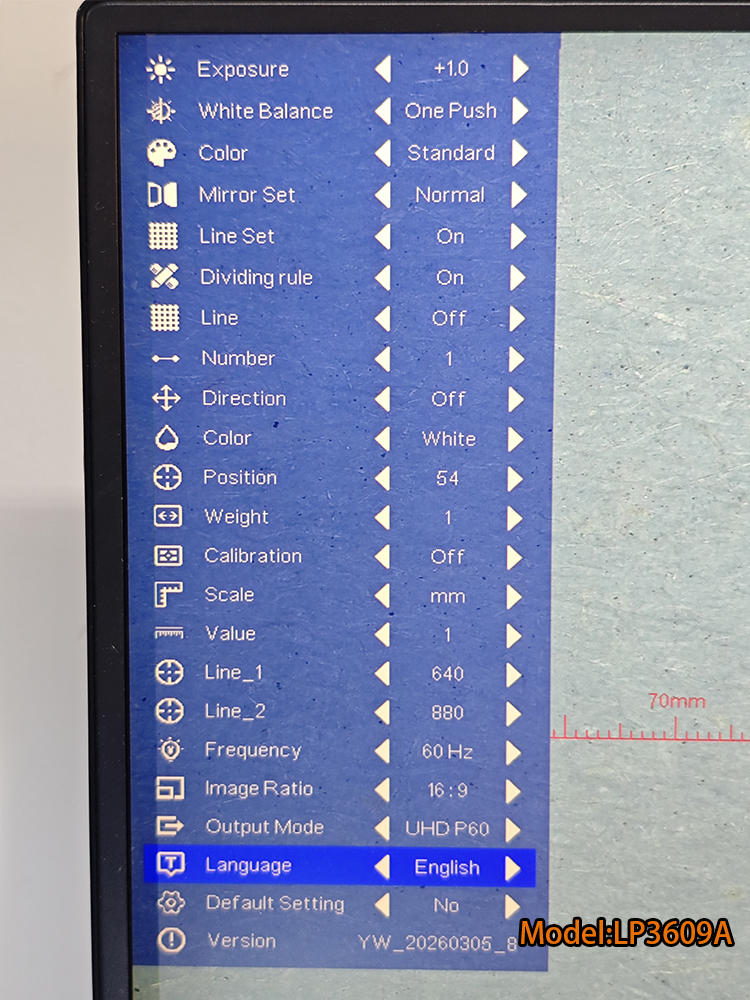

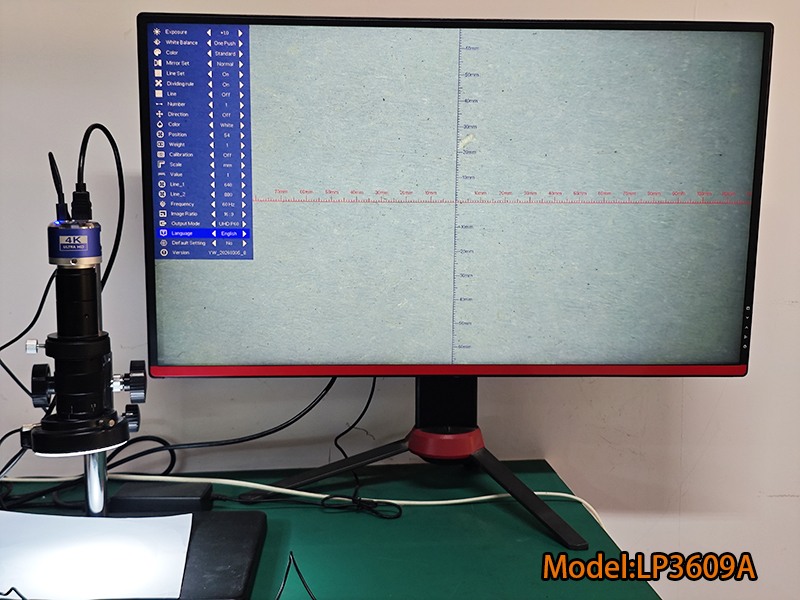

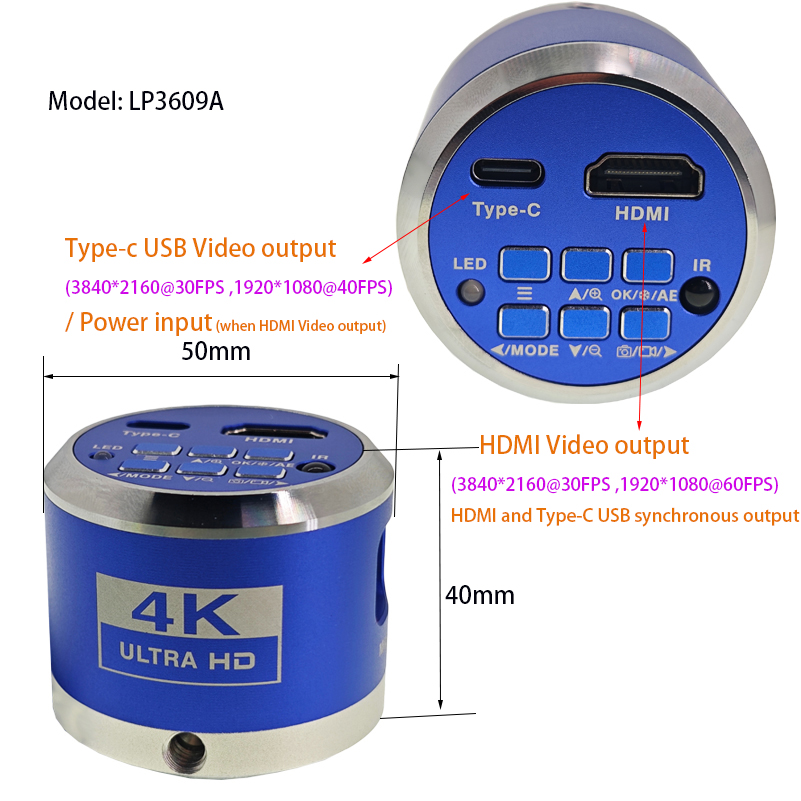

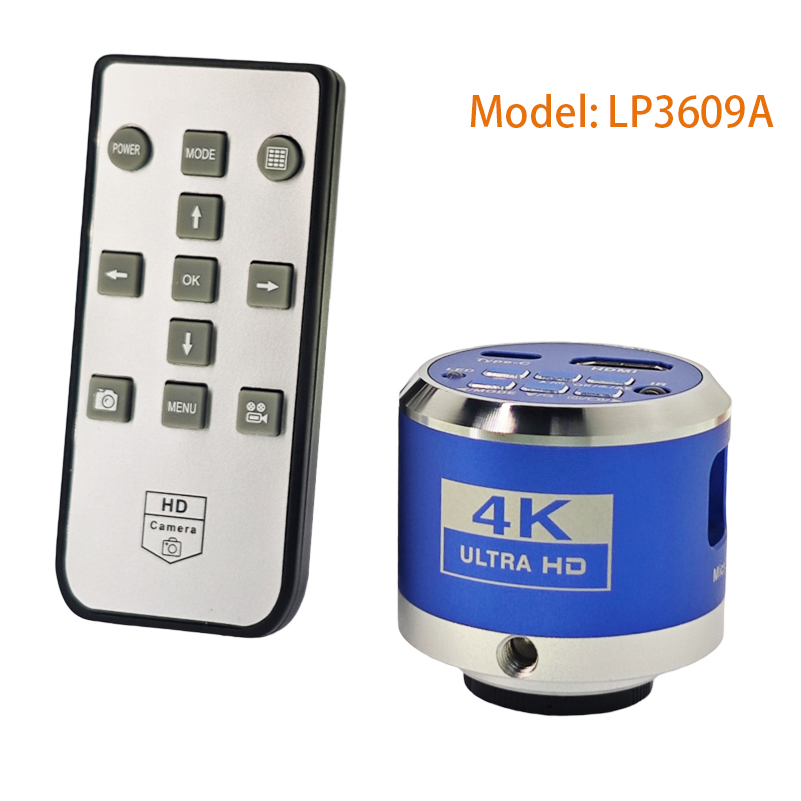

Model: LP3609A Feature: - Sony IMX678 Exmor/STARVIS back-illuminated CMOS sensor
- with measurement function ( Only when USB Video output supply Measurement function )
- 4K or 1080P HDMI USB multiple video outputs
- Excellent ISP with local tone mapping and 3D denoising
- Sensor(option): SONY IMX678 1/1.8" Sensor
- Resolution: 3840*2160 (4K)
- Pixel size: 2.0*2.0μm
- Preview frame rate： 30fps @ 3840*2160 (HDMI),
60fps @ 1920*1080 (HDMI),
30fps @ 3840*2160 (USB),
40fps @ 1920*1080 (USB),
- With TF Card slot, Support TF Card storage
- Video recording : 3840*2160@30fps 1080P@30fps
- The pixel of the photo taken: 3840px*2160px
- Size: 50mm*50mm*43mm
- NOTE: LP3609A Camera do not Support Measurement Function when HDMI Video Ouput

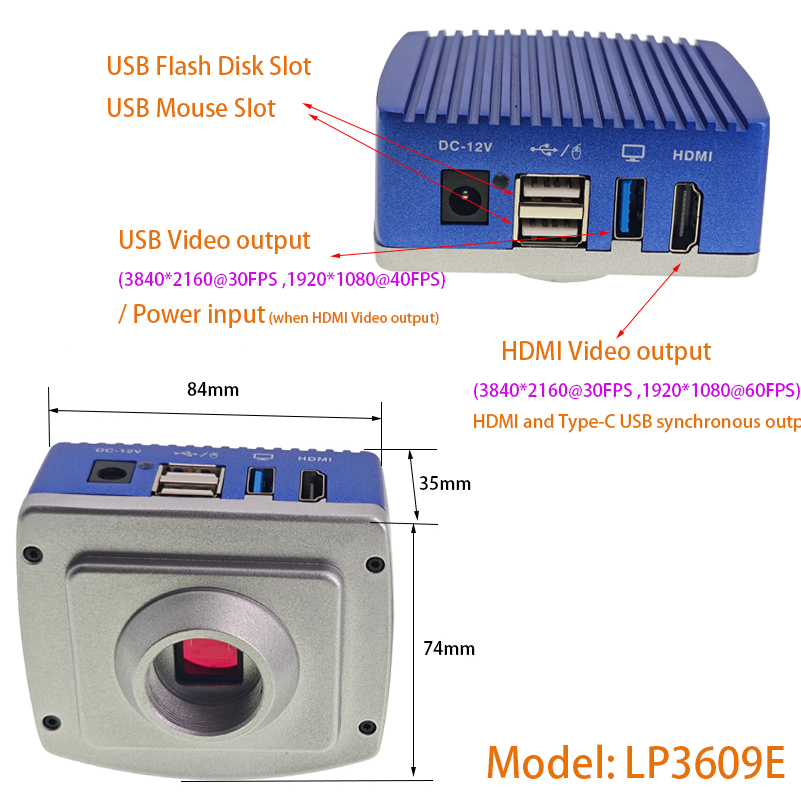

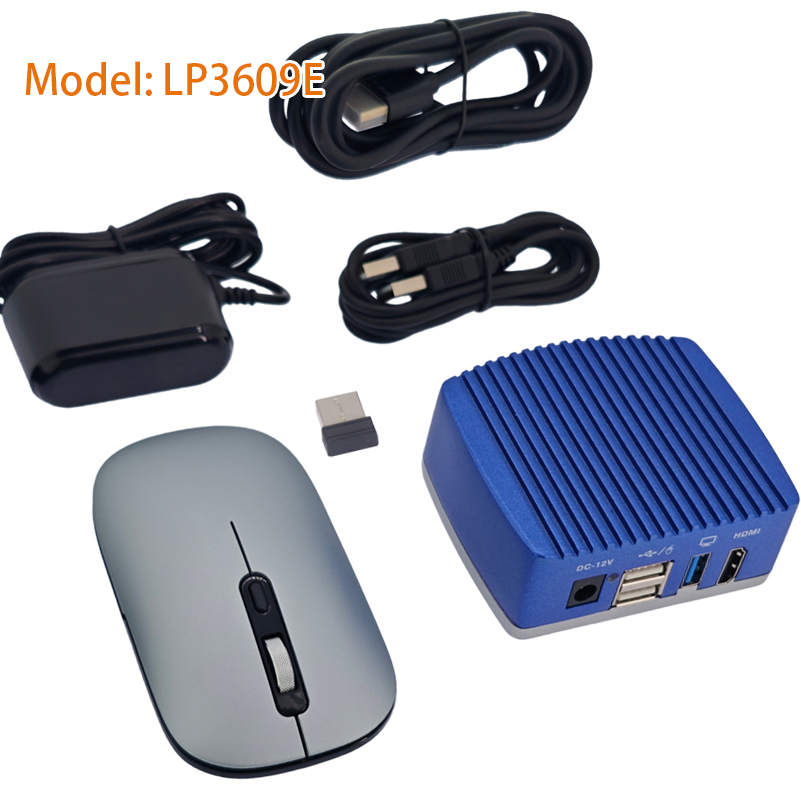

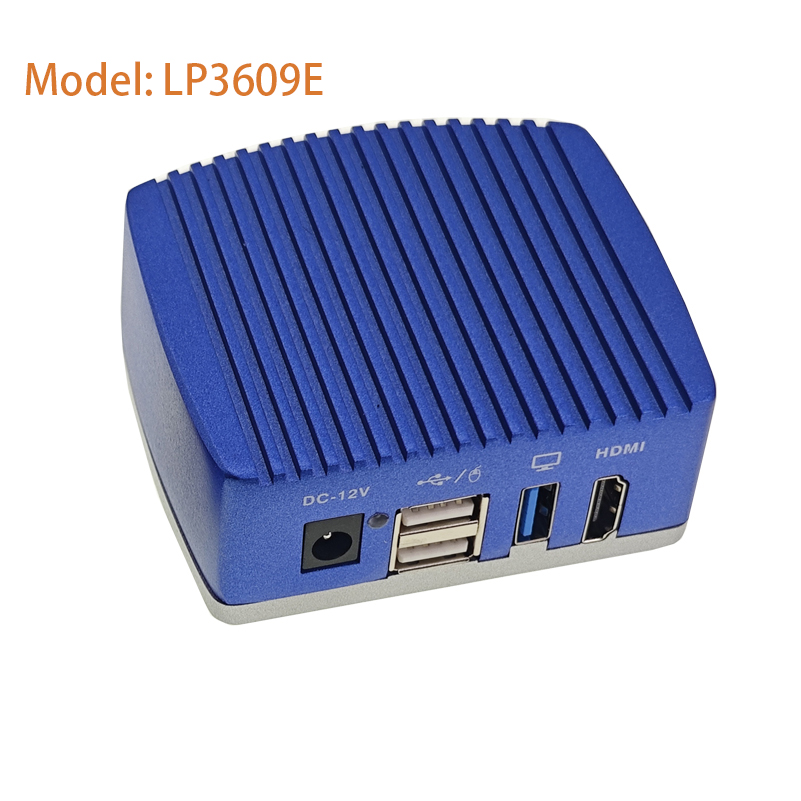

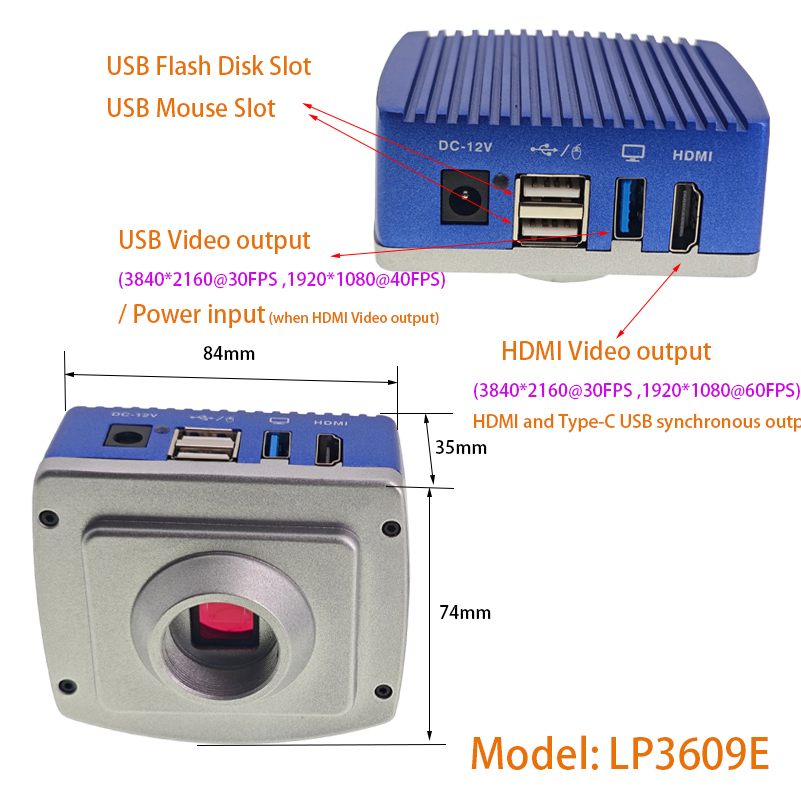

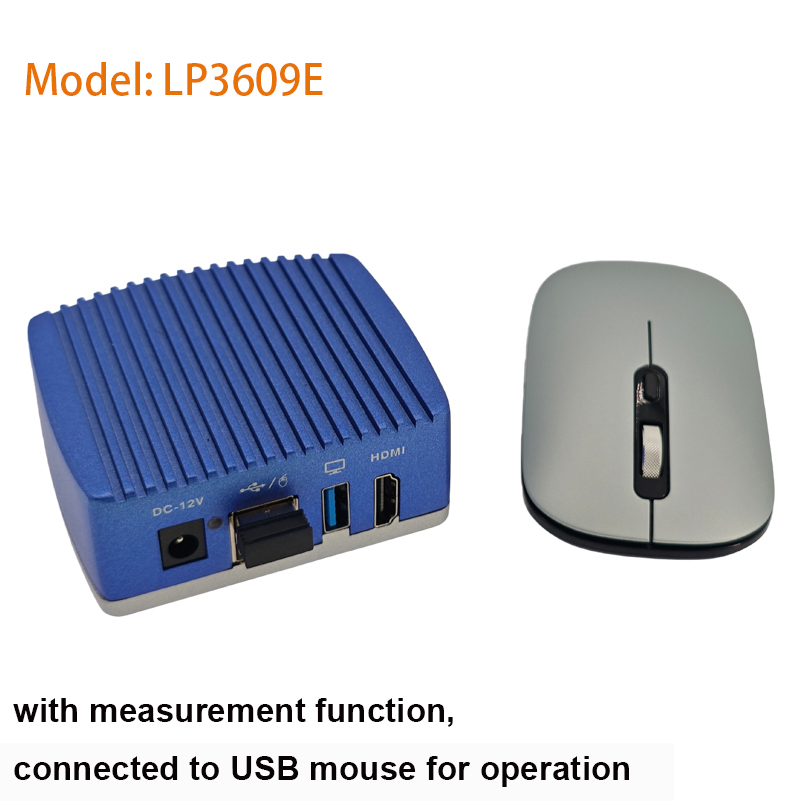

Model: LP3609E Feature: - Sony IMX678 Exmor/STARVIS back-illuminated CMOS sensor
- with measurement function
- 4K or 1080P HDMI USB multiple video outputs
- Excellent ISP with local tone mapping and 3D denoising
- Sensor(option): SONY IMX678 1/1.8" Sensor
- Resolution: 3840*2160 (4K)
- Pixel size: 2.0*2.0μm
- Preview frame rate： 30fps @ 3840*2160 (HDMI),
60fps @ 1920*1080 (HDMI),
30fps @ 3840*2160 (USB),
40fps @ 1920*1080 (USB),
- With TF Card slot, Support TF Card storage
- Video recording : 3840*2160@30fps 1080P@30fps
- The pixel of the photo taken: 3840px*2160px
- Size: 83mm*74mm*50mm

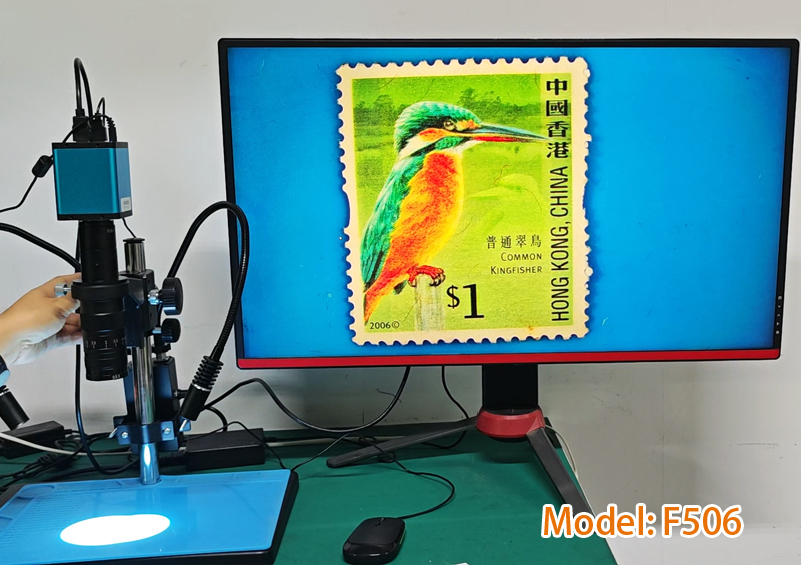

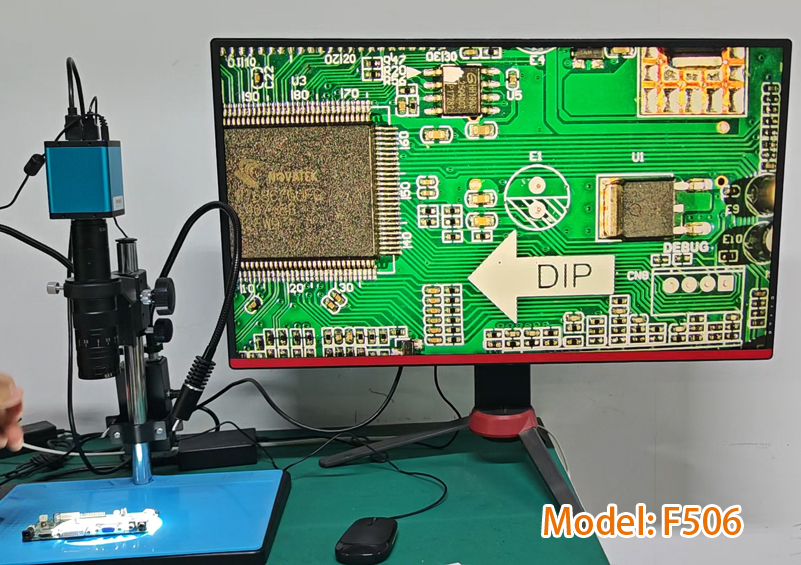

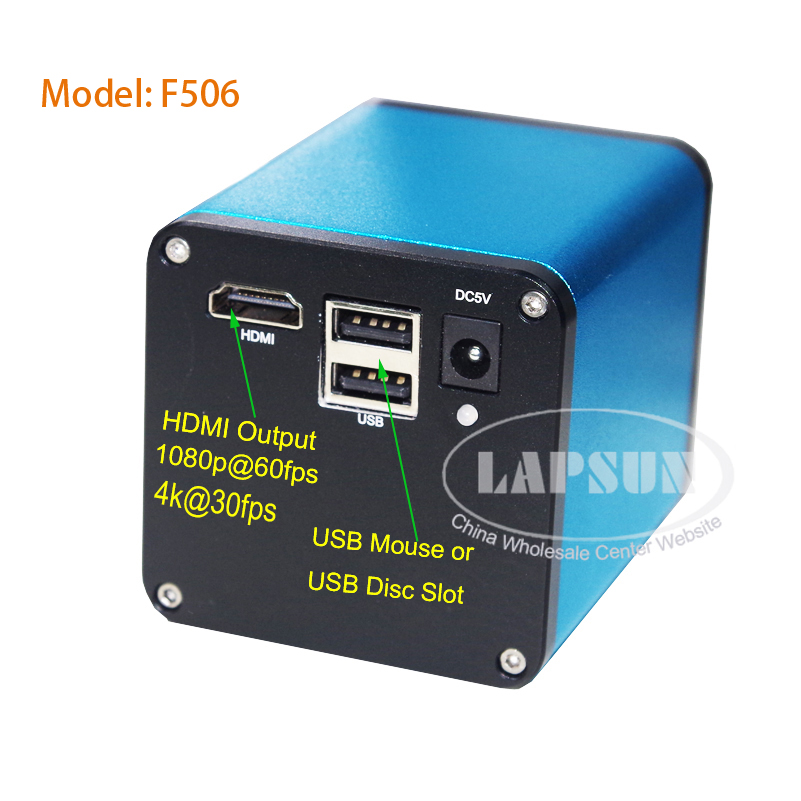

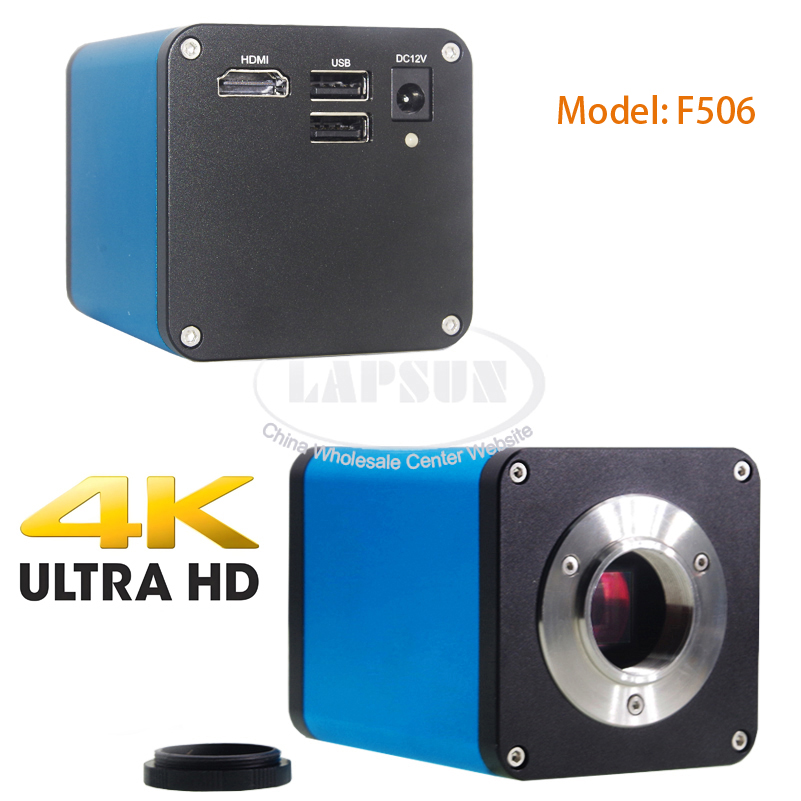

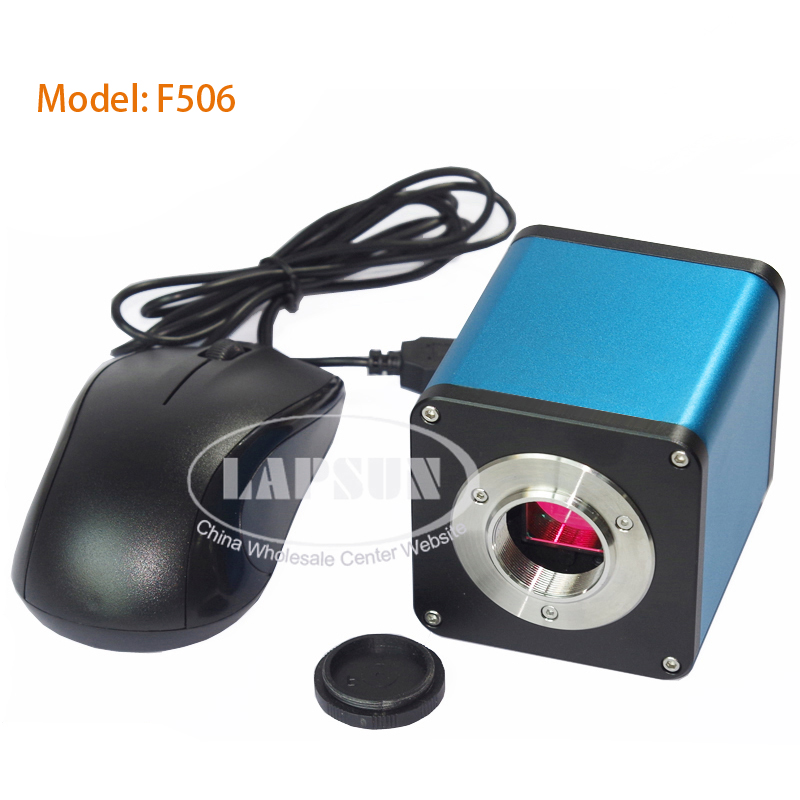

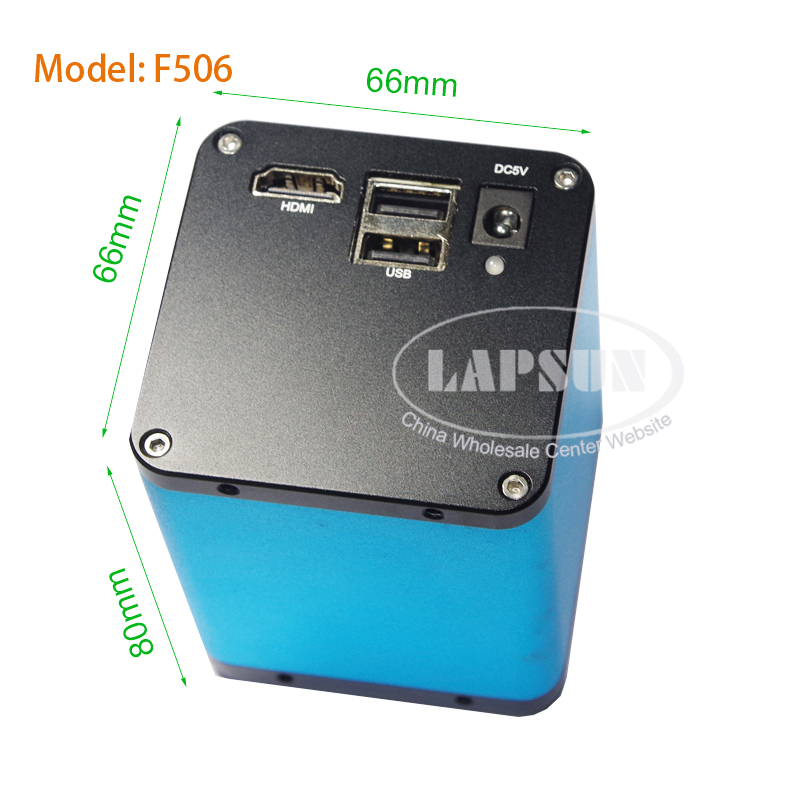

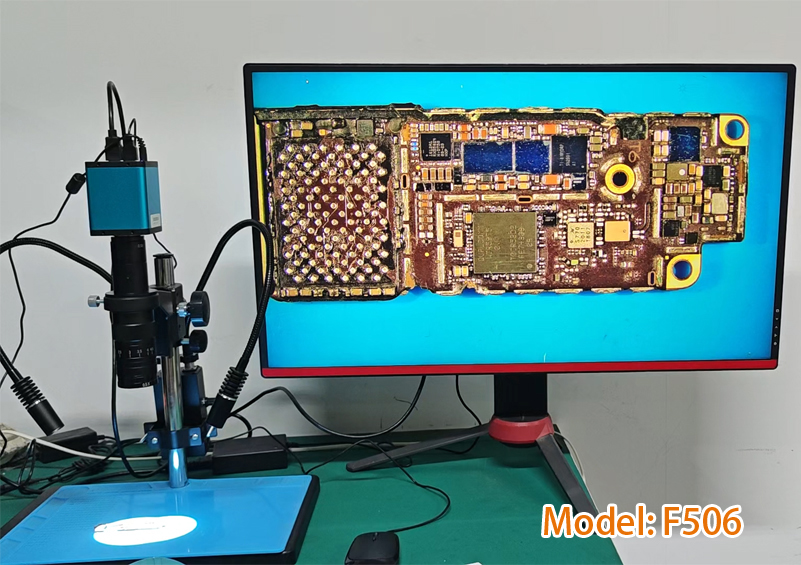

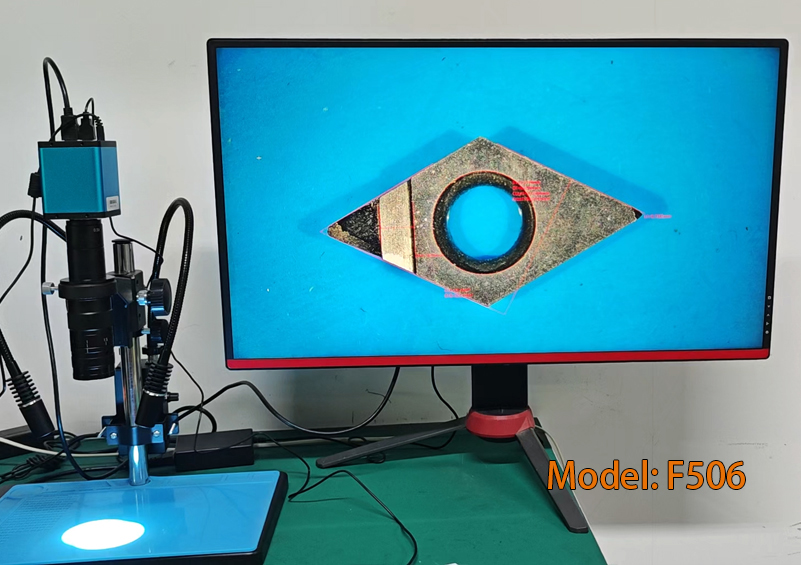

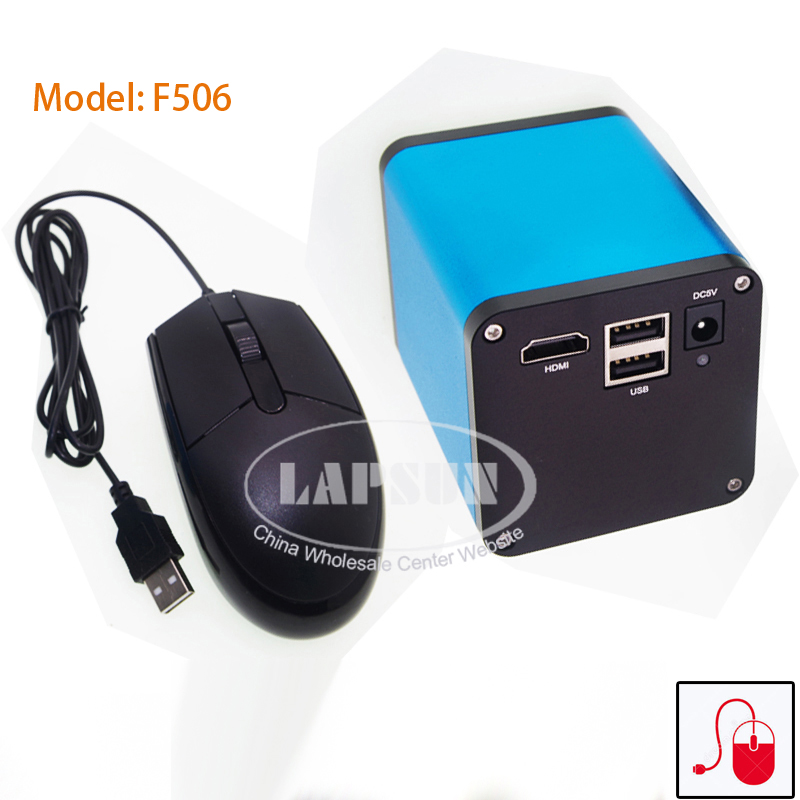

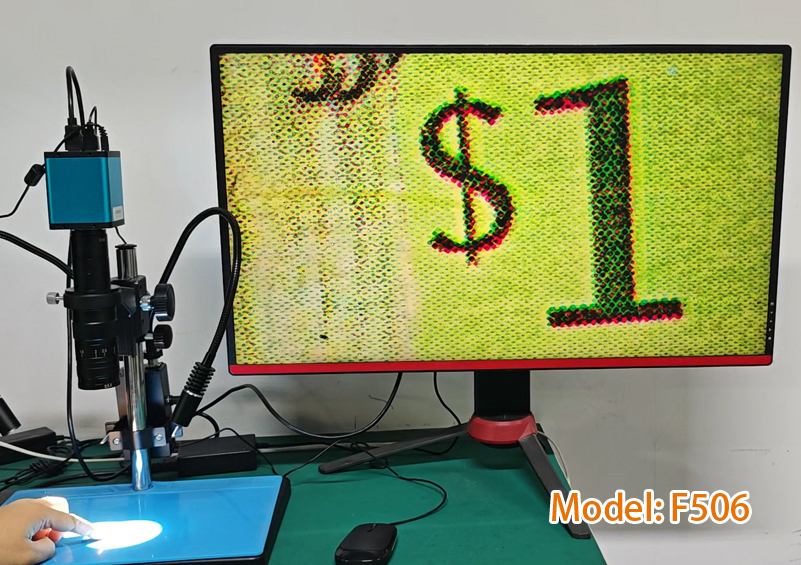

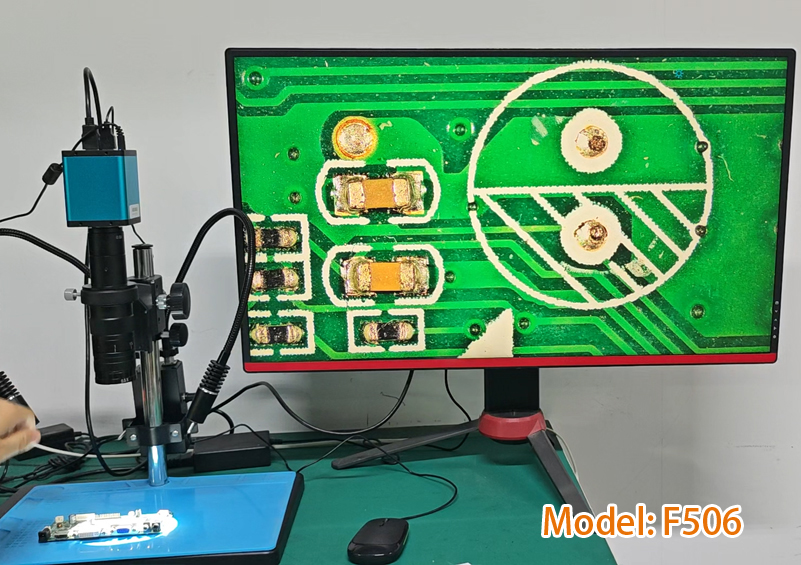

Model: F506 Feature: - Sony IMX678 Exmor/STARVIS back-illuminated CMOS sensor
- 4K HDMI video outputs
- 4K/1080P auto switching according to monitor resolution
- USB flash drive for captured image and video storage, support local preview and playback

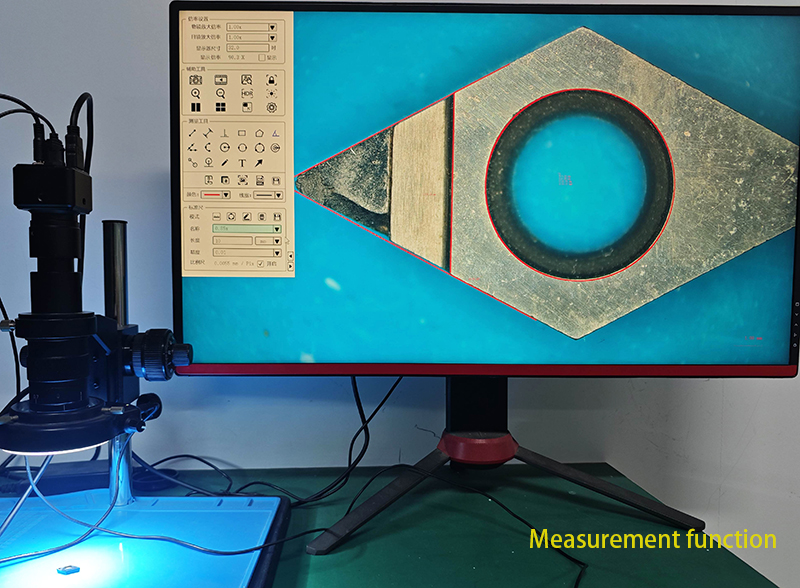

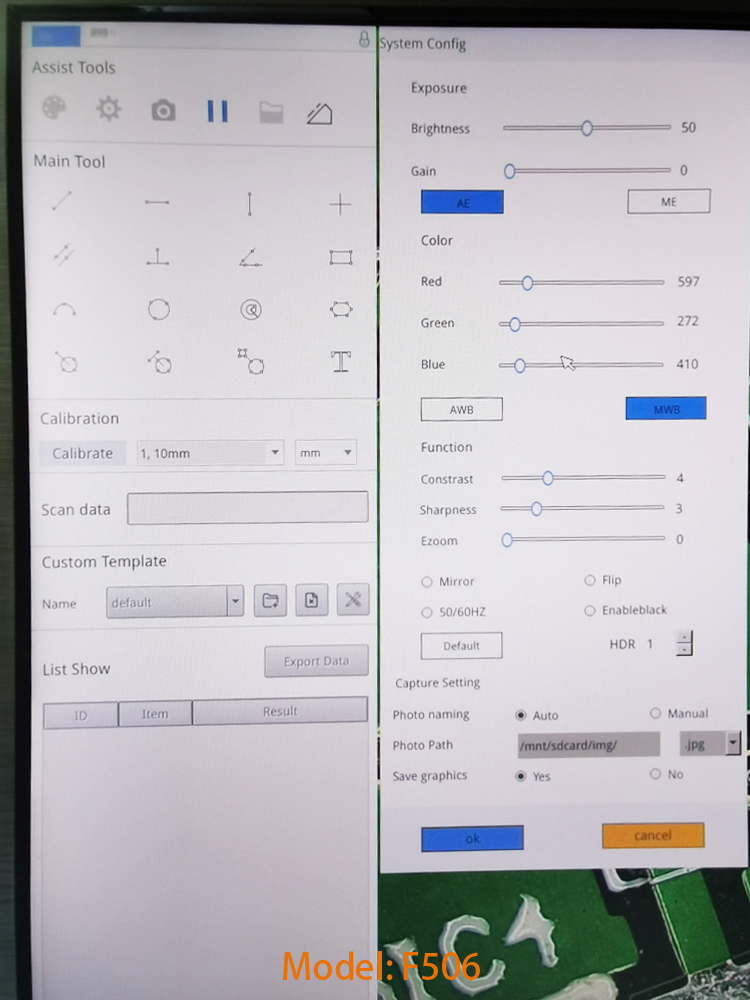

- This industrial camera has a measurement function

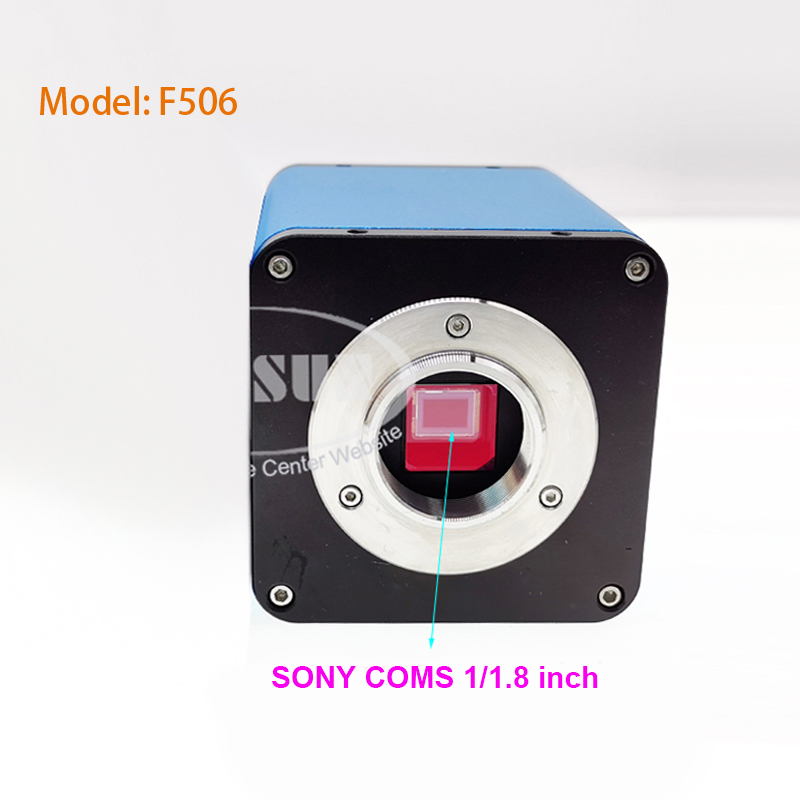

- SONY CMOS Sensor, senzor size:1/1.8"
- Pixel(μm) : 2.0x2.0
- Resolution: 4K Ultra HD (8mp 3840x2160)
- Preview frame rate： 30fps @ 4K under HDMI , 60fps @ 1080P under HDMI
- Exposure : 0.1ms~1000ms
- Real time measurement
- Support U disk storage
- NOTE: F506 Camera do not Support USB Video Ouput

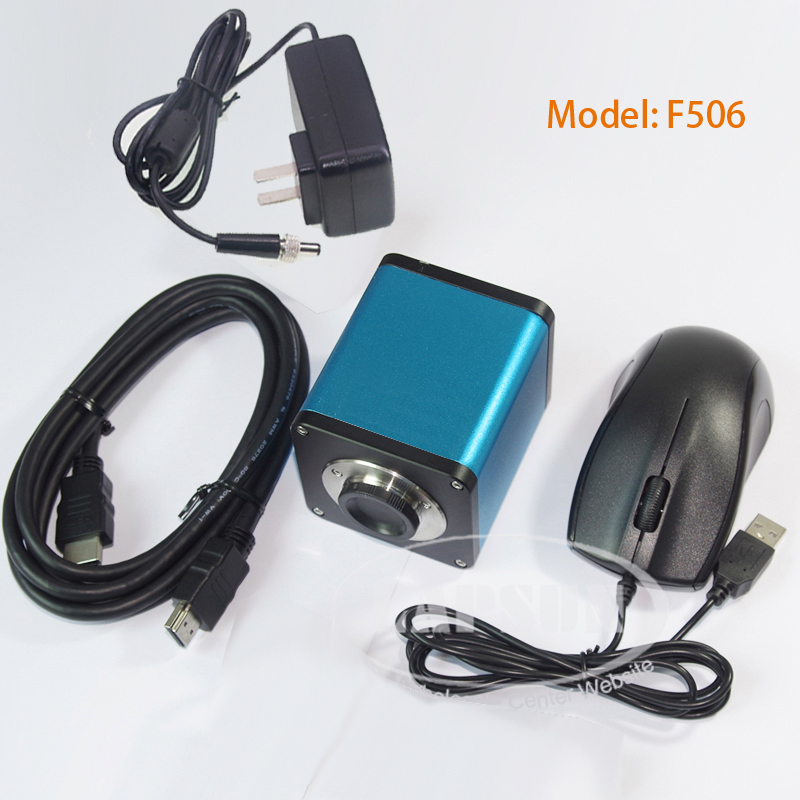

Package including: - 1 x Digital Camera (option)
- 1 x HDMI cable
- 1 x Power Supplier
Please note that this product does not include lenses, light sources, or stands. If lenses, light sources, and stands are required, please contact us to purchase them separately.
-------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------
|
