2026 New Patent product !!!
Wireless Transmission HDMI Extender Video Transmitter Receiver
for DJI Osmo Pocket 3 Vlogging Camera ( Without camera )
Main Features:

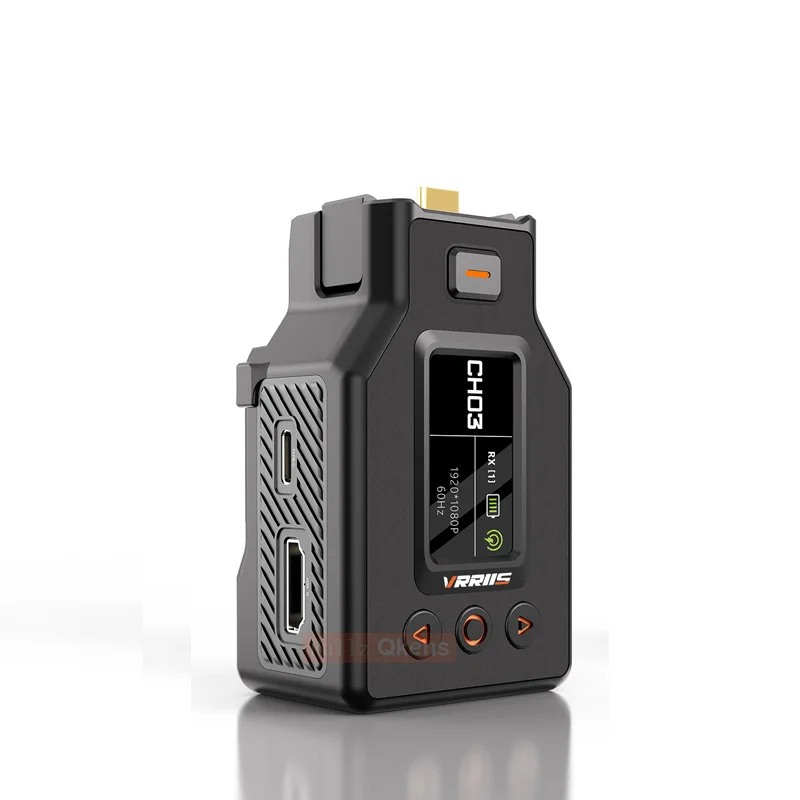

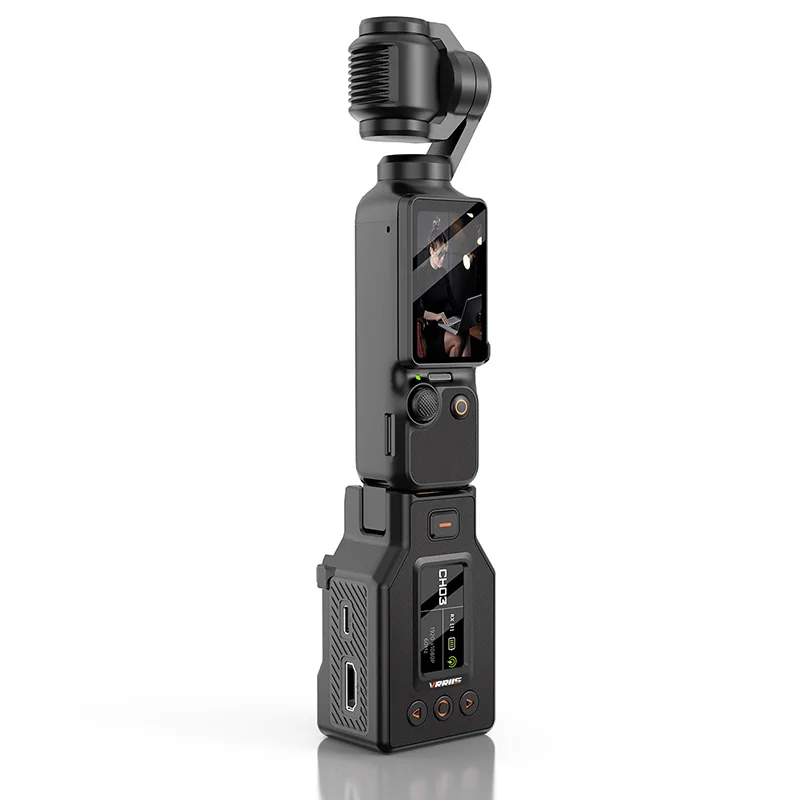

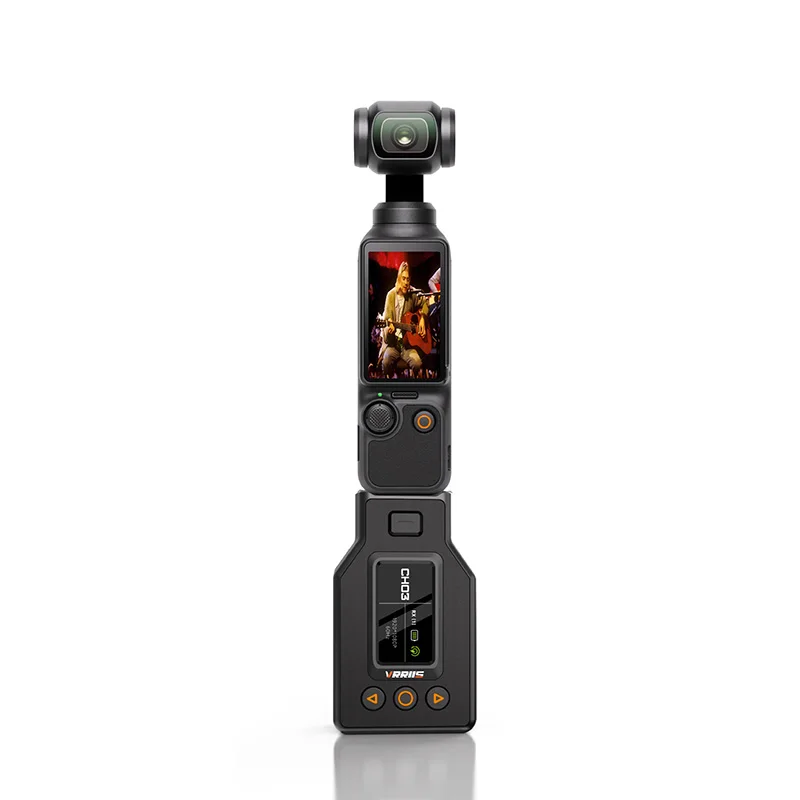

The WL087Pro transmitter comes with a Type-C male connector for direct connection and immediate use
for DJI Pocket 3 Camera. It also has a HDMI port for 1080p60Hz HDMI video source devices such as
computer / DVD Player / TV Set-top box / PS3 / PS4 / PS5 / Xbox etc.
UVC Live Streaming with HD Output Compatibility
The receiver features a UVC output port, allowing direct connection to a computer to use as
a video capture card.The wireless receiver supports 1080P@60Hz live output and is compatible
with mainstream streaming software such as Vmix ,OBS.
1640FT/500M Long-Range HD Wireless Transmission
This HDMI wireless device supports 1080P@60Hz HD video transmission with a maximum range
of 1640FT/500M (in open barrier-free environments),
latency below 0.05seconds,ensuring stable and smooth video quality.
5GHz Band with 20 Selectable Anti-Interference Channels
This HDMI transmitter and receiver with 5GHz Band with 20 manually selectable anti-interference channels,
supporting independent channel switching control on both the transmitter and receiver ends.
Plug-and-Play
If you choose TX and RX as one set,we have paired succesfully when send,you get it,plug and play;
Supports manual frequency adjustment and quick re-pairing,
facilitating device expansion and troubleshooting.
LCD Display for Real-Time Status Monitoring
LCD Display & Status Monitoring, equipped with LCD displays for real-time visibility of connection status,
signal strength, channel selection, and resolution information to prevent channel congestion.
Operation is intuitive, and status is clear at a glance.
1 Transmitter can work with up to 5 Receivers simultaneously
Multi-Scenario Applicability, supports one transmitter connecting to five receivers simultaneously,
meeting multi-screen monitoring needs. This wireless transmission kit is suitable for filming,
live streaming, conferences, teaching, and other scenarios.

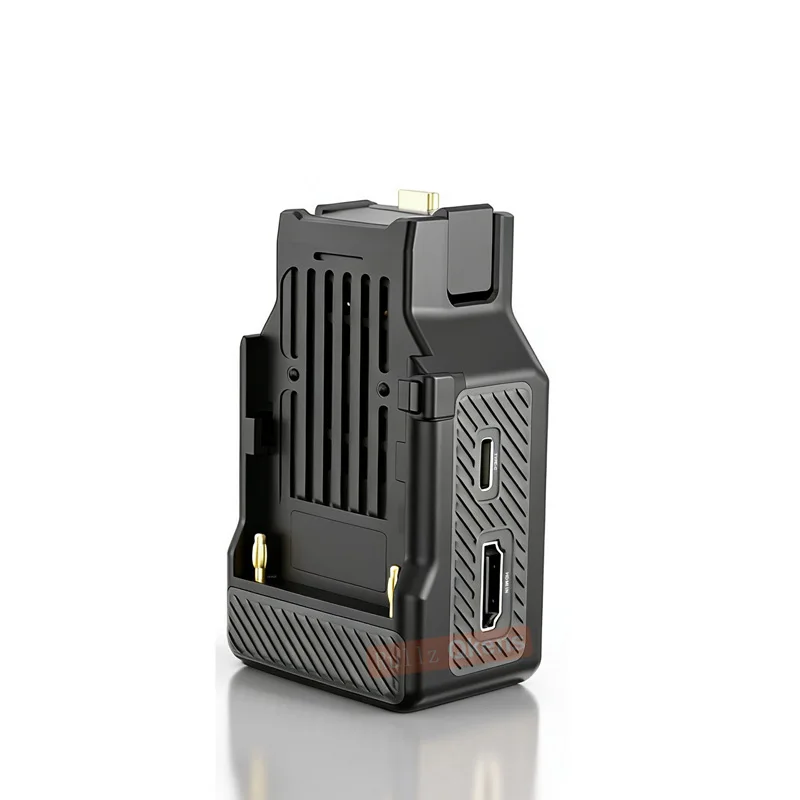

Flexible Power Supply & Portable Mounting Options
This video transmitter receiver is compatible with NP-F series batteries, USB-C, and DC power supply.
Equipped with a 1/4" screw hole for easy mounting on cameras,monitors, and other equipment,
adaptable to various indoor and outdoor environments.
1TX to 5RX transmission distance for your reference :
1TX to 1RX: 500 meters/1640 feet
1TX to 2RX:450 meters/1500 feet
1TX to 3RX:400 meters/1312 feet
1TX to 4RX:300 meters/990 feet
1TX to 5RX:200 meters/656 feet
Note:
1.This product is detected in an open barrier-free environment, different use environment
or signal interference will result in shorter distance.The final distance will be based on your actual testing
2. without battery (Compatible with Sony NP F970 / F750 / F550 battery)
3. Only TX or RX cannot work , pls use at least 1 TX and 1 RX as one set.
if you buy TX or RX seperately,you need to pair TX and RX before use.
Pairing Steps:
1.Power off both TX and RX,Disconnect all cables ;
2.Connect TX's HDMI IN to RX's HDMI OUT using an 1m HDMI cable;
3.Power on TX and RX, Wait 25 seconds,LCD displays "Pair OK" and flashes;
4.Remove HDMI cable,Power off TX RX;
5.Reconnect normally for use.
Package List for " Only 1 RX"
Wireless Receiver * 1
5V2A Power Adapter * 1
USB Power Cable * 1
User manual * 1
Package List for "1 TX and 1 RX"
Wireless Transmitter * 1
Wireless Receiver * 1
5V2A Power Adapter * 2
USB Power Cable * 2
User manual * 1
if you choose other options,will come the accessories accordingly
With out retail box and other accessories,if any need,pls contact us before purchase.
