This Finder 60.13 series device is a 10A 3PDT (CO) 110VAC general purpose power relay and features a test button with mechanical flag indicator which is lockable. The relay can mate to an 11-pin plug-in base and may be controlled using a Finder 86 series timer module (see 48-0780).


  • Flame retardant cover
  • Approved to BSI, VDE, CSA, UL, BEAB, IMQ, SETI, SEMKO, DEMKO and SEV standards
  • Finder 60.13 series
Please note: This item has a longer lead time for dispatch then normal as it's a non-stocked item that is ordered in, please see the estimated delivery date by eBay. We will of course ship the item sooner if possible.

Responsive image

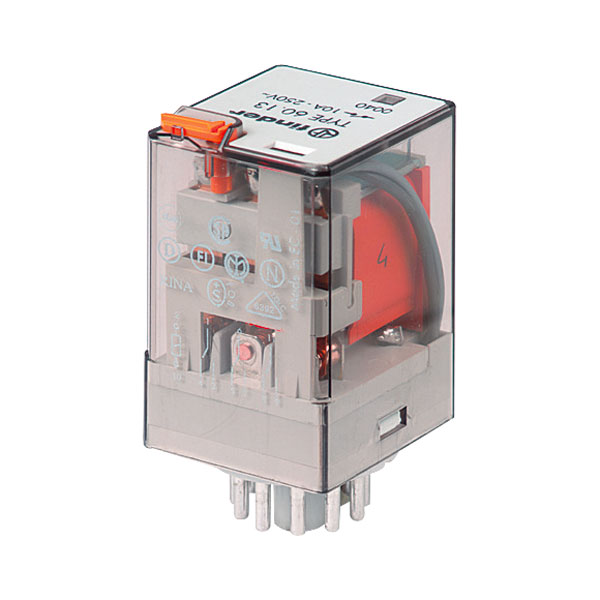

Finder 60.13.8.110.0040 - 10A General Purpose Relay 3PDT-CO 110VAC

Product Details

This Finder 60.13 series device is a 10A 3PDT (CO) 110VAC general purpose power relay and features a test button with mechanical flag indicator which is lockable. The relay can mate to an 11-pin plug-in base and may be controlled using a Finder 86 series timer module (see 48-0780).


  • Flame retardant cover
  • Approved to BSI, VDE, CSA, UL, BEAB, IMQ, SETI, SEMKO, DEMKO and SEV standards
  • Finder 60.13 series
NameValue
Contact Configuration3CO (3PDT)
Coil Current18.6mA
Coil Resistance1600Ω
Rated Voltage (AC)250V
Rated Current10A
Mounting Type11 pin plug-in
Operating Temperature-40 to +70°C
Height54.2mm
Length36.4mm
Width32.5mm
Coil Voltage110V AC
Switching Current10A
