Product Type: Alternator; Condition: New; Unit Series: PMA; Voltage: 12V; Amperage: 45A; Rotation: CW; Regulator/Fan: IR/IF; Plug Code: 193; Pulley Class: V1; Pulley OD: 69mm; Mounting Hardware Included: No; Country of Origin: CN; Notes: M6 BATT TERM

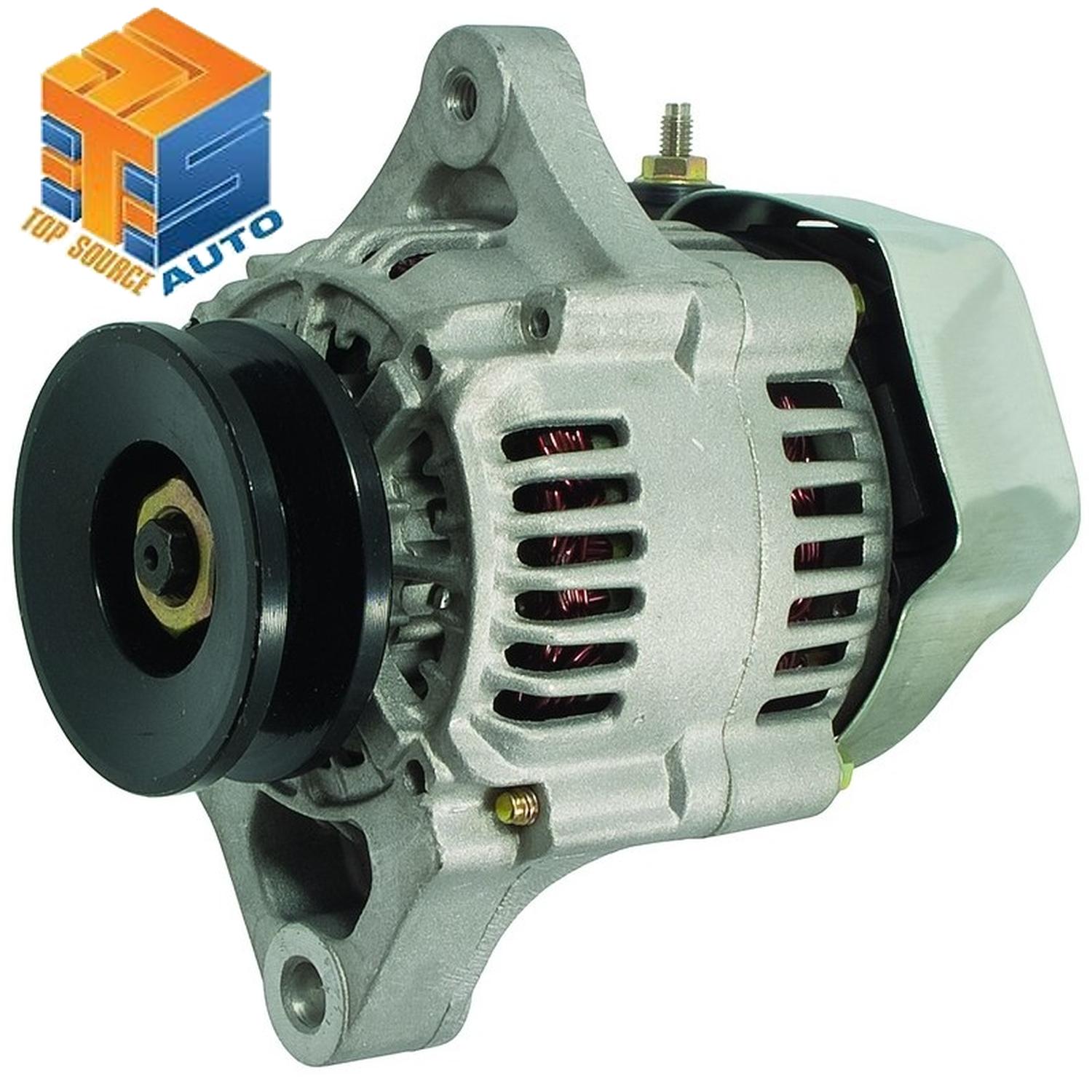

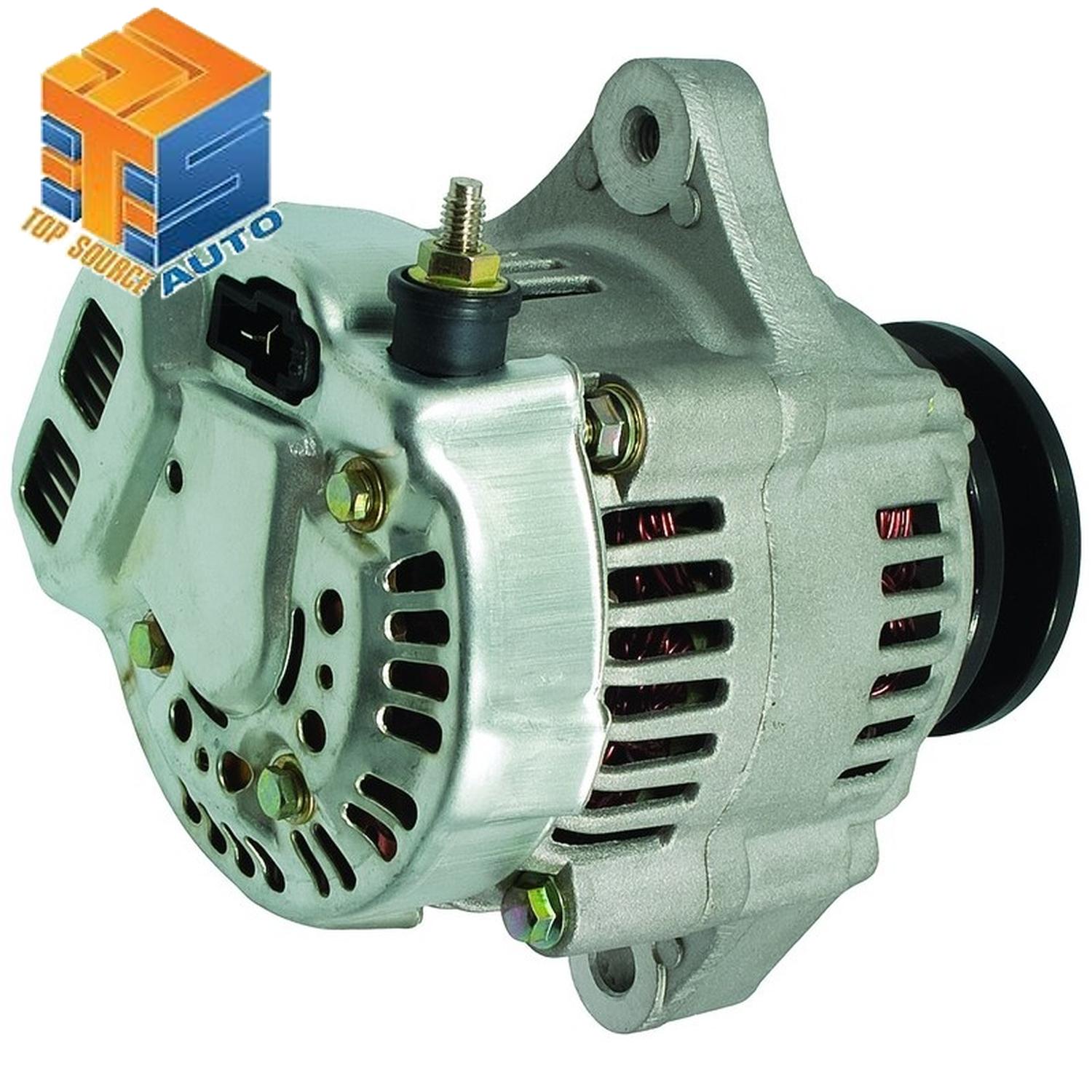

New 45A Alternator Fits Thomas Equipment T173 1989-1999 LRA01857 AND0211 3612200

Click Thumbnails to Enlarge

Specifications
OE Manufacturer:
Product Type: Alternator
Weight: 7.4000
Condition: NEW
Unit Source:
Design / Type:
Design / Type:
Design / Type: PMA
Starter Series:
Location - General:
Location - Specific:
Design Type:
Voltage: 12
Amperage: 45
kW:
Rotation: CW
Regulator/Fan: IR/IF
Tooth Count:
Spline Count:
Polarity:
Shaft Type:
Duty Cycle:
Horsepower:
RPM:
V-Set:
Circuit Type:
Plug Code: 193
Plug Orientation:
Pulley Class: V1
Case OD (mm):
Overall Length (mm):
Gear OD (mm):
Pulley Belt Width (mm):
Pulley OD (mm): 69
Shaft Overall Length (mm):
Shaft OD (mm):
Clutch Type:
Operating Mode:
Pads Included:
Connection Type:
Piston Material:
Piston Outside Diameter (in):
Bleeder Port Measurment:
Inlet Port Measurement:
Ignition Type:
Housing Material:
Torque (ft. lbs):
Pulley OD (in):
Crankshaft OD (in):
Terminal Type:
Sensor Included:
Idle ACM Included:
Cage Wheel Included:
Wiring Harness Included:
Number of Pistons:
Caliper Pistion OD (mm):
Motor Overall Length (in):
Motor OD (in):
Wheel OD (in):
Bearing Inside Diameter (mm):
Bearing Outside Diameter (mm):
Bearing Width (mm):
Rotor Inside Diameter (mm):
Rotor Outside Diameter (mm):
Rotor Overall Length (mm):
Rotor Shaft Outside Diameter (mm):
Rotor Shaft Overall Length (mm):
Mounting Hardware Included: No
Installation Hardware Included:
Mounting Type:
Mounting Type:
Mounting Type:
Cap Design:
Plunger Type:
Includes:
Includes:
Number of Mounting Holes:
Number of Terminals:
Number of Wires:
ETB Inside Diameter (in):
Unit Finish:
Unit Color:
Number of Pieces:
Country of Origin: CN
Country of Use:
Notes: M6 BATT TERM
Other Part #: 70-29-12200 702912200 553415RI 553415 50915
INTERCHANGE PART NUMBERS
Kubota: 17356-64010, 17356-64012, 17356-64011
Denso: 100211-6801, 100211-6800
Lester: 12200
Arrowhead: AND0211
J & N Automotive: 400-52132
Remy Remanufactured: 93024, 50915
Wilson Heavy Duty: 70-29-12200, 90-29-5179
MPA HD: X612200
Wilson New: 90-29-5179N
BBB HD: 12200
Powermax: 89213107
Carquest HD: 12200A
Denso Remanufactured: 9760218-680
Romaine Electric: 12200N, 36-12200
Dixie Electric: A-8291
AD Kuhner: 553415, 553415RI
Cargo: 110374, 113200
Elstock: 28-3714
Lucas Electrical Europe: LRA01857
Wood Auto Supplies: ALT30002
APPLICATIONS / FITMENT

MakeModelYearEngineRemarks
KubotaF28031986-2007AllVarious Denso IR/ IF, 45A
KubotaL4350DT1991-1997AllKubota V2203DI 47.5HP Dsl Denso IR/ IF, 45A
KubotaL4350HDT1991-1997AllKubota V2203DI 47.5HP Dsl Denso IR/ IF, 45A
KubotaL4350MDT1991-1997AllKubota V2203DI 47.5HP Dsl Denso IR/ IF, 45A
KubotaL4850HDT1991-1997AllKubota F2503DI 53HP Dsl Denso IR/ IF, 45A
KubotaL5450DT1991-1997AllKubota F2803DI 54.5HP Dsl Denso IR/ IF, 45A
KubotaL5450HDT1991-1997AllKubota F2803DI 54.5HP Dsl Denso IR/ IF, 45A
KubotaR5101985-2006AllKubota V2203-BDW Diesel Denso IR/ IF, 45A
KubotaR5101985-2006AllKubota V2203-DI-BDW Diesel Denso IR/ IF, 45A
KubotaR5101990-1997AllKubota V2203DI 50HP Dsl Denso IR/ IF, 45A
KubotaR520BU-1A1995-2003AllKubota V2203 49HP Dsl Denso IR/ IF, 45A
KubotaVarious1991-2007AllKubota # 17356-64012 V1702 Kubota Diesel Denso IR/ IF, 45A
Thomas EquipmentT133S1995-1998AllKubota V1903B Diesel Denso IR/ IF, 45A
Thomas EquipmentT1731989-1999AllKubota V2203B Diesel Denso IR/ IF, 45A
Thomas EquipmentT1831989-1994AllKubota V2203B Diesel Denso IR/ IF, 45A
Thomas EquipmentT2031989-1994AllKubota V2203B Diesel Denso IR/ IF, 45A
