Features

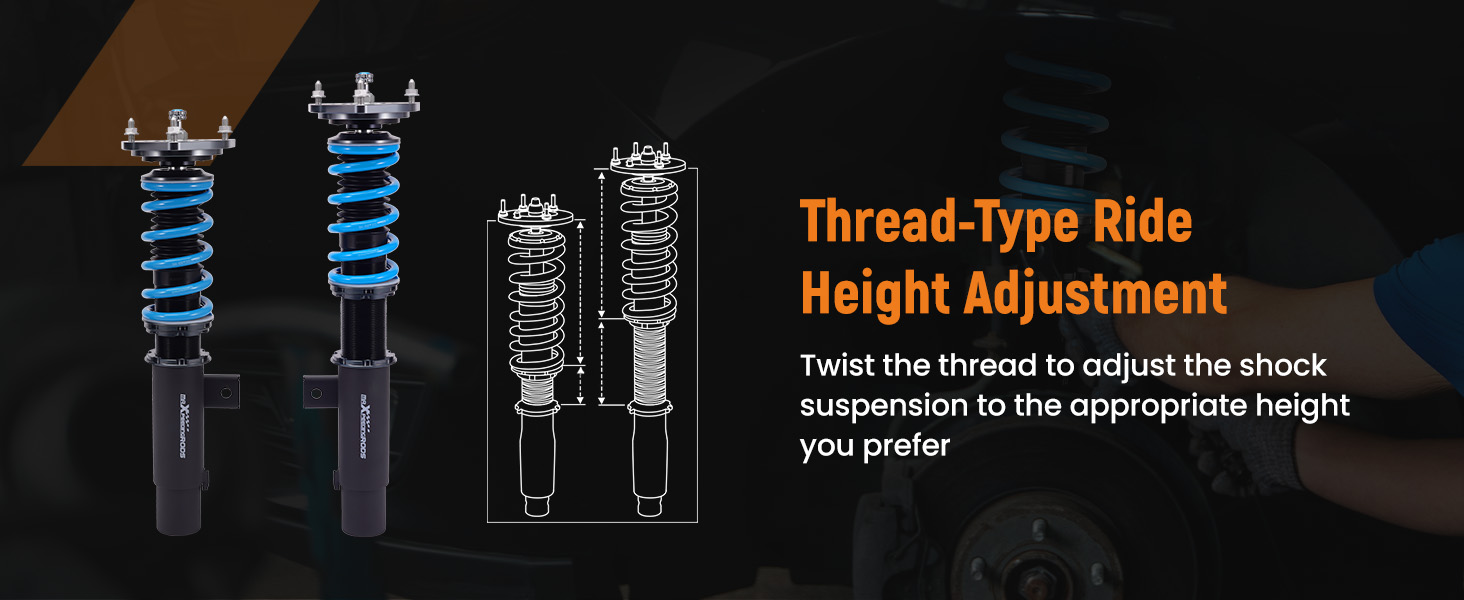

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range.
4. 24 Clicks of Rebound Adjustments -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

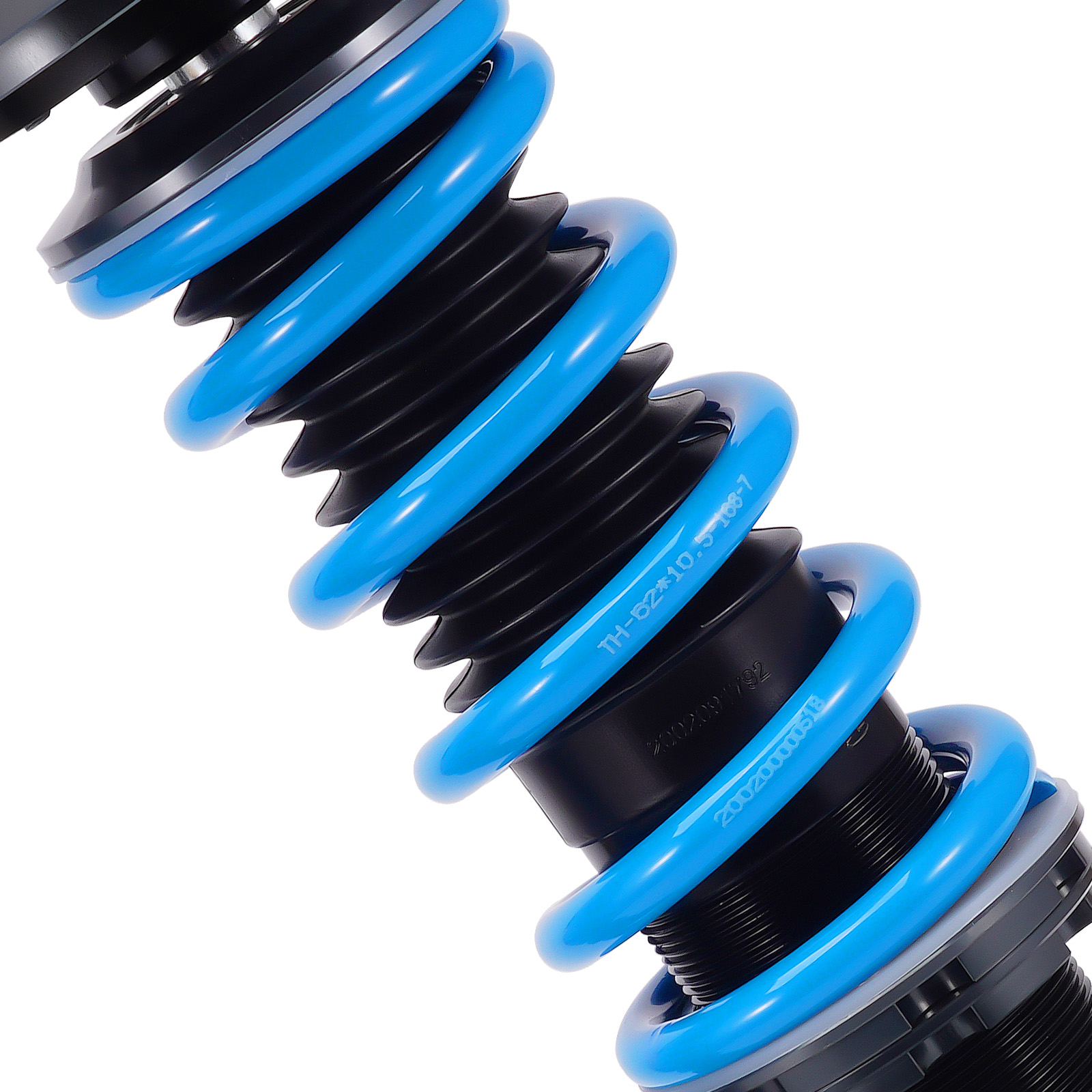

6. High Rigidity 55CrSi Steel Cold-bent Coil Springs --- more than 600,000 times continuously test to assure it's high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

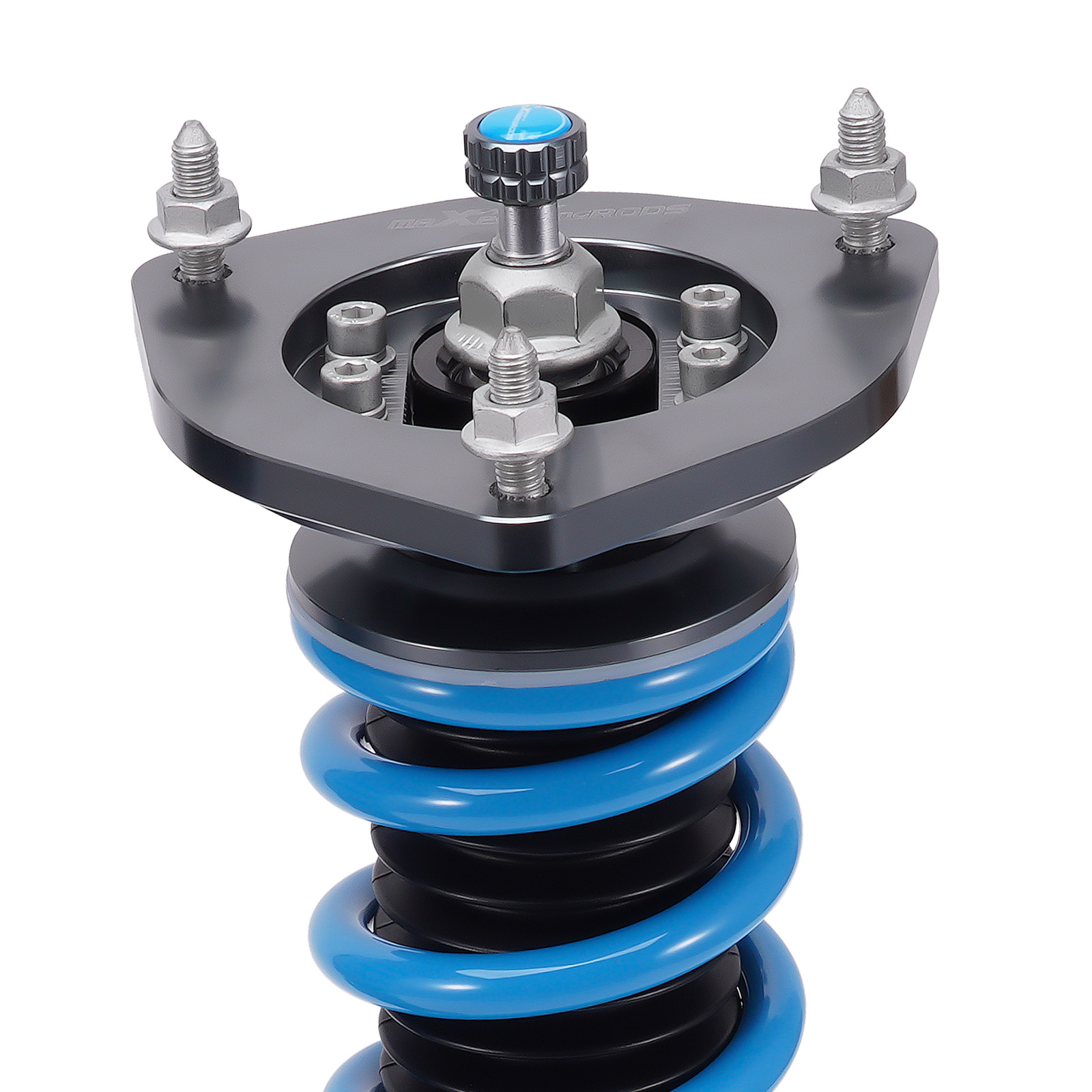

8. Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.
9. Advanced Twin-Tube Technology ---provides excellent handling & control characteristics for most driving conditions

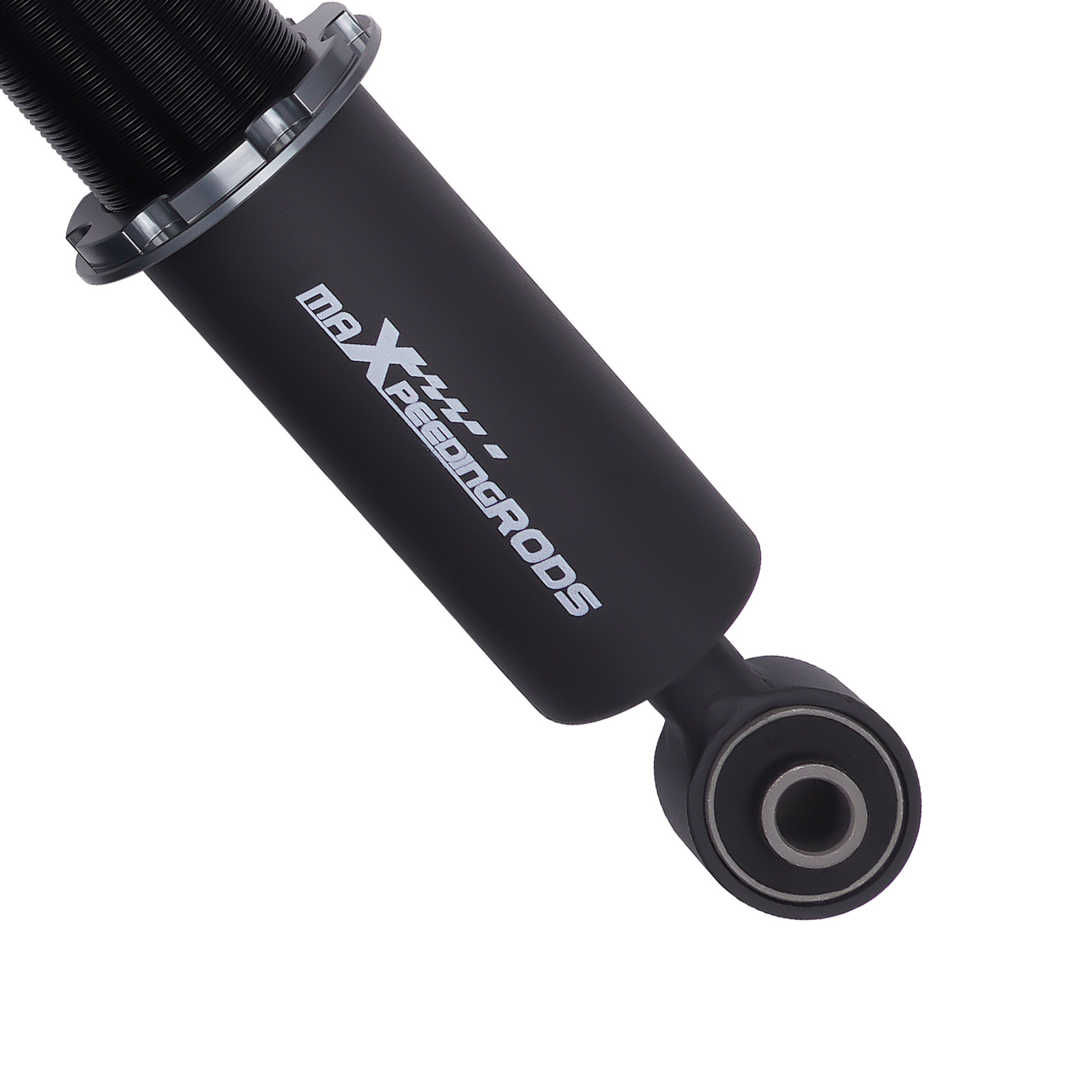

10. Anodized Shock Body With Anti-Corrosion Coating- Anodized Aluminum And Powder Coated Carbon Steel Parts
11. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
12. Clean room assembled---maintain higher level of accuracy and reliability.

Application

For Volkswagen Passat FWD / AWD 2012-2016

Note: Compatible with front strut inserts of 54.5mm inner diameter.

Specification

- Front top mount: Pillow ball with camber plate
- Rear top mount: OE top mount required
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 7 kg/mm (392 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 168 mm
- Spring length Rear: 210 mm
- Spring Preload advised: 7-10 mm
- Color: Black body with blue spring

Package included

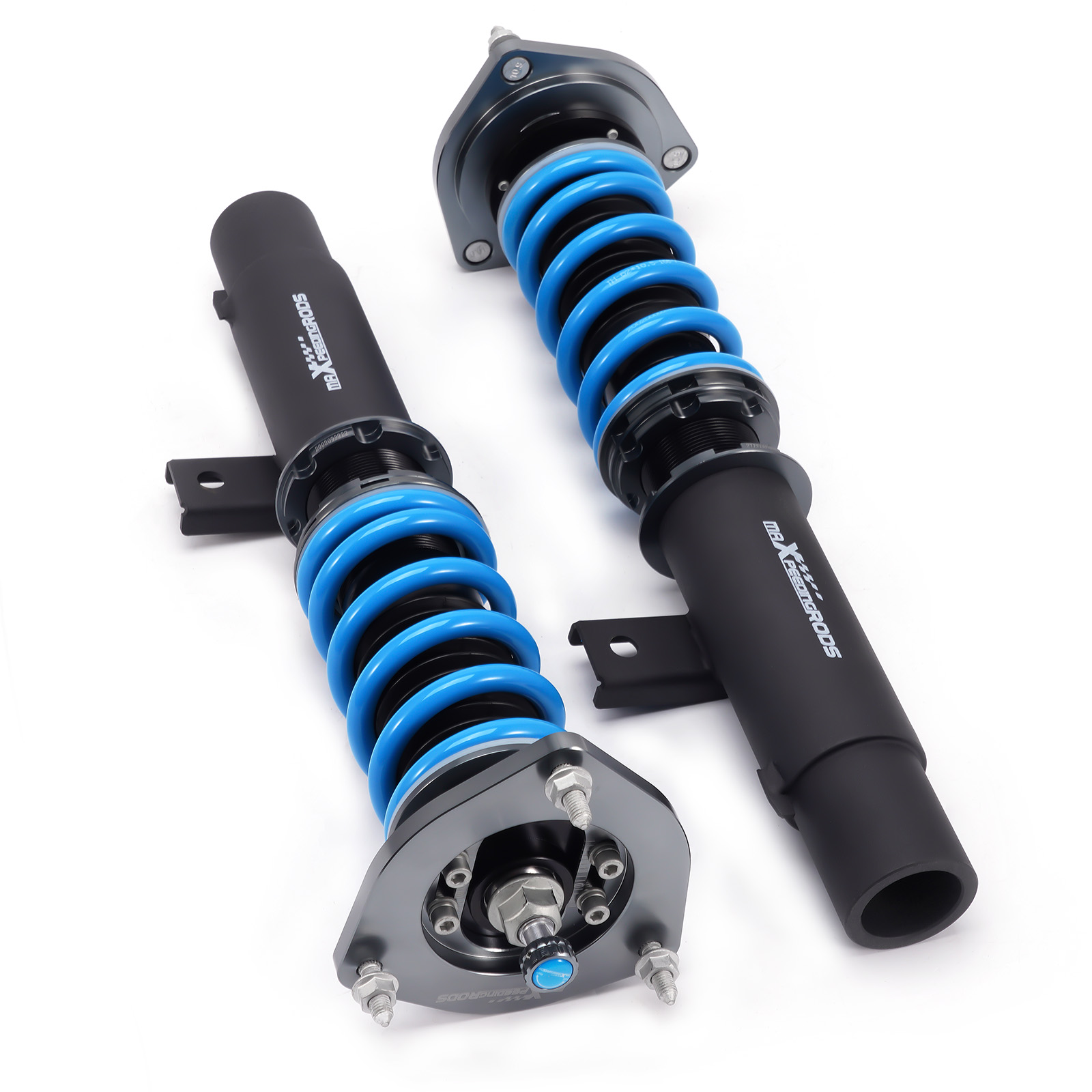

2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
