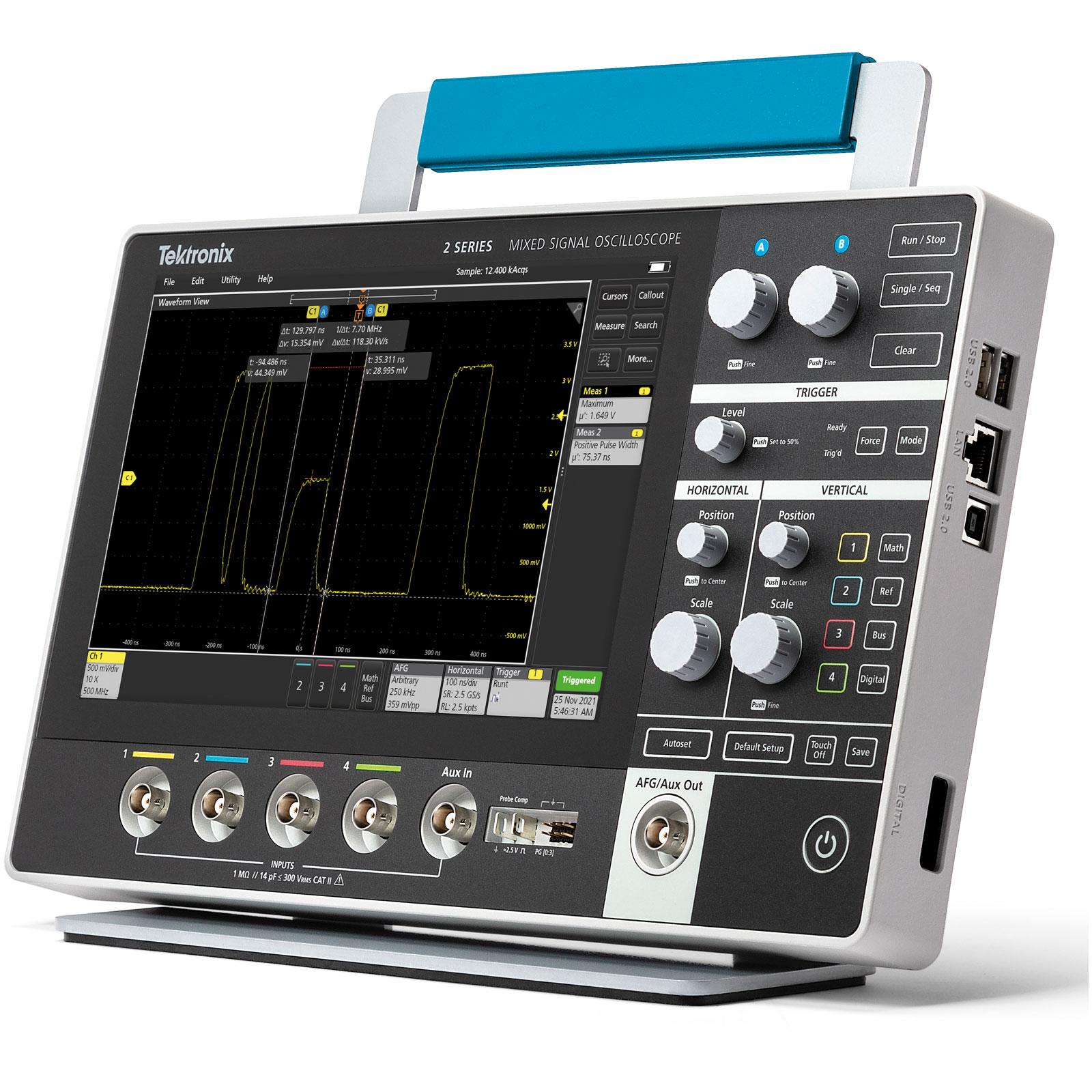

Tektronix MSO24 2-BW-100 Mixed Signal Oscilloscope 4 Channels 100MHz Bandwidth

This Tektronix MSO24 2-BW-100 Oscilloscope features 4 analogue channels, 100 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, optional 50 MHz Arbitrary Function Generator (AFG), advanced triggers, protocol decode, optional Digital Voltmeter (DVM) and frequency counter is packed with features, all in a compact form factor at approximately 38mm thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope.

A large variety of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Supplied with:

• TPP0200 200 MHz, 10x probe (one per channel).
• Instrument stand.
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese).
• Embedded help.
• External power supply.
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration.
• One-year warranty covering all parts and labour cost on the instrument and probes.

• One-year software maintenance that provides access to new firmware releases with updates.
