| UPC: | 78678834262 |
| Current Rating: | 8 Ampere |
| Wire Code: | 1-White-Black Trace 2-Black 3-White 4-Red 5-Orange 6-Blue 7-Green/Yellow (Ground) |
| Cable Type: | 16 AWG STOOW, PVC Jacket |
| Color: | Yellow |
| Length: | 12 Ft |
| Material: | Die-Cast Black Epoxy Coated Zinc Coupling Nut, Brass with Gold over Nickel plating Contact, PVC Connector Body, PVC Connector Face |
| Application: | Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor |
| Enclosure: | IP67 |
| Approval: | UL, CSA |
| Additional Information: | Temperature Rating -20 to 105 Deg C |
| Catalog Number: | 207000A01F120 |
| Brand Name: | Brad[R], Mini-Change[R] |
| Model: | 130007 |
| Type: | Female |
| Keyway Type: | Single |
| Connector Type: | Straight, Single End |
| Number of Poles: | 7 |
| Voltage Rating: | 600 VAC/VDC |
| CATALOG DESCRIPTION: | MINI-CHANGE B-SIZE SINGLE-ENDED CORDSET, 7 POLES, FEMALE (STRAIGHT) TO PIGTAIL, STOOW CABLE, 3.66M LENGTH |
| Category: | Cords Sets |

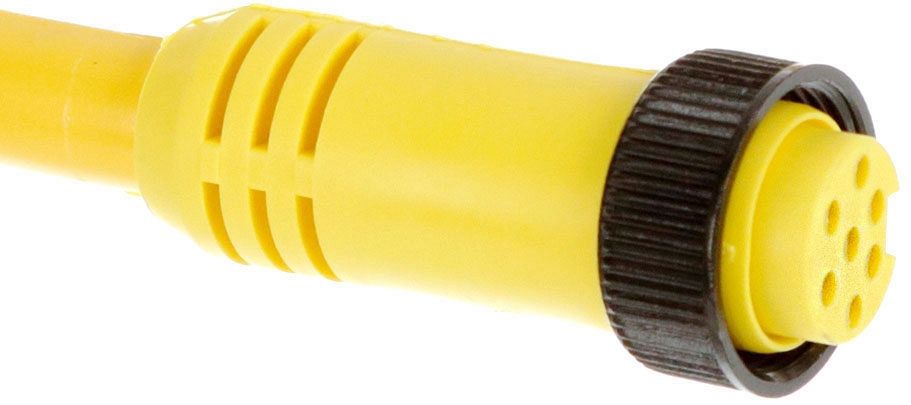

| Full Size Image | |
| Full Technical Description: | Female Type; Die-Cast Black Epoxy Coated Zinc Coupling Nut, Brass With Gold Over Nickel Plating Contact, PVC Connector Body, PVC Connector Face Material; Yellow Color; 12 ft; 16 AWG Stoow, PVC Jacket Cable Type; UL, CSA Approval; Hydraulic Valve, Limit Switch, Photoelectric Sensor, Proximity Sensor Application; 600 VAC/VDC Voltage Rating; Straight, Single End Connector Type; IP67 Enclosure; 8 Ampere Current Rating; 7 Pole(S); Single Keyway Type; 1-White-Black Trace 2-Black 3-White 4-Red 5-Orange 6-Blue 7-Green/Yellow (Ground) Wire Code; BRAD[R], MINI-CHANGE[R] Brand; Temperature Rating -20 to 105 Deg C; 130007 Model |
| Manufacturer: | WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD |
| Manufacturer Brand: | Brad Harrison/Daniel Woodhead |
| Product Description: | Woodhead 207000A01F120 1300070076 7P 7A Female Cordset |
| Sub-Category: | Quick Connect Cable Assembly |
| UNSPSC: | 39121413 |
| UPC 12 Digit: | 786788342623 |
| Unique Product Key: | 5843413 |
| comm code enhanced: | 02400 |
