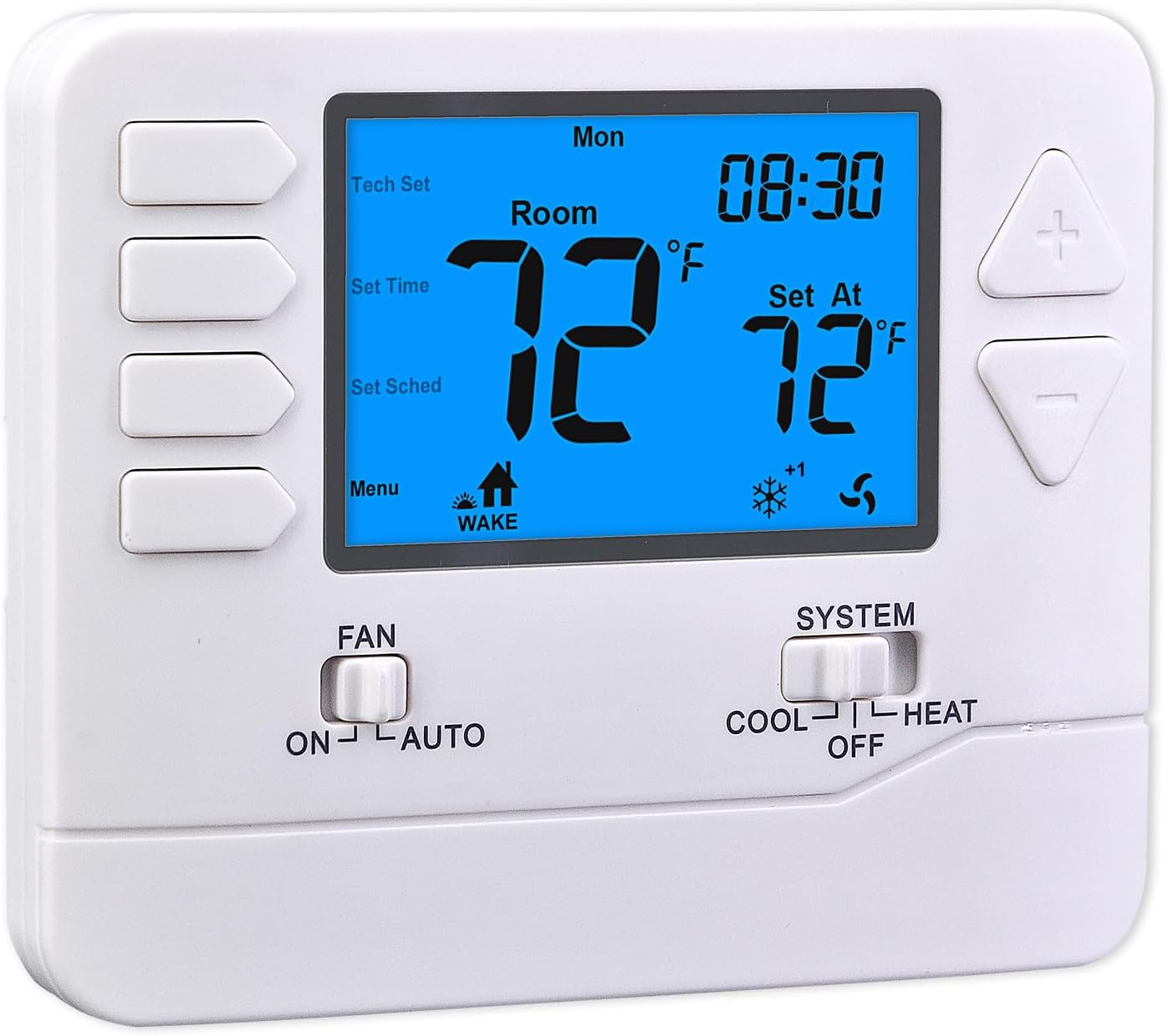

5-1-1 Day Programmable Thermostats for Home 2 Heat/ 2 Cool Conventional Multistage Systems

Product details

Product Details

  • Cautious Purchase: Before purchasing, buyers need to check the detailed installation and wiring instructions in the pictures, and purchase cautiously without installation experience to avoid non-work and incompatibility caused by wrong purchase.
  • Compatible Systems: Single-Stage Heating & Cooling, Multistage Heating & Cooling, Boiler Radiant Heating Only, Furnace Forced-Air Heating Only, Cooling Only, Gas Fireplace (24 Volts), 750 Millivolt, Hot Water Steam or Gravity Radiant Heat.
  • Incompatible Systems: Does not work Heat Pump with Auxiliary Heating, Heat Pump with Emergency Heating, Dual Fuel/Hybrid Heating, Mini Split Systems, Electric Baseboard Heat ( 120-240 Volts), Convectors, Radiant Ceiling Heat, 12v RV Thermostat.
  • Suuwer S715 5-1-1 day programmable thermostat 2 Heat/ 2 Cool. Separate programs for the weekdays and weekends with 4 program periods per day including wake, leave, return and sleep.
  • Technical support: Separate heat or cool swing set up (0.2°F to 2°F) and 5 minute compressor delay protection (Selectable ON or OFF). Digital thermostat has a built-in battery change and filter change reminders (Set 50-2000 hours)
  • Room temperature calibration adjustment: Accurate temperature control of +/-1-degree F for consistent comfort, (Room temperature display range: 41°F to 95°F, Temperature control range: 44°F to 90°F)
  • Easy-to see and read: Display with blue backlight, large clear backlit digital display, very suitable for middle-aged and elderly people.
  • Dual powered by 24VAC Power or 2 AAA Batteries. No common wire (c-wire) required on most single-stage systems (only required on heat only and cool only systems).
  • After-sales Service: If you have any problem, please feel free to contact us, we will repley you in 24 hours. 2-year Worry-Free Warranty.

Product description

Specifications:

  • Multi Stage 2 Heat/ 2 Cool
  • 5-1-1 Day Programmable
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • Electric or Gas configurable
  • Separate B & O terminals
  • Separate heating and cooling swing (cycle rate)
  • Air filter change indicator (selectable on or off)
  • Low battery indicator
  • Room temperature calibration adjustment
  • 5 minute compressor delay protection (selectable on or off)
  • AAA Battery or 24VAC power
  • Easy access battery compartment
  • Easy wire coded terminal blocks
  • 4.5 sq. inch large LCD display with blue backlight
  • Temperature display range: 41°F to 95°F
  • Temperature control range: 44°F to 90°F
  • Display options: Fahrenheit or Celsius temperature display, 12 or 24 hour clock
  • Terminal Designations: RH, RC, G, Y, Y2, C, O, B, W, W2
  • Universal sub-base, Mounts on wall or junction box
  • Load rating: 1 Amp per terminal, 1.5 amp maximum all terminals combined

Package include:

  • 1 x S715 Programmable Thermostat
  • 2 x screws and anchors
  • 1 x Operation Manual
  • 1 x Installation Manual
  • 1 x Cable Label

Item model number S715
Style 2 Heat/2 Cool Programmable Thermostat
Power Source Battery Powered
Control Method Touch
Temperature Control Type 2 Heating and 2 Cooling
Controller Type Push Button
Control Type Button Control
Product Dimensions 0.98"D x 4.72"W x 3.86"H
Material Plastic
Model Name S715 Programmable Thermostat
Screen Size 4.5 Inches
Specific Uses For Product Compatible with most 24V conventional single or 2 stage systems (i.e. conventional force air, central gas, oil, or electric furnaces ), up to 2 heat 2 cool.
Included Components S715 Thermostat, Installation Manual, Mounting screws
Item Weight 7 ounces
Special Feature function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-4:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-4'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) }); })); Temperature, Programmable, Separate Heating and Cooling Swing, Low Battery Indicator, 5 Minute Compressor Delay Protection See more
Display Type Digital
Mounting Type Wall Mount
Color Off-white ( Blue Backlight )
Shape Rectangular
Voltage 24 Volts (AC)
Backlight Yes


4.72 "h x 0.98 "h x 3.86 "h. Weight: 7.0 oz
