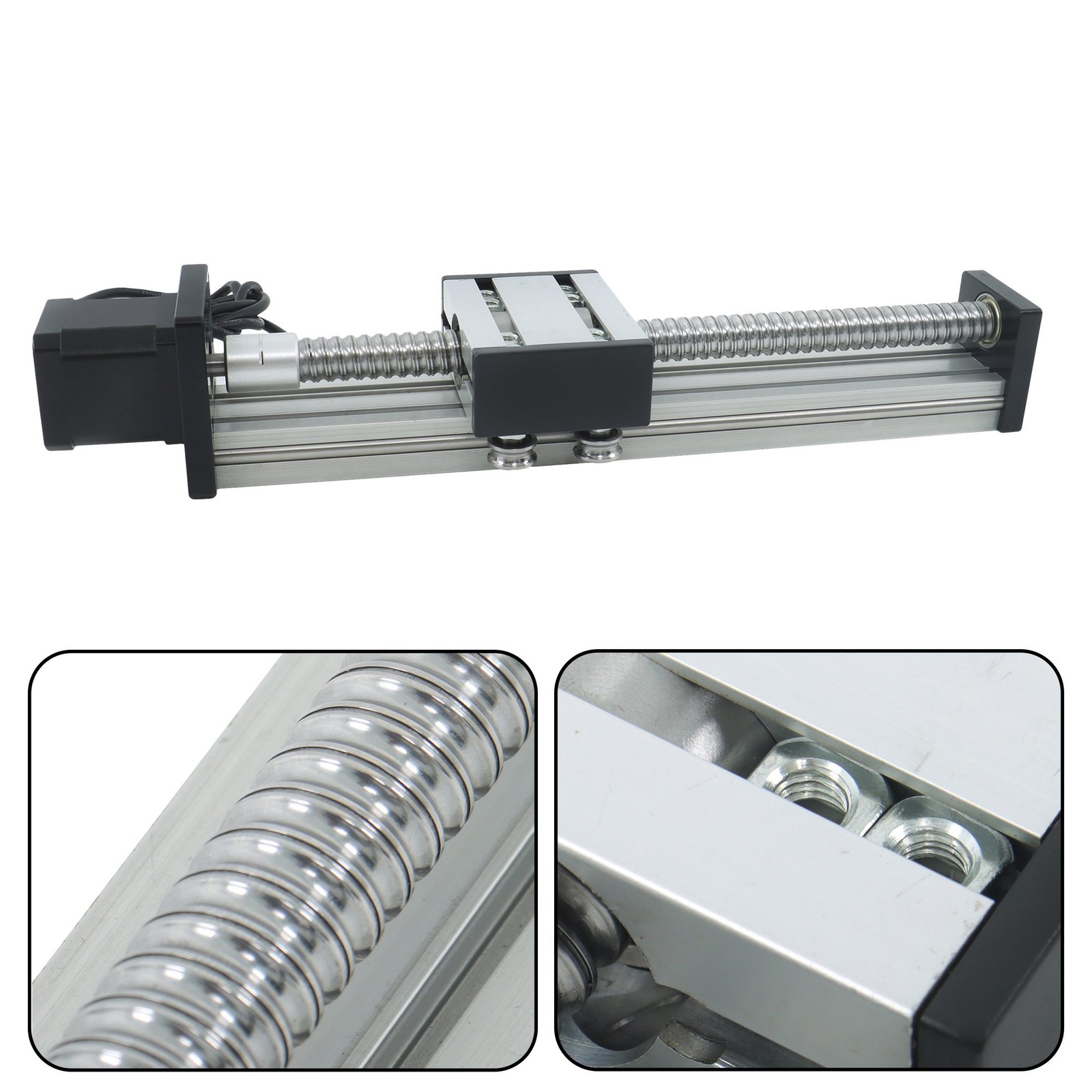

• 200mm Linear Rail Guide Ballscrew SFU1605 With NEMA 17 Stepper Motor
  • Specification：
  • Stepper motor Parameter: Effective Travel Length: 200mm Total length: 311mm Ballscrew Type: SFU1605;  Diameter: 16mm, Pitch of Screw: 5mm Lead: 5mm (the lead screw can move 5mm in one turn) Level Ballscrew: C7 Step angle: 1.8 degree Holding torque: 1.2N.m Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B-
  •
  • Feature：

    • Linear Rail Guide 200mm Ballscrew SFU1605 with NEMA 17 Stepper Motor

    200mm Linear Rail Guide Ballscrew SFU1605 With NEMA 17 Stepper Motor

    Specification：

    Stepper motor Parameter:
    Effective Travel Length: 200mm
    Total length: 311mm
    Ballscrew Type: SFU1605;  Diameter: 16mm, Pitch of Screw: 5mm
    Lead: 5mm (the lead screw can move 5mm in one turn)
    Level Ballscrew: C7
    Step angle: 1.8 degree
    Holding torque: 1.2N.m
    Resistance: 0.8 ohm
    Inductance: 2.4 mH
    Rotor Inertia: 87.3g.cm
    Lead wire: 4pcs
    Wiring:
    Black: A+
    Green: A-
    Red: B+
    Blue: B-



    Feature：

    The Linear Guide Material: made of high quality metal, high hardness and excellent performance.
    Effective Travel: 200mm Effective Travel, Total length: 311mm, Ballscrew Type: SFU1605 ( diameter: 16mm, pitch of screw: 5mm ) Lead: 5mm (the lead screw can move 5mm in one turn).
    High Precision: Linear Guide Repeat positioning accuracy of ±0.05mm, linear slide rail with high precision smooth movement.
    Widely used for CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.



    Package Including：

    1*200mm Linear Rail Guide Ballscrew SFU1605 w/NEMA 17 Stepper Motor



    Notes:

    If You Are Uncertain About The Item,Please Feel Free To Contact Us For Confirm.
    Sorry For Any Inconvenience Caused,Full Refund Guarantee If Does Not Fit.






    Item Specifics
    Country of Origin United States
    Brand ALL-CARB
    MPN Does Not Apply
    Warranty 1 Year
    Step angle 1.8 degree
    Motor length 47mm
    Voltage 12V
    Resistance 0.8 ohm
    Rotor Inertia 87.3g.cm
    Effective Travel Length 200mm
    Type linear system moulde
    Ballscrew type SFU1605 (diameter:16mm, pitch of screw:5mm)
    Total length 360mm
    Lead wire 4pcs
    Inductance 2.4 mH
    Current 1.5A
    Holding torque 1.2N.m
    Motor flange size 42mm
    Horsepower 0.8 Horsepower
    Level ballscrew c7
