Product Type: Starter; Condition: New; OE Manufacturer: Denso; Voltage: 12V; kW: 1.4; Rotation: CW; Tooth Count: 13; Mounting Hardware Included: No; Unit Finish: Same as OE; Number of Pieces: 1; Country of Origin: CN

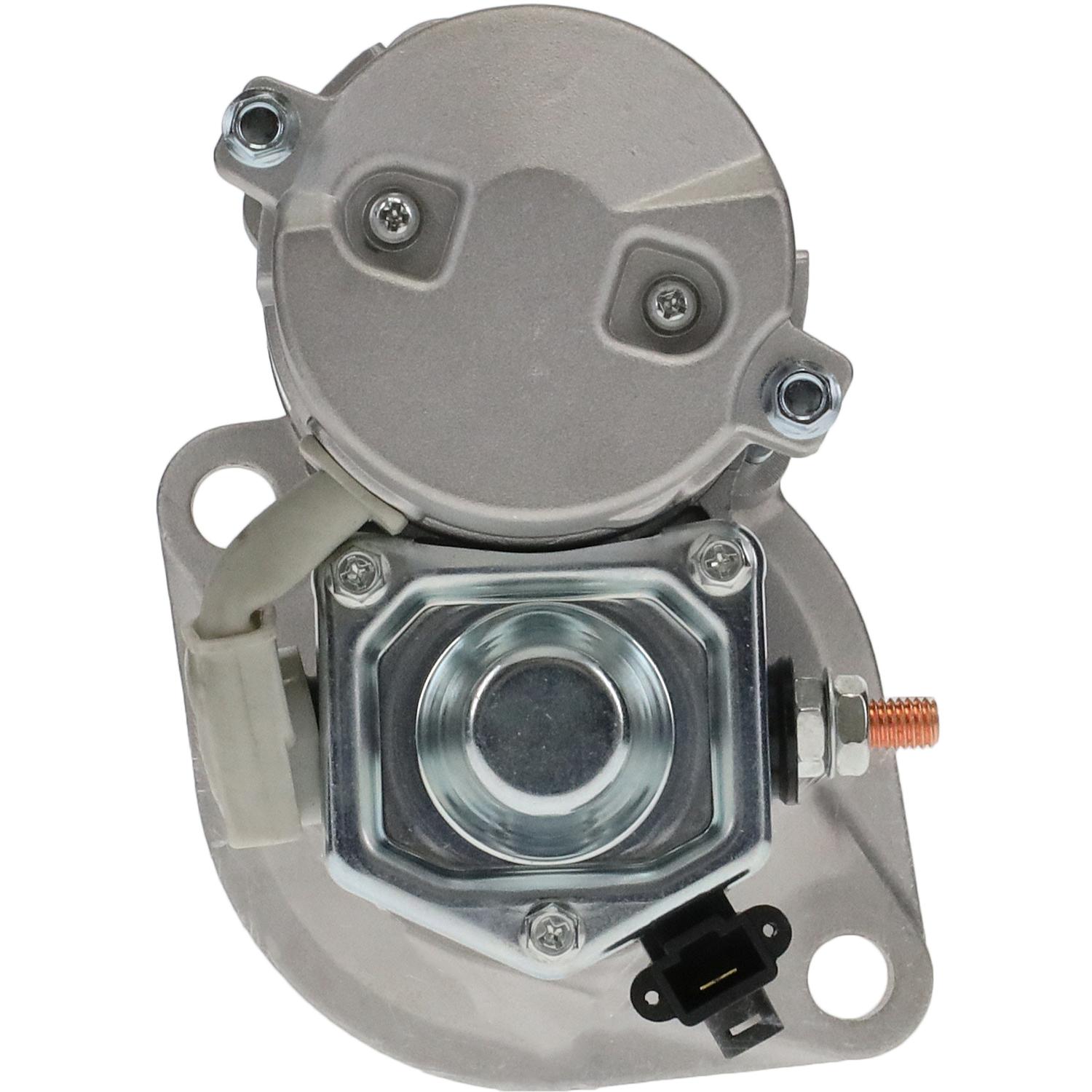

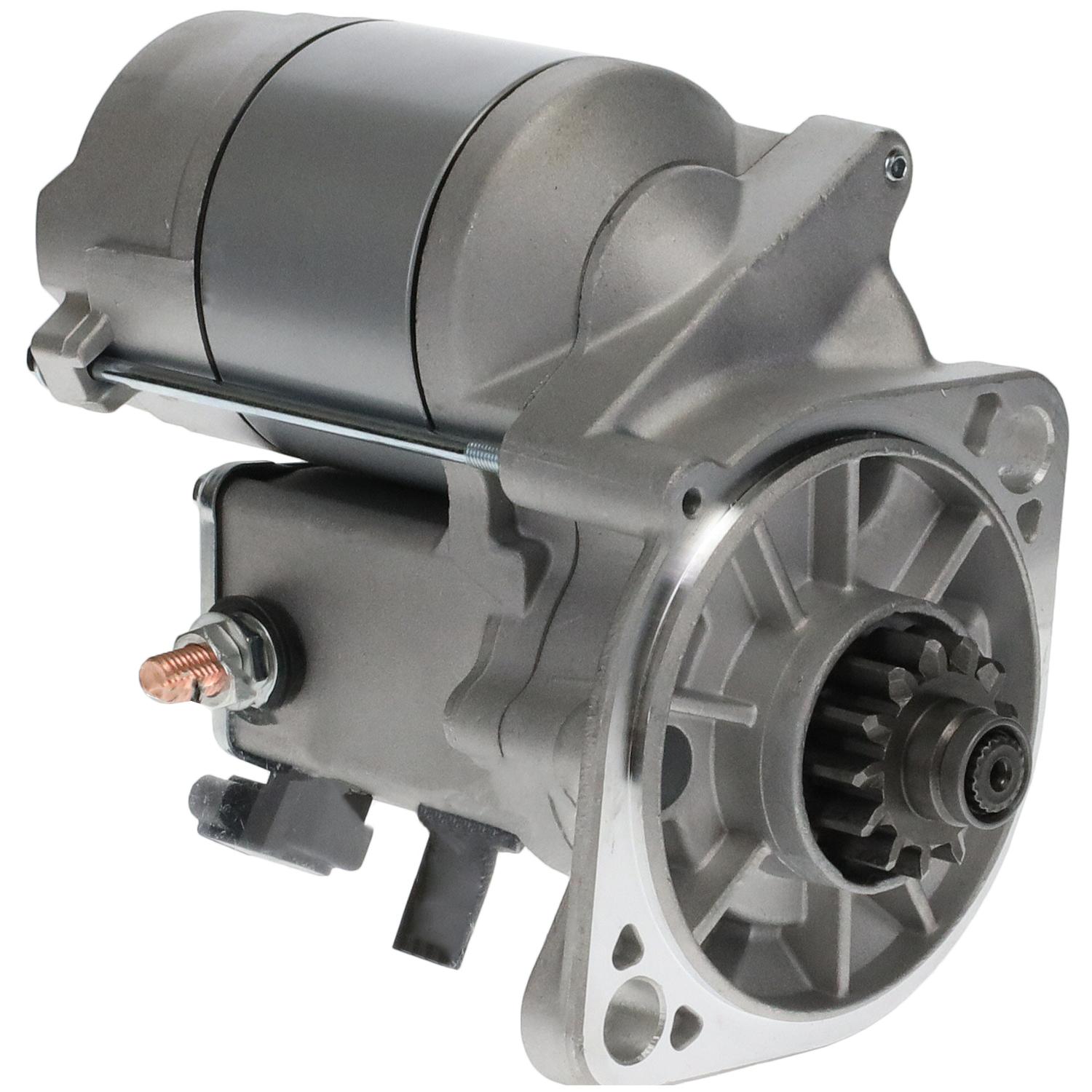

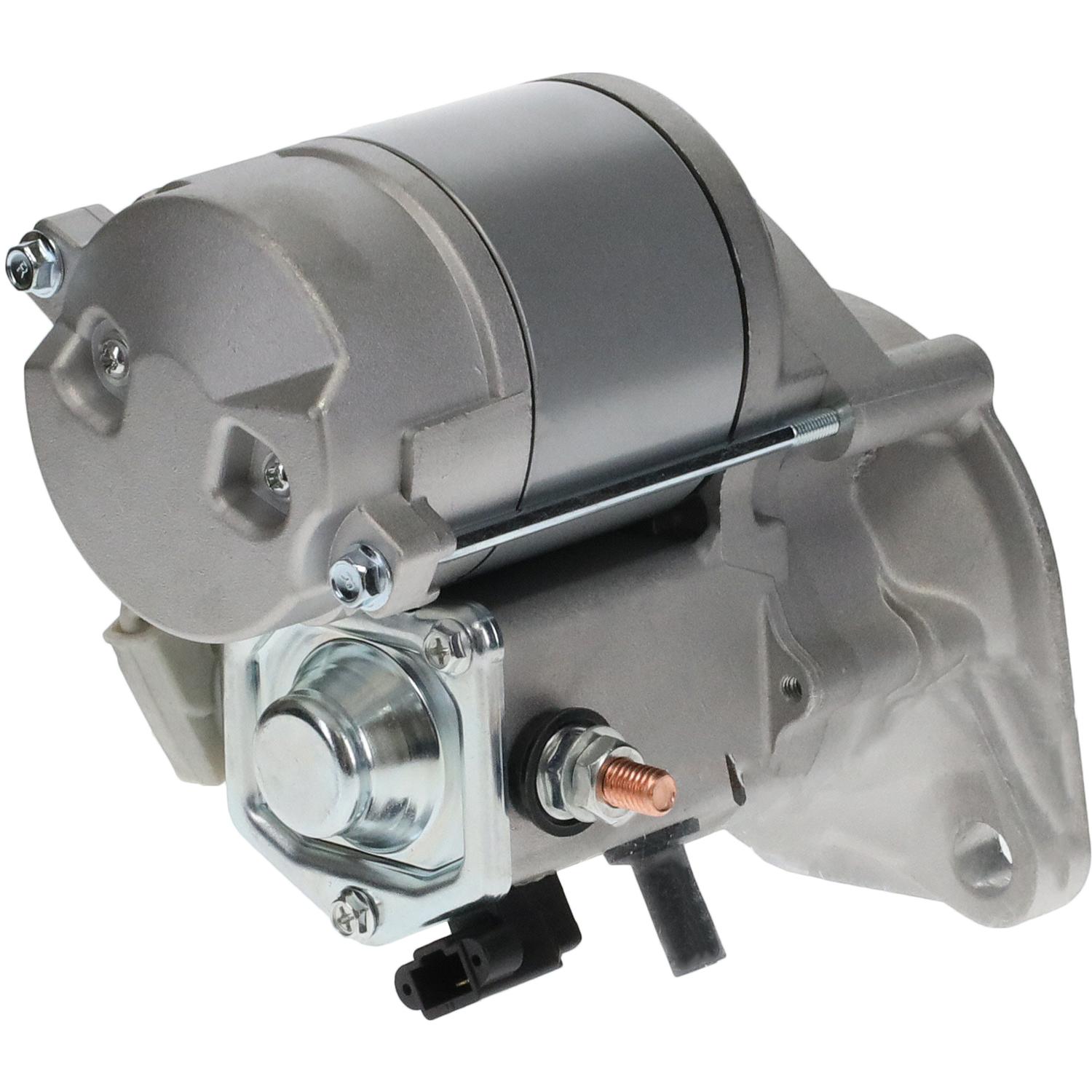

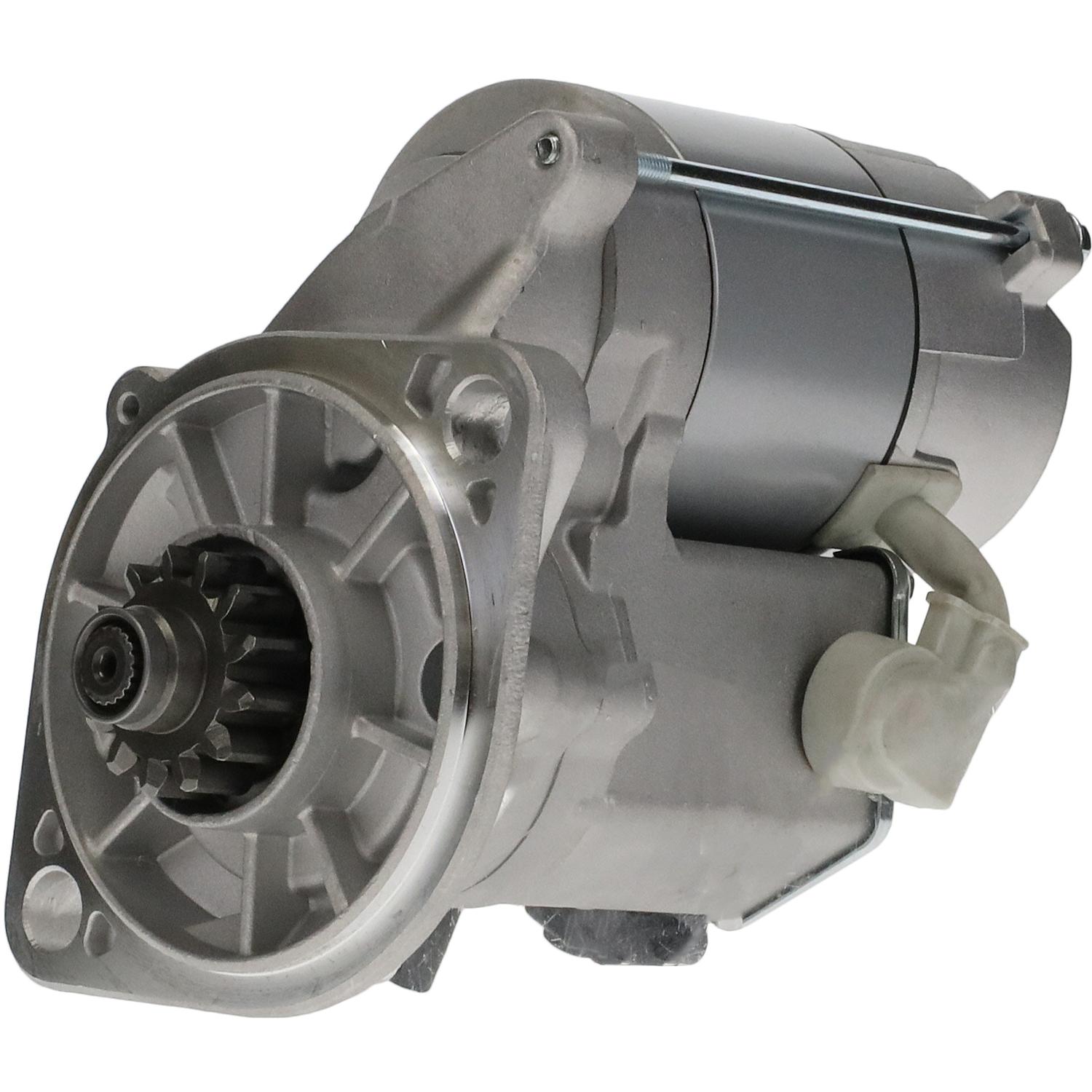

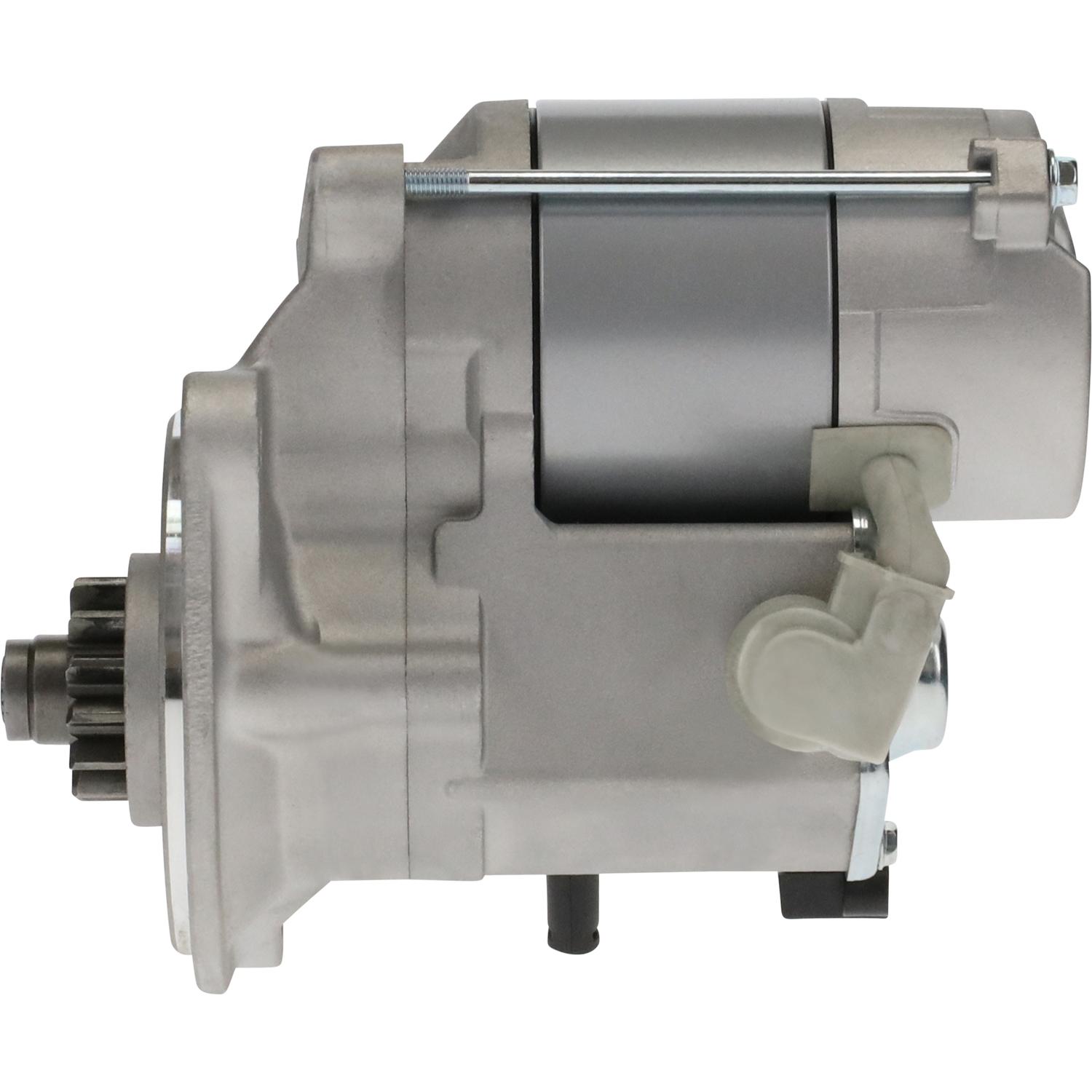

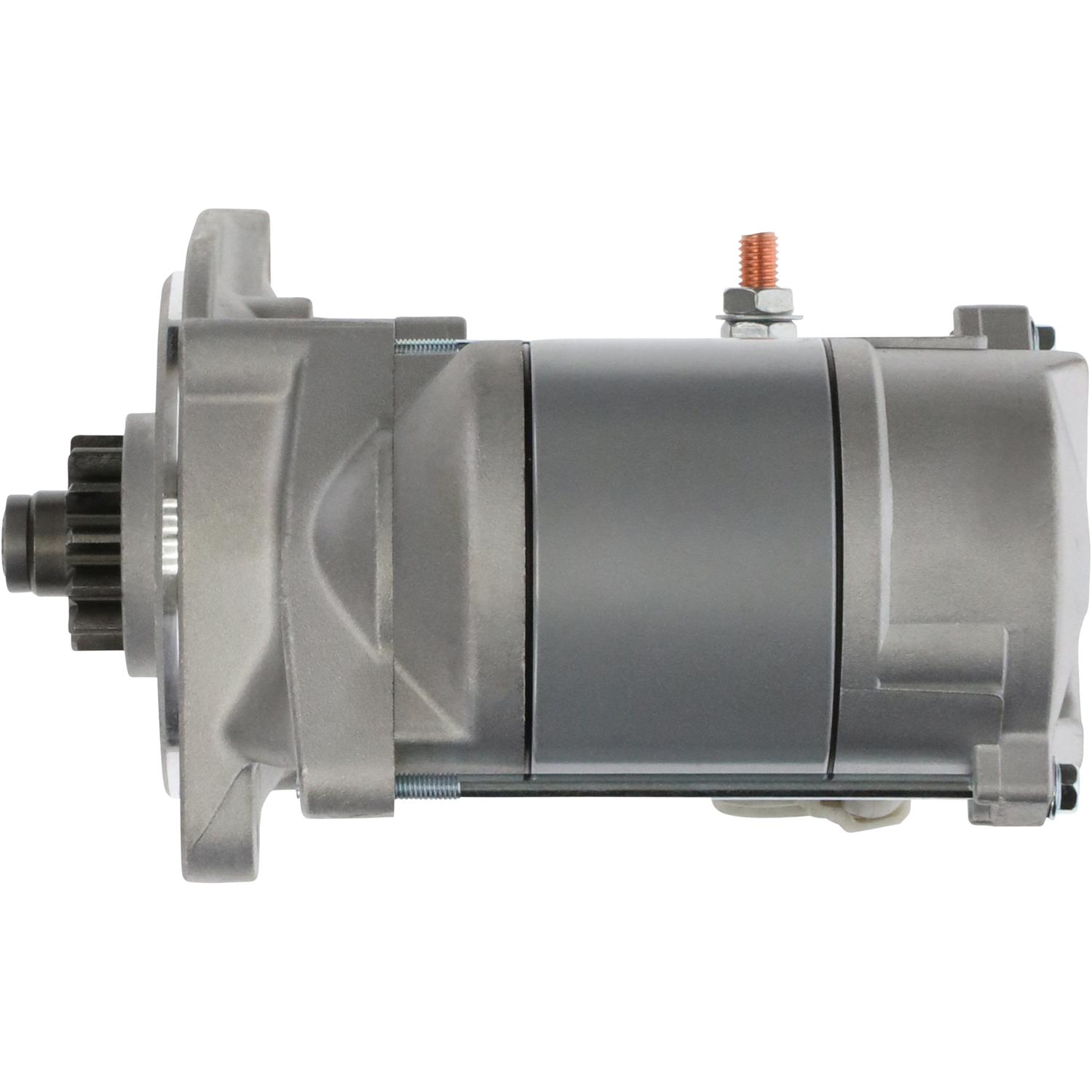

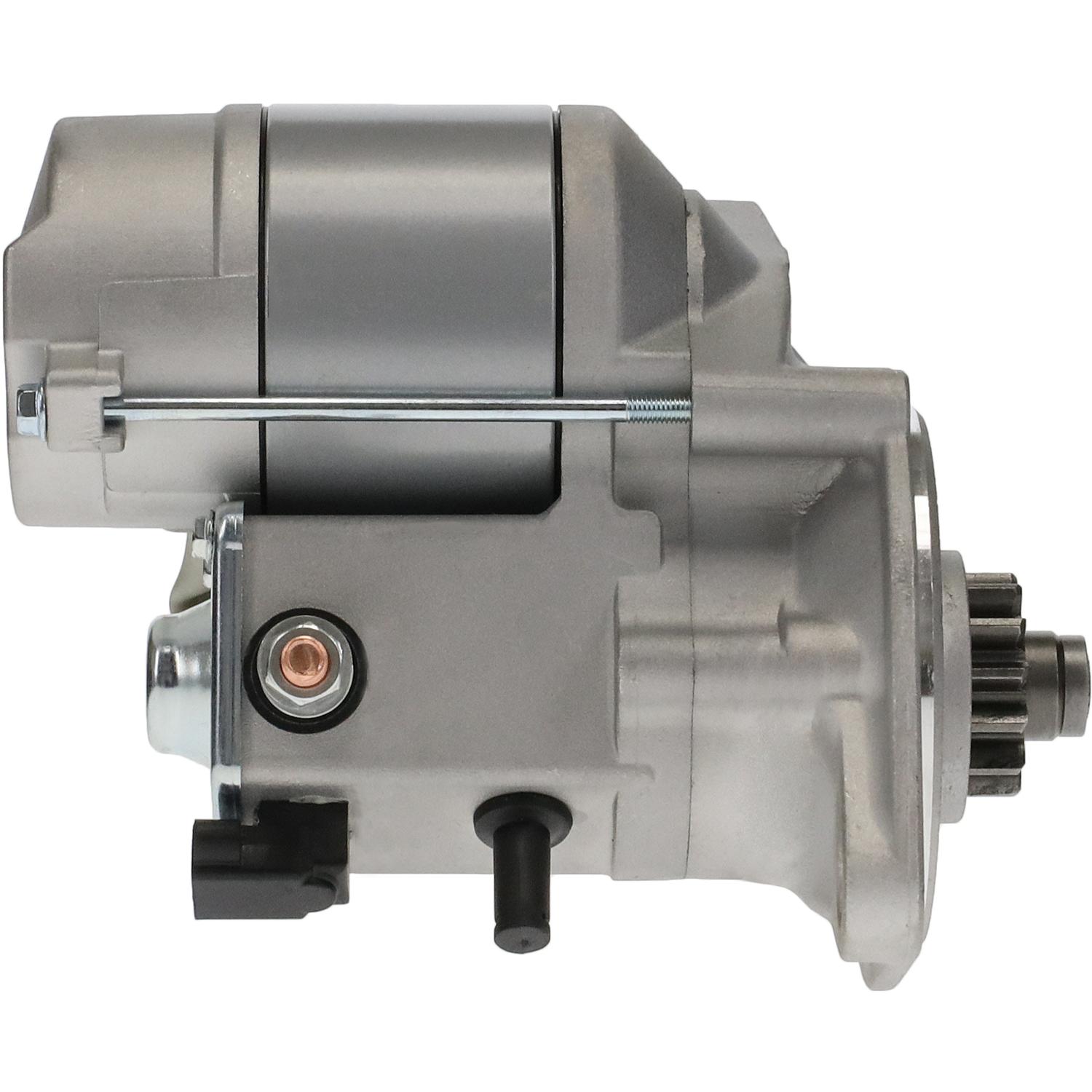

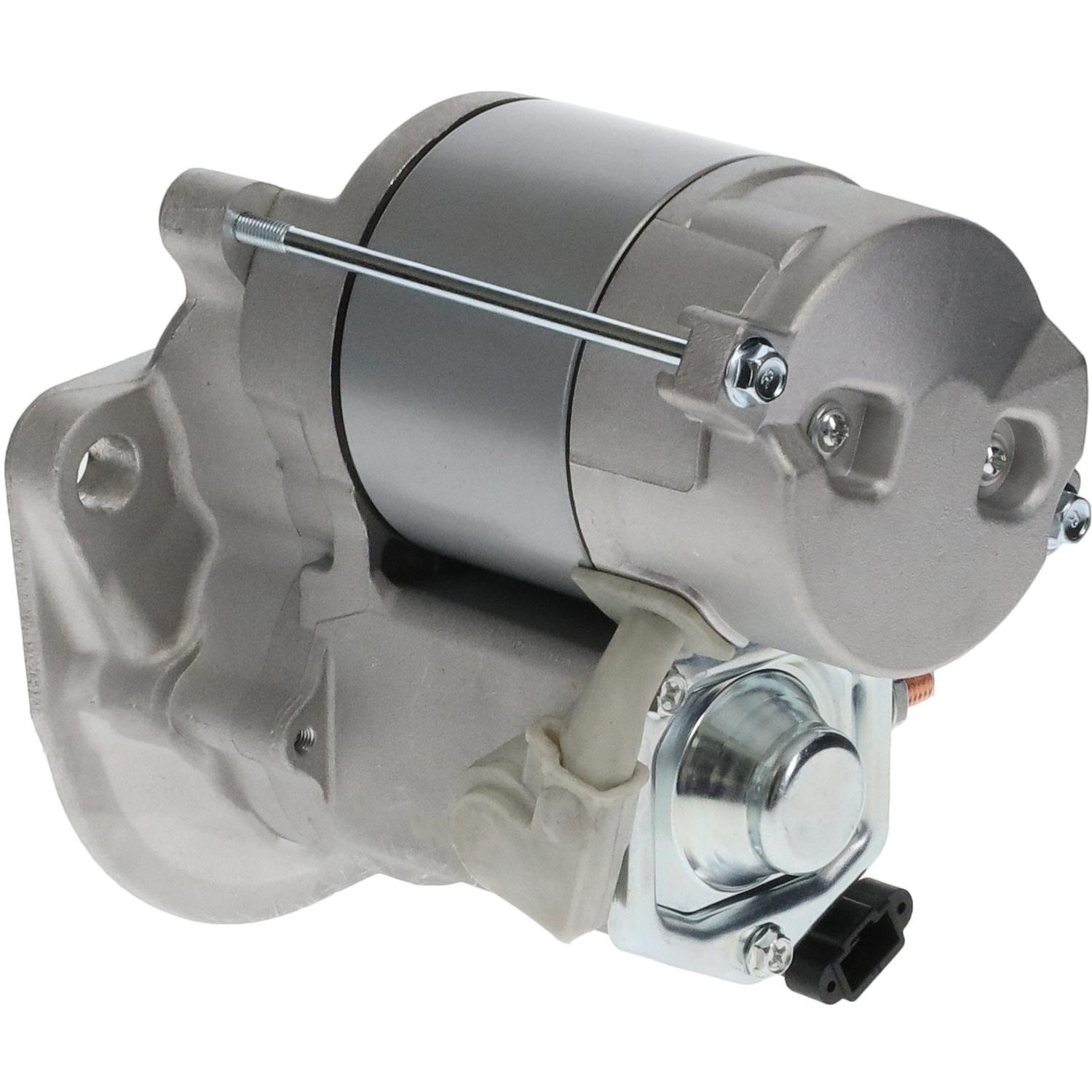

New Starter Replacement for Yanmar 4TNE88 multiple years YM129129-77010 45-2176

Click Thumbnails to Enlarge

Specifications
OE Manufacturer: DENSO
Product Type: Starter
Weight: 8.6000
Condition: NEW
Unit Source:
Design / Type:
Design / Type: OSGR
Design / Type:
Starter Series:
Location - General:
Location - Specific:
Design Type:
Voltage: 12
Amperage:
kW: 1.4
Rotation: CW
Regulator/Fan:
Tooth Count: 13
Spline Count:
Polarity:
Shaft Type:
Duty Cycle:
Horsepower:
RPM:
V-Set:
Circuit Type:
Plug Code:
Plug Orientation:
Pulley Class:
Case OD (mm):
Overall Length (mm):
Gear OD (mm):
Pulley Belt Width (mm):
Pulley OD (mm):
Shaft Overall Length (mm):
Shaft OD (mm):
Clutch Type:
Operating Mode:
Pads Included:
Connection Type:
Piston Material:
Piston Outside Diameter (in):
Bleeder Port Measurment:
Inlet Port Measurement:
Ignition Type:
Housing Material:
Torque (ft. lbs):
Pulley OD (in):
Crankshaft OD (in):
Terminal Type:
Sensor Included:
Idle ACM Included:
Cage Wheel Included:
Wiring Harness Included:
Number of Pistons:
Caliper Pistion OD (mm):
Motor Overall Length (in):
Motor OD (in):
Wheel OD (in):
Bearing Inside Diameter (mm):
Bearing Outside Diameter (mm):
Bearing Width (mm):
Rotor Inside Diameter (mm):
Rotor Outside Diameter (mm):
Rotor Overall Length (mm):
Rotor Shaft Outside Diameter (mm):
Rotor Shaft Overall Length (mm):
Mounting Hardware Included: No
Installation Hardware Included:
Mounting Type:
Mounting Type:
Mounting Type:
Cap Design:
Plunger Type:
Includes:
Includes:
Number of Mounting Holes:
Number of Terminals:
Number of Wires:
ETB Inside Diameter (in):
Unit Finish: Same as OE
Unit Color:
Number of Pieces: 1
Country of Origin: CN
Country of Use:
Notes:
Other Part #: DSN2069 AM878415 AM876435 9722809-373
INTERCHANGE PART NUMBERS
John Deere: RG60657, RG60654, TY25237, TY25223, AM876435, AM878415, SE501878, TY25233
Yanmar: 129407-77010, 129129-77010
Denso: 228000-3731, 228000-3730, 228000-3732, 228000-0250, 228000-0251
Lester: 18014, 19187
Arrowhead: SND0394
Arrowhead Old: SND0477
BBB HD: 18014
Carquest HD: 18014S
J & N Automotive: 410-52124, 410-52391
Denso Remanufactured: 9722809-373, 9722809-025
MES - Marine Electric Suppliers: 18014N
Remy Small Motor: RS41292
Tisco: SND0394
Wilson Heavy Duty: 71-29-18014, 91-29-5360
Dixie Electric: S-8872, S-80480
AD Kuhner: 254411, 20731
Cargo: 110485, F032110485
Denso Europe: DSN2069
Lucas Electrical Europe: LRS01125
WAI Old: 18014R, 228000-3732, 19187, 228000-0251
Wood Auto Supplies: STR30034, STR70004, STR70017
Zorko: 18014N, 18014, 19187
Andre Niermann: 013731, 010250
Road Warrior: 228000-3732, 18014R, 18014N, 228000-0251
APPLICATIONS / FITMENT

MakeModelYearEngineRemarks
John Deere12032004-2009AllJohn Deere
John Deere120300-00AllDenso OSGR, 12V/ 13T
John Deere15052003-2017L4 2.2L 134cidYanmar 4TNV88
John Deere150500-00AllYanmar 41.5HP Diesel Denso OSGR, 12V/ 13T
John Deere15152004-2017L4 2.2L 134cidYanmar 4TNV88
John Deere151500-00AllYanmar 41.5HP Diesel Denso OSGR, 12V/ 13T
John Deere15652005-20093 Cyl. 1.64L 1642cc 100cidYanmar 36HP Diesel Denso System
John Deere1565 Series II2005-2009L3 1.6L 100cidYanmar 3TNV88
John Deere15702015-2016L3 1.3L 81cidYanmar 3TNV82A
John Deere15702015-2016L3 1.6L 100cidYanmar 3TNV88C
John Deere15752015-2024L3 1.3L 81cidYanmar 3TNV82A
John Deere15752015-2024L3 1.6L 100cidYanmar 3TNV88C
John Deere15802015-2021L3 1.6L 100cidYanmar 3TNV88
John Deere15802015-2021L3 1.6L 100cidYanmar 3TNV88C
John Deere15852015-2024L3 1.6L 100cidYanmar 3TNV88
John Deere15852015-2024L3 1.6L 100cidYanmar 3TNV88C
John Deere16001999-2002L4 2.0L 122cidYanmar 4TNE84T
John Deere16002000-2002L4 2.2L 134cidYanmar 4TNE88
John Deere160000-00AllYanmar 51HP Dsl Denso OSGR, 12V/ 13T
John Deere1600 TURBO WIDE AREA2004-20043 Cyl. 1.5L 1496cc 91cidYanmar 64HP Dsl Denso OSGR, 12V/ 13T
John Deere1600 TURBO WIDE AREA1999-20033 Cyl. 1.5L 1496cc 91cidDenso OSGR, 12V/ 13T
John Deere1600 Turbo III2002-2006L4 2.0L 122cidYanmar 4TNE84T
John Deere16201999-20033 Cyl. 1.5L 1496cc 91cidDenso OSGR, 12V/ 13T
John Deere16201999-2003L4 2.0L 122cidYanmar 4TNE84T
John Deere19052004-2017L4 2.2L 134cidYanmar 4TNV88
John Deere190500-00AllYanmar 47HP Diesel Denso OSGR, 12V/ 13T
John Deere2032R2014-2024L4 2.2L 134cidYanmar 4TNV88
John Deere2038R2014-2024L3 1.5L 91cidYanmar 3TNV84T
John Deere25202005-2011L3 1.3L 81cidYanmar 3TNV82A
John Deere2520 Utility Tractor2006-2012AllYanmar 26.4HP Dsl Denso OSGR, 12V/ 13T
John Deere27202008-2012L3 1.6L 100cidYanmar 3TNV88
John Deere27202008-2012AllYanmar 31.4HP Dsl Denso OSGR, 12V/ 13T
John Deere30052008-2012L3 1.3L 81cidYanmar 3TNV82A
John Deere300500-00AllYanmar 27.5HP Dsl Denso System
John Deere301400-00AllDenso System
John Deere301500-00AllDenso System
John Deere3025D2019-2025L3 1.6L 100cidYanmar 3TNV88F
John Deere3025E2017-2025L3 1.6L 100cidYanmar 3TNV88F
John Deere3032E2008-2020L3 1.6L 100cidYanmar 3TNV88
John Deere3032E2008-2012AllYanmar 31.4HP Dsl Denso OSGR, 12V/ 13T
John Deere3033R2014-2024L3 1.6L 100cidYanmar 3TNV88
John Deere3035D2019-2024L3 1.6L 100cidYanmar 3TNV88C
John Deere3036E2009-2017L4 2.0L 122cidYanmar 4TNE84T
John Deere3038E2008-2012L3 1.5L 91cidYanmar 3TNV84T
John Deere3038E2013-2023L3 1.6L 96cidYanmar 3TNV86
John Deere3038E2008-2012AllYanmar 37.1HP Dsl Denso OSGR, 12V/ 13T
John Deere3038R2014-2024L4 2.0L 122cidYanmar 4TNE84T
John Deere3039R2014-2024L3 1.6L 100cidYanmar 3TNV88C
John Deere3043D2019-2024L3 1.6L 96cidYanmar 3TNV86CT
John Deere3045R2014-2024L3 1.5L 91cidYanmar 3TNV84HT
John Deere3046R2014-2024L3 1.6L 96cidYanmar 3TNV86CHT
John Deere31202005-2008L3 1.5L 91cidYanmar 3TNV84
John Deere31202005-2008AllYanmar 29.5HP Dsl Denso OSGR, 12V/ 13T
John Deere3225B2001-2005L3 1.5L 91cidYanmar 3TNE84
John Deere3225B00-00AllJD Series 220 32HP Dsl Denso System
John Deere3225C2004-20093 Cyl. 1.5L 1496cc 91cidJD Series 220 38.5HP Dsl Denso System
John Deere3225C2004-2009L3 1.5L 91cidYanmar 3TNV84
John Deere32351995-2000L3 1.5L 91cidYanmar 3TNE84
John Deere3235 Farm Tractor1995-2000AllYanmar Engines Denso System
John Deere3235B1994-20003 Cyl. 1.2L 1204cc 73cidJD Series 220 39HP Dsl Denso System
John Deere3235B1994-2000L3 1.5L 91cidYanmar 3TNE84
John Deere3235C2004-20093 Cyl. 1.5L 1496cc 91cidJD Series 220 48HP Dsl Denso System
John Deere3235C2004-2009L3 1.5L 1496cc 91cidYanmar 3TNV84
John Deere3245C (ROTARY DECK)2004-20063 Cyl. 1.5L 1496cc 91cidJD Series 220 48HP Dsl Denso System
John Deere3245C (ROTARY DECK)2004-2006L3 1.5L 1496cc 91cidYanmar 3TNV84
John Deere33202005-20093 Cyl. 1.64L 1642cc 100cidDenso OSGR, 12V/ 13T
John Deere33202005-2013L3 1.6L 100cidYanmar 3TNV88
John Deere35202005-20053 Cyl. 1.50L 1496cc 91cidDenso OSGR, 12V/ 13T
John Deere35202005-2013L3 1.5L 1496cc 91cid3TNV84T
John Deere35202013-2013L3 1.5L 1496cc 91cidYanmar 3TNV84T
John Deere37202005-20053 Cyl. 1.50L 1496cc 91cidDenso OSGR, 12V/ 13T
John Deere37202005-2013L4 1.5L 1496cc 91cidYanmar 3TNV84HT
John Deere401900-00L4 2.0L 122cidJohn Deere 4019
John Deere401900-00AllDenso System
John Deere402000-00AllDenso OSGR, 12V/ 13T
John Deere41052008-2014L3 1.5L 1496cc 91cidYanmar 3TNV84T
John Deere410500-00AllYanmar 40.5HP Dsl Denso OSGR, 12V/ 13T
John Deere41152002-20023 Cyl. 1.01L 1006cc 61cidYanmar 24HP Dsl Denso System
John Deere41152003-20033 Cyl. 1.20L 1204cc 73cidDenso System
John Deere41152002-2003L3 1.2L 74cidYanmar 3TNE78
John Deere4115 Utility Tractor2002-2012AllYanmar 24 HP Denso OSGR, 12V/ 13T
John Deere42001999-20003 Cyl. 1.20L 1204cc 73cidYanmar 26HP Dsl Denso System
John Deere42001998-2001L3 1.2L 74cidYanmar 3TNE78
John Deere42102002-2004L3 1.3L 1329cc 81cidYanmar 3TNE82
John Deere42102002-2005AllYanmar 28HP Dsl Denso System
John Deere43001999-20093 Cyl. 1.50L 1496cc 91cidDenso OSGR, 12V/ 13T
John Deere43001998-2001L3 1.5L 91cidYanmar 3TNE84
John Deere43102002-20123 Cyl. 1.50L 1496cc 91cidDenso OSGR, 12V/ 13T
John Deere44001998-20003 Cyl. 1.64L 1642cc 100cidDenso OSGR, 12V/ 13T
John Deere44001998-2001L3 1.6L 1639cc 100cidYanmar 3TNE88
John Deere44002001-2006AllYanmar 3TNE88 Diesel Denso OSGR, 12V/ 13T
John Deere4400 Utility Tractor1999-2010AllYanmar 35HP Dsl Denso OSGR, 12V/ 13T
John Deere44102002-20043 Cyl. 1.64L 1642cc 100cidDenso OSGR, 12V/ 13T
John Deere44102002-2004L3 1.6L 1639cc 100cidYanmar 3TNE88
John Deere44102000-2006AllYanmar 3TNE88 Diesel Denso OSGR, 12V/ 13T
John Deere72002009-2011L3 1.3L 81cidYanmar 3TNV82A
John Deere720000-00AllYanmar 26.4HP Dsl Denso System
John Deere74002009-2011L3 1.5L 1496cc 91cidYanmar 3TNV84T
John Deere740000-00AllYanmar 37.1HP Dsl Denso System
John Deere7400A2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere7400A2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere7500 E-Cut Hybrid2009-2014L3 1.5L 1496cc 91cidYanmar 3TNV84T
John Deere7500 E-Cut Hybrid00-00AllYanmar 37.1HP Dsl Denso System
John Deere7500 PrecisionCut2008-2011L3 1.5L 1496cc 91cidYanmar 3TNV84T
John Deere7500 PrecisionCut00-00AllYanmar 37.1HP Dsl Denso System
John Deere7500A E-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere7500A E-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere7500A Precision-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere7500A Precision-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere7700 PrecisionCut00-00AllYanmar 37.1HP Dsl Denso System
John Deere7700A E-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere7700A E-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere7700A Precision-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere7700A Precision-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere7901999-20043 Cyl. 1.50L 1496cc 91cidDenso System
John Deere7902003-2007L3 1.3L 81cidYanmar 3TNE82
John Deere7902000-2002L3 1.5L 91cidYanmar 3TNE84
John Deere8000 E-Cut Hybrid2009-2014L3 1.5L 1496cc 91cidYanmar 3TNV84T
John Deere8000 E-Cut Hybrid00-00AllYanmar 37.1HP Dsl Denso System
John Deere8000A E-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere8000A E-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere8000A Precision-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere8000A Precision-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere8500 E-Cut Hybrid2009-2013L3 1.5L 1496cc 91cidYanmar 3TNV84T
John Deere8500 E-Cut Hybrid00-00AllYanmar 43.1HP Dsl Denso System
John Deere8500 PrecisionCut2009-2013L3 1.5L 1496cc 91cidYanmar 3TNV84
John Deere8500 PrecisionCut00-00AllYanmar 43.1HP Dsl Denso System
John Deere8700 PrecisionCut2009-2013L3 1.5L 1496cc 91cidYanmar 3TNV84
John Deere8700 PrecisionCut00-00AllYanmar 43.1HP Dsl Denso System
John Deere8700A E-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere8700A E-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere8700A Precision-Cut2014-2025L3 1.5L 91cidYanmar 3TNV84T
John Deere8700A Precision-Cut2014-2025L3 1.6L 96cidYanmar 3TNV86CT
John Deere88002008-2011L3 1.5L 1496cc 91cidYanmar 3TNV84
John Deere880000-00AllYanmar 42HP Dsl Denso System
John Deere9972005-2014L3 1.3L 81cidYanmar 3TNV82A
John Deere99700-00AllYanmar 30HP Dsl Denso OSGR, 12V/ 13T
Yanmar3TN8400-00All(91-On) Denso System
Yanmar4TNE8800-00All(89-On) 4cyl, 2.190L Diesel Denso OSGR, 12V/ 13T

  • We accept PayPal and PayPal-supported credit cards: MasterCard, Visa, American Express or Discover Card. Immediate payment is required during checkout. We will process and ship orders once payment has cleared.
  • We ship orders worldwide from one of our multiple warehouses and offer free ground shipping on all orders to the continental United States. See our shipping rates chart for estimated shipping cost to your location.
  • We process and ship orders within one business day of the order information being received. Business days are Monday through Friday and exclude U. S. holidays.
  • Expedited orders including one-day, second day and third day delivery methods are processed and shipped the same business day for orders paid and received by 3pm Eastern Time. Expedited orders received after the cut-off time are processed and shipped on the next business day.
  • Top Source Auto reserves the right to change shipping carrier and shipping method for efficient and on-time deliveries. We are not responsible for processing and shipping time delays due to factors out of our control such as payment delays, severe weather or shipping carrier delays.
  • To qualify for a hassle-free return, you must pay with PayPal and have the item shipped to a U. S. address. The item must be returned in the same condition it was received. See the Returns & Warranty section of our store for important details. .
  • All of our products are covered by a one year warranty from the date of purchase. Unless specified. All returns must be approved with a Return Material Authorization Number (RMA #) that must be included with the return. Top Source Auto offers warranty for products that have a manufacturing defect due to materials or workmanship. The warranty does not cover failure due to abuse, misuse, improper installation or modifications. Top Source Auto is not liable for the cost of installation, removal or any other expenses beyond the original purchase price of the item.
  • It is the responsibility of the customer to verify the correct application information prior to purchasing any product from Top Source Auto. All purchases made in error may be returned within 30 days from the date of purchase and are subject to a 20% restocking fee. The product must be returned in its original condition including the packaging. All returned products will be inspected. Returns processing may take up to 5 business days from the time your product is received at Top Source Auto location.

Policies terms coming soon
