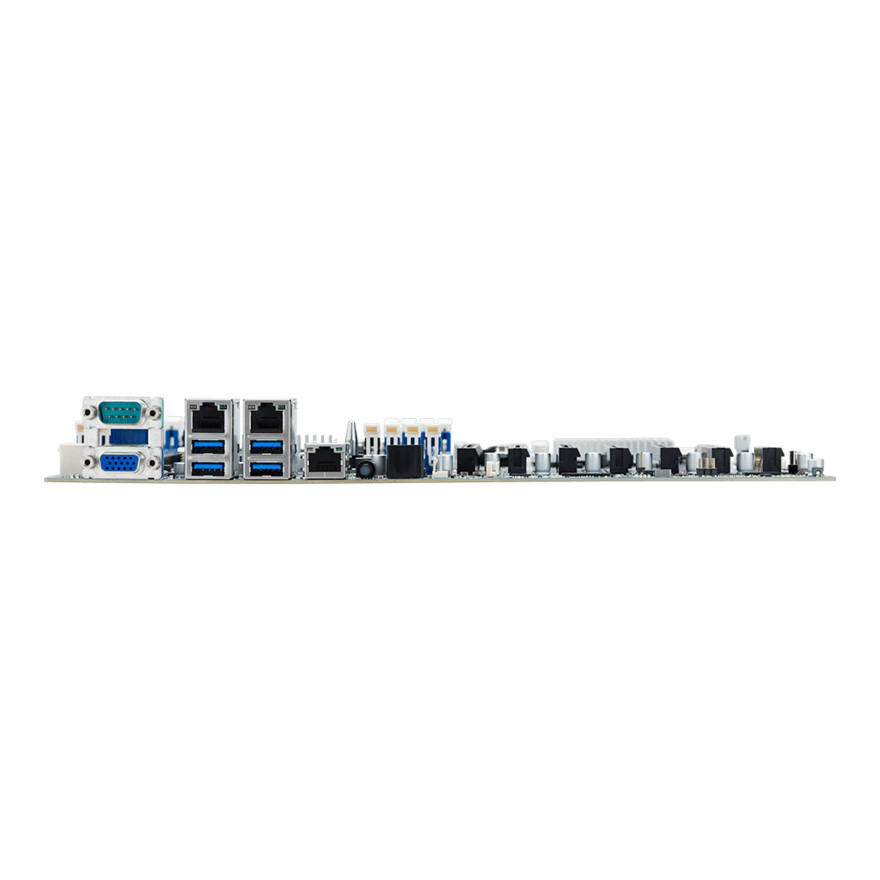

GIGABYTE MU71-SU0 LGA3647 ATX Motherbroad Intel Xeon C621 Chipset DDR4 memory

Board Size

ATX，305W x 244D (mm)

Processor Supported

2nd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Intel® Xeon® W-3200 Processor Family
Single processor, TDP up to 205W

Socket

1 x LGA 3647，Socket P

Chipset Description

Intel® C621 Chipset

Memory Type

8 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz

Integrated Network

2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Integrated SATA Controller

2 x SlimSAS for 8 x SATA III 6Gb/s ports

Support RAID Function

Intel SATA RAID 0/1/10/5

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_7
Slot_5: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_5
Slot_3: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_2: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_3
Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280 cards

On-Board Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector (for PCIe slot)
2 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Buzzer

Rear I/O Connectors

4 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector (for PCIe slot)

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
