Features:
SOLID BATTERY TERMINAL: made of durable brass and electroplated with copper, which is rust and corrosion resistant, for safety use. With bright metallic color for easy daily check. With nut and bolt for a hassle free installation

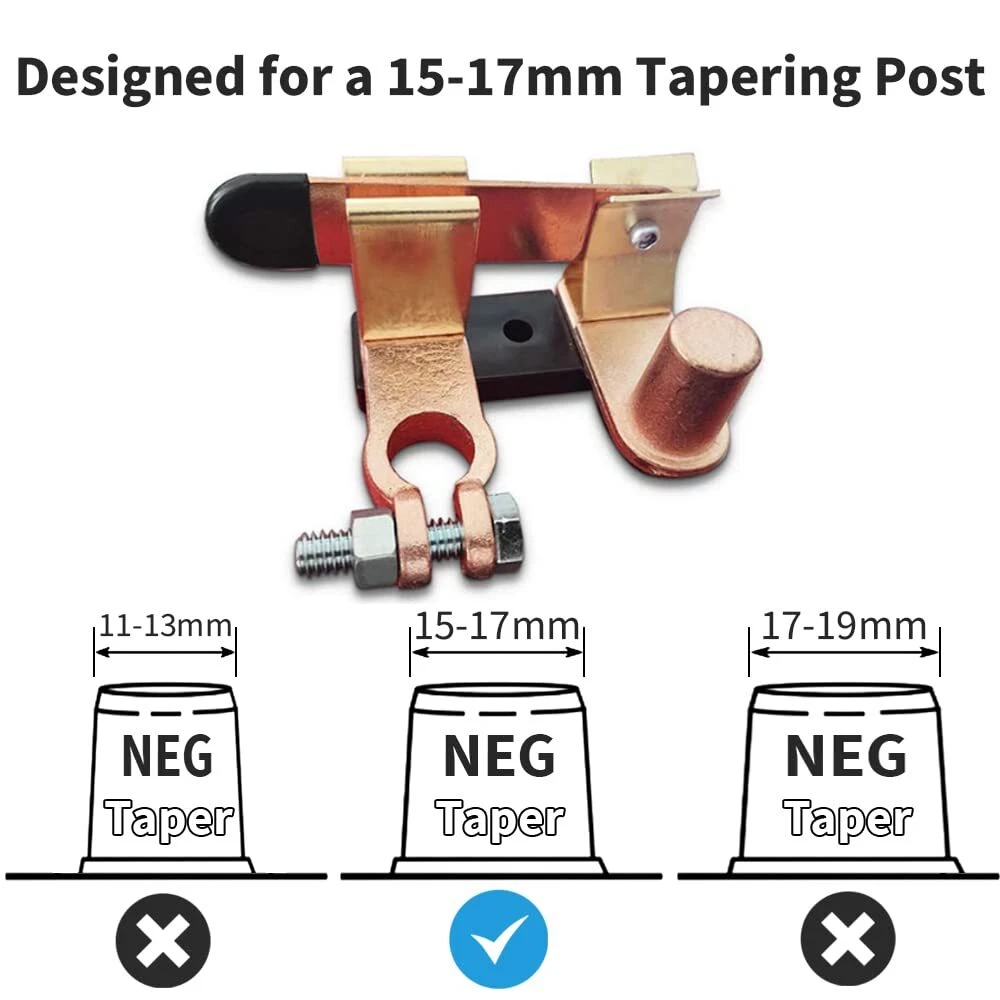

WIDELY APPLICATION: apply to top post terminal, 15-17mm cone battery NEGATIVE post only. Also used for electrical equipment. DC 12V-24V system, 250A continuous and 750A momentary at DC 12V. Blade switch is suitable for car, boat, truck, vehicle, RV, ATV and etc.

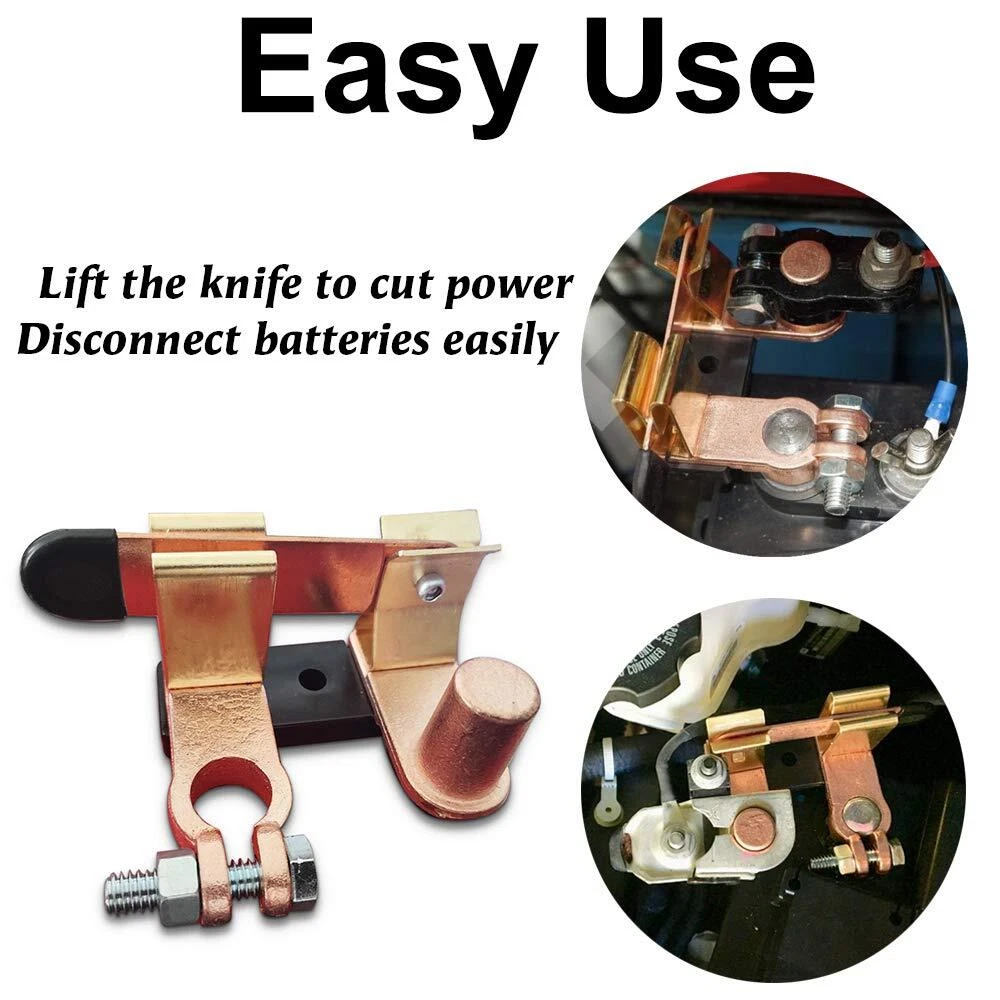

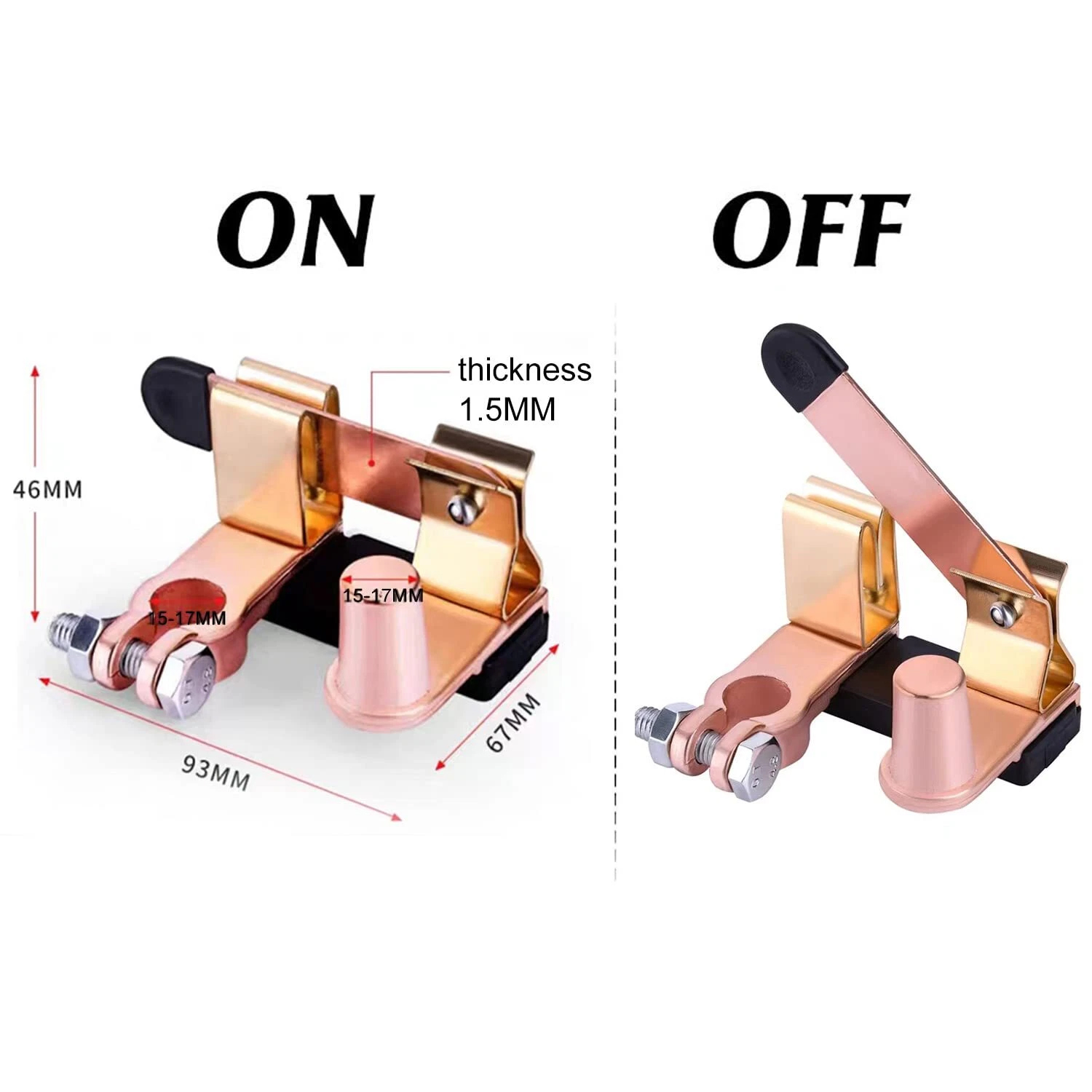

EASY TO INSTALL & USE: assemble the battery shut off switch to the negative cable. Turns power on and off by just lifting the lever up or down, on/off 2 position
NO MORE DRAINED BATTERY: batteries that are empty and not charged for a long time will shorten the life causing you to replace it. This battery cutoff blade type switch allows you to eliminate any unwanted parasitic power draw from the battery

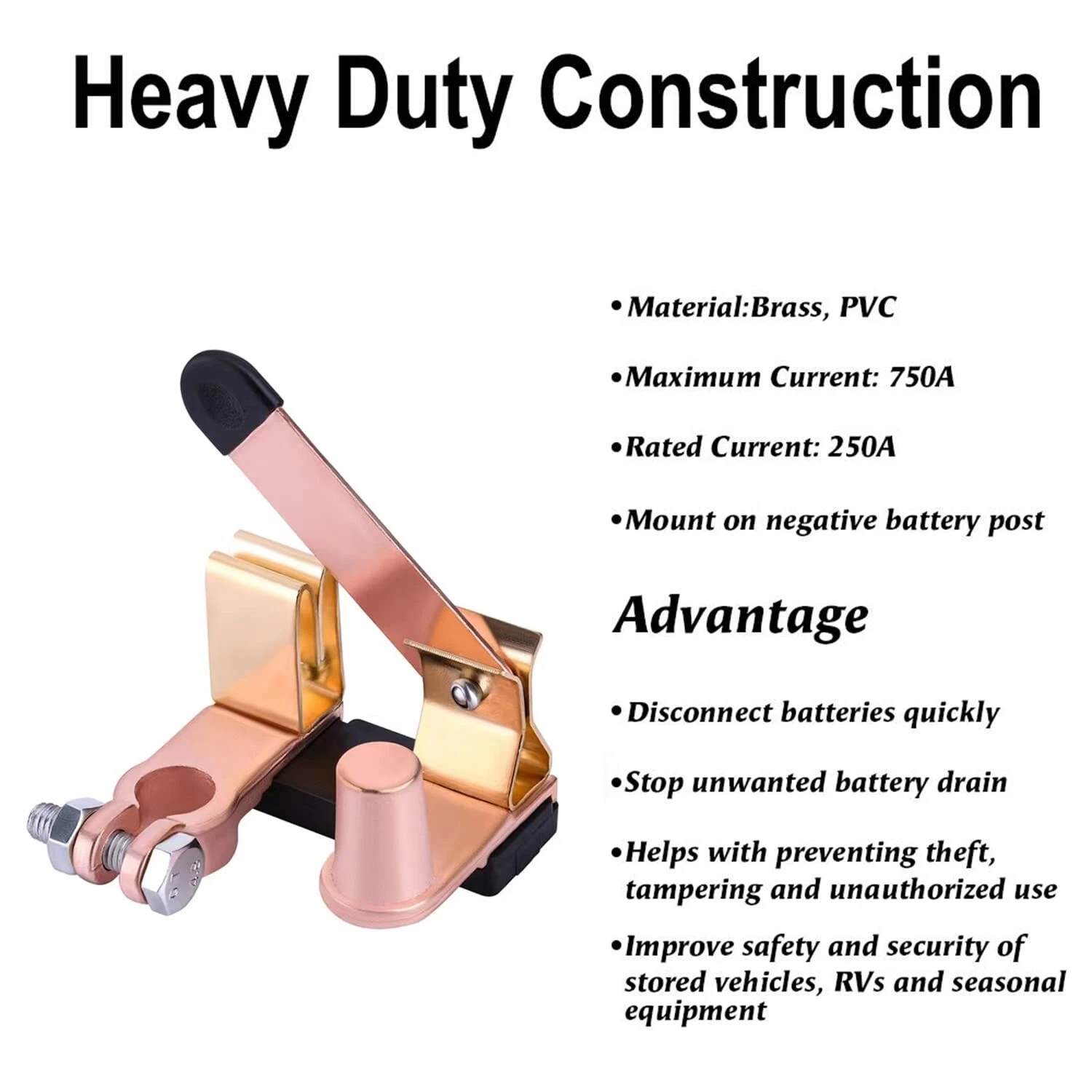

Specifications:
Type: top post, negative, vertical
Rated Current: 250A (12V)
Instantaneous Current: 750A (12V)
Main Material: brass plated with copper
SOLID BATTERY TERMINAL: made of durable brass and electroplated with copper, which is rust and corrosion resistant, for safety use. With bright metallic color for easy daily check. With nut and bolt for a hassle free installation
WIDELY APPLICATION: apply to top post terminal, 15-17mm cone battery NEGATIVE post only. Also used for electrical equipment. DC 12V-24V system, 250A continuous and 750A momentary at DC 12V. Blade switch is suitable for car, boat, truck, vehicle, RV, ATV and etc.
EASY TO INSTALL & USE: assemble the battery shut off switch to the negative cable. Turns power on and off by just lifting the lever up or down, on/off 2 position
NO MORE DRAINED BATTERY: batteries that are empty and not charged for a long time will shorten the life causing you to replace it. This battery cutoff blade type switch allows you to eliminate any unwanted parasitic power draw from the battery
Specifications:
Type: top post, negative, vertical
Rated Current: 250A (12V)
Instantaneous Current: 750A (12V)
Main Material: brass plated with copper
Package Included:
4x Battery Disconnect Switch
4x Battery Disconnect Switch
Instruction:
Disconnect the cable connection on the battery with the negative side first. Make sure the negative cable is always disconnected, then the positive cable.

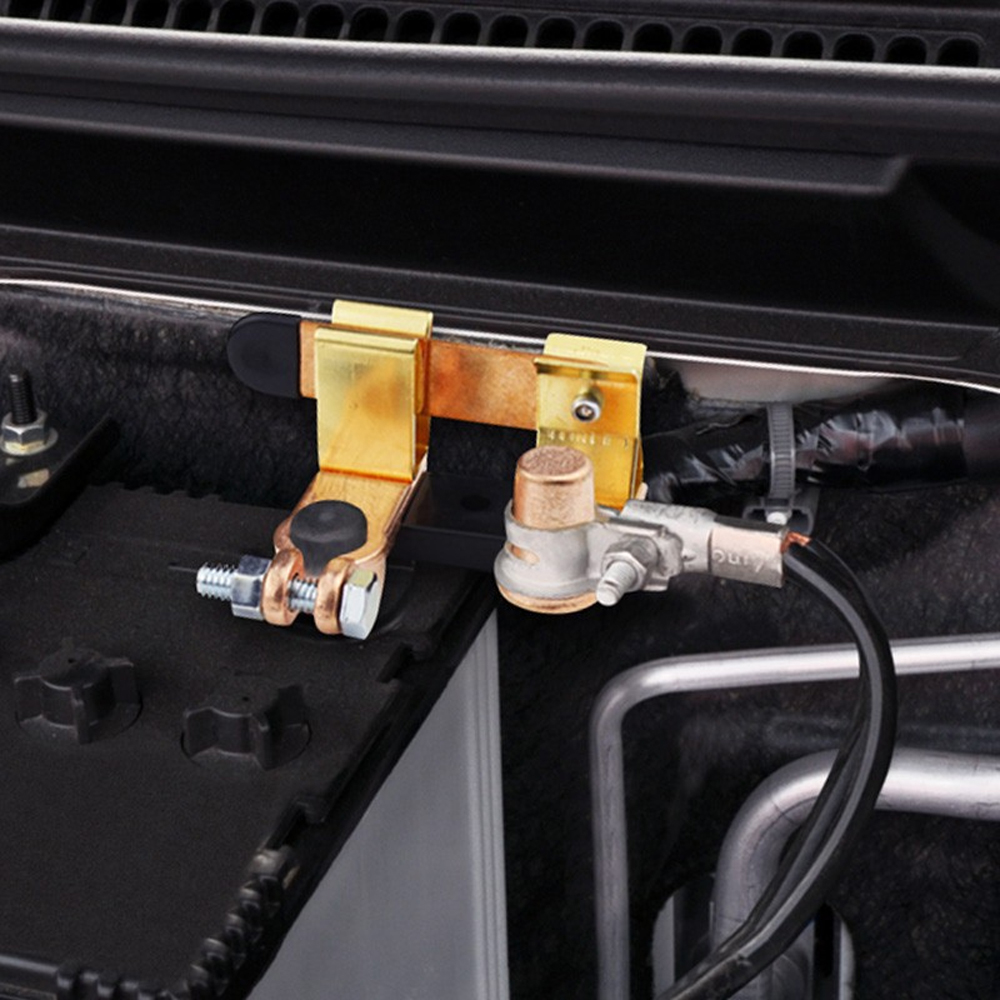

Install the battery knife disconnect switch on the negative battery terminal. (For safety, with the lever raised or disconnected.)
Reconnect the battery cable on the positive side, then connect the negative battery cable to the opposite end. (For safety, with the lever raised or disconnected.)
Checking if there is power when the lever is closed.
Disconnect the cable connection on the battery with the negative side first. Make sure the negative cable is always disconnected, then the positive cable.
Install the battery knife disconnect switch on the negative battery terminal. (For safety, with the lever raised or disconnected.)
Reconnect the battery cable on the positive side, then connect the negative battery cable to the opposite end. (For safety, with the lever raised or disconnected.)
Checking if there is power when the lever is closed.
Pls Note:
(1)It would be highly appreciated if you might contact us first once you have any problems concerning the items. And you can expect all the issues would be resolved!
(2) Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item.
(1)It would be highly appreciated if you might contact us first once you have any problems concerning the items. And you can expect all the issues would be resolved!
(2) Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item.
