1964 GM A/F/X Body Hydro-Boost Brake Booster w/ Master Cylinder Disc/Drum Valve

1964 GM A F X Body Hydro Boost Power Brake Booster Master Disc Drum Valve

1964 GM A / F / X Body
Hydro-Boost Power Brake Booster Kit
Disc / Drum • Black Master Cylinder • Proportioning Valve Included
⚠️ Hydraulic Hoses NOT Included

 Upgrade your classic 1964–1972 GM A, F, and X Body vehicles with a complete Hydro-Boost Power Brake Conversion Kit, engineered to provide modern braking performance without relying on engine vacuum. This system is ideal for high-performance engines, engine swaps, or vehicles with low manifold vacuum.
Hydro-Boost System Advantages
 The Hydro-Boost system is powered by hydraulic pressure from the existing power steering pump and requires NO engine vacuum.

Key benefits include:
  • No external vacuum pump required for low-vacuum or high-performance engines
  • No small-bore master cylinder required
  • Increased firewall clearance and valve cover clearance
  • Increased frame-mounted clearance
  • Frame-mounted Hydro-Boost units are the same width as a master cylinder, providing additional exhaust and engine bay clearance
 The Hydro-Boost unit can be mounted anywhere a traditional vacuum booster will fit and is compatible with rubber or stainless braided hydraulic hoses (hoses not included).
How the Hydro-Boost Works
The Hydro-Boost system continuously utilizes hydraulic pressure supplied by the power steering pump.

Typical power steering pump output ranges from 800 PSI to 1400 PSI.

This pressure is converted into braking force applied directly to the master cylinder, resulting in powerful, consistent braking performance.

Hydro-Boost output is affected by three critical system factors:
  1. Pedal Ratio – Recommended 6:1 to 7:1
  2. Power Steering Pump Pressure Output
  3. Master Cylinder Bore Diameter
Proper matching of these components is required to ensure optimal braking performance.
⚠️Important System Cleanliness Notice
It is imperative that the hydraulic system is completely clean prior to installation.

Any residual metallic sediment remaining in an old power steering pump or steering box may circulate through the system during startup. If debris becomes lodged in the pump’s relief valve, it may result in:
  • Loss of hydraulic pressure
  • Hard steering
  • Loss of power brake assist
The power steering system should be flushed thoroughly before installing the Hydro-Boost unit.

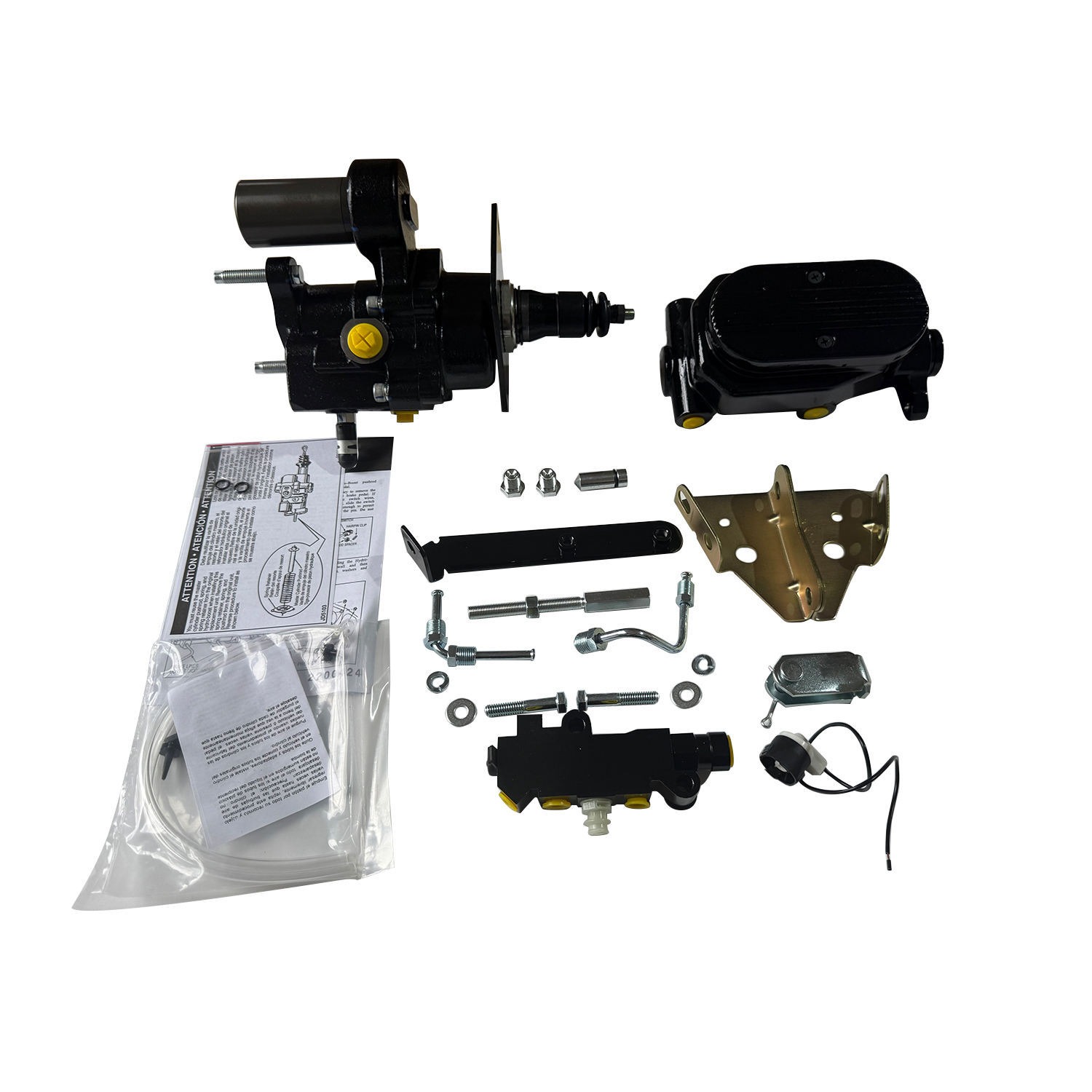

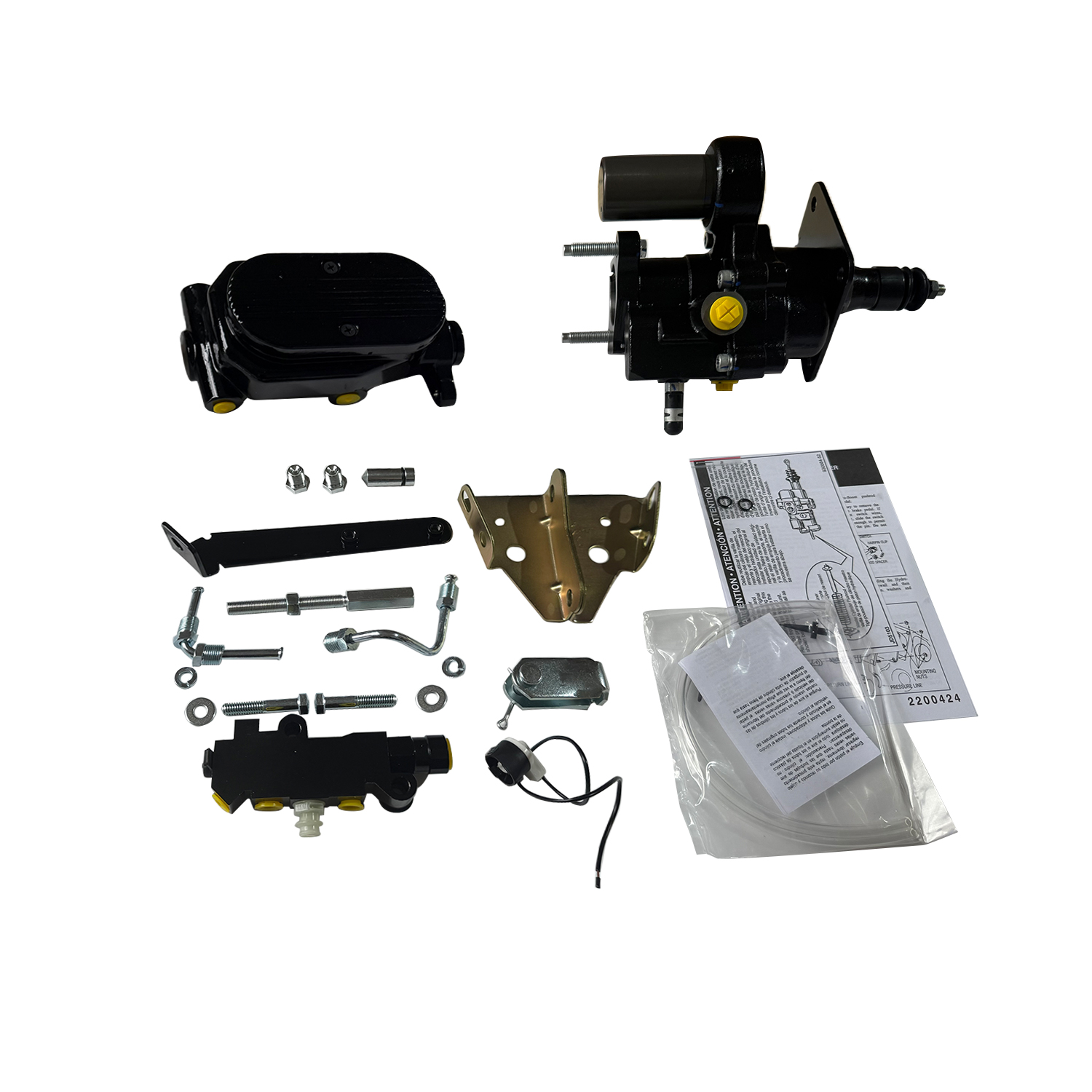

Kit Includes
✔ Hydro-Boost Power Brake Booster
  • Firewall mount brackets
  • Push rod
  • Pedal clevis
  • Designed for 1964–1972 GM A-Body applications
  • Manufactured to original specifications for proper fitment

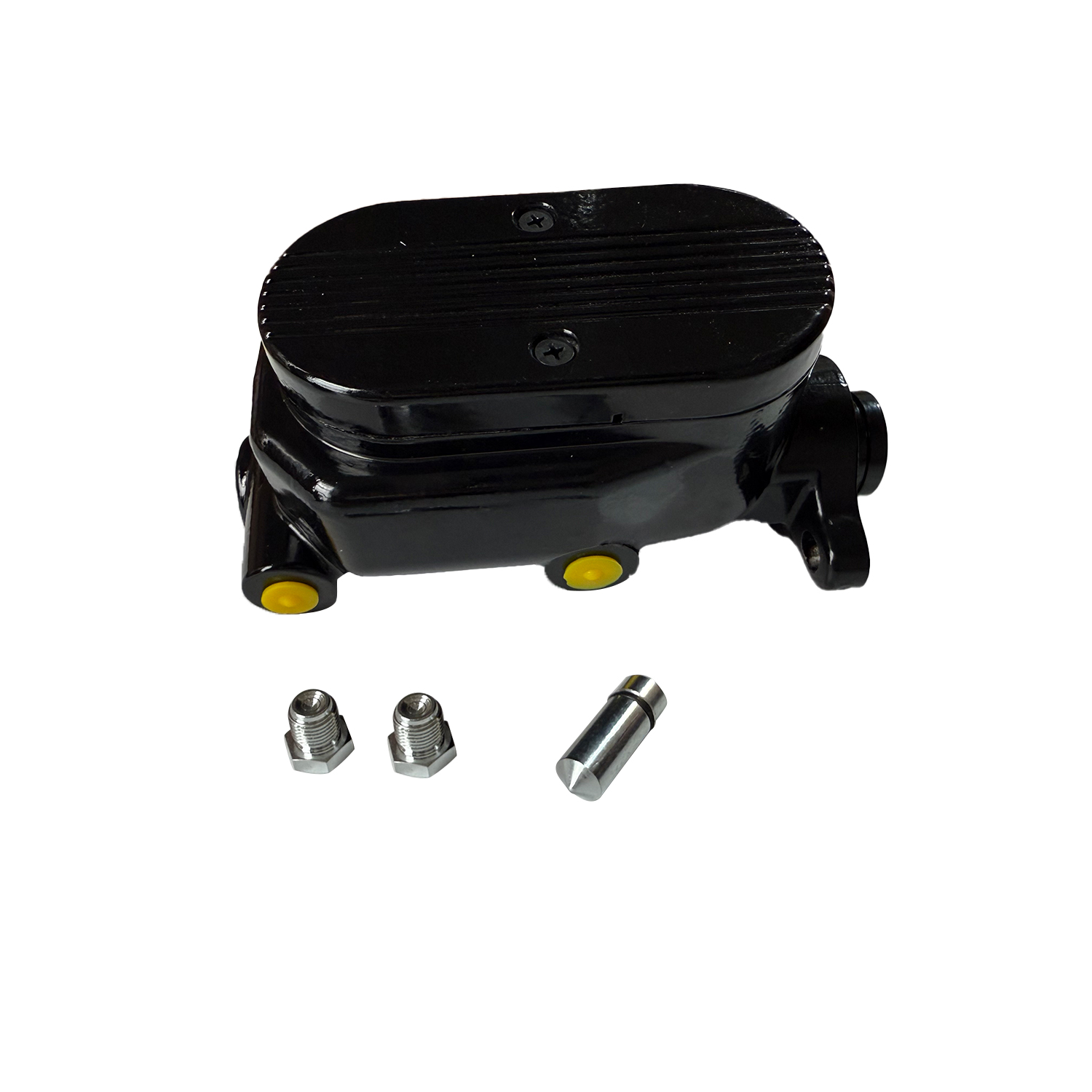

✔ Brand New Flat Top / Smooth Master Cylinder
  • Bore Size: 1 inch
  • Material: Aluminum
  • Finish: Black Powder Coated
  • Port Sizes: 9/16" & 1/2"
  • Mounting Hole Spacing: 3-3/8" center to center
  • Designed for Disc / Drum brake applications
✔ 4-Port Master Cylinder Design
  • Allows use of ports on either side
  • Includes plugs for unused ports
  • Superior upgrade over standard GM-style master cylinders

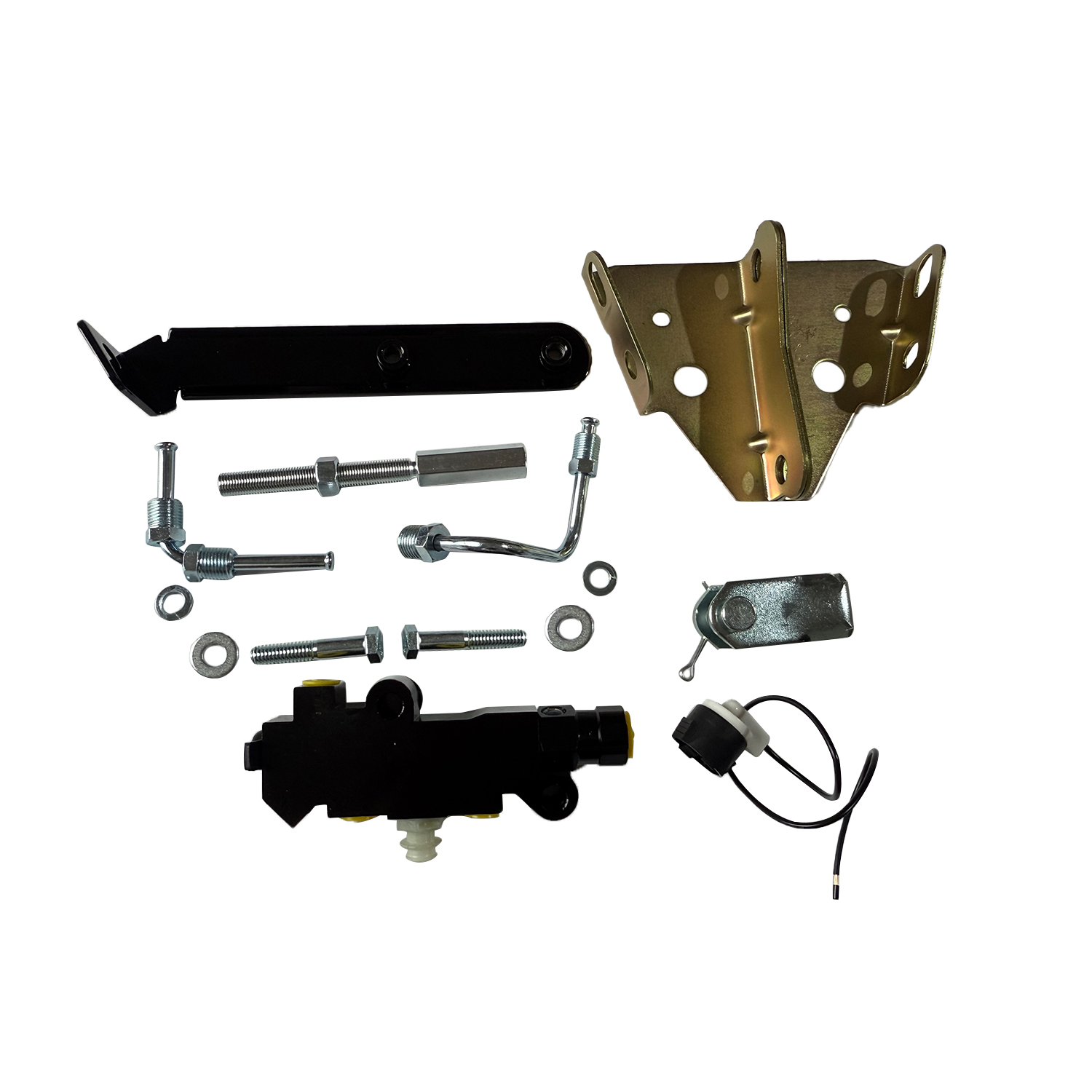

✔ Disc / Drum Proportioning Valve Kit
  • Solid aluminum construction
  • Black finish
  • Includes mounting hardware
  • Integrated brake warning light switch
✔ Brake Bleeder Tool

(Includes only the items shown in the picture)
Disc / Drum Proportioning Valve Functions
 This Disc / Drum combination proportioning valve is designed for vehicles equipped with front disc brakes and rear drum brakes and performs all required braking functions:
  • Reduces rear brake pressure to prevent rear wheel lock-up
  • Distributes braking force evenly between front and rear brakes
  • Maintains residual pressure for rear drum brakes
  • Includes a brake warning light switch to alert the driver in the event of hydraulic system failure
 This valve is a critical upgrade when converting from drum to disc brakes. While GM-style in design, it can be adapted to Ford, Mopar, Chevy, and other applications with the correct fittings.
Vehicle Applications
  • 1964–1972 Chevrolet Chevelle
  • 1964–1972 Chevrolet El Camino
  • 1964–1972 Pontiac LeMans
  • 1964–1972 Pontiac GTO
  • 1964–1972 Pontiac Tempest
  • 1964–1972 Oldsmobile Cutlass
  • 1964–1972 Oldsmobile 442
  • 1964–1972 Buick Skylark
  • 1970–1972 Chevrolet Monte Carlo
  • 1968–1974 Chevrolet Nova
  • 1971–1974 Pontiac Ventura
  • 1967–1969 Chevrolet Camaro
  • 1967–1969 Pontiac Firebird
Important Notes
  • Hydraulic hoses are NOT included
  • Compatible with rubber or stainless braided hose setups
  • Proper pedal ratio and clean hydraulic system are critical for correct operation
Installation Recommendation
 This kit is designed as a bolt-on conversion; however, due to the hydraulic nature of the system and the importance of proper setup:
Professional installation is highly recommended.

How to confirm the fitment for ur vehicles?
