1970-1981 Chevy Camaro Hydro-Boost Brake Kit w/ Black Bail Top Master Disc/Drum
1970-1981 Camaro BLACK Hydro Boost Power Brake Booster Bail Top Master Disc Drum
1970–1981 Chevy Camaro
Hydro-Boost Power Brake Booster Kit
Black • Bail Top Master Cylinder • Disc / Drum
 Upgrade your classic 1970–1981 Chevy Camaro with a Hydro-Boost power brake system, offering modern braking power without relying on engine vacuum. This conversion kit is perfect for high-performance engines, engine swaps, or restorations where vacuum-assisted brakes are impractical.
 Hydro-Boost Advantages
 The Hydro-Boost system operates using hydraulic pressure from the existing power steering pump, meaning it requires no vacuum. This has several key benefits:
  • No vacuum pump needed for low vacuum or high-performance engines
  • No small-bore master cylinder required
  • Increased firewall clearance, valve cover clearance, and frame-mounted clearance
  • Frame-mounted Hydro-Boosts are the same width as a master cylinder, providing additional exhaust clearance and better fitment flexibility
 The system continuously uses hydraulic pressure from your power steering pump, which typically produces 800–1400 PSI. This pressure is converted into braking force that is applied to the master cylinder.
 Hydro-Boost output is dependent on three factors:
 Pedal Ratio: We recommend a ratio between 6:1 to 7:1
  1. Power Steering Pump Pressure Output
  2. Master Cylinder Bore Size
Proper calibration of these factors ensures optimal braking performance.
 System Cleanliness Requirement
 It is critical to ensure the system is free from contaminants.
  Any residual metallic sediment from old power steering pumps or steering boxes may circulate when the fluid starts flowing, potentially causing:
  • Loss of power steering assist
  • Loss of power brakes
  • Hard steering
 Any debris lodged in the pump’s relief valve will prevent the system from building pressure, affecting both steering and braking. Flushing the system before installation is essential for safe and reliable operation.

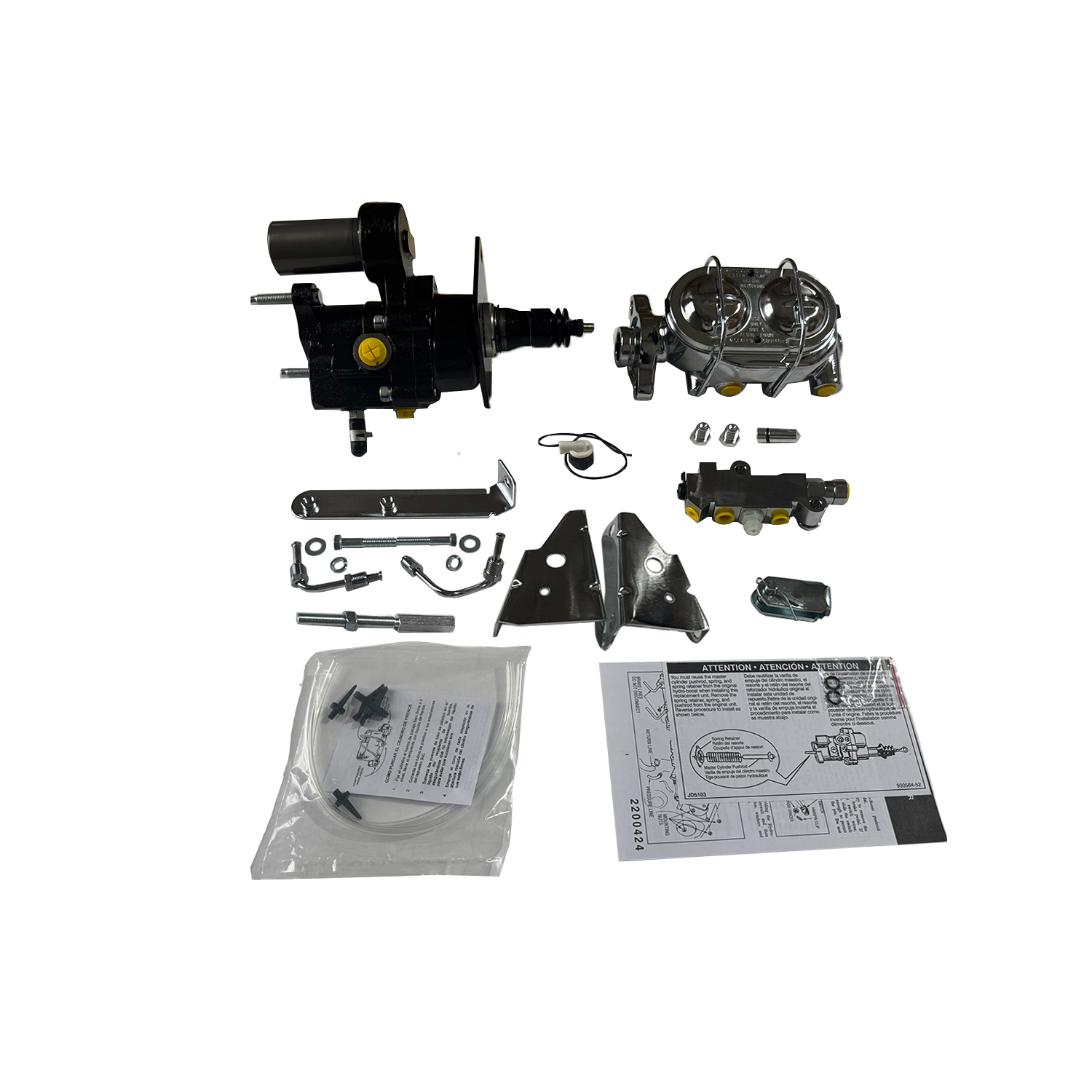

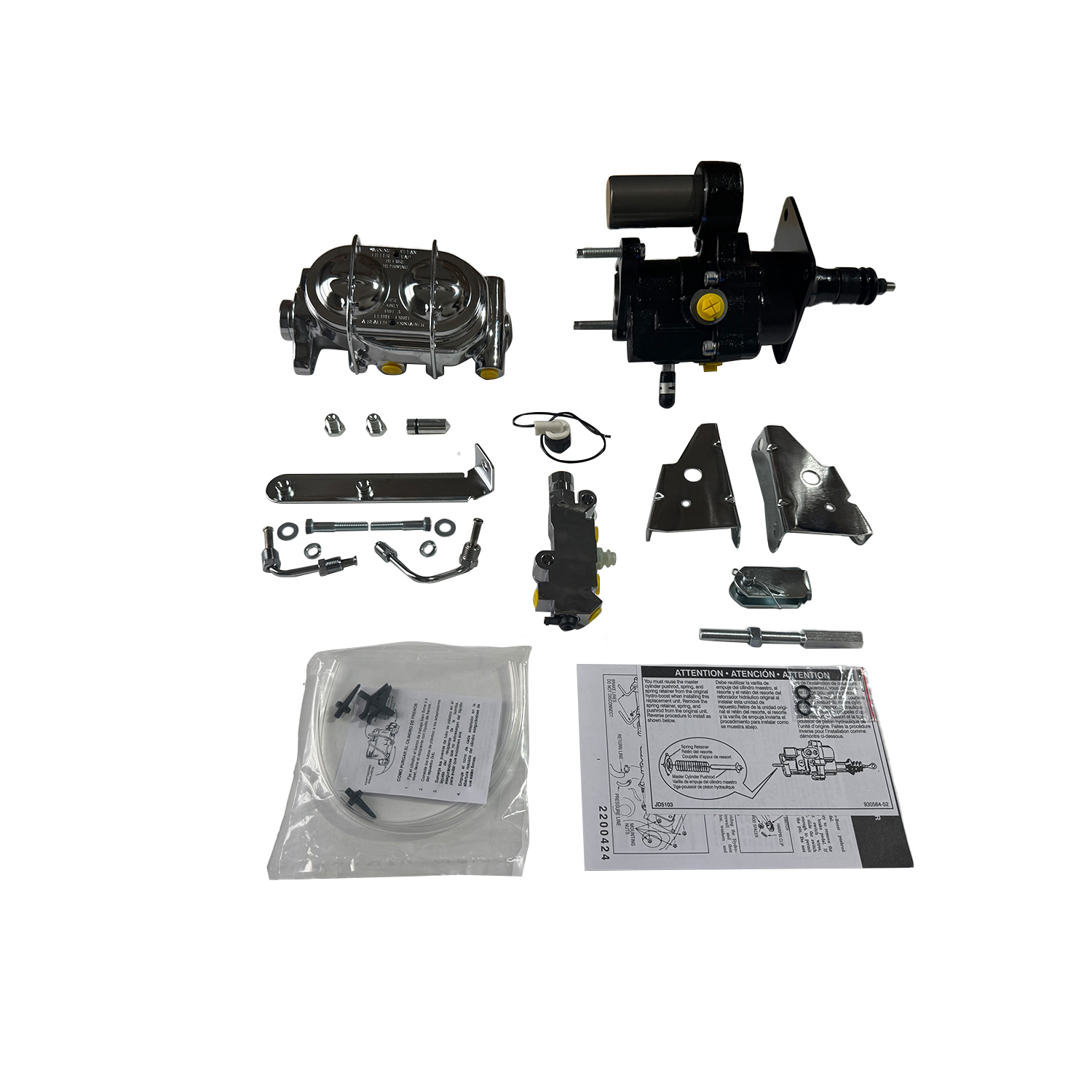

 Kit Includes

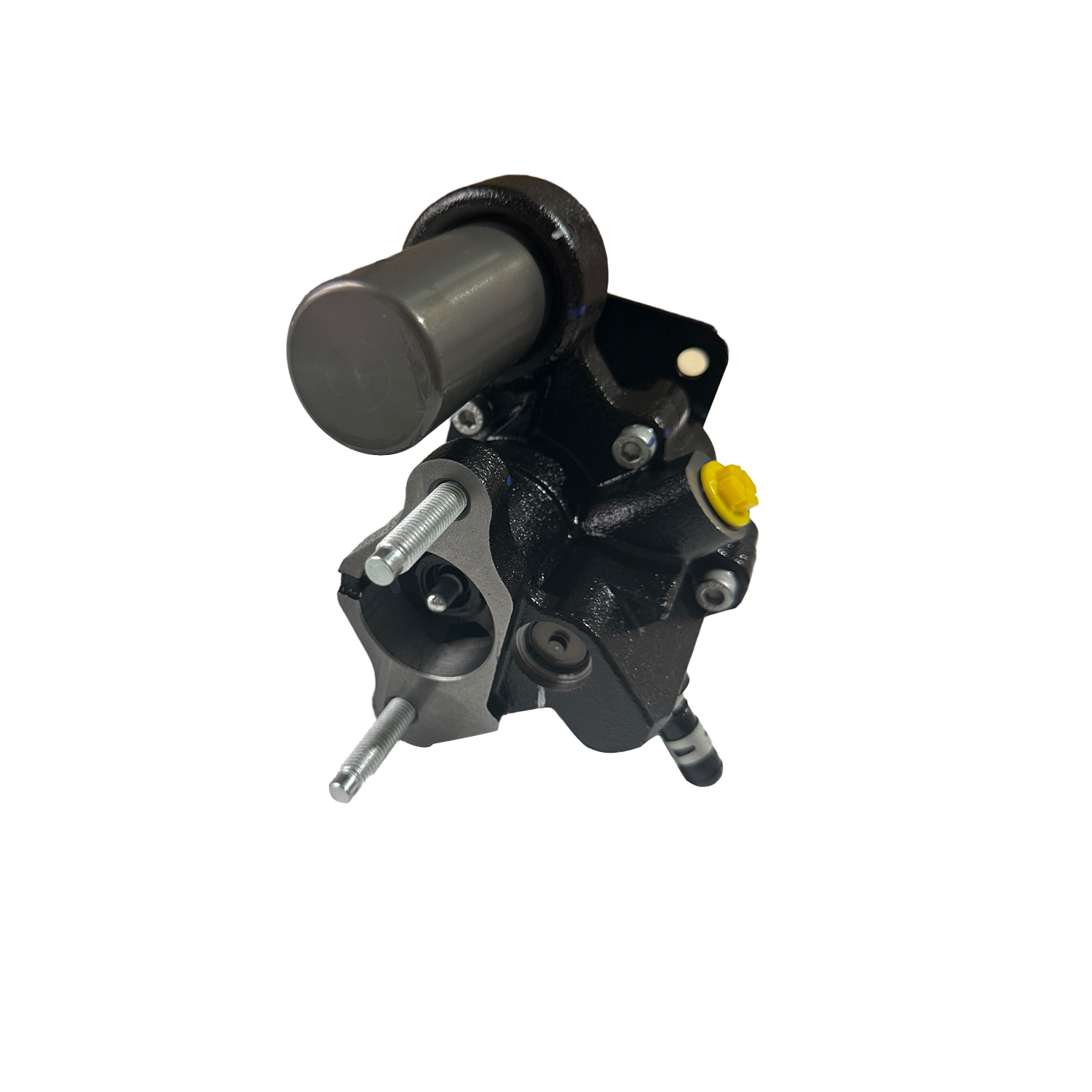

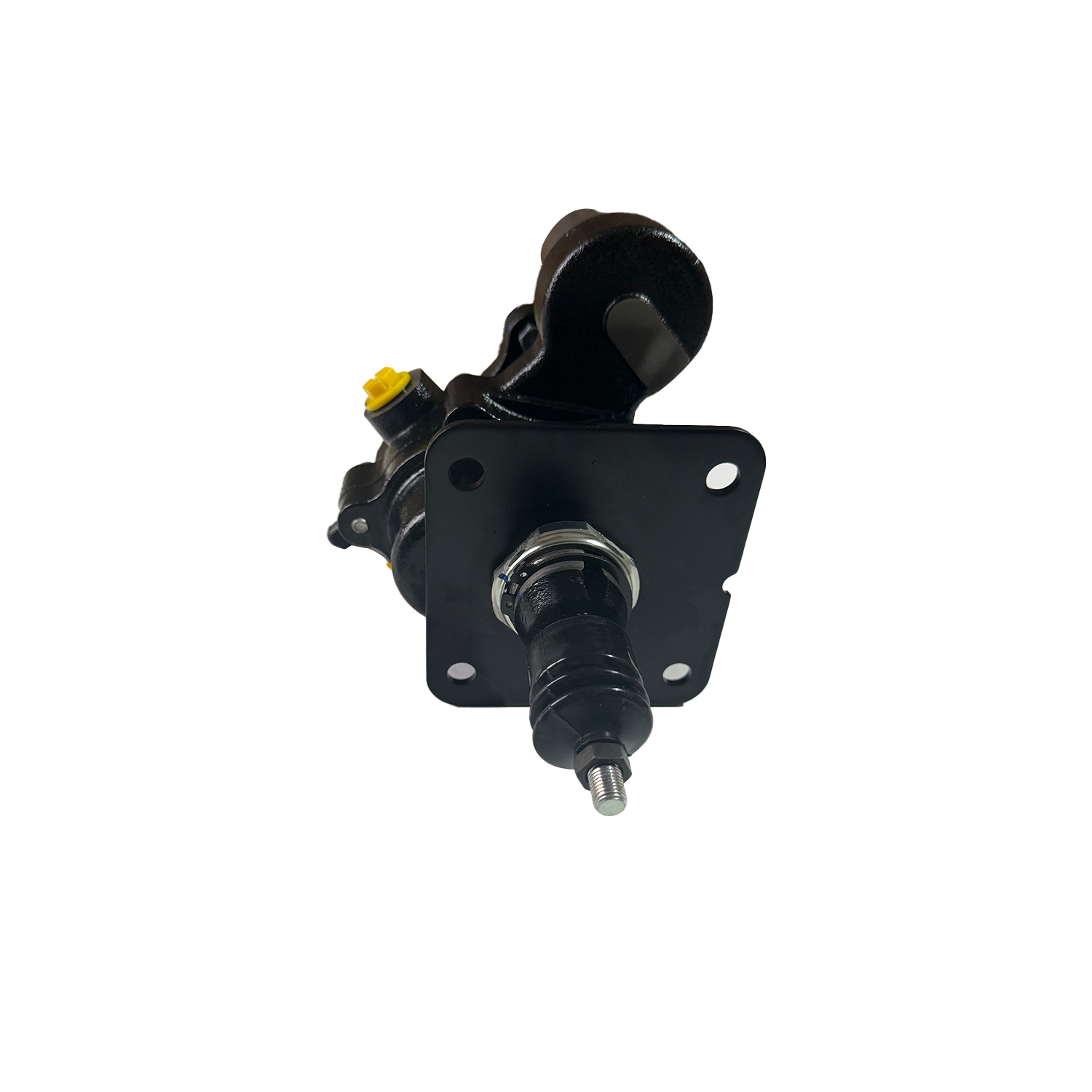

✔Hydro-Boost Power Brake Booster

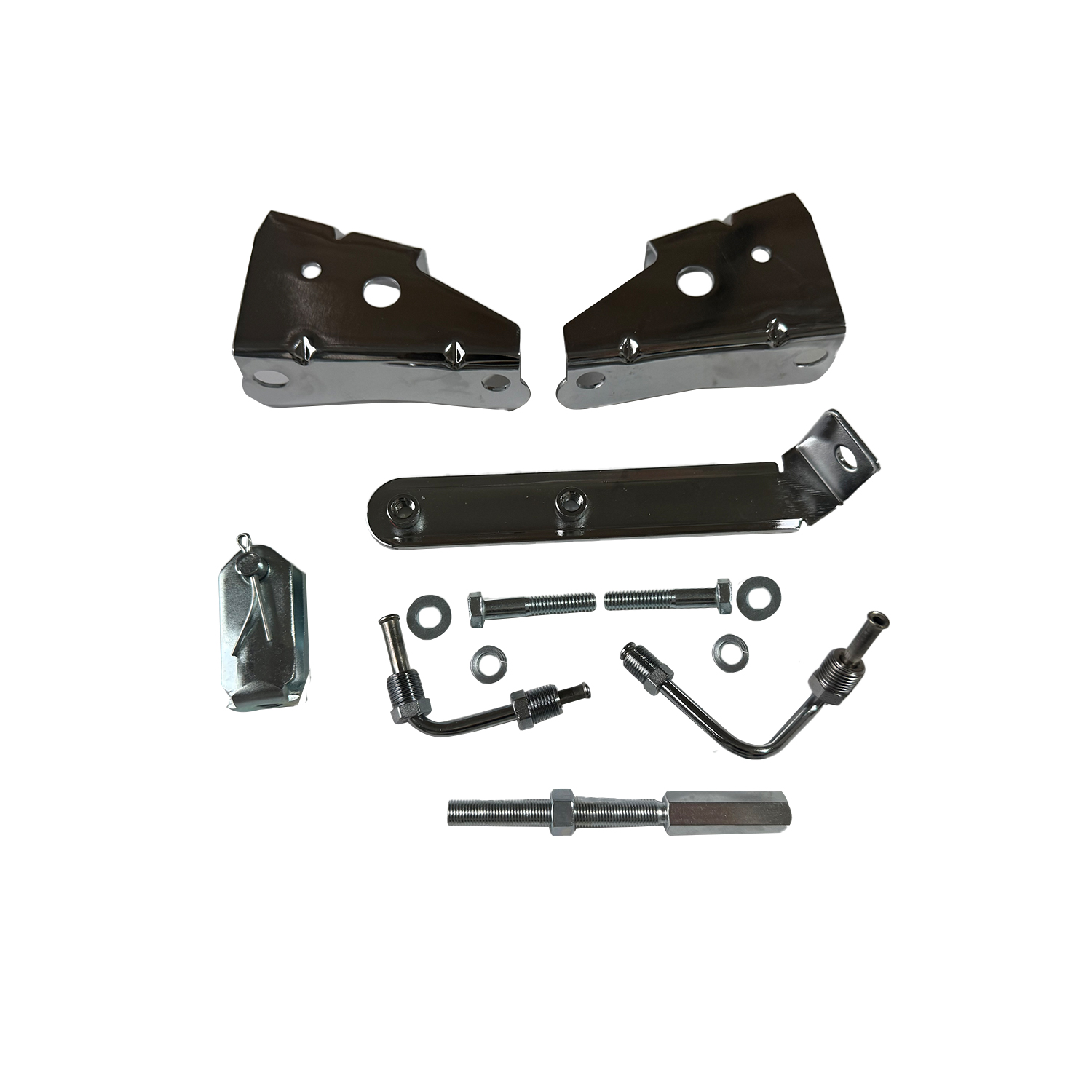

  • Firewall mount brackets
  • Push rod & pedal clevis
  • Compatible with 1970–1981 Chevy Camaro
  • Manufactured to original specifications for precise fitment
✔1" Bore Aluminum Chrome Master Cylinder
  • Bore Size: 1 inch
  • Material: Aluminum
  • Finish: Chrome
  • Port Sizes: 9/16" & 1/2"
  • Mounting Hole Spacing: 3-3/8" center to center
  • Suitable for both Disc / Drum and Disc / Disc applications
✔4-Port Master Cylinder Design
  • Flexibility to use ports on either side and block unused ports
  • Includes plugs for unused ports
  • A superior upgrade over standard GM-style master cylinders

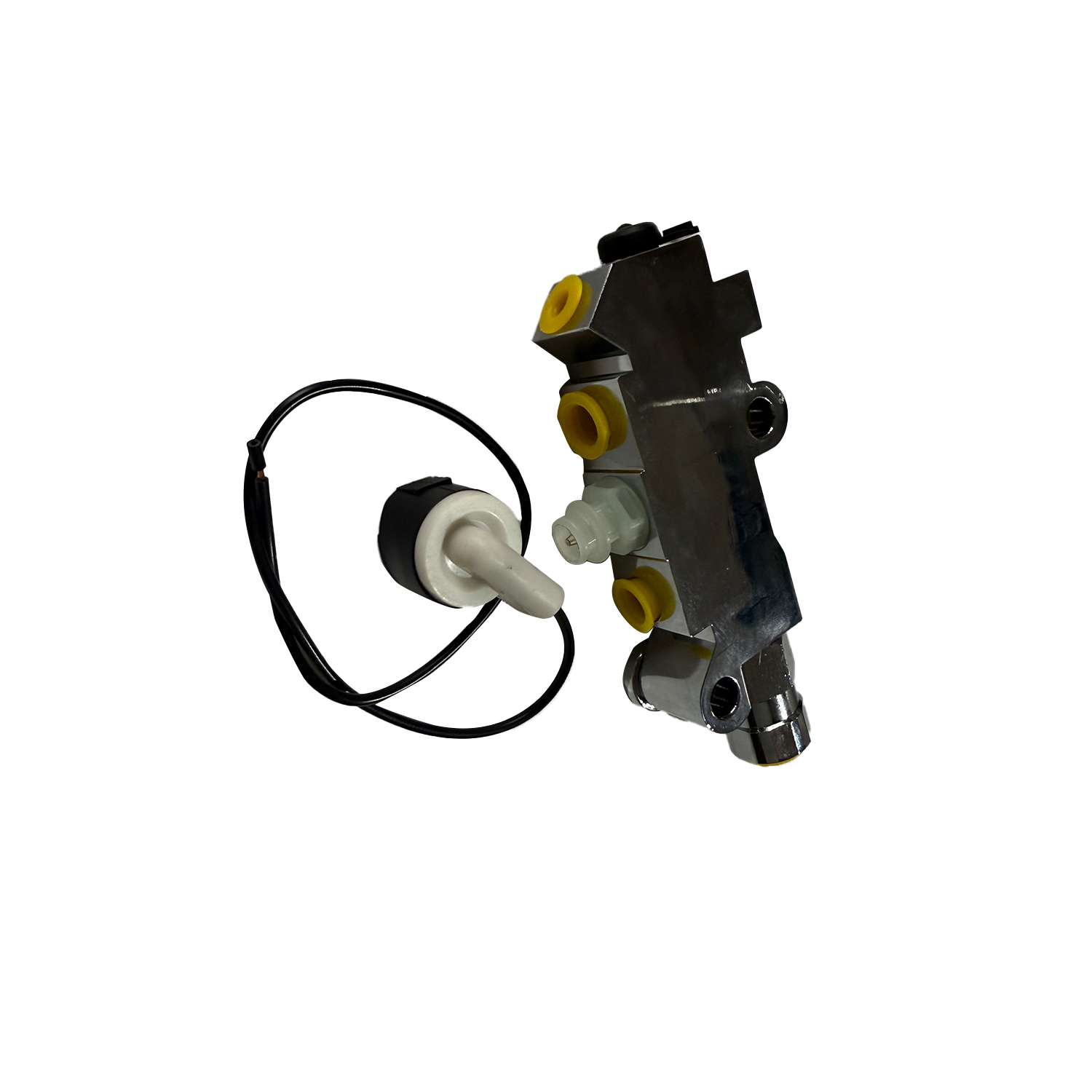

✔Chrome Disc / Drum Aluminum Proportioning Valve Kit
  • Aluminum construction with Black finish
  • Includes mounting kit
  • Helps balance brake pressure between front disc and rear drum brakes
  • Reduces rear brake pressure when necessary to prevent lock-up
  • Distributes braking pressure evenly, so front disc brakes don’t do all the work
  • Acts as residual pressure for rear drum brakes
  • Includes brake warning light switch to alert you of system failures
✔Bleeder Tool
(Includes only the items shown in the picture)
Disc / Drum Proportioning Valve Features
 The Disc / Drum proportioning valve included in this kit is ideal for vehicles with disc brakes in the front and drum brakes in the rear.
Key benefits include:
  • Reduces braking pressure to the rear to prevent rear brake lock-up
  • Distributes brake pressure evenly across the front and rear, ensuring balanced braking
  • Acts as residual pressure for rear drums, providing better rear brake responsiveness
  • Brake warning light switch alerts the driver to braking system failure
  • A must-have upgrade when converting from drum brakes to disc brakes
 This GM-style valve is designed for compatibility with Ford, Mopar, Chevy, or virtually any other vehicle, as long as you have the correct fittings.
Vehicle Fitment
Designed for the following Chevy Camaro models:
  • 1970–1981 Chevy Camaro
Installation Recommendations
 This kit is designed for bolt-on installation, but due to the complexity of properly configuring the hydraulic system and ensuring optimal performance, professional installation is highly recommended.
 Upgrade your 1970–1981 Chevy Camaro with this Hydro-Boost Power Brake Conversion Kit for improved braking performance, better engine bay clearance, and consistent, reliable braking force.
