Attention:

The link have only gauge without sensor and gauge with different sizes of the sensor.Please double check when you place an order.

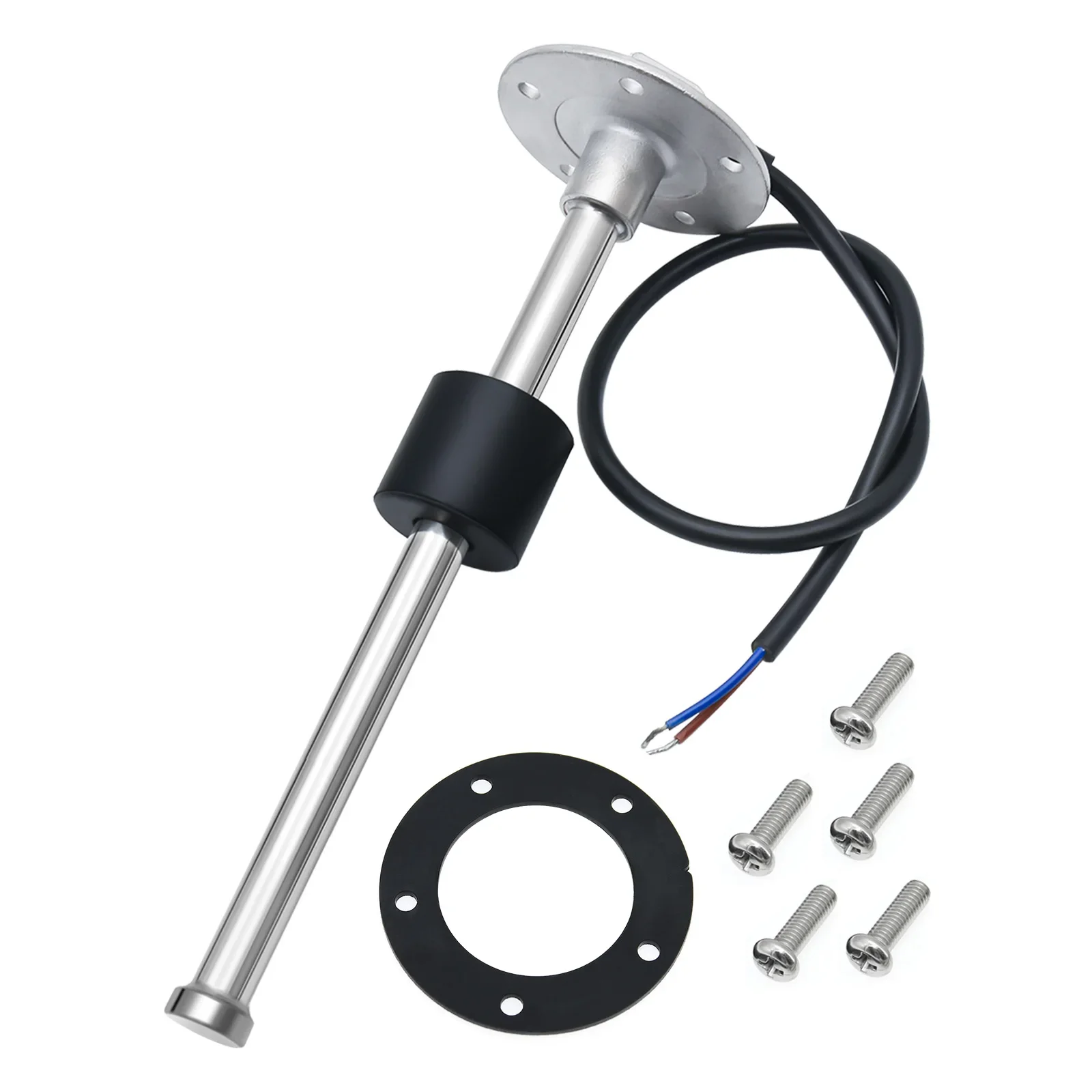

Sensor Feature:

- Protection ank: IP67

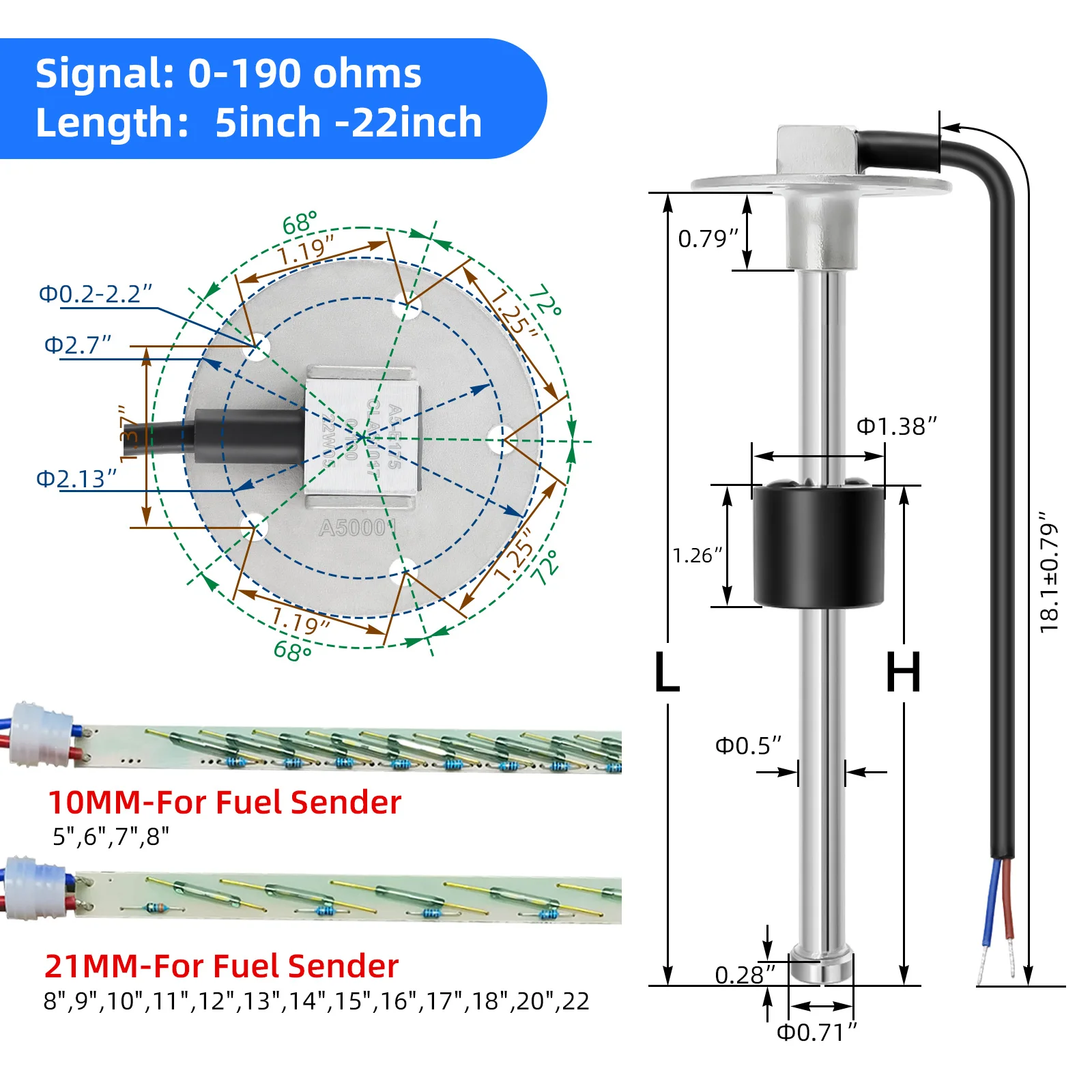

- Resolution range: 21 mm

- Assembly: SAE standard 5 holes

- Rated current for alarm switch: 500mA

- Operating temperatures: - 40 to 85 Celsius

- Fit for Fuel Level Gauge and Water Level Gauge

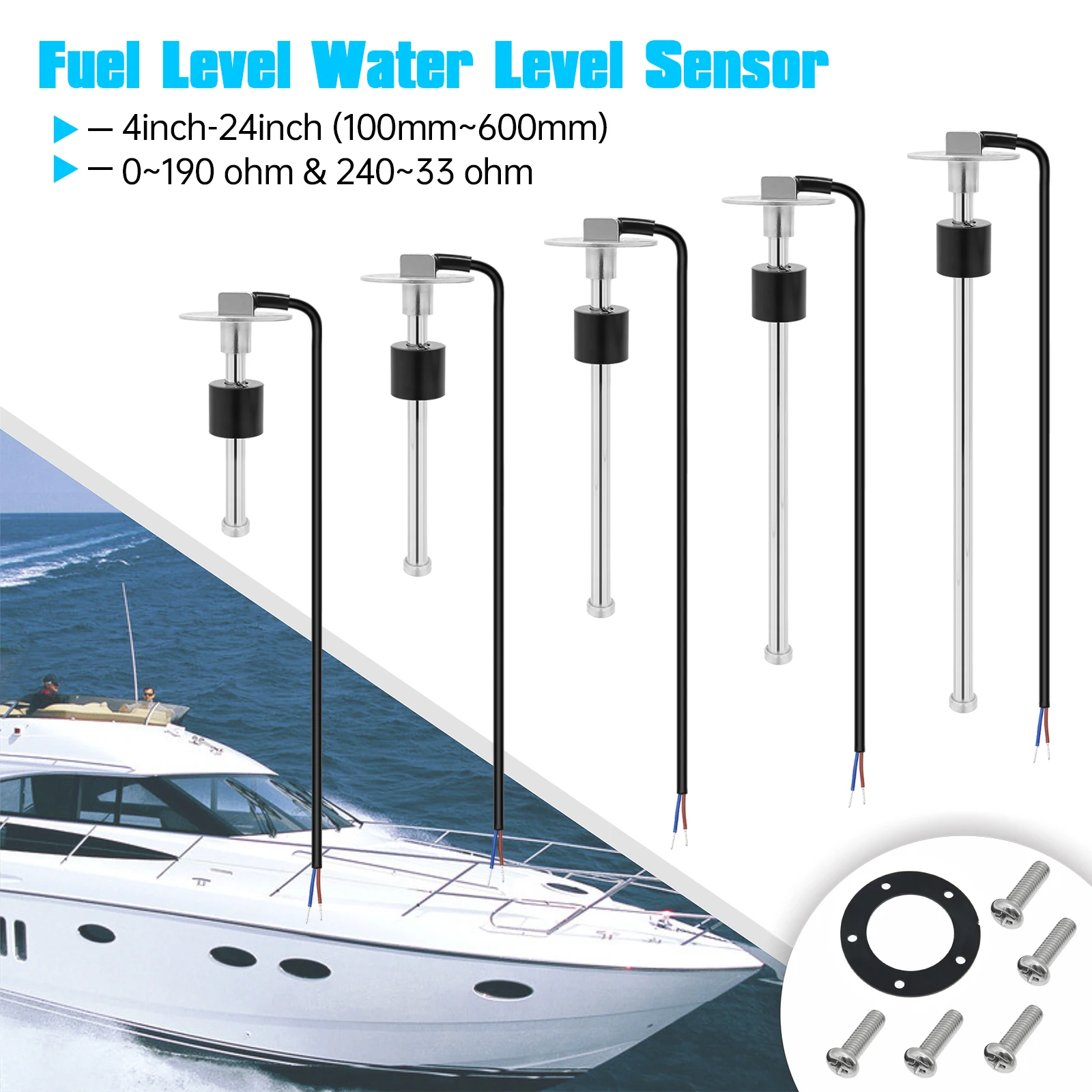

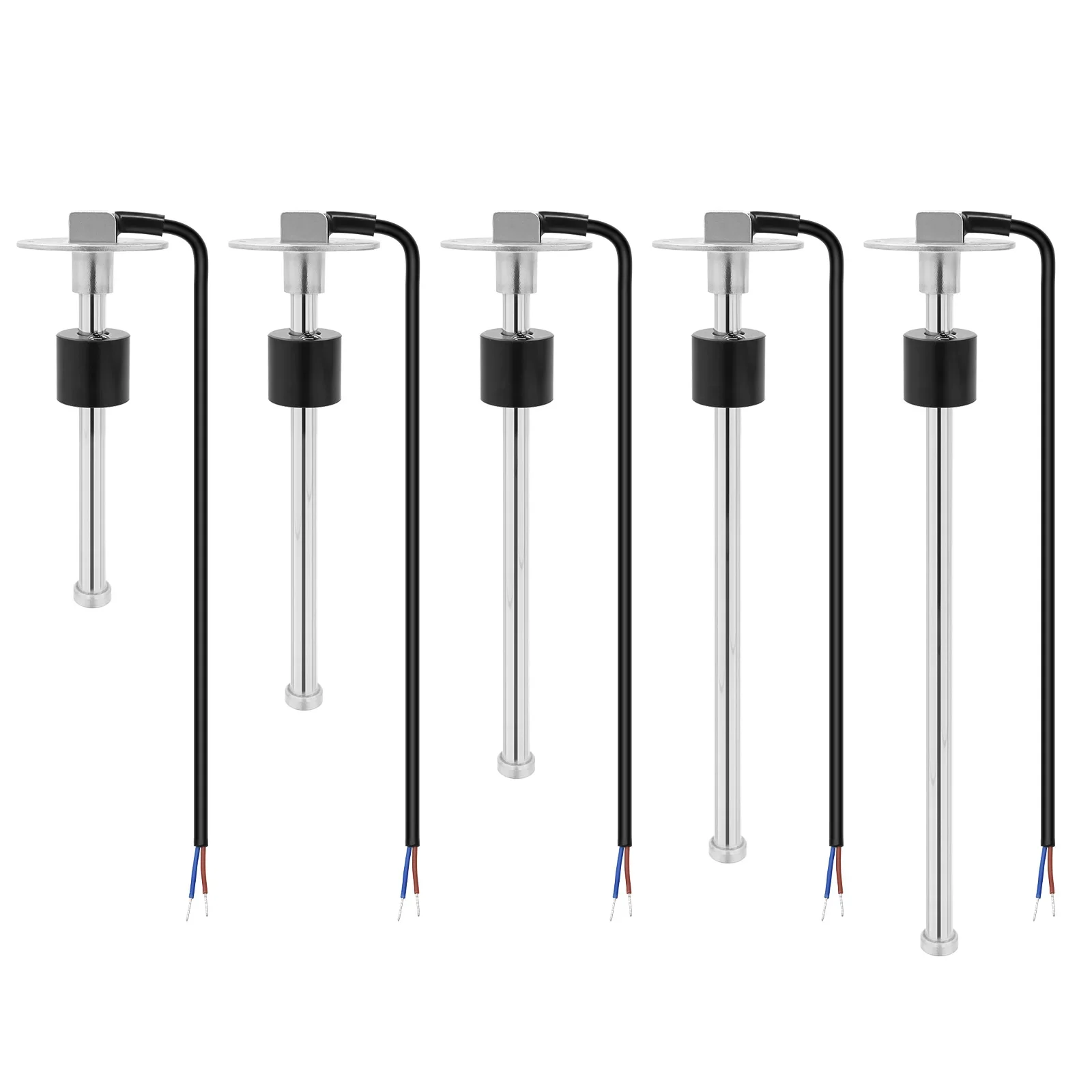

- Sensor Length :100-600mm

- Mounting: 5 pieces of M5 screws and 2 mm thick gasket

- Output signal: 0~190 ohm (Standard European)

- Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel

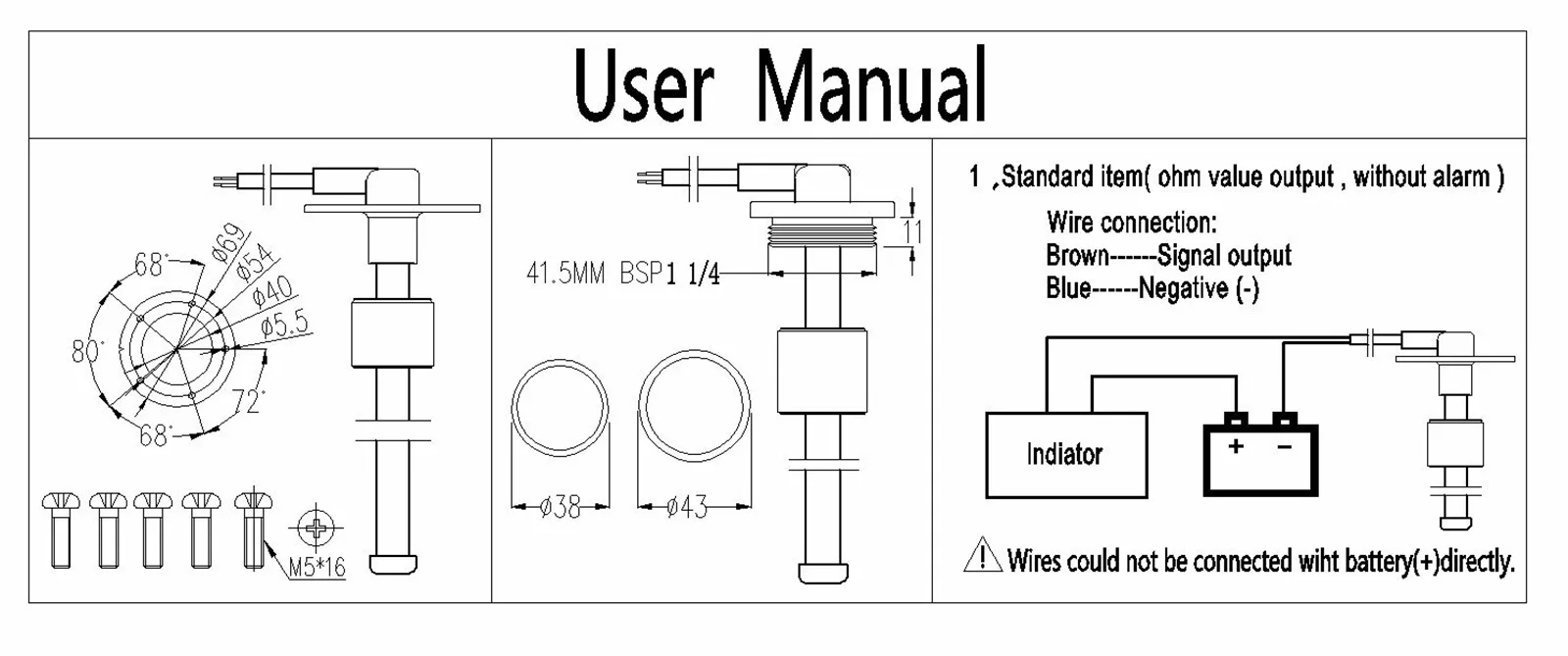

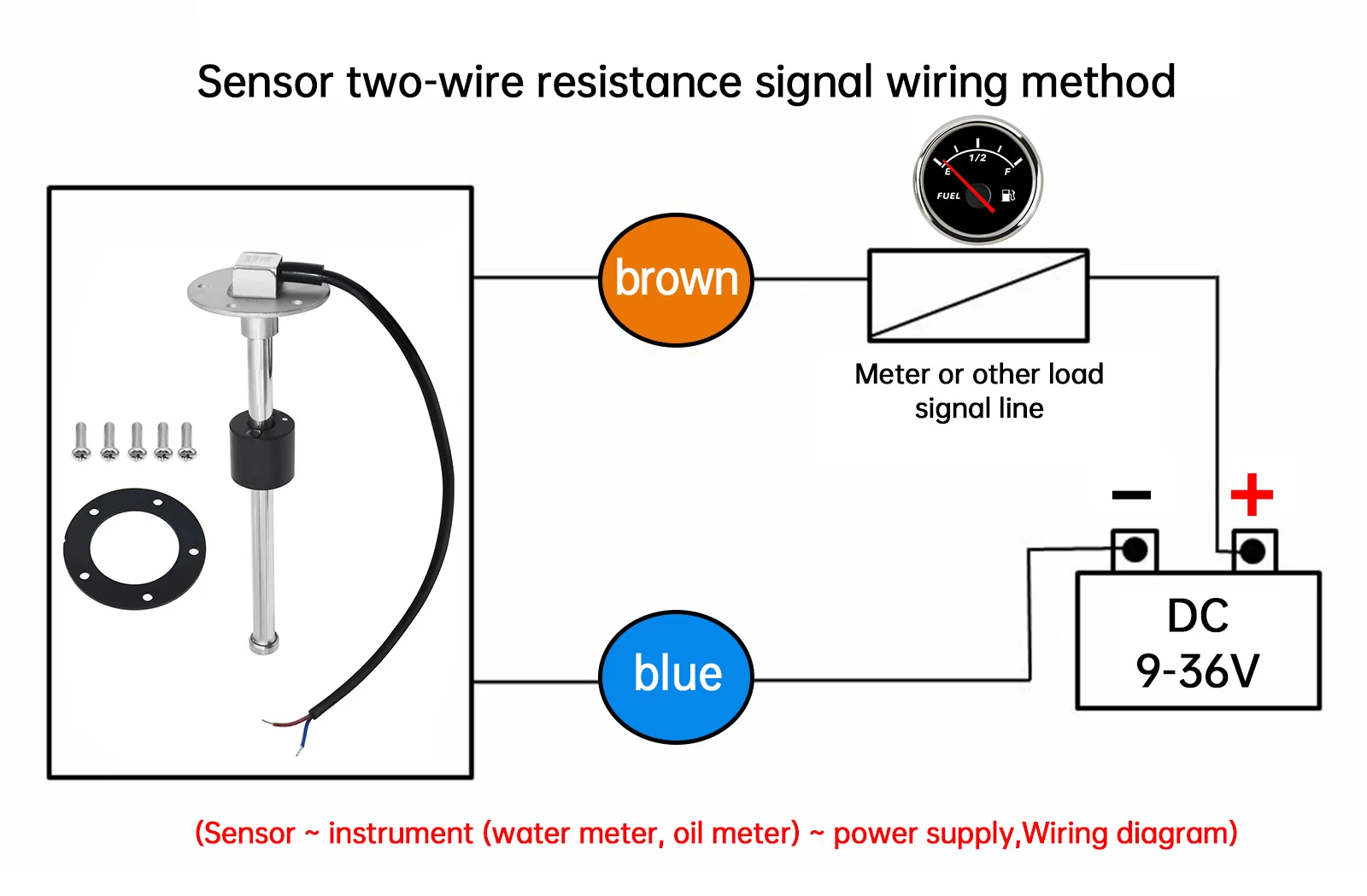

Sensor Connection:

- Blue wire: connect the ground wire

- Brown wire: connect the gauge signal wire

Empty oil level 0 ohm

Full oil level 190 ohm

Fuel Level Gauge:

- Indicating Range:E-1/4-1/2-3/4-F

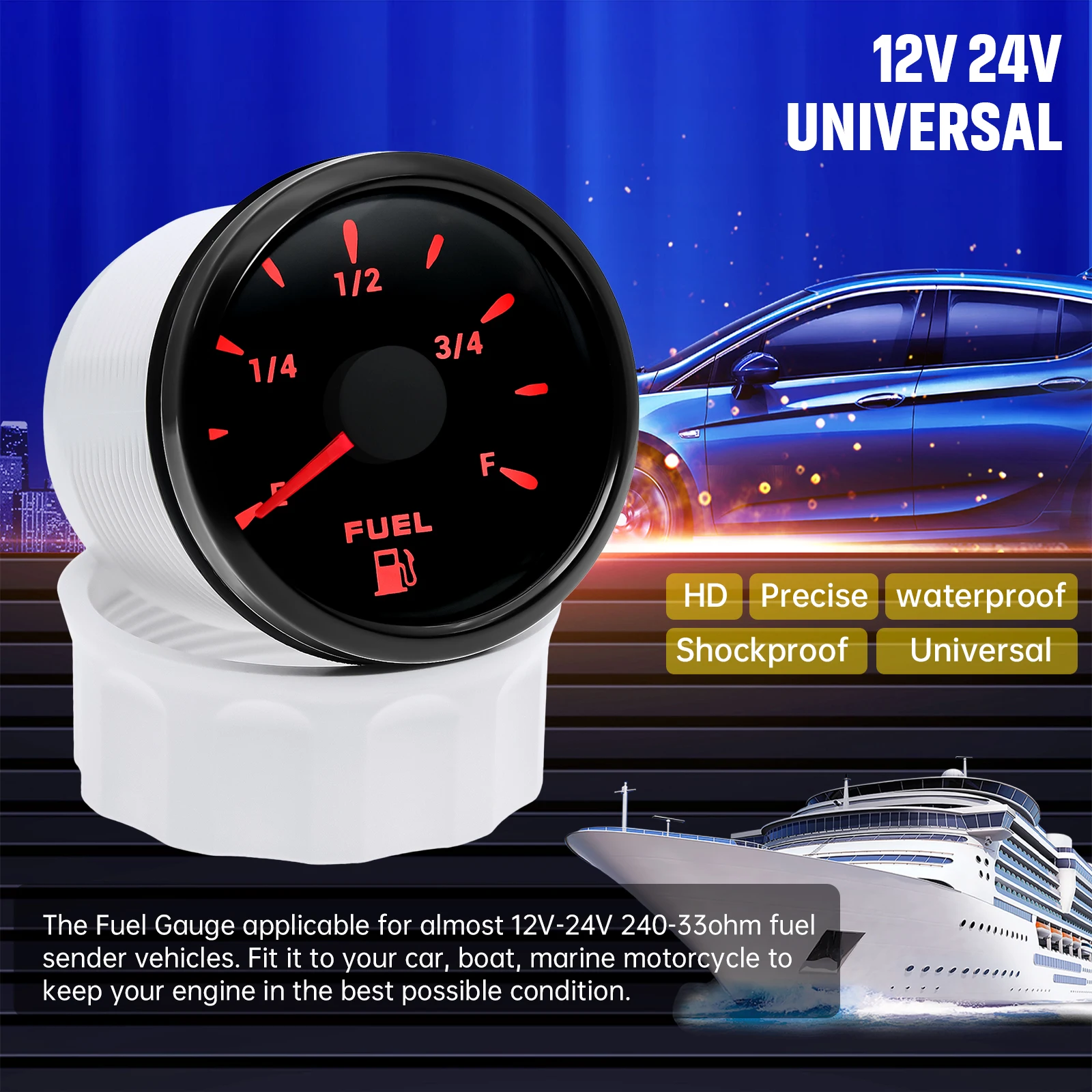

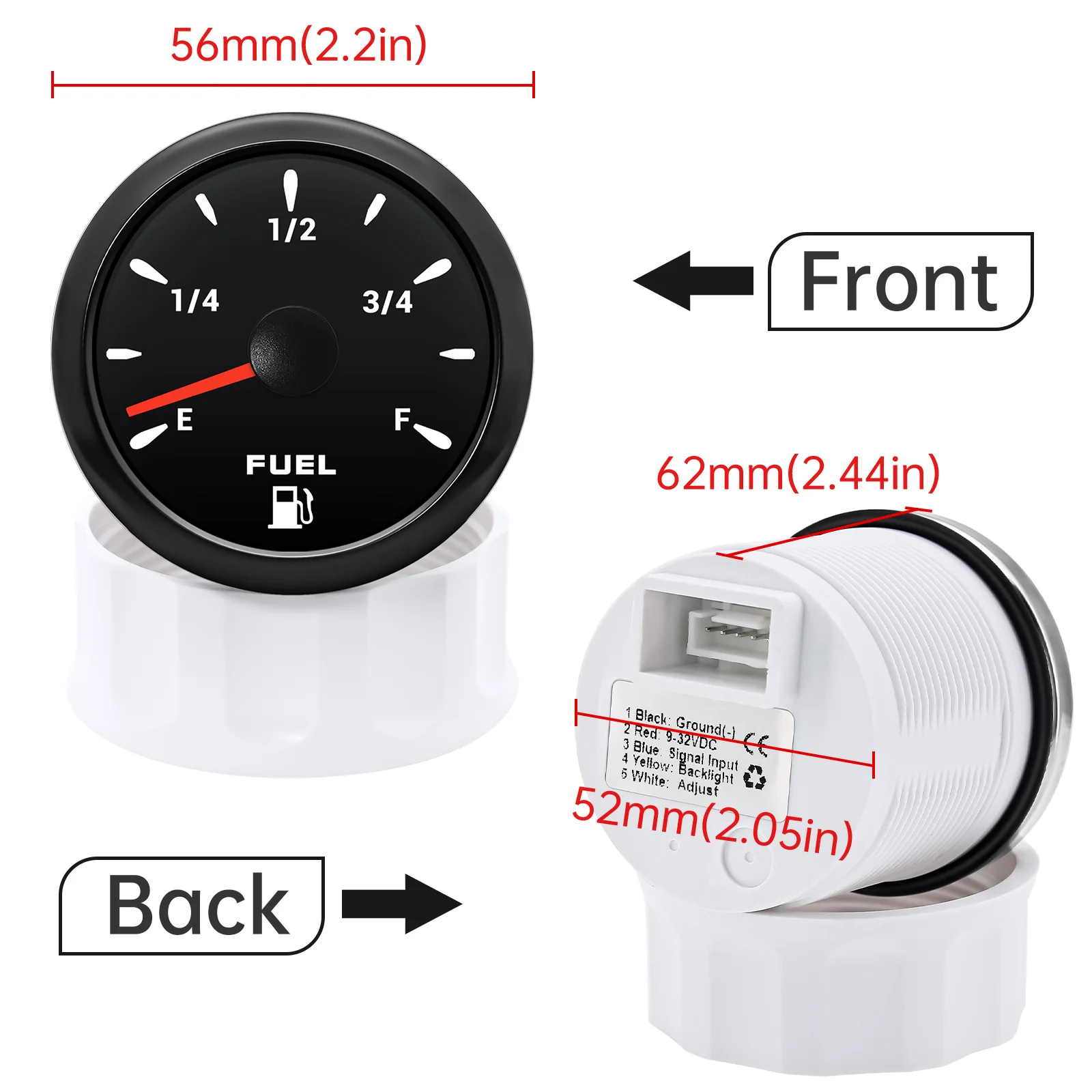

- Name: 52mm Fuel Level Gauge

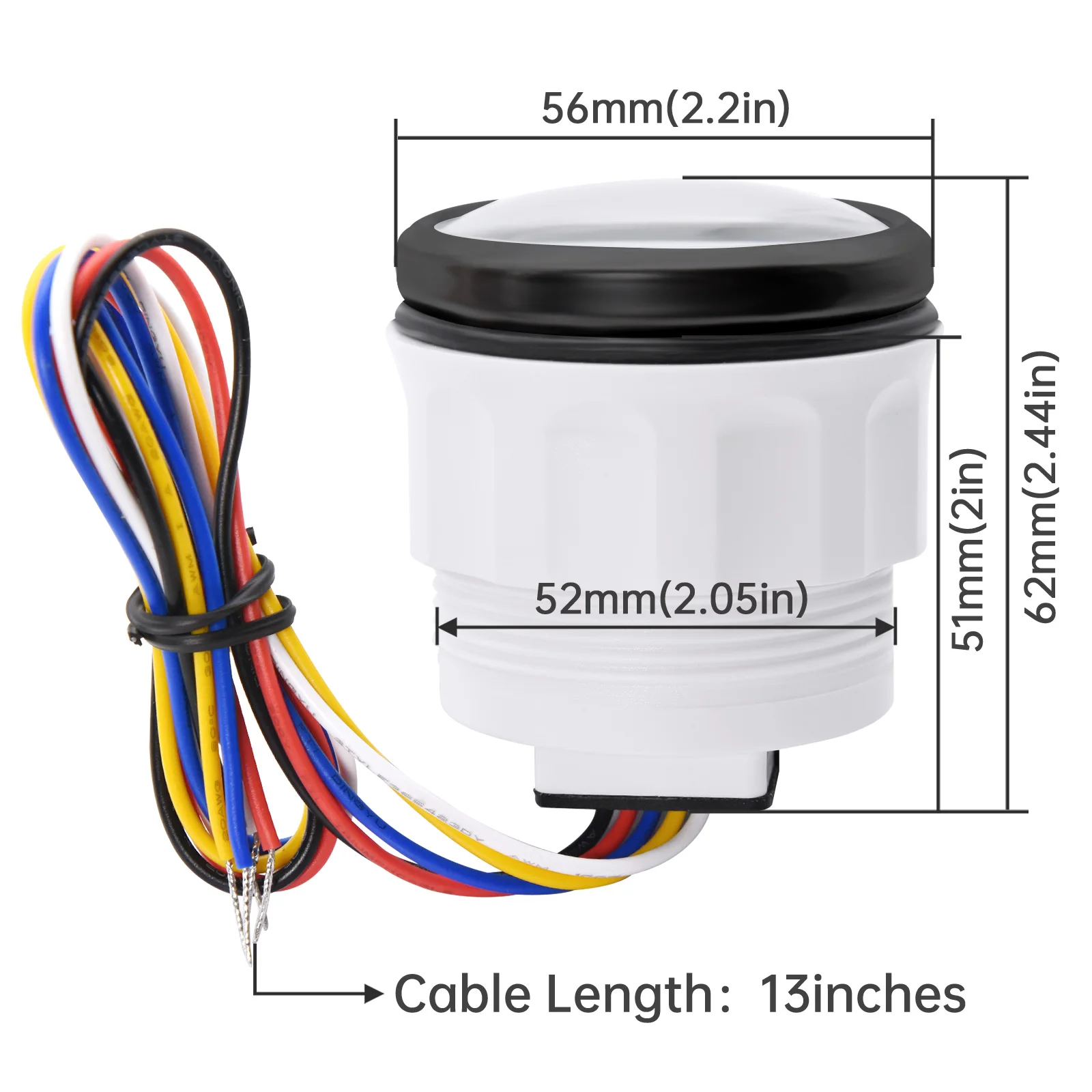

- Fixing dimension: 52mm or 2-1/16"

- Operating Voltage: 9-32V /fit 12V-24V

- Materials: Plastic

- Input signal:0~190ohm (European standard),

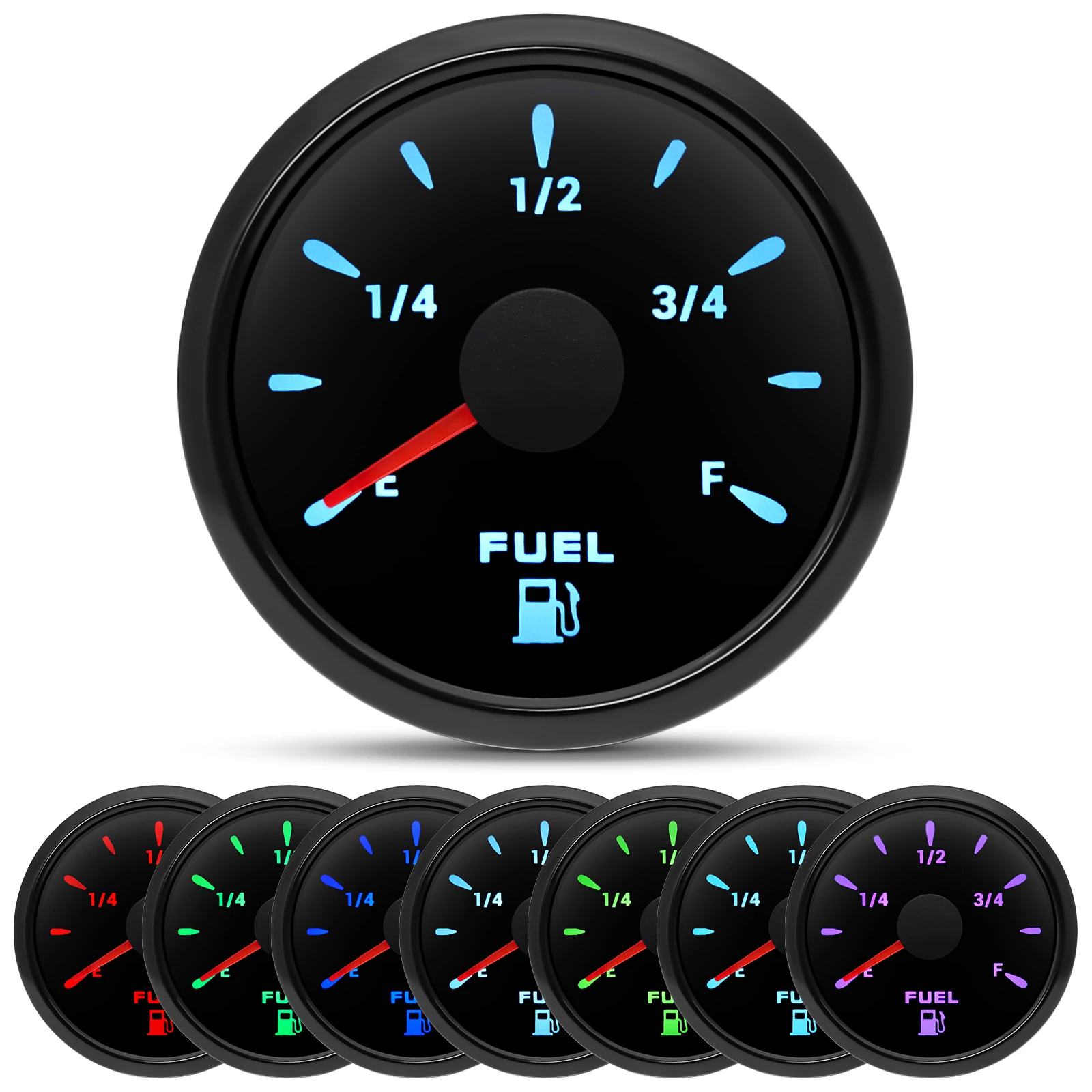

-Backlight Color: 7 Color Light

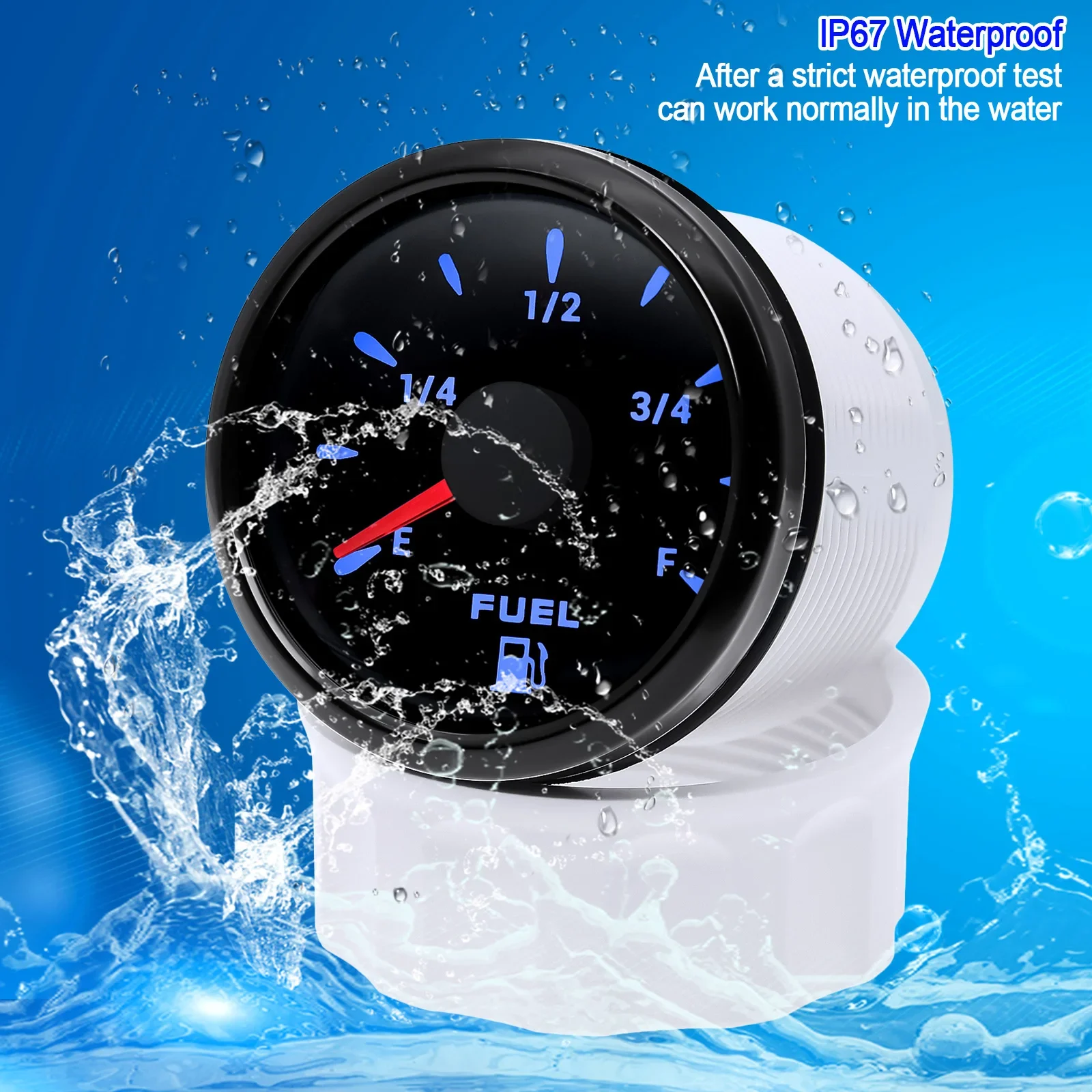

- Waterproof IP67

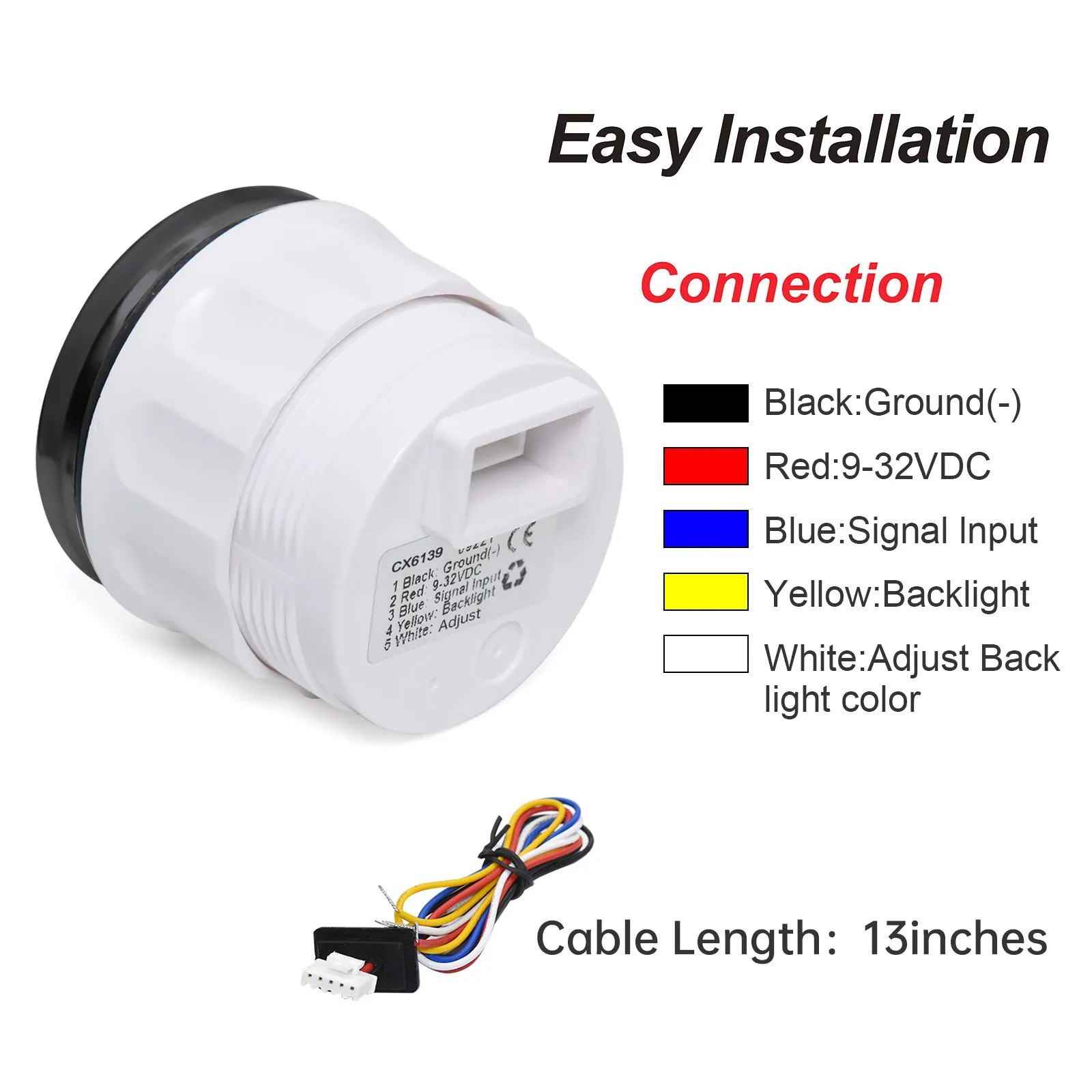

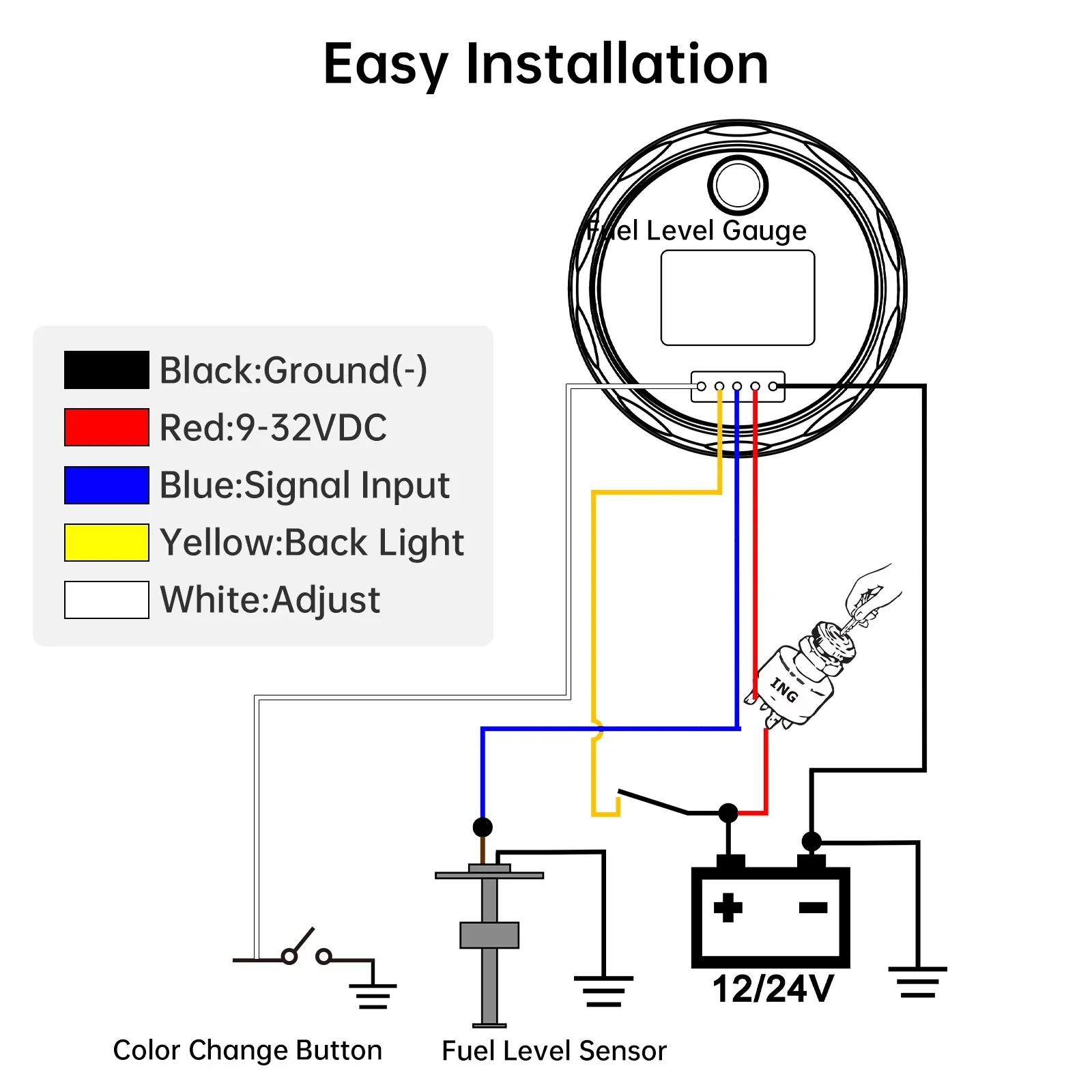

Gauge Connection:

- Red line Connect to Battery+(9-32VDC)

- Blue Line Connect to Sensor Signal Line

- Black Line connect to Battery -

- Yellow Line connect to Battery+(9-32VDC)

- White Line is adjust the color of backlight when touch the battery -
