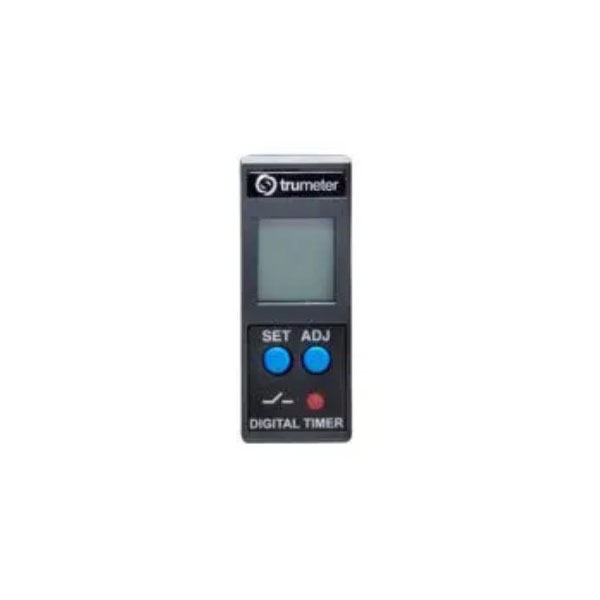

Trumeter TS7957 Multi-Function Digital Timer 18 Functions 1 C/O 24 240VAC/DC

The Trumeter 7957 is a multi-function digital time relay, offering 18 operating modes which can be easily configured on the 3 digit LCD display. The 7957 features a wide timing range of 0.1 second to 999 hours to suit all applications with a clear indication of the changeover relay status via the front panel LCD. The 7957 comes in a compact 17.5mm DIN-Rail mountable case and can accept a wide range of operating voltages for most installations. In addition, the 7957 is tamper-proof due to the key lock feature, meaning 100% reliable operation.
Features: Compact 17.5mm DIN rail mountable 3 digit LCD for easy programming Tamper proof with key lock feature Wide timing range: 0.1 seconds to 999 hours Multi-function: 18 non-signal and signal based functions Multi-voltage: 24 to 240VAC/VDC Option to select up/down counting CE, UL and cUL approved Operating Modes: ON Delay Cyclic OFF/ON Cyclic ON/OFF Impulse on Energizing Accumulative Delay on Signal Accumulative Delay on Inverted Signal Accumulative Impulse on Signal
