Please note that there are different options in this link, each of which includes all the parts in the list. Please confirm before placing an order. Thank you.
Feature：
◆Ebike Conversion Kit includes all necessary components for installation; Motor/Wheel, controller, LCD display, throttle, brake levers, pedal assist sensor, torque arm, and cable ties. Tire/battery is not included.
◆Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs; drive system without moving chains or gears for anti-friction; HD LCD display shows all the essential information such as battery percentage, speed, total and single trip distance, wattage, PAS levels, and error codes for easier troubleshooting.

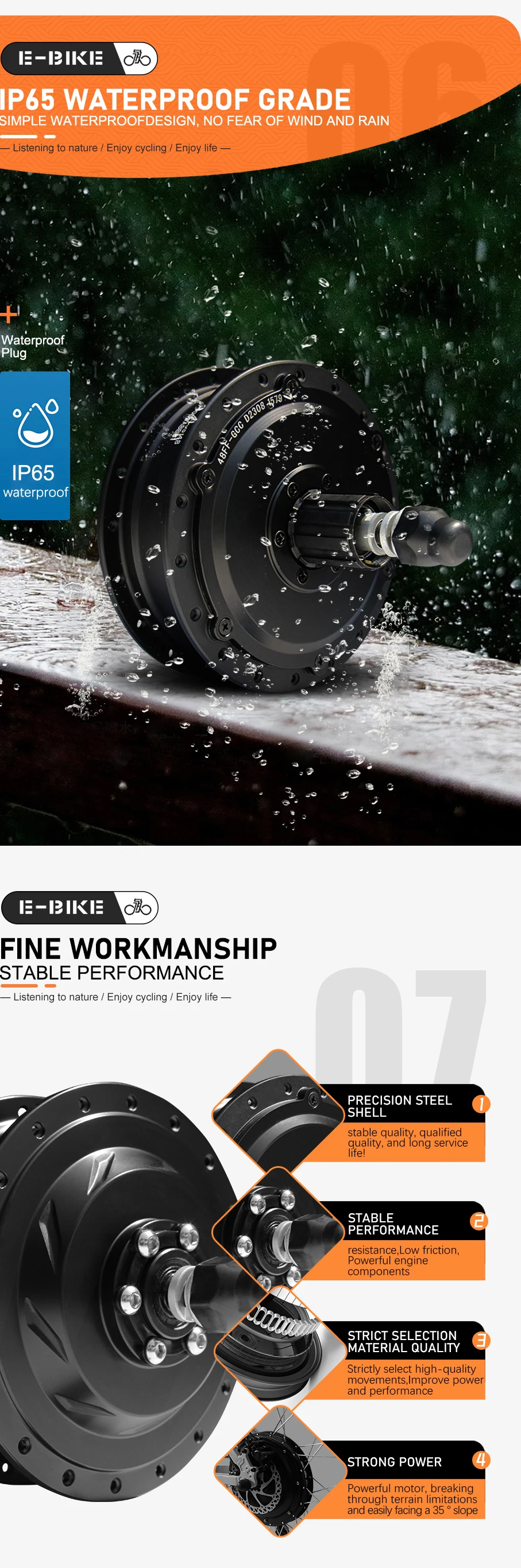

36V 48V 250W Rear Hub Motor
◆Construction:Gear drive
◆Rated Speed(KM/H): 25-28km/h
◆Rated Speed(rpm): 207-270RPM
◆Torque(N.m):29-31.2N.M
◆Fork size(mm):142mm
◆Installation: Rear
36V 48V 350W Rear Hub Motor
◆Construction:Gear drive
◆Rated Speed(KM/H): 28-30km/h
◆Rated Speed(rpm): 231-270RPM
◆Torque(N.m):31.8-33N.M
◆Fork size(mm):142mm
◆Installation: Rear
36V 48V 500W Rear Hub Motor
◆Construction:Gear drive
◆Rated Speed(KM/H): 30-32km/h
◆Rated Speed(rpm): 265-325RPM
◆Torque(N.m):60-63N.M
◆Fork size(mm):142mm
◆Installation: Rear

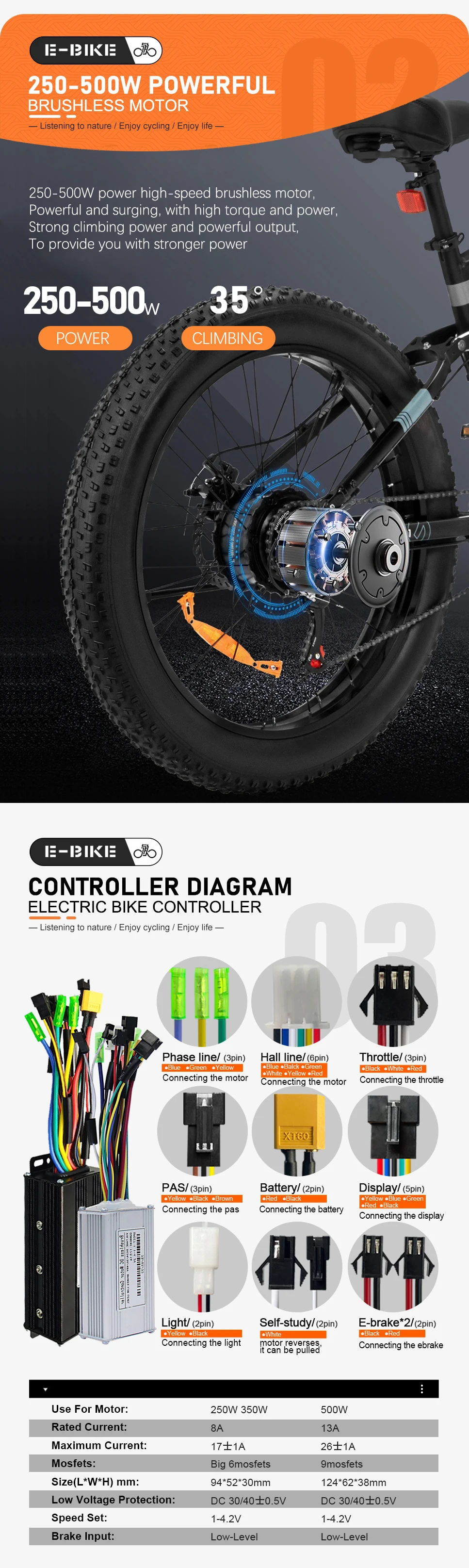

17A controller detail:
Use for 250/350W motor
◆Size:95*53*30 mm
◆Weight:198g
◆Mosfets:6 mosfets
◆Maximum current:17±1A
◆Rated voltage:DC36V/48V
◆Rated current:8A
26A controller detail:
Use for 500W motor
◆Size:124*62*38 mm
◆Weight:348g
◆Mosfets:9 mosfets
◆Maximum current:26±1A
◆Rated voltage:DC24V/36V/48V
◆Rated current:13A
Packaging List
Noted:Conversion Kit not include Battery
●1 PCS * Rear Hub Motor with Rim and Spokes
●1 PCS * Controller

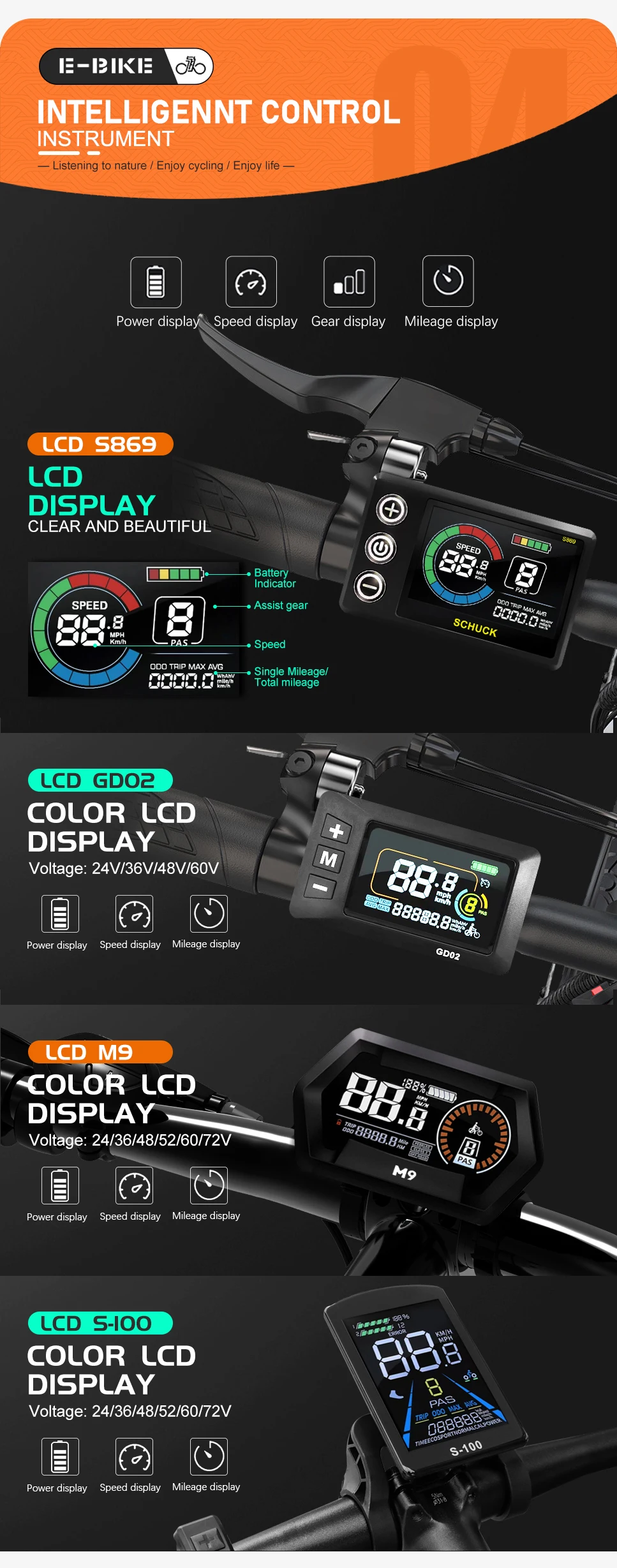

●1 PCS * Display(option)

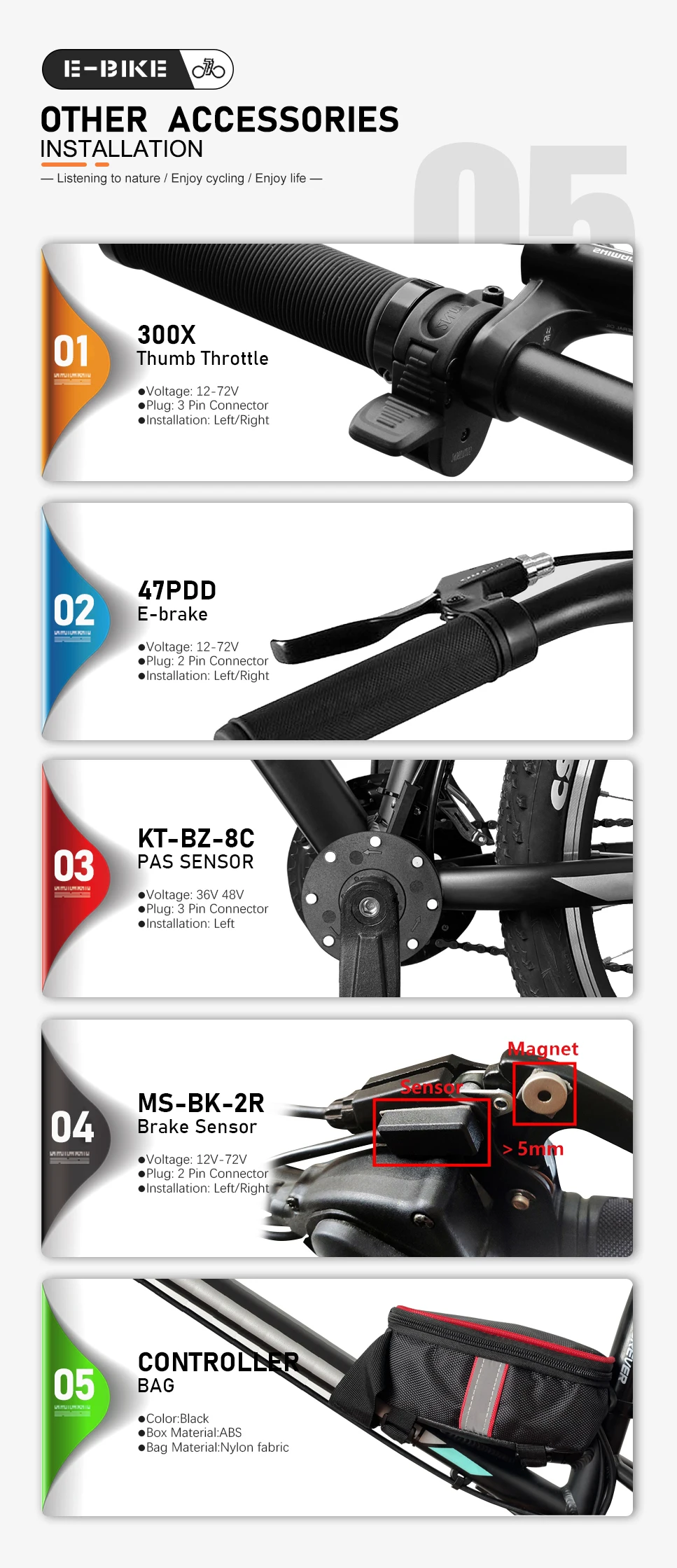

●1 PCS * Throttle (We default to ship thumb throttle, it can be changed to twist throttle if you need)
●1 PCS * PAS Sensor
●1 Pair * Brake Lever Cut Off Power
●1 Pair * Brake Sensor
Gifts: 1 * Controller Bag+1*Install cable ties and stretch film+1*Installation Manual+1*gloves+1*glasses+1*masks
