Techme17
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Description:
100% New and High Quality
Direct Replacement
1 Year Warranty

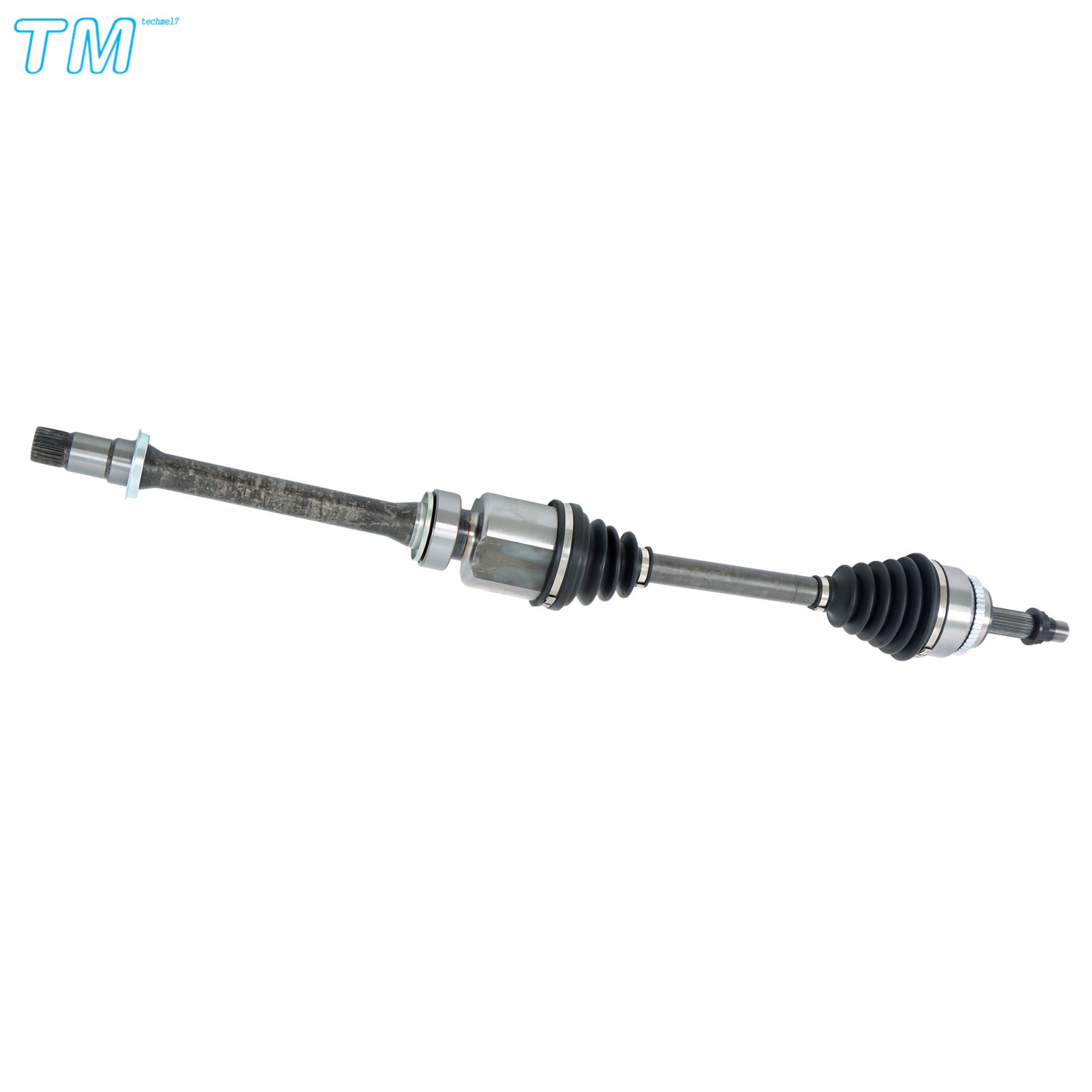

Type: CV Axle Assembly
Location: Front Passenger Side
Product Specifications:
ABS Ring Included: Yes
Axle Features: ABS
Axle Nut Hex Size: 1.18 in / 30 mm
Axle Nut Included: Yes
Axle Nut Locking Type: Open Groove
Axle Nut Thread Size: M22 x 1.5
Cotter Pin Included: No
Hardware Included: No
Hazardous Material: No
Inboard Clip Included: No
Surface Finish Black Coating
Input Shaft Connection Style: Spline
Output Shaft Connection Style: Spline
Number of Inboard Splines: 24 Teeth
Number of Outboard Splines: 26 Teeth
Overall Compressed Length: 38.06in
Note: The measured length is the compressed length, and the axis is extendable. When you receive it, the shaft may not fully extend, which will not affect normal installation and use. Please check the length before purchasing
Features:
Enhanced durability - using heat-treated steel universal joints, which have a longer lifespan than ordinary parts.
Silent operation - precision balancing technology reduces vibration and abnormal noise during driving.
Anti corrosion treatment - special surface coating to extend service life and adapt to various road conditions.
Smooth transmission - reduces vibration and noise, improves driving comfort.
Fast delivery - Orders are shipped on the same day to ensure you receive them as soon as possible.
OE Number:
66-5247, 60-5247, 66-5247HD, 4341006221, 4341006231, 4341006460
4341006570, 4341006580, 434100W061, 434100W071, 434100W081
434100W091, 4341033290, 4341048070, 4341048071, NCV69578
Fitment:
For Toyota Camry 2002-2009 L4 2.4L Front Right
For Toyota Highlander 2001-2007 L4 2.4L Front Right FWD
For Toyota Solara 2004-2006 L4 2.4L Front Right
For Toyota Solara 2007-2008 L4 2.4L Front Right Manual Trans
Note-1: For Toyota Highlander fit for FWD, not fit for AWD
Note-2: For Toyota Solara 2007-2008 fit for Manual Trans, not fit for Automatic Transmission
Package Include:
1 × Front Right CV Axle Shaft
W/O Product Instruction
Notes:
Instruction is not included. Professional installation is highly recommended！
Not sure of fitment, please feel free to contact us.
Please check pictures, vehicle compatibility, OE number and product description to ensure the fitment.
| Item Specifics | |
|---|---|
| Country of Origin | United States |
| Brand | techme17 |
| Manufacturer Part Number | 610092 |
| Interchange Part Number | 66-5247/60-5247/66-5247HD/4341006221/4341006231/4341006460 |
| Type | CV Axle Assembly |
| Placement on Vehicle | Front/Right |
| OE Part Number | 4341006570/4341006580/434100W061/434100W071/4341048071 |
| Manufacturer Warranty | 1 Year |
| Fitment Type | Direct Replacement |
| Universal Fitment | No |
| Performance Part | Yes |
| ABS Ring Included | Yes |
| Axle Features | ABS |
| Surface Finish | Polished/Rust Protected |
| Axle Nut Hex Size | 1.18 in / 30 mm |
| Superseded Part Number | 434100W081/434100W091/4341033290/4341048070/NCV69578 |
| Axle Nut Included | Yes |
| Axle Nut Locking Type | Open Groove |
| Axle Nut Thread Size | M22 × 1.5 |
| Cotter Pin Included | No |
| Hazardous Material | No |
| Inboard Clip Included | No |
| Input Shaft Connection Style | Spline |
| Input Shaft Connection Style | Spline |
| Output Shaft Connection Style | Spline |
| Number of Inboard Splines | 24 Teeth |
| Number of Outboard Splines | 26 Teeth |
| Overall Compressed Length | 38.06in |
| Model | For Toyota Camry/Highlander/Solara |
| Year | 2001-2009 |
| Engine | L4 2.4L |
| Note-1 | For Toyota Solara 07-08 fit for Manual Trans, not fit for Auto |
| Note-2 | for Toyota Highlander fit for FWD, not fit for AWD |
