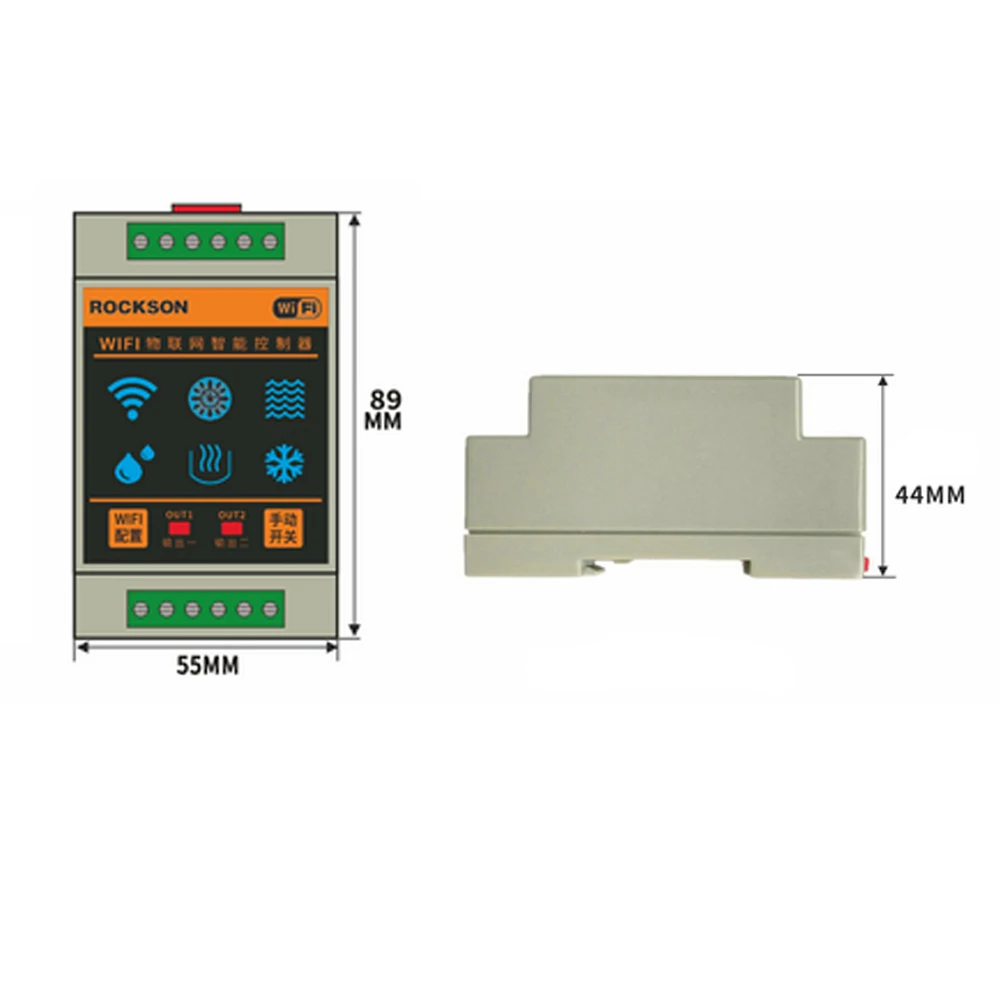

External Dimensions (mm): 89 (L) x 55 (W) x 44 (H)
Mounting Method & Dimensions (mm): Standard 35mm DIN rail mounting
Power Supply & Power Consumption: Default AC 220V; <2W, customizable for other voltages
Display Method: App-based display
Temperature Control Range and Accuracy: -39°C to 140°C, ±1°C accuracy, 0.1°C display resolution
Water Level Control Range: Full Level: 25%, 50%, 75%, 100%. Top-up Level: 25%, 50%, 75%, 100%
Output:
1. Two relays with normally open outputs (switching signals);
2. Contact current rating: 10A for resistive loads, 2A for inductive loads. Capable of controlling 2000W resistive loads or 500W motors/pumps. Higher loads require AC contactor expansion.
Relay Life: 100,000 cycles
Operating Environment: -10°C to 50°C
Wireless Standard: Wi-Fi 2.4GHz B/G/N
Parameter Memory: Settings retained permanently during power loss; supports offline operation
