INSTALLATION GUIDE

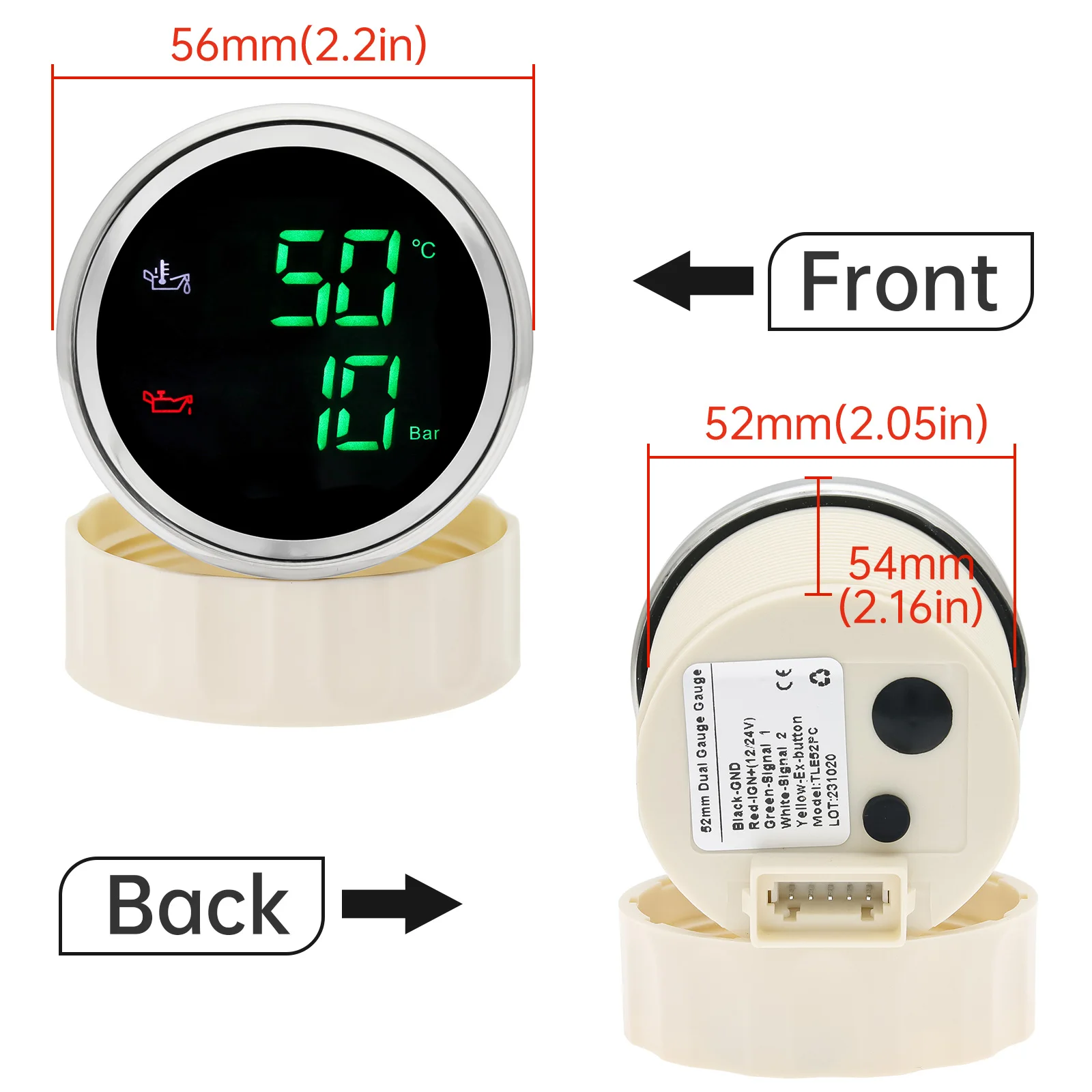

1. Cut an Φ52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16”). behind the panel.
2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)
3. Connect cables according to the diagram/label.

Setting Menu：“Unit” “R 1” “R 2”

1.Hold & Press the button, Power On Gauge, the LED screen will show Switch Show
Unit, R1, R2
2.Unit
Fuel Gauge, Water Level, HTG Sewage Level: %
Water temperature: ℃ or ℉ (Press button to switch)
3.R1---Configure Top Row Signal Range
Press Button to switch 007

For example, LED will show 007, which means 323 - 19 Ohm, then release the button and wait digital flash to complete to save setting
4.R2---Configure Bottom Row Signal Range
Press Button to switch 008.
For example, LED will show “008” , which means 10~184Ω, then release the button and wait digital flash to complete to save setting

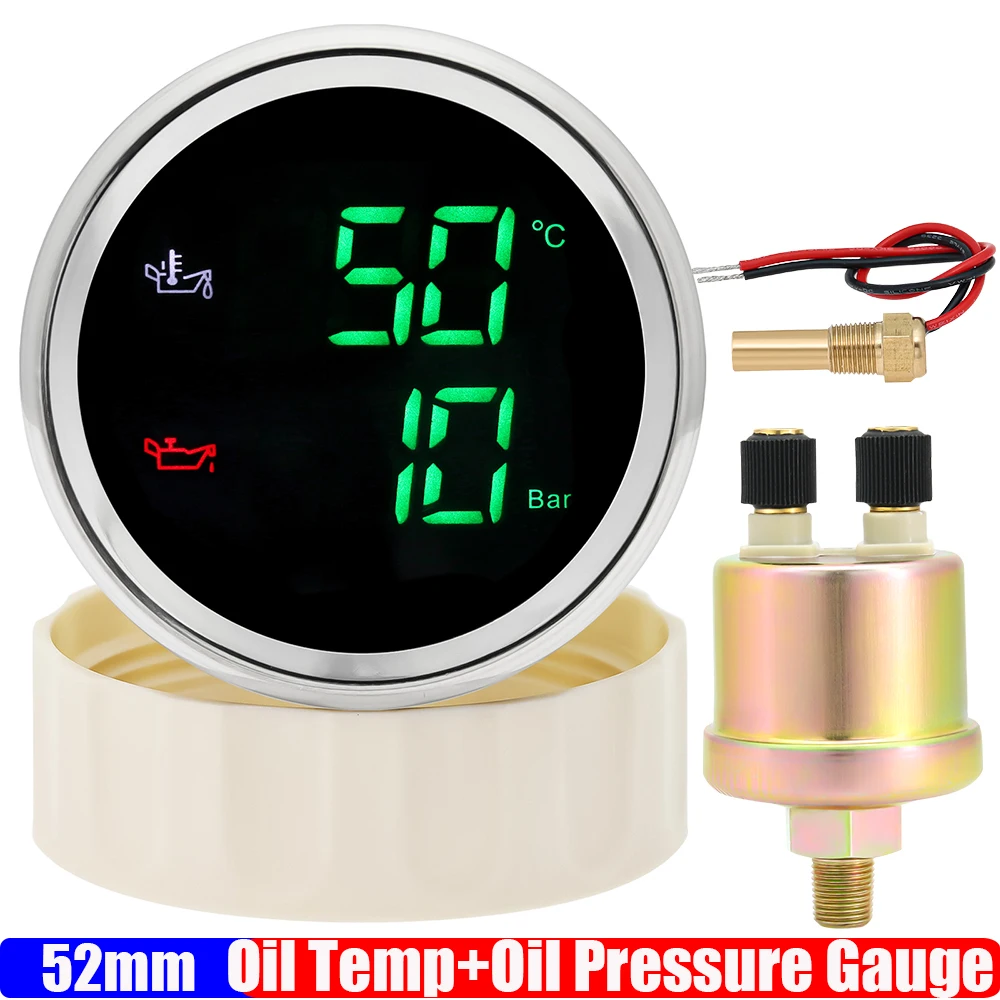

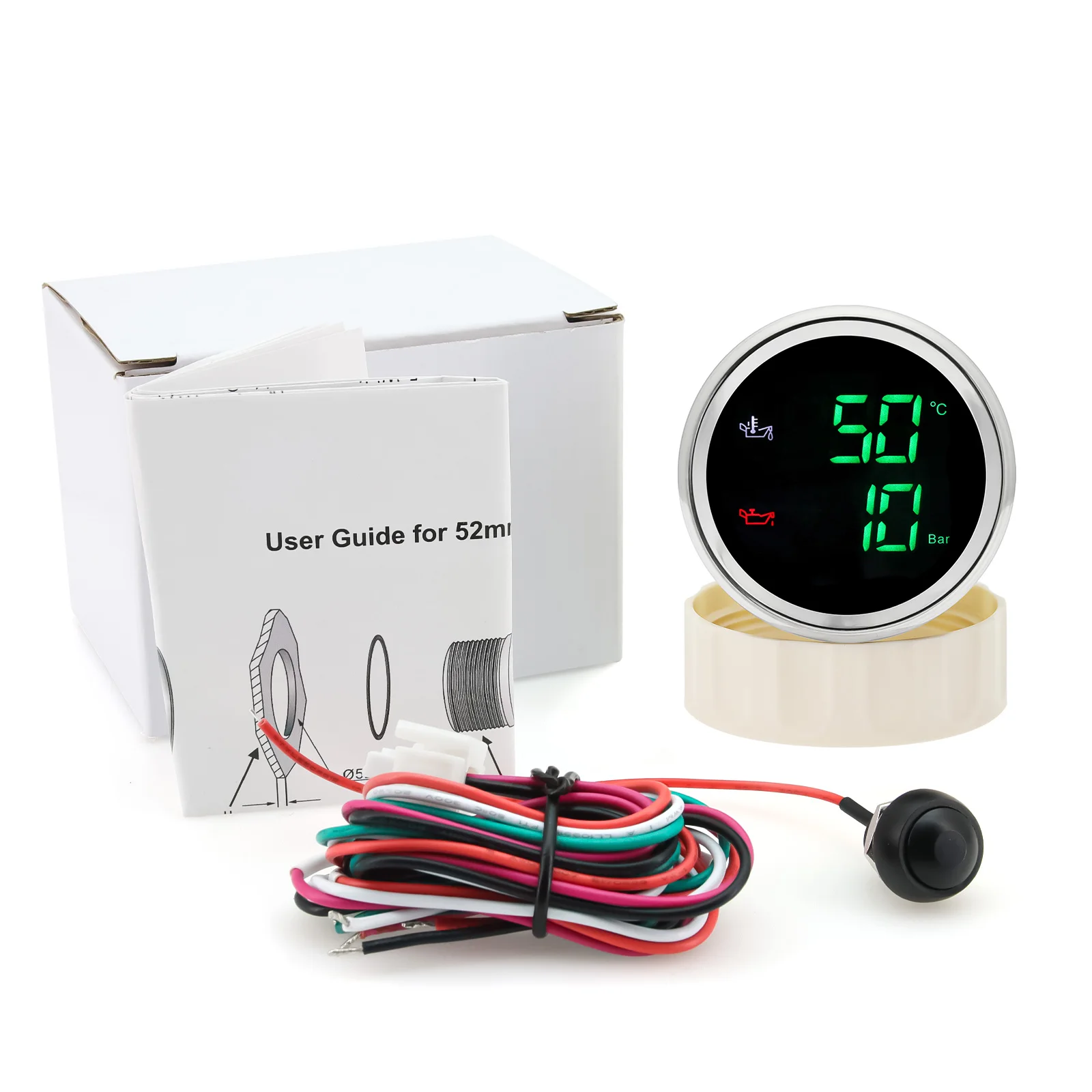

Feature:

- Oil Temperature Range: 50~150 Celsius
- Oil Pressure Range: 0~10 Bar
- Fitment: for Universal Vehicle 12V 24V
- Alarm set: Oil Temperature ≥120±2Celsius
Oil Pressure: ≥8 Bar

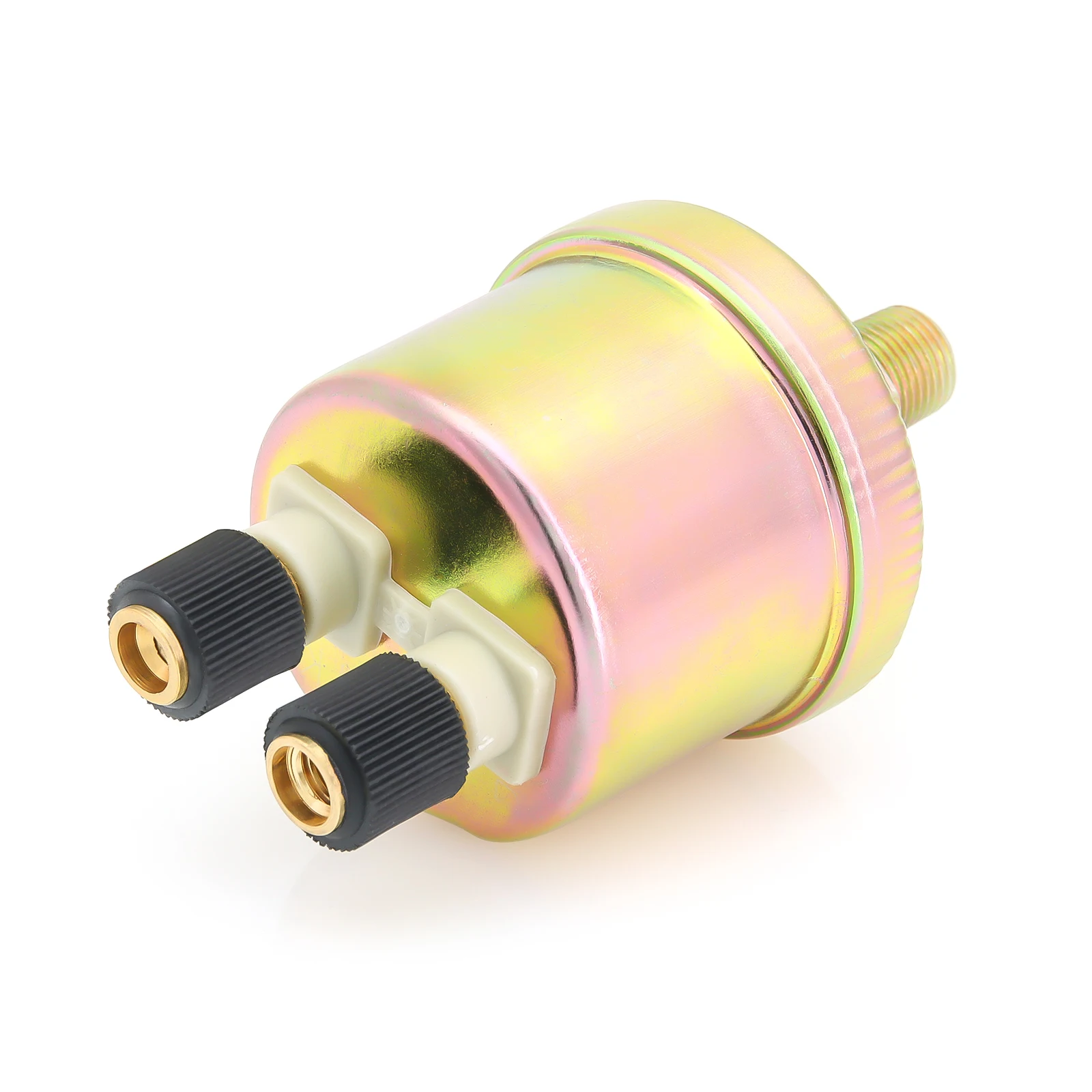

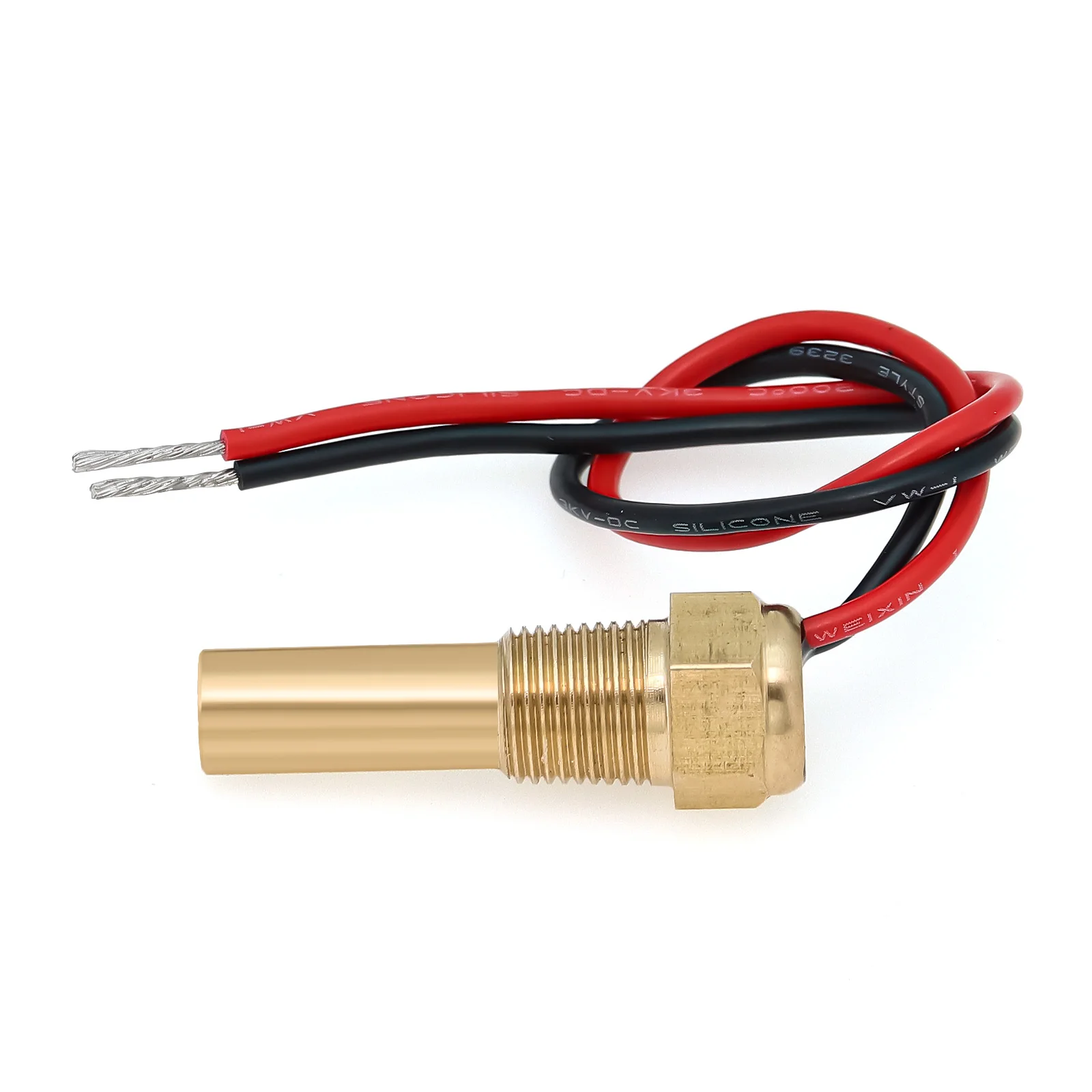

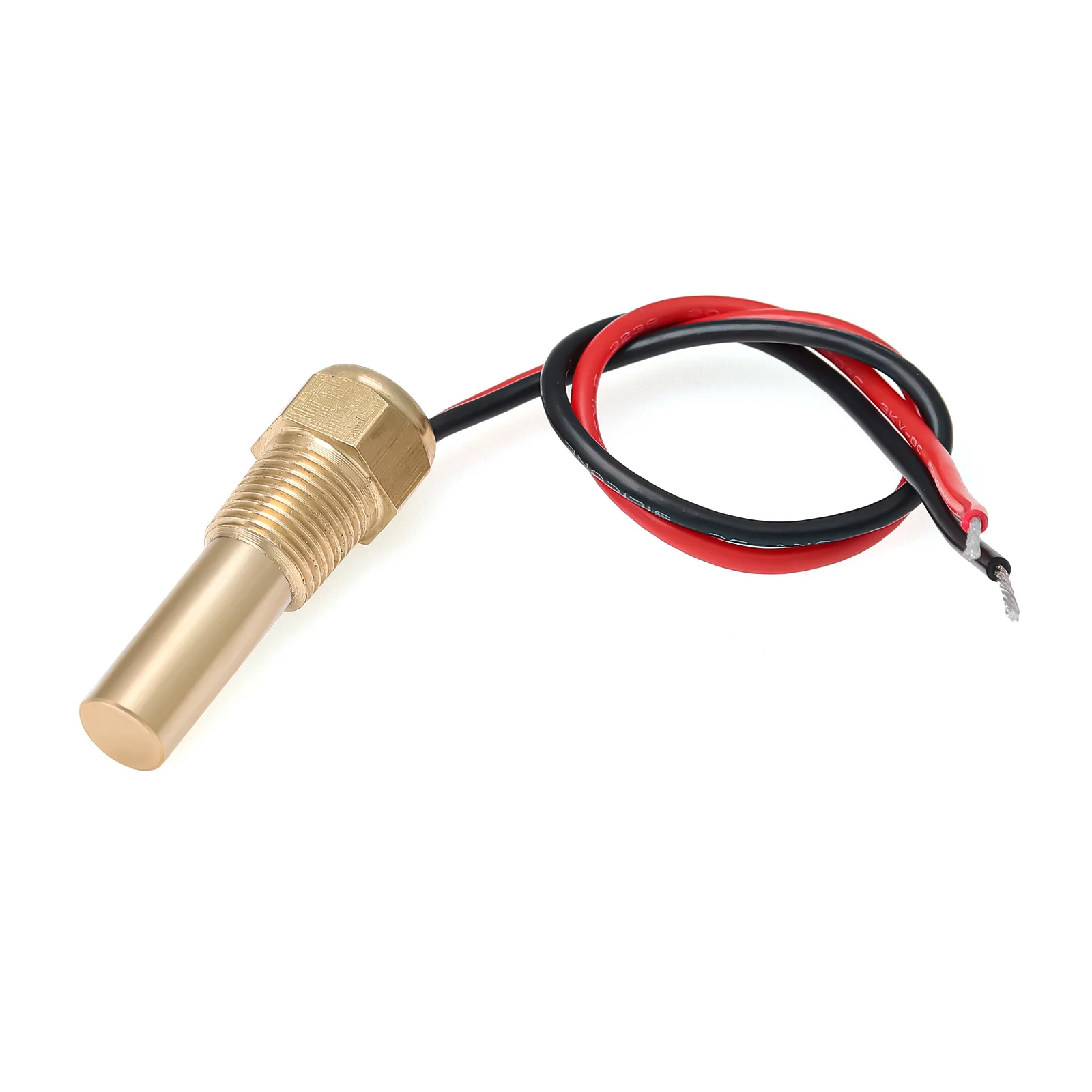

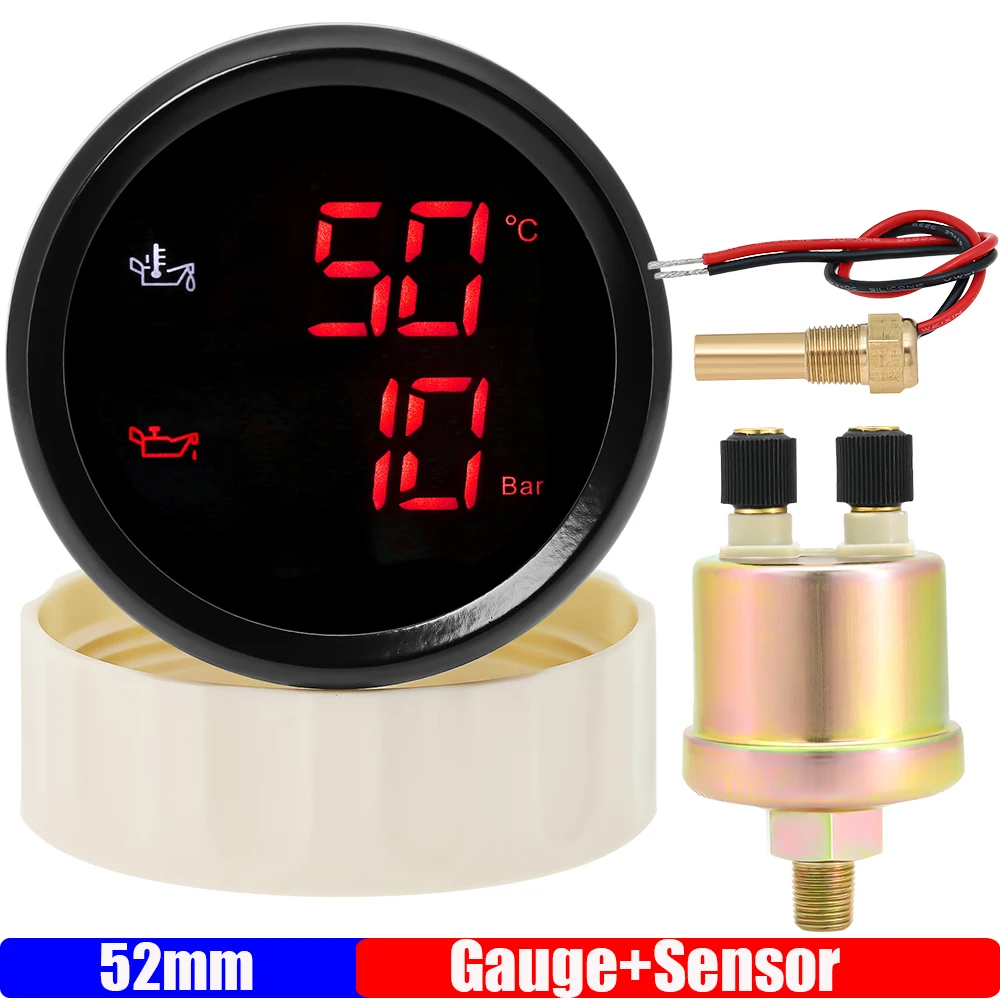

- Oil Temperature Sensor: 1/8NPT

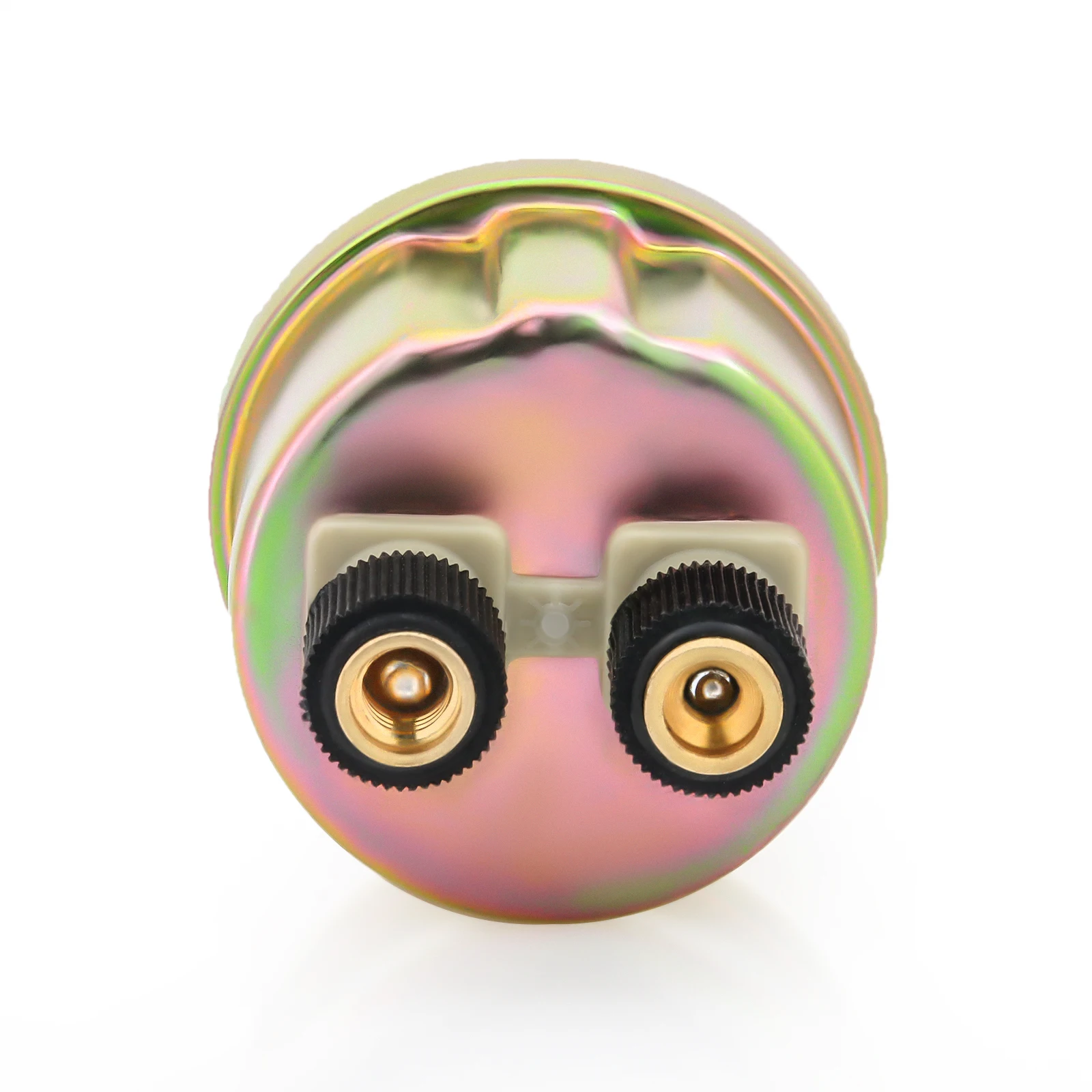

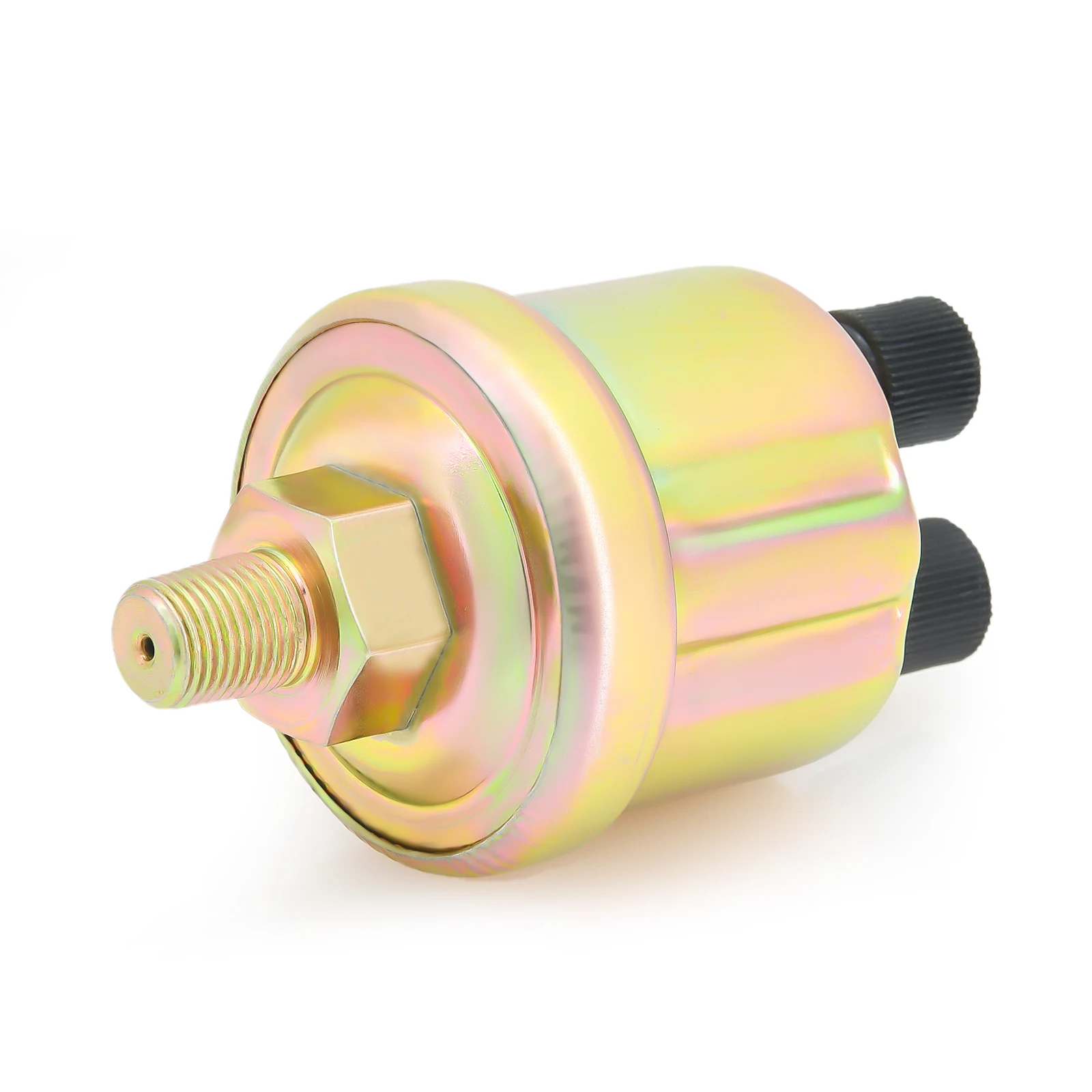

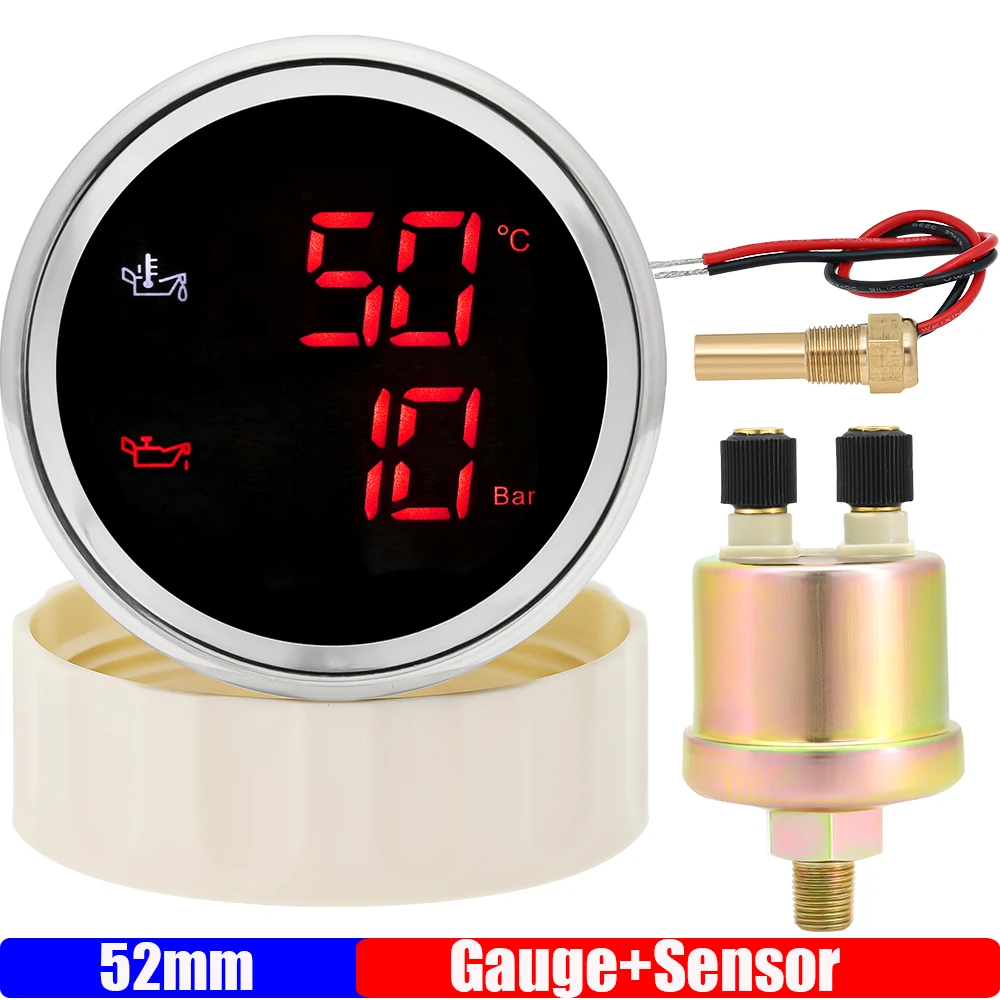

- Oil Pressure Sensor: 1/8NPT

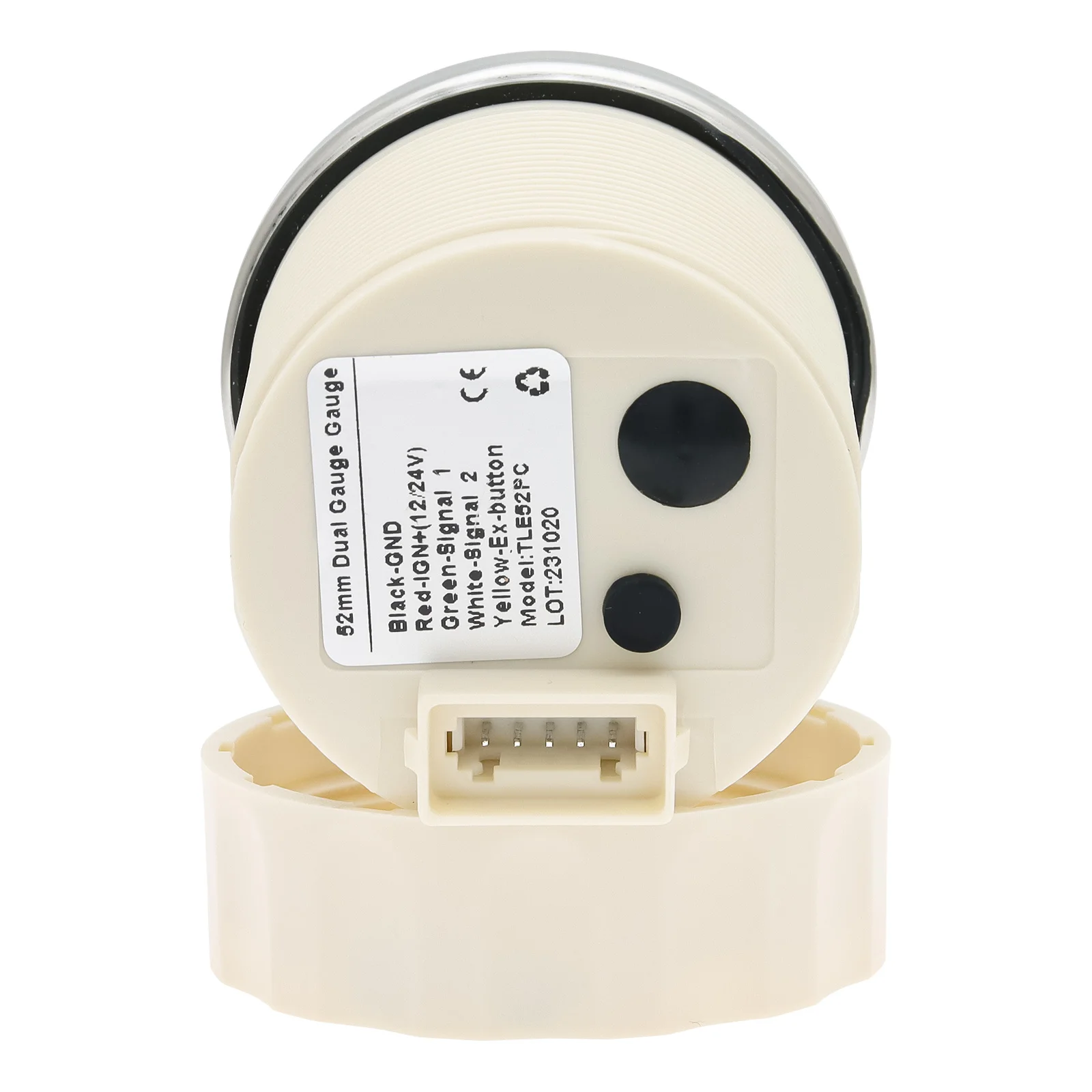

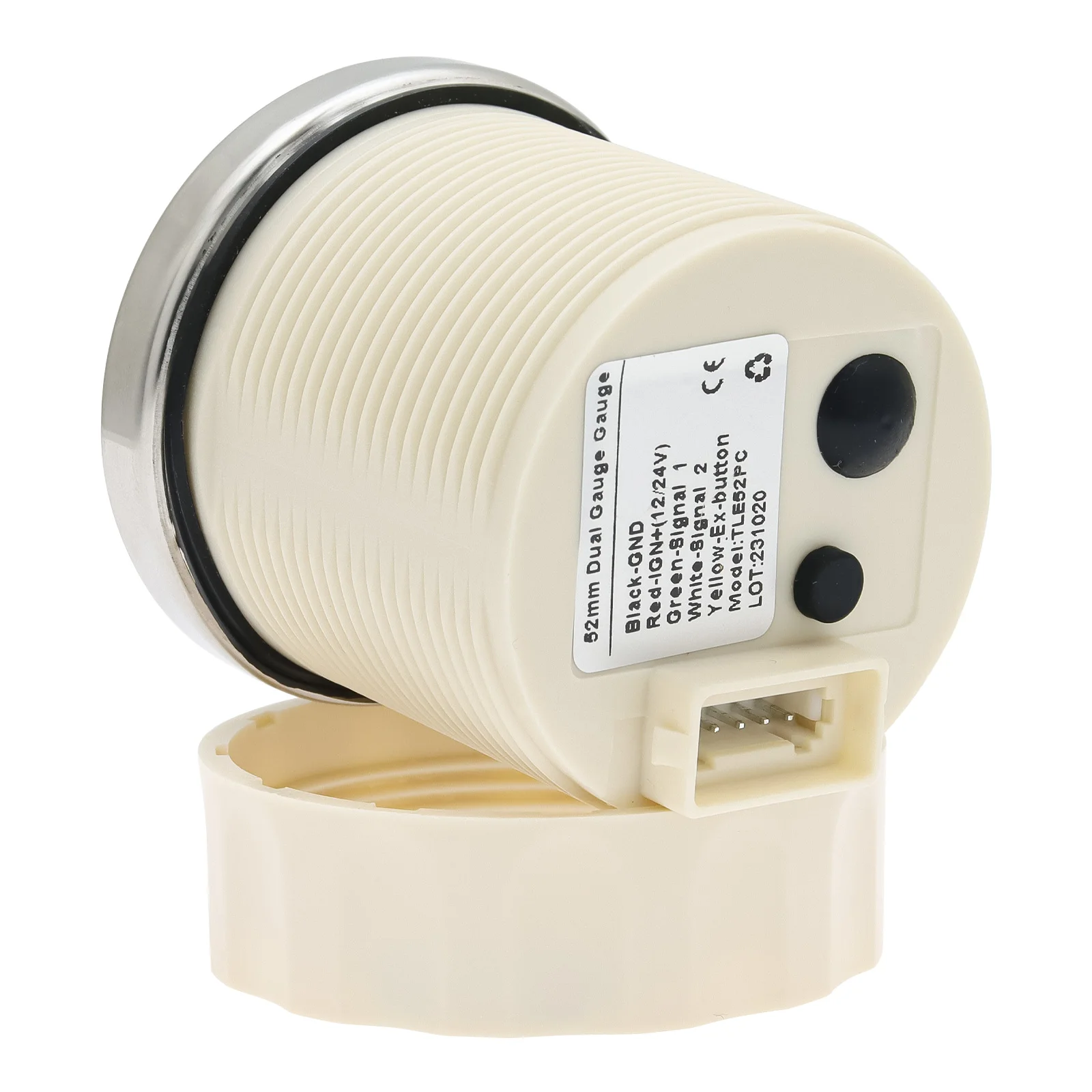

Connection:

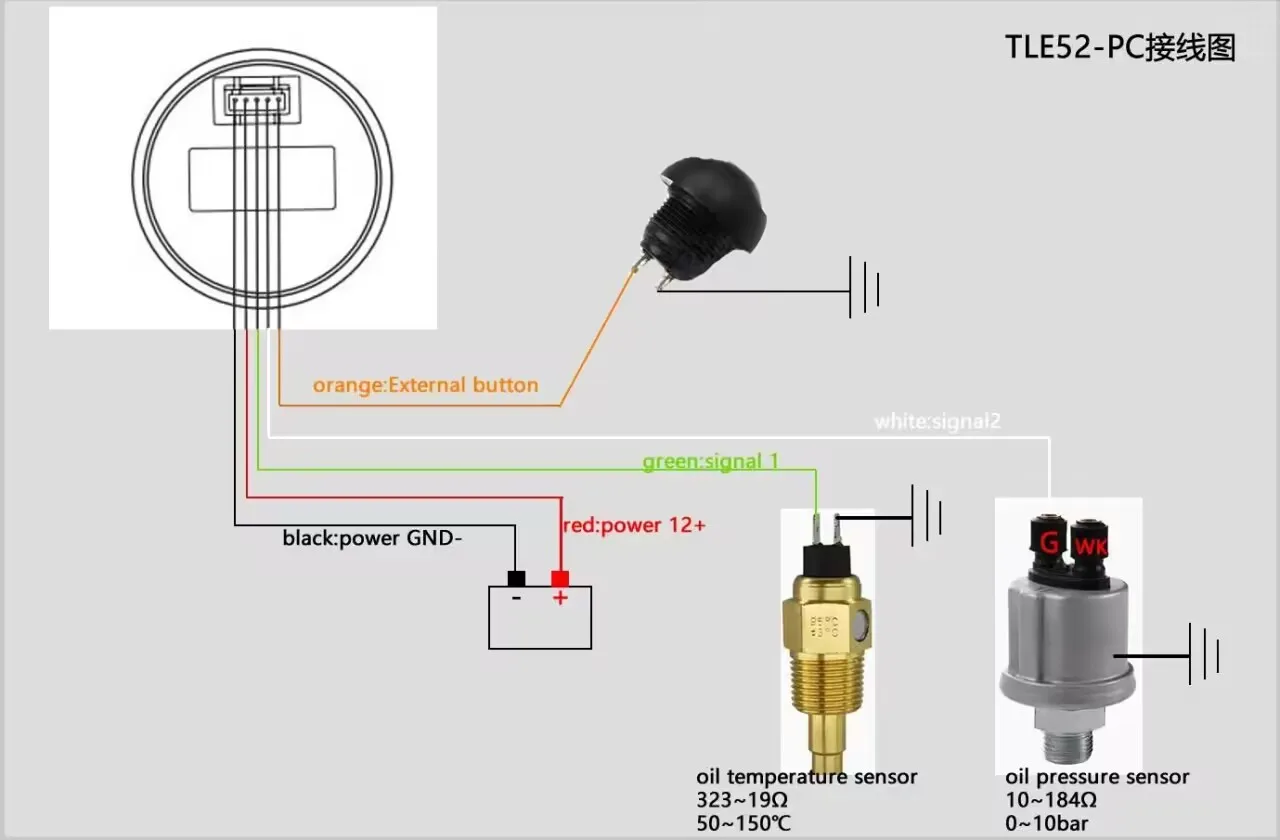

Black line connect to the GND(-)
Red line connect to the +

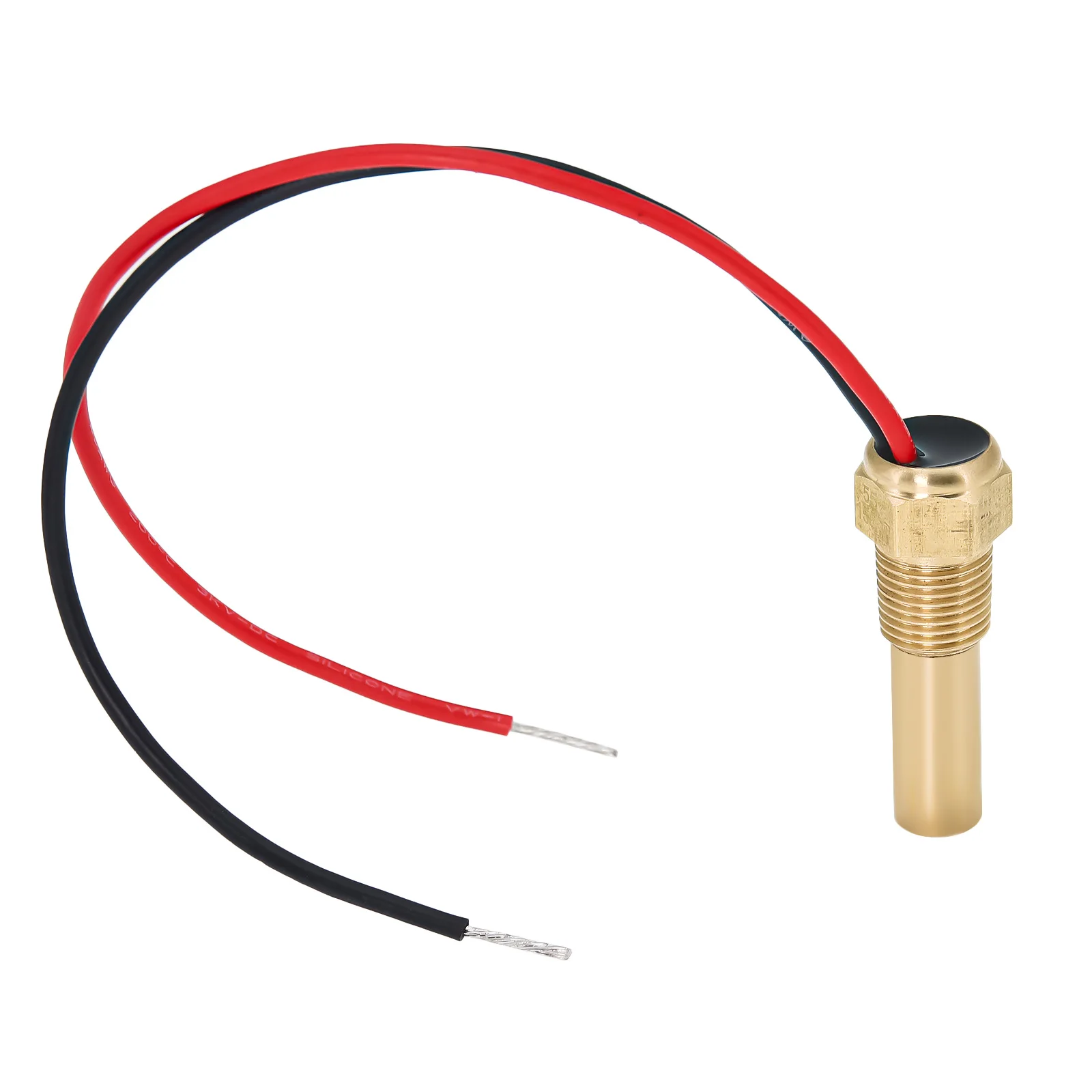

Green line connect to the oil temp sensor signal line
white line connect to the oil pressure signal line
Yellow line is connect to the button( for exchange the BAR/PSI)
